Kuhn FC 9530 D-FF Mower()
- Listing No
- 1040397
- Year
- Manufacturer
- Kuhn
- Model
- FC 9530 D-FF
- Condition
- Used
- Location
- Lithuania
- Price
- $72,000
- Description
-
Used KUHN FC 9530 R-FF rear mower (butterfly) and KUHN FC 3525 R-FF front mower combination, year of manufacture 2024. The machines are in very good working condition and fully prepared for work. KUHN FC 9530 R-FF rear mower: Working width in combination with front mower: 9.53 m Overlap between front and rear mowers with 3.10 m front mower: 30–50 cm Overlap between front and rear mowers with 3.50 m front mower: 50–70 cm Transport width: 2.95 m Cutterbar: OPTIDISC ELITE Number of discs (individual mower width): 2 × 8 Quick-change blades: FAST-FIT Cutting height with standard skids: 35 to 65 mm Bearing protection with shear hub: PROTECTADRIVE Ground following system: pendulum type Suspension: LIFT-CONTROL hydropneumatic Non-stop protection system Conditioning system: SQUAREFLEX with two polyurethane rollers Conditioner speed: 780 rpm Average swath width: 2 × 1.85 / 2.4 m Wide spreading system: standard Headland management: hydraulic cylinder Function control: lifting and transport position Hitch: three-point linkage Cat. III and 4N Parking position: folded or unfolded on parking stands PTO speed: 1000 rpm Overload protection: standard Slip clutch: integrated in side skids Required tractor power: 154 kW / 210 HP Required tractor hydraulic connections: 2 double-acting Required tractor electrical connections: 1 × 7-pin socket Road lighting system: standard Rear mower weight: 3330 kg PTO shaft: 1 3/8" 6 Side skids for cutting height adjustment: 45–85 mm KUHN FC 3525 R-FF front mower: Working width: 3.5 m Transport width: 3.48 m Cutterbar: OPTIDISC ELITE Number of discs with protective skids: 8 Blade fastening: FAST-FIT quick-change Cutting height with standard skids: 35 to 65 mm Top-access disc removal: standard Cutterbar protection system with shear hub: PROTECTADRIVE Ground following system: pivoting link arms Suspension: LIFT-CONTROL hydropneumatic Conditioner: SQUAREFLEX with two polyurethane rollers Conditioner speed: 780 rpm Conditioner drive with anti-blocking system Approximate swath width: 1.4 to 2.0 m Headland turning system: hydraulic cylinder Hitch: three-point linkage Cat. II PTO speed: 1000 rpm (clockwise viewed from tractor cab) Slip clutch integrated in gearbox: standard Theoretical required tractor power: 57 kW / 77 HP Required tractor hydraulic connections: 1 single-acting Required tractor electrical connections: 1 × 7-pin socket Outline lighting: standard Approximate weight: 1390 kg PTO shaft: 1 3/8" 6 Side skids for cutting height adjustment: 45–85 mm Machines located in Kaunas, Lithuania Show the whole comment
About this machine

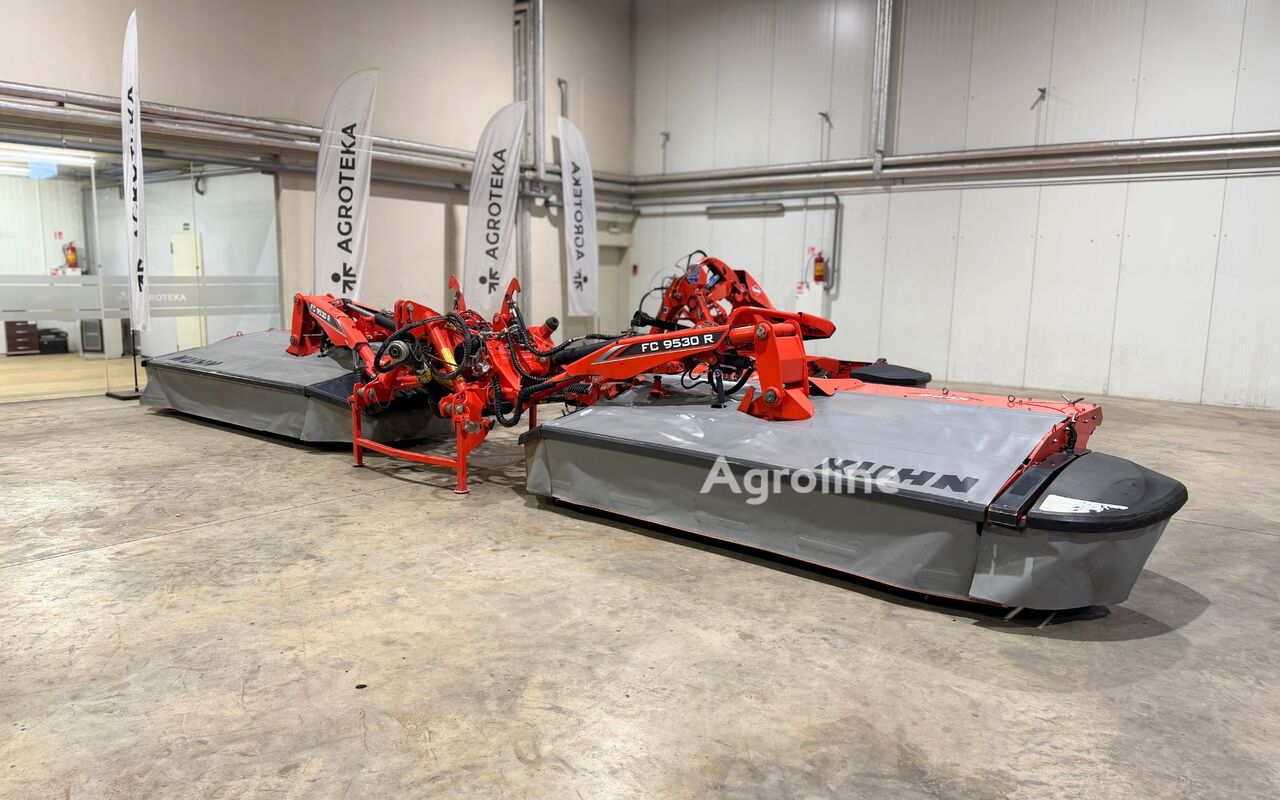

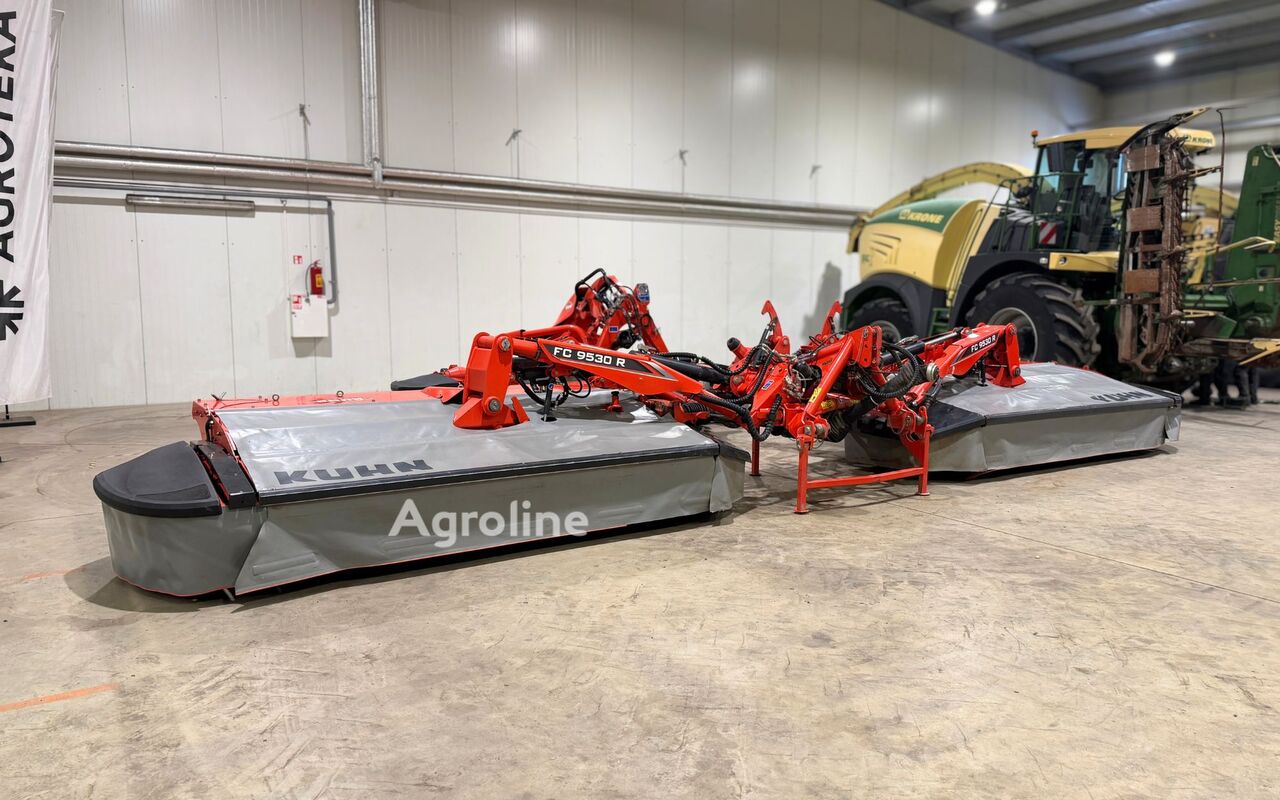

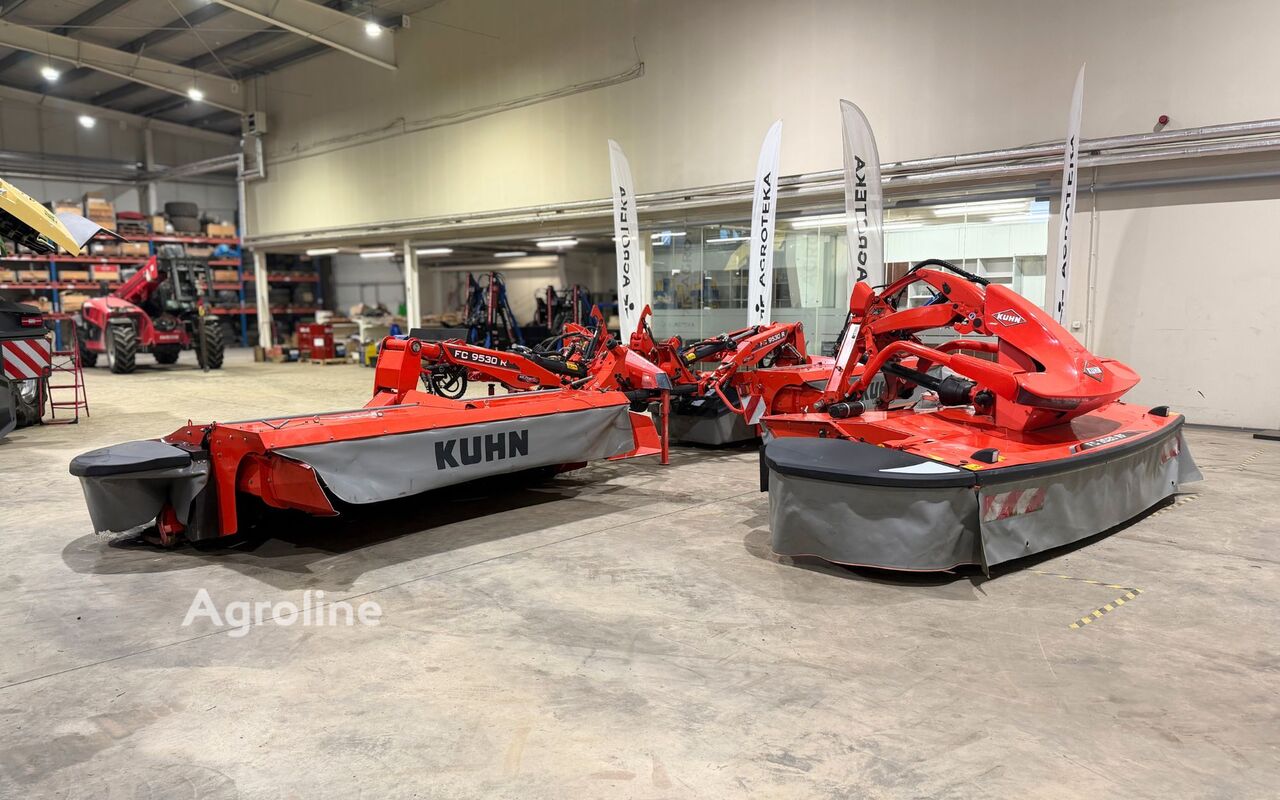

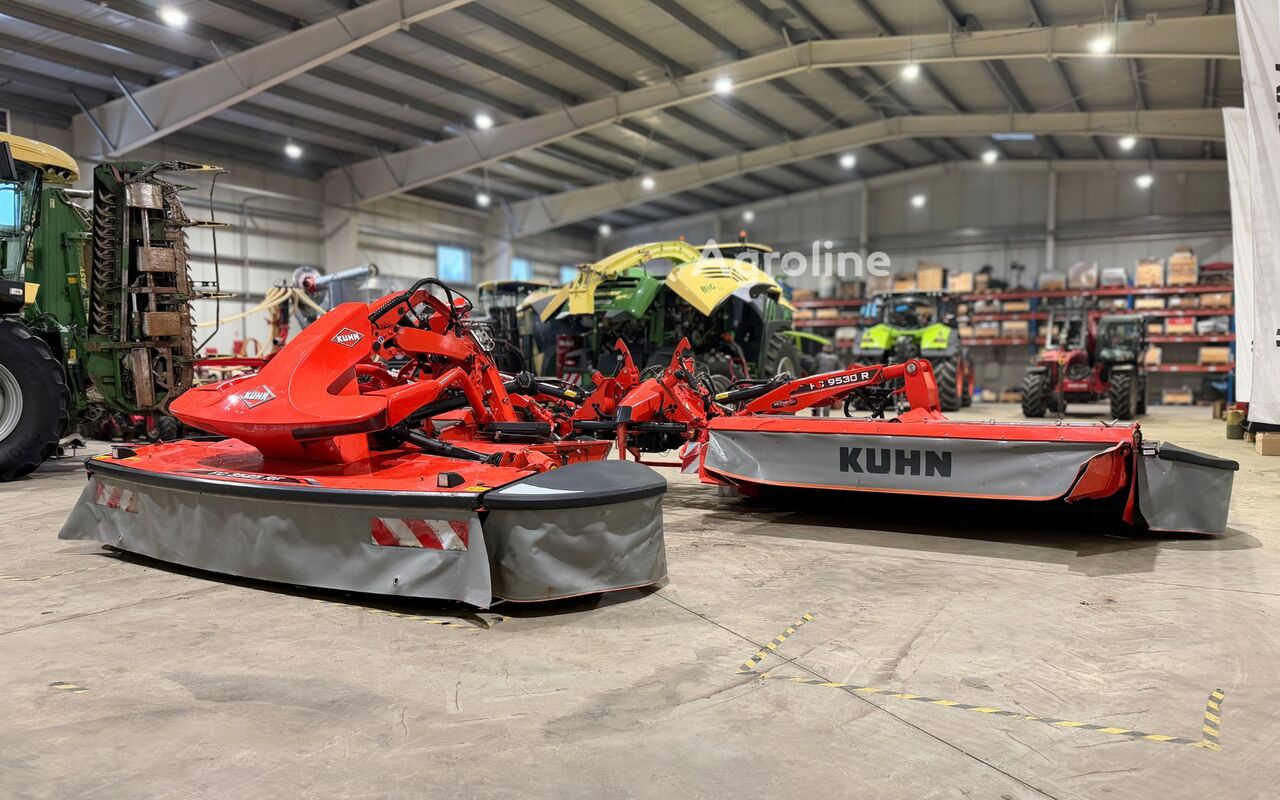

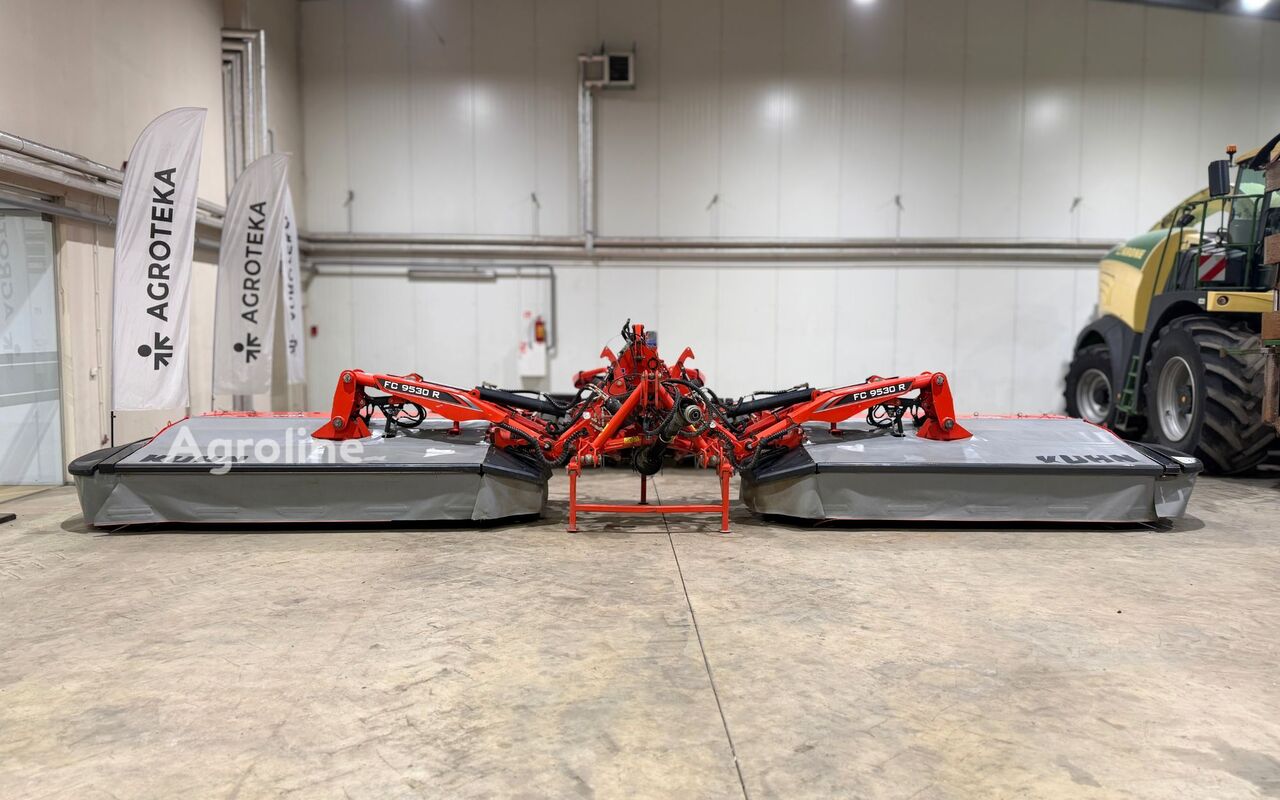

The Kuhn FC 9530 D-FF Mower is a rear-mounted rotary mower manufactured by Kuhn, a leading European producer of hay and forage machinery. This machine is designed for professional grassland management and hay production, offering high-capacity cutting and conditioning in a compact, efficient package. Kuhn manufactures a comprehensive range of mowers, tedders, rakes, and forage equipment for agricultural contractors and farming operations across Europe and beyond.
This listing comprises a matched mower combination: a rear-mounted FC 9530 R-FF butterfly mower paired with a front-mounted FC 3525 R-FF mower. Both units are 2024 manufacture and reported to be in very good working condition, fully prepared for immediate use. This tandem configuration allows simultaneous cutting of a much wider swath than either machine alone, significantly increasing productivity on larger operations.
The rear mower, the FC 9530 R-FF, features a working width of 9.53 metres when combined with the front unit. It is equipped with an OPTIDISC ELITE cutterbar with 16 individual discs (two groups of eight) and FAST-FIT quick-change blade fastening for rapid maintenance. Cutting height is adjustable from 35 to 65 millimetres via standard side skids. The machine incorporates a SQUAREFLEX conditioning system with two polyurethane rollers operating at 780 rpm, producing a swath width of approximately 1.85 or 2.4 metres per side. Protection features include a PROTECTADRIVE shear-hub system, non-stop protection, integrated slip clutch in the side skids, and pendulum-type ground following. Suspension is via LIFT-CONTROL hydropneumatic damping. The rear mower employs a three-point linkage (Category III and 4N) with hydraulic headland management and folds for transport to a width of 2.95 metres. It operates at 1000 rpm PTO and requires 154 kW (210 HP) tractor power, 2 double-acting hydraulic connections, and a 7-pin electrical socket. The machine weighs 3330 kg and uses a 1 3/8" 6-spline PTO shaft.
The front mower, the FC 3525 R-FF, has a working width of 3.5 metres and transport width of 3.48 metres. Its OPTIDISC ELITE cutterbar carries 8 discs with protective skids and FAST-FIT blade fastening. Cutting height adjustment ranges from 35 to 65 millimetres. This unit also features SQUAREFLEX conditioning with two polyurethane rollers at 780 rpm and top-access disc removal. Ground following is via pivoting link arms, and suspension uses LIFT-CONTROL hydropneumatic technology. The front mower mounts via Category II three-point linkage with hydraulic headland turning. It requires 57 kW (77 HP) tractor power, one single-acting hydraulic connection, and a 7-pin electrical socket. The unit weighs approximately 1390 kg and operates at 1000 rpm PTO with a 1 3/8" 6-spline shaft. The combination achieves an overlap of 30–50 cm with a 3.10 metre front mower or 50–70 cm with the 3.50 metre configuration, ensuring complete ground coverage without uncut strips.
Both machines are located in Kaunas, Lithuania and feature standard road lighting systems and slip-clutch overload protection.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
