2001 - Lödige LHC170 Laboratory Equipment()
- Listing No
- 1219718
- Year
- 2001
- Manufacturer
- Lödige
- Model
- LHC170
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
prix: Contactez-nous pour le prix Moteur: SEW Eurodrive 7,5kW Chauffage: via batterie d'air chaud / vapeur Matière de la turbine: AISI 316, poli au grain K240 marque: LODIGE Turbine de pelliculage LODIGE Type LHC170 Volume du tambour partiellement perforé : 550litres Matière tambour AISI 316 poli grain K240 Taille du lot : 165-550kg Vendu avec Turbine Centrale de traitement d’air comprenant 2 étages de filtration(F8 + H13) 1 batterie de préchauffage (Vapeur) 1 batterie de déshumidification (Eau glacée) 1 batterie de chauffage principale (Vapeur) 1 ventilateur de soufflage Chariot avec pompe de pulvérisation Watson Marlow 5 têtes Dépoussiéreur Filtre de sortie d’air Ventilateur d’extraction Atténuateur de bruit Armoires électropneumatiques Automate Siemens S7-300 Pupitre de commande PC avec supervision Lödige sous WinCC Langue pupitre de commande : Allemand et Francais Skid NEP avec pompe doseuse Prominent Tous les périphériques nécessaires au fonctionnement Goulotte de chargement Goulotte de déchargement Bouchon de hublot 5 buses de pulvérisation Tuyauteries souples de raccordement pour le skid NEP Dimensions : L3000 x l2300 x h2700 Poids de la partie turbine : 3tonnes Documentation complète (en Français) comprenant PID Plan Manuel opérateur Fiches techniques Certificats matières Etc… Sauvegarde complète du programme effectué avant arrêt de la machine
About this machine

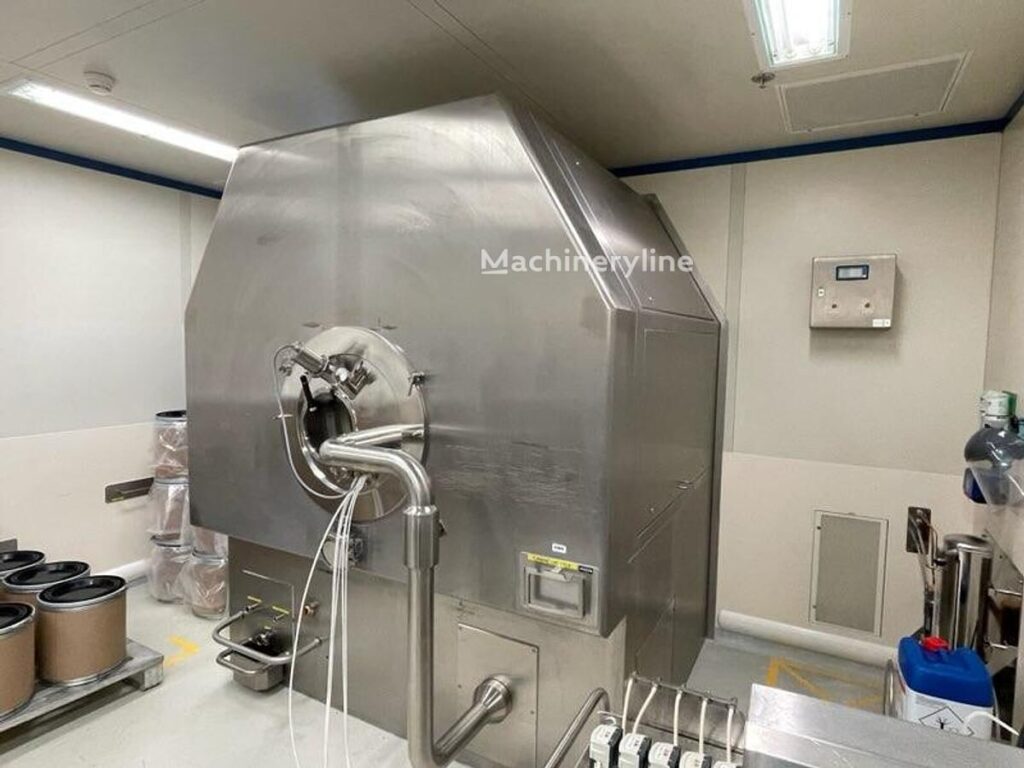

This Lödige LHC170 is a laboratory coating machine — sometimes referred to as a coating pan — used in pharmaceutical and related industries for the film coating or sugar coating of tablets, pellets, and granules. Lödige is a well-established German manufacturer with a long history of producing mixing, granulating, and coating equipment for the pharmaceutical, chemical, and food processing sectors.

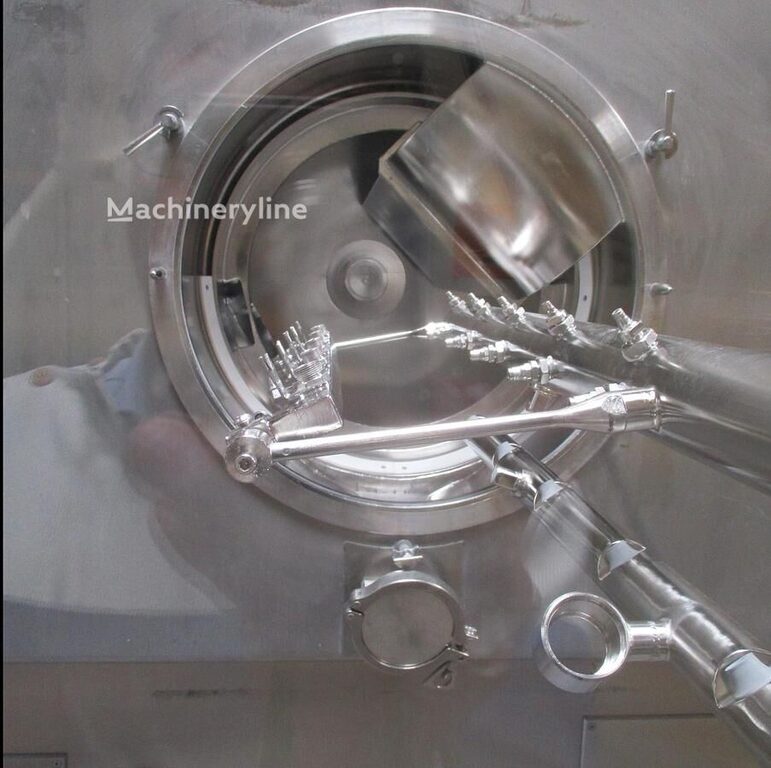

The machine's partially perforated drum has a working volume of 550 litres, constructed from AISI 316 stainless steel polished to K240 grain finish, and accepts batch sizes ranging from 165 to 550 kg. The drum drive is powered by a SEW Eurodrive motor rated at 7.5 kW, and heating is provided via a hot-air battery using steam.

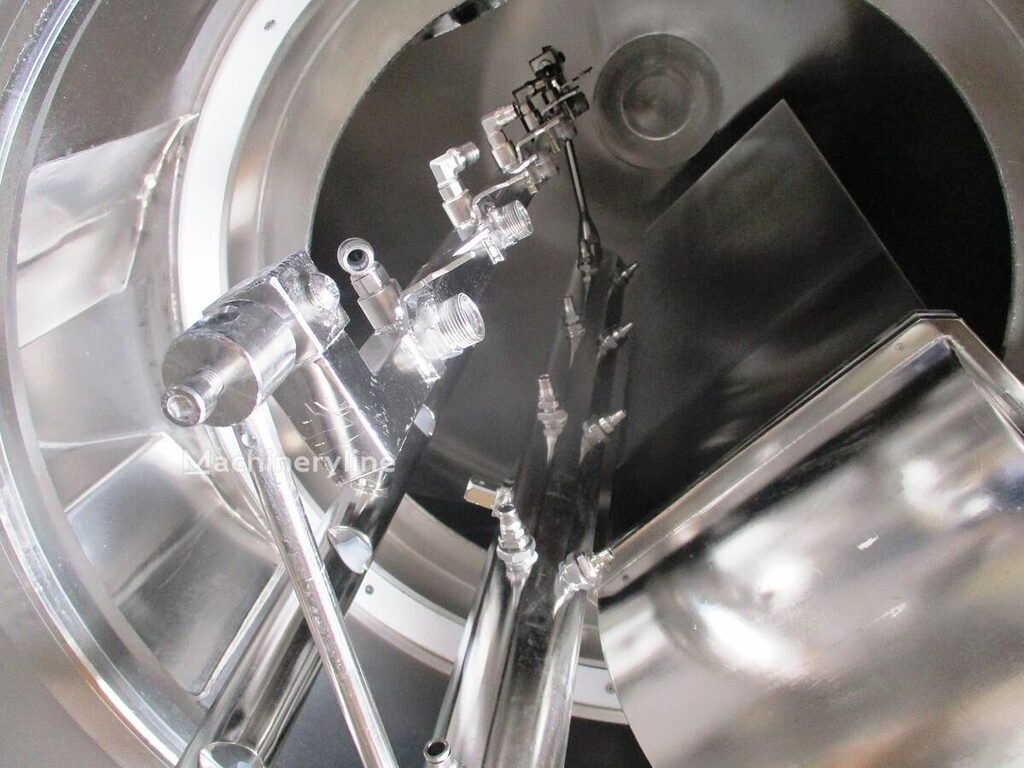

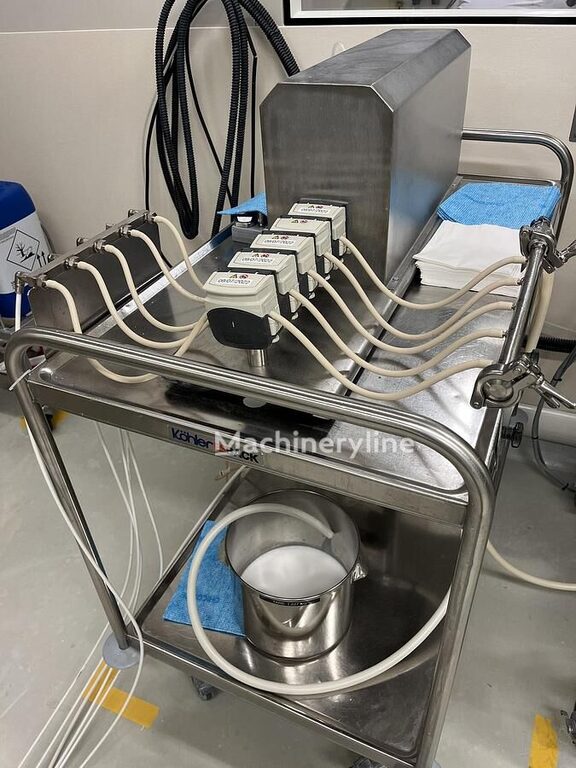

The unit is sold complete with a full air handling unit comprising two stages of filtration (F8 and H13 classes), a steam-heated pre-heating battery, a chilled-water dehumidification battery, a primary steam heating battery, and a supply fan. Spray delivery is handled by a trolley-mounted Watson Marlow five-head peristaltic pump paired with five spray nozzles. Air management on the exhaust side includes a dust collector, an outlet air filter, an extraction fan, and a noise attenuator.

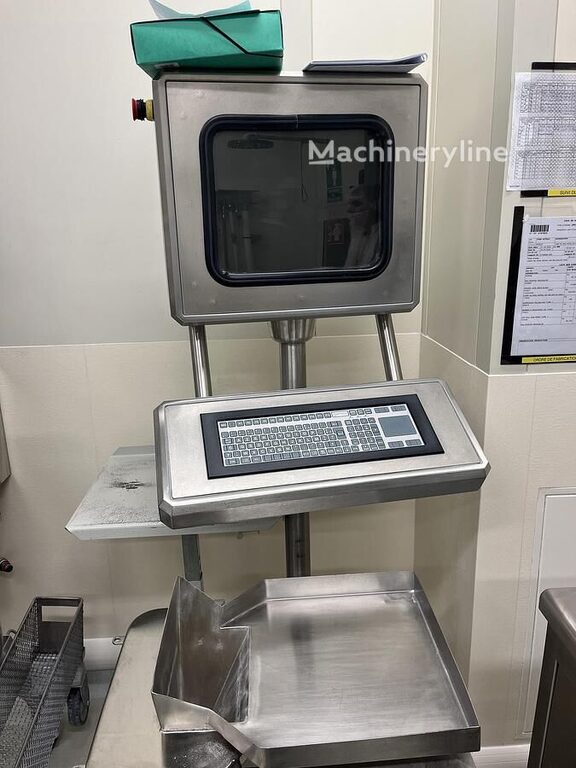

Process control is managed by a Siemens S7-300 PLC with an operator panel in German and French, complemented by a PC running Lödige supervision software under WinCC. A CIP skid with a Prominent dosing pump is included, along with all electropneumatic cabinets and the flexible pipework connections for the CIP circuit.
Ancillary items supplied with the machine include a loading chute, a discharge chute, a sight glass plug, and all peripheral equipment necessary for operation. Overall dimensions of the turbine assembly are 3,000 mm long by 2,300 mm wide by 2,700 mm high, with a stated weight of three tonnes. Complete documentation in French accompanies the machine, covering PID diagrams, drawings, the operator manual, technical data sheets, material certificates, and further supporting documents. A full programme backup was carried out prior to shutdown. The machine is located in France and was manufactured in 2001.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
