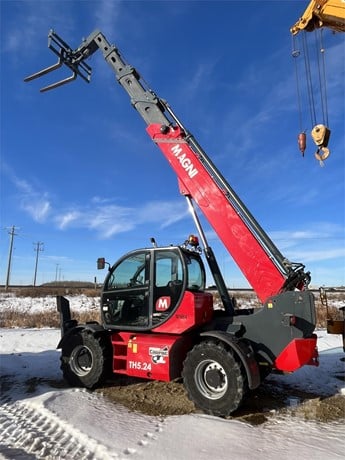

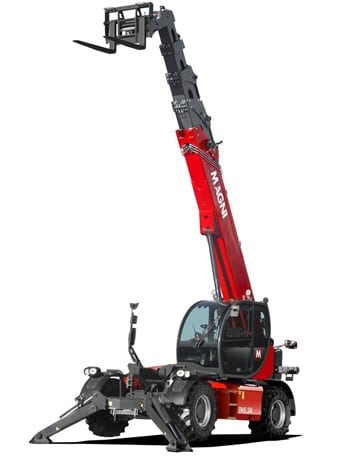

2019 - Magni TH5.24 Telehandler()
- Listing No
- 239619
- Year
- 2019
- Manufacturer
- Magni
- Model
- TH5.24
- Condition
- Used
- Location
- Canada
- Price
- POA
- Description
-
Telehandlers Maximum lifting capacity: 4,999.00 kg Maximum lifting height: 23.90 m Engine: Deutz TCD 3.6 L4 - stage IV Rated power: 100 kW - 134 hp a 2.200 rpm Gear box: 2/2 Hydraulic circuit: Load Sensing 350 bar Length: 6.75 mm Width: 2.50 mm Weight unladen: 15,500.00 kg Max. travel speed: 40.00 km/h Rotation: No Standard air conditioning: yes Automatic attachment recognition: yes The TH 5.24 model is a telescopic handler designed for challenging construction sites. It safely reaches a height of 24 m on rough terrain, thanks to its self-leveling system (which can be enabled both on its wheels or on the stabilizers) and four drive wheels. Its hydrostatic transmission provides precision and agility. It is compatible with a vast range of accessories and fitted with an RFID system that automatically recognizes accessories, creating the related working load diagrams accordingly. It is fitted with a side shift function, allowing the rear section of the frame (and with it the telescopic boom) to move in a direction perpendicular to the machine's longitudinal axis. As this model is compliant with EN13000, it can be equipped with a winch, thus can be used to work with suspended loads. Telehandler
About this machine
The Magni TH5.24 is a telehandler — also commonly referred to as a telescopic handler or reach forklift — a type of lifting machine widely used on construction sites, in agriculture, and in industrial applications to place, stack, and manoeuvre materials at height and distance that conventional forklifts cannot reach. Magni is an Italian manufacturer with a strong reputation in the rough-terrain lifting sector, building rotating and non-rotating telehandlers designed for demanding job sites worldwide.
This 2019 machine is offered in used condition and is currently located in Alberta, Canada. It is equipped with a Deutz TCD 3.6 L4 Stage IV engine producing 100 kW (134 hp) at 2,200 rpm, meeting modern emissions standards. The hydraulic circuit operates as a load-sensing system rated to 350 bar, providing precise, demand-driven power delivery throughout the working cycle.
The machine has a maximum lifting capacity of 4,999 kg and a maximum lifting height of 23.90 m, making it well suited to high-rise construction and other applications requiring both substantial payload and extended reach. Ground mobility is provided through four driven wheels and a hydrostatic transmission that delivers smooth, controllable travel at speeds up to 40 km/h. The unladen weight of 15,500 kg reflects a robust, heavy-duty chassis built for rough-terrain stability.
A self-levelling system can be activated either on the wheels or on the stabilizers, maintaining a level working platform regardless of ground gradient. The machine also features a side-shift function that allows the rear frame section — and with it the telescopic boom — to move laterally, perpendicular to the machine's longitudinal axis, increasing placement flexibility in confined spaces. A gearbox ratio of 2/2 is fitted.
The telehandler is equipped with an RFID-based automatic attachment recognition system that identifies connected accessories and automatically generates the corresponding load capacity diagrams, reducing setup time and supporting safe operation. It is compliant with EN 13000, meaning it can be configured with a winch for work with suspended loads, broadening its operational scope. Standard equipment includes air conditioning. The overall configuration reflects a machine designed for versatile, safety-conscious operation across challenging construction environments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
