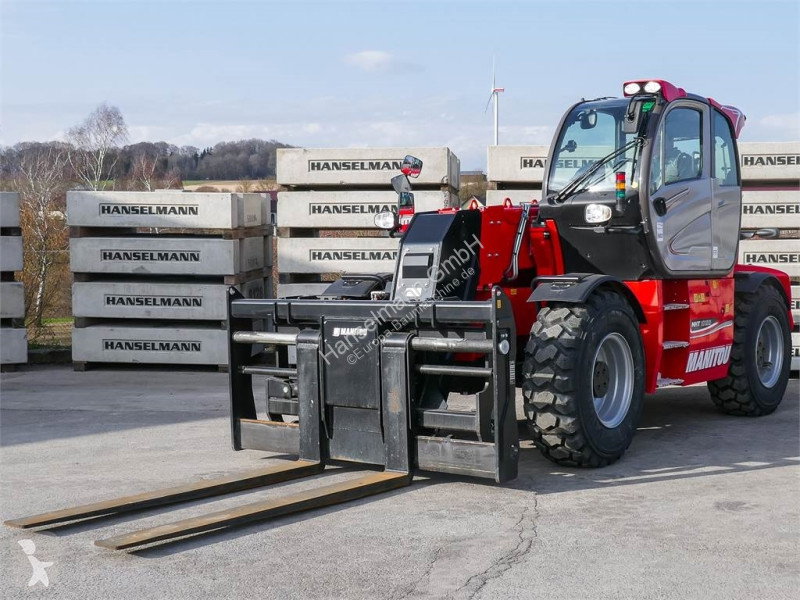

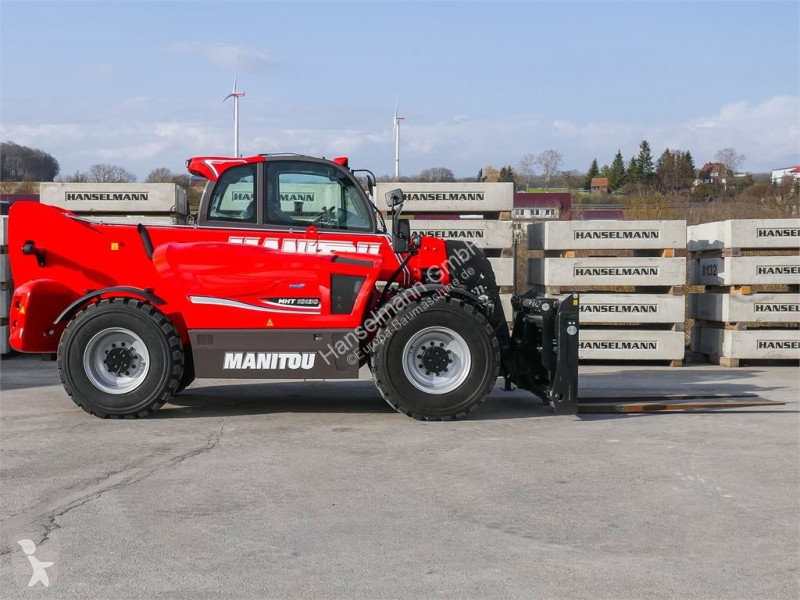

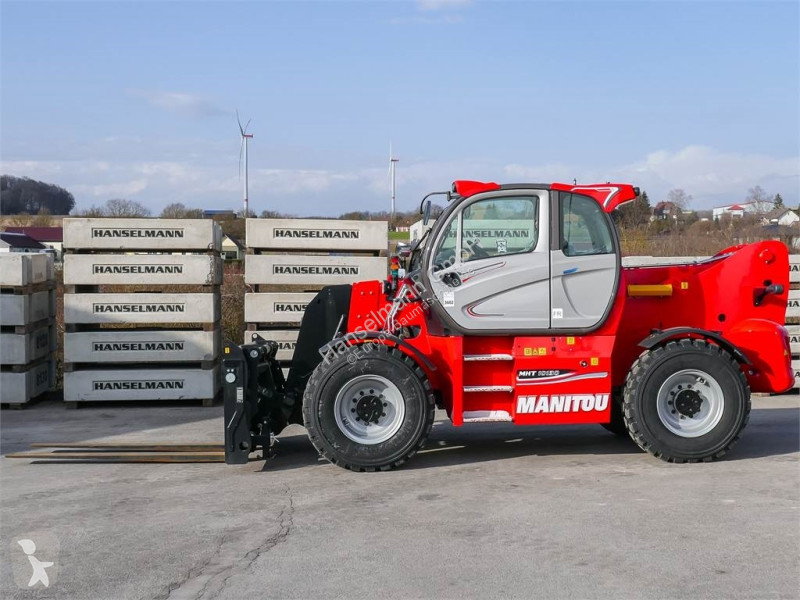

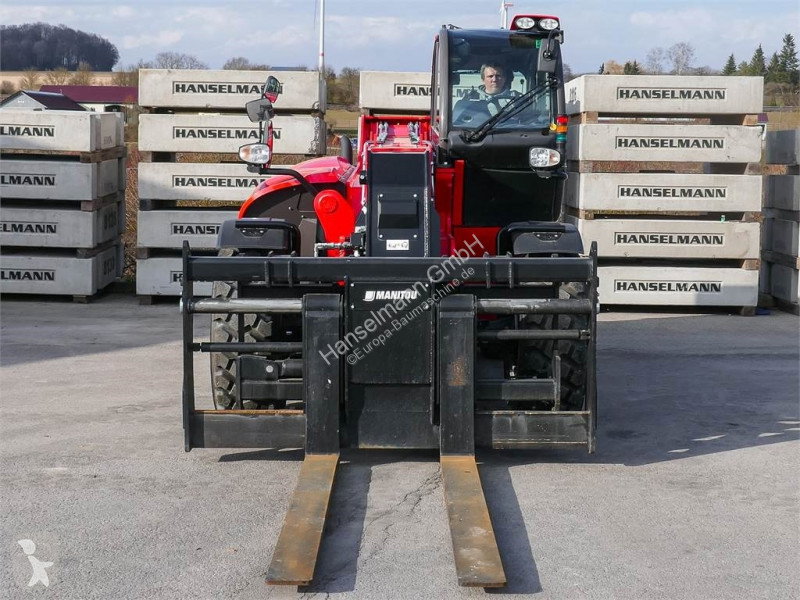

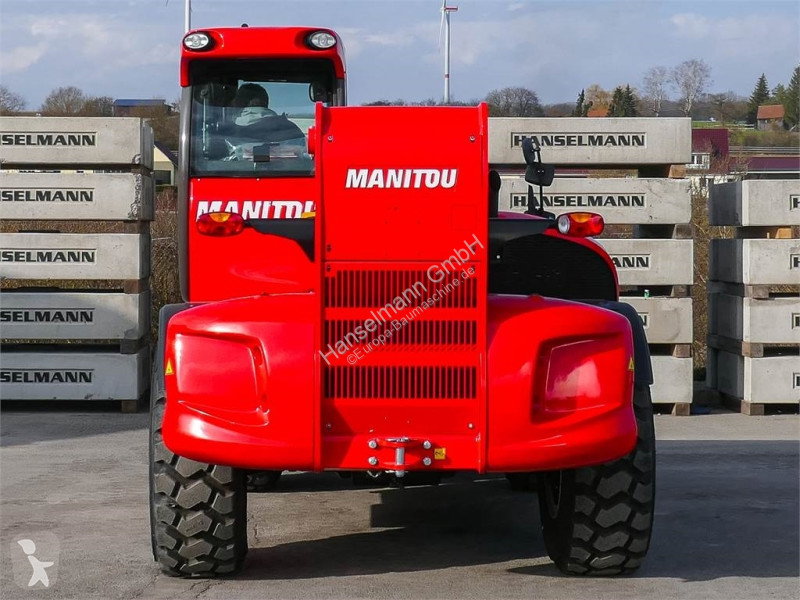

2020 - Manitou MHT 10130 Telehandler()
- Listing No
- 764238
- Year
- 2020
- Manufacturer
- Manitou
- Model
- MHT 10130
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : 3602Construction Power Type : 7500002Max lift power : 13,000 kgLift height : 9.70 mEngine : Diesel - MercedesAccessories : Seitenschieber, Zinkenverstellgerät, 4. Ventil,Other information : - Max. Kapazität mit Gabeln bei 600 mm 13 000 kg- Max. Reichweite 5,17 m- Betriebsbremse Ölbad-Lamellenbremsen hydraulisch unterstützt an beiden Achsen- Feststellbremse Automatische negative Feststellbremse- Motor MERCEDES- Art OM 936 LA. E4-3 (Stufe IV / Tier IV final)- Hubraum 4 Zylinder 5,1 Liter- Leistung: 176 PS / 129 kW- Max. Drehmoment 750 Nm / 1200-1600 U/min- Batterien 24 V - 2X12 V - 120 Ah - 850 A- Zugkraft: 10 800 daN- Steigfähigkeit: 34%- Getriebe hydrostatisch- Elektrohydraulische Steuerung- Anzahl der Gänge (vorwärts/rückwärts) 2/2- Lenkmodus 4-Rad-Lenkung - 3 Lenkmodi- Max. Fahrgeschwindigkeit (kann je nach geltendem Recht variieren) 31 km/h- Achsen DANA- Hydrauliköl 290 l- Kraftstoff 315 l- Geräusch am Steuerplatz (LpA) 80 dB- Umgebungslärm (LwA) 107 dB- Vibration auf die ganze Hand / den ganzen Arm <2,5 m/s2
About this machine
This Manitou MHT 10130 is a telehandler — sometimes called a telescopic handler or teleporter — a lifting and material-handling machine designed to place heavy loads at height and reach, widely used across construction, industry, and heavy logistics. Manitou is a French manufacturer with a long-established reputation in the design and production of rough-terrain handling equipment, including telehandlers, rough-terrain forklifts, and aerial work platforms.
Built in 2020 and currently located in Germany, this used machine offers a maximum lift capacity of 13,000 kg with forks set at a 600 mm load centre, and a maximum lift height of 9.70 m. The maximum forward reach extends to 5.17 m, making it well suited to demanding placement tasks at significant horizontal distance.
Power comes from a Mercedes-Benz OM 936 LA.E4-3 diesel engine, a four-cylinder unit displacing 5.1 litres and meeting Stage IV / Tier IV Final emissions standards. Output is rated at 176 hp (129 kW), with a maximum torque of 750 Nm developed between 1,200 and 1,600 rpm. The electrical system runs at 24 V, supplied by two 12 V batteries each rated at 120 Ah and 850 A cold-cranking amps.
The drivetrain uses a hydrostatic transmission with two forward and two reverse gears, and traction force is rated at 10,800 daN. The machine is capable of climbing gradients of up to 34% and reaches a maximum travel speed of 31 km/h, subject to applicable local regulations. Steering is handled through a four-wheel system offering three selectable steering modes, and the axles are supplied by DANA. Braking is provided by oil-bath multi-disc service brakes with hydraulic assistance on both axles, complemented by an automatic negative park brake. Electrohydraulic control manages the implement functions.
Fluid capacities include 290 litres of hydraulic oil and a 315-litre fuel tank. Measured noise at the operator station is 80 dB (LpA), with an environmental noise level of 107 dB (LwA), and whole-body hand-arm vibration is stated at less than 2.5 m/s².
The machine is fitted with a side-shift attachment, a fork positioner, and a fourth hydraulic valve, broadening its compatibility with a range of implements and attachments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
