2024 - Manitou MLT 625 Telehandler()
- Listing No
- 764276
- Year
- 2024
- Manufacturer
- Manitou
- Model
- MLT 625
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : g06444Construction Power Type : 7500002Max lift power : 2,500 kgLift height : 5.85 mOther information : · Maximale seitliche Reichweite 3.30 m· Reichweite bei max. Hubhöhe 0.50 m· Ausbrechkraft mit Schaufel 4205 daN· Überhang vorne 0.99 m· Schüttwinkel 117 °· Kippwinkel 12 °· Wenderadius (über Räder) 3.31 m· Antriebsräder (vorne / hinten) 2 / 2· Lenkräder (vorne / hinten) 2 / 2· Heben 7.30 s· Senken 4.95 s· Teleskop ausfahren 5.20 s· Teleskop Einfahren 3.70 s· Ankippen 3.20 s· Auskippen 3.20 s· Motor: Kubota, Motornorm, Stage V· Motor Modell V3307-CR-T-E5B· Anzahl der Zylinder - Tragfähigkeit der Zylinder4 - 3331 cm³· Nennleistung Verbrennungsmotor / Leistung 75 Hp / 55.40 kW· Max. Drehmoment / Motordrehzahl 265 Nm ... rpm· Zugkraft 3240 daN· Wendelüfter Standard· Kühlsystem des Motors 2 Wasserkühler + Hydrauliköl· Getriebetyp: Hydrostatisch· Anzahl der Gänge (vorwärts / rückwärts) 2 / 2· Max. Fahrgeschwindigkeit (kann je nach Vorschriften variieren) 25 km/h· Differenzialsperre Sperrdifferenzial an der Vorderachse· Parkbremse: Automatische negative Parkbremse· Festellbremse Ölbad Lamellenbremsen an den Vorderachsen· Pumpenart: Zahnradpumpe· Hydraulikfördermenge - Hydraulikdruck: 86 l/min - 235 bar· Fassungsvermögen des Kraftstofftanks: 63 l· Schallpegel (LpA) gemäß Norm NF EN 12053 geprüft: 76 dB· Umgebungsgeräusch (LwA) 104 dB· Schwingungsbelastung Hand/Arm < 2.50 m/s²· Sicherheit Zulassung der Kabine: Kabine ROPS - FOPS Stufe 1· Steuerungen: JSM
About this machine

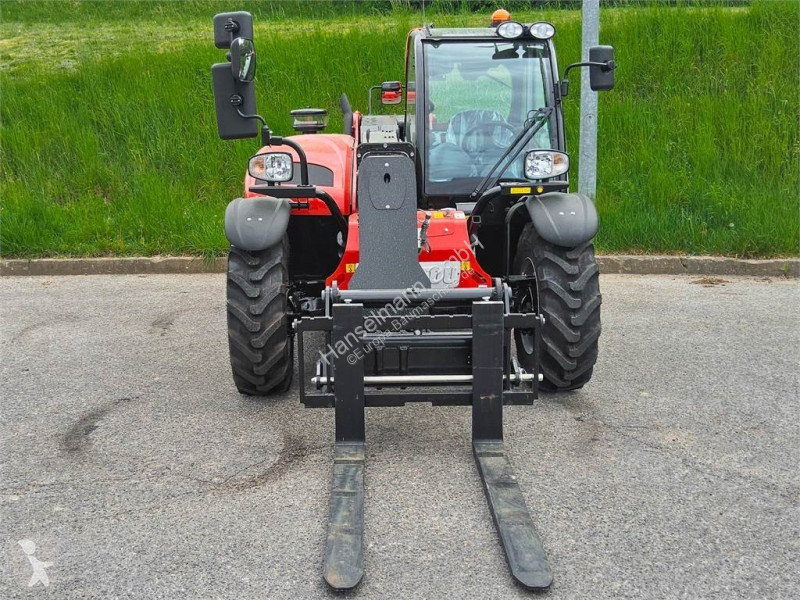

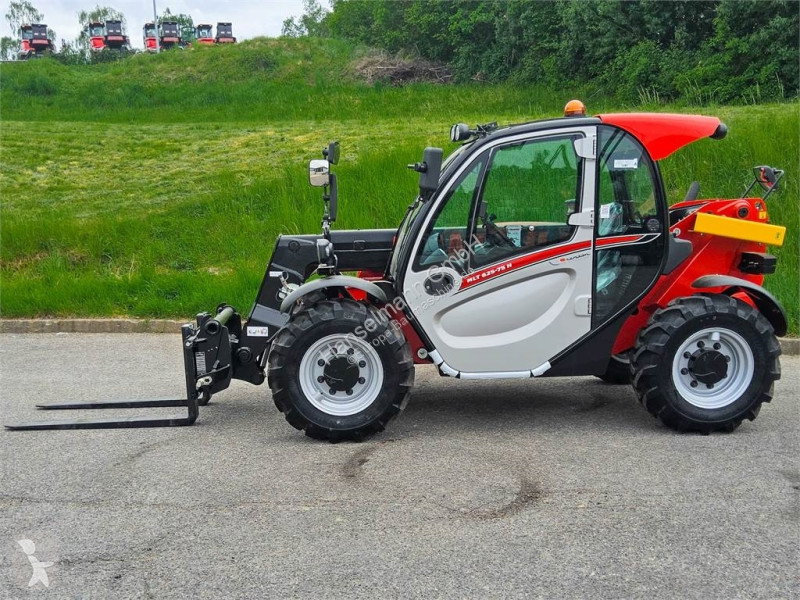

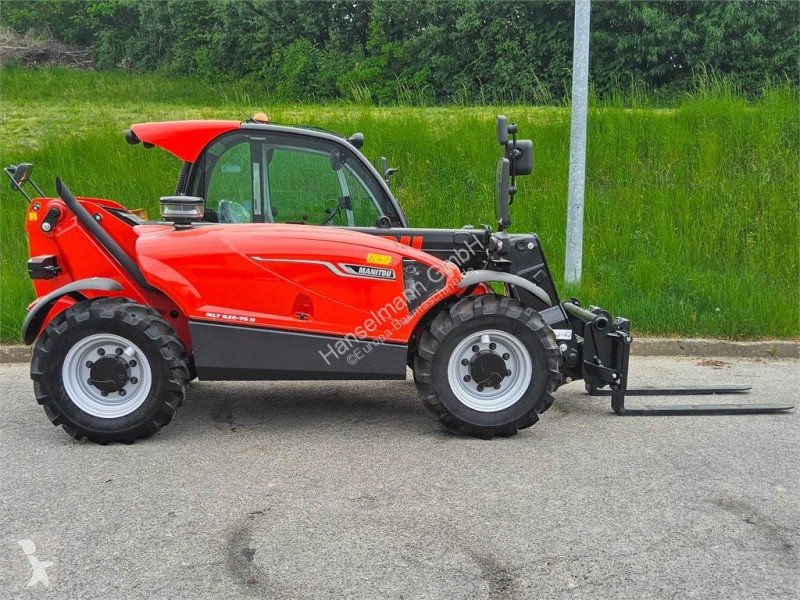

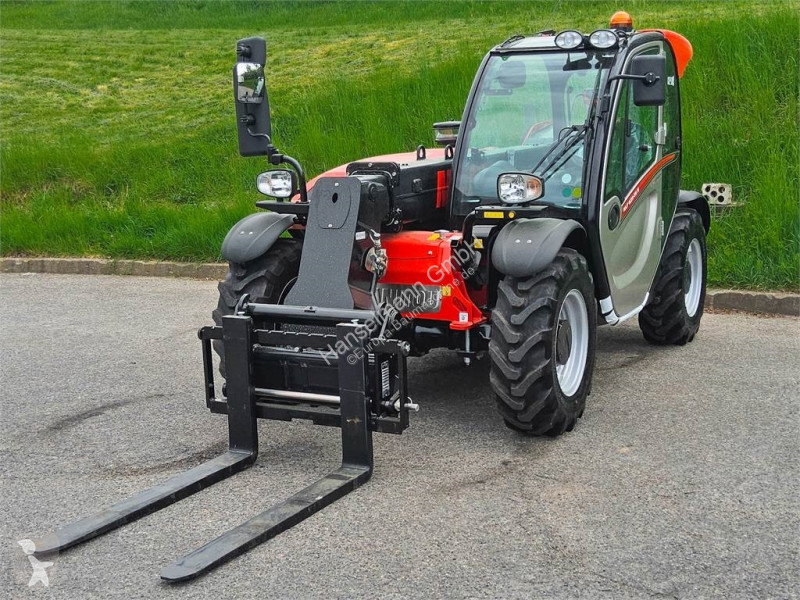

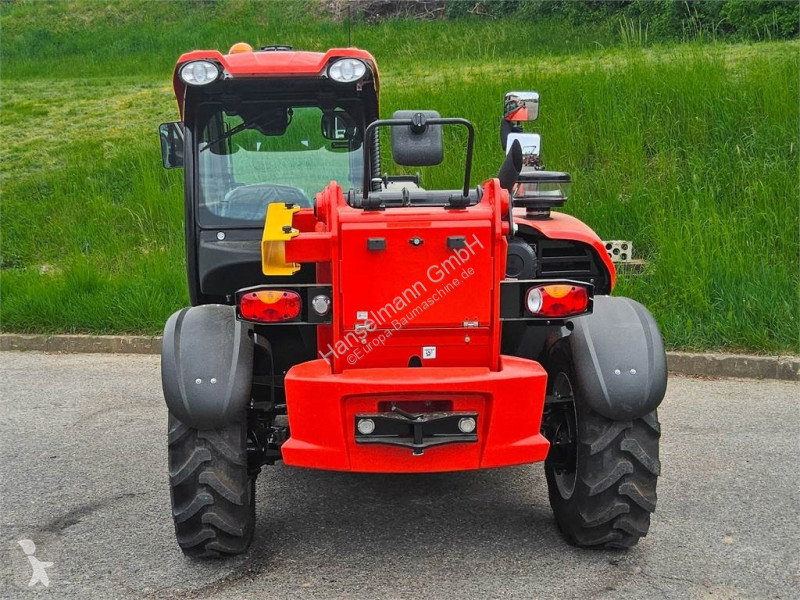

This Manitou MLT 625 is a telehandler — also commonly known as a telescopic handler — a lifting and material-handling machine used across construction, agriculture, and industrial sites to raise, place, and move loads at height and reach using an extendable telescopic boom. Manitou is a well-established French manufacturer with a long history of producing telehandlers, rough-terrain forklifts, and access platforms for construction and agricultural applications worldwide.
This 2024 machine is offered used and located in Germany. It is rated to lift a maximum load of 2,500 kg to a lift height of 5.85 m, with a maximum lateral reach of 3.30 m and a reach at maximum lift height of 0.50 m. Breakout force with the bucket attachment is 4,205 daN, the dump angle is 117°, and the tilt angle is 12°. Front overhang is 0.99 m, and the turning radius over the wheels measures 3.31 m.
Power comes from a Kubota V3307-CR-T-E5B four-cylinder turbocharged diesel engine with a displacement of 3,331 cm³, rated at 75 hp (55.4 kW) with a maximum torque of 265 Nm. The engine meets Stage V emissions standards. Drive is transmitted through a hydrostatic transmission with two forward and two reverse gears, giving a maximum travel speed of 25 km/h. Traction force is rated at 3,240 daN. Both front and rear axles are driven and steered, with a front axle differential lock, an automatic negative park brake, and multi-disc oil-bath service brakes on the front axles. The fuel tank holds 63 litres.
The hydraulic system uses a gear pump delivering 86 litres per minute at a working pressure of 235 bar. Boom cycle times are as follows: raise 7.30 seconds, lower 4.95 seconds, telescopic extend 5.20 seconds, telescopic retract 3.70 seconds, crowd in 3.20 seconds, and crowd out 3.20 seconds. The machine is controlled via a JSM joystick system. Engine cooling is provided by two water radiators plus a hydraulic oil cooler, with a reversing fan fitted as standard.
The cab carries ROPS and FOPS Level 1 certification. The measured in-cab sound pressure level (LpA) is 76 dB, and the environmental sound power level (LwA) is 104 dB, both tested to NF EN 12053. Hand-arm vibration is rated at below 2.50 m/s². The internal stock reference for this unit is g06444.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
