2022 - Manitou MRT 2570 Telehandler()
- Listing No
- 764226
- Year
- 2022
- Manufacturer
- Manitou
- Model
- MRT 2570
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : 5547Construction Power Type : 7500002Max lift power : 7,000 kgLift height : 24.8 mEngine : Diesel - YanmarAccessories : 3. Ventil, 4. Ventil,Other information : - Max. Tragkraft 7000 kg- Max.Hubhöhe 24.80 m- Maximale seitliche Reichweite 20.50 m- Kippwinkel 12 °- Schüttwinkel 110 °- Drehung des Oberwagens 360 °- Antriebsräder (vorne / hinten) 2 / 2- Lenkart 2-rad Lenkung, 4-rad Lenkung, Krebsgang- Stützentyp Zweifach-Teleskop- Steuerung mit Stützen Stützenbefehle einzeln oder gleichzeitig- Motor Hersteller: Yanmar- Motornorm Stage V / Stufe 4- Motor Modell 4TN107FTT-6SMU1- Nennleistung Verbrennungsmotor / Leistung (kW) 173 Hp / 127 kW- Max. Drehmoment / Engine rotation (min) 805 Nm ... 1500 rpm- Anzahl der Zylinder - Tragfähigkeit der Zylinder 4 - 4567 cm³- Kühlsystem des Motors Wasserkühlung- Anzahl Batterien / Batterie 2 x 12 V- 12V Battery capacity 120 Ah- Battery starting current (EN)850 A- Getriebetyp Hydrostatic with Speedshift- Getriebe / Anzahl der Gänge (vorwärts) / Anzahl der Gänge (rückwärts) Speedshift / 2 / 2- Max. travel speed 40 km/h- Zugkraft 9200 daN- Parkbremse Automatische negative Parkbremse- Festellbremse: Ölbad Lamellenbremsen an den Vorder- und Hinterachsen- Steigfähigkeit - beladen / unbeladen 32.40 % / 41.40 %- Pumpenart Verstellpumpe- Hydraulikfördermenge 185 l/min- Hydraulikdruck 350 bar- Motoröl 13 l- Hydrauliköl 300 l- Fassungsvermögen des Kraftstofftanks 320 l- Abgasnachbehandlung für Diesel (AdBlue®) 24 l- Geräuschpegel im Fahrerstand (LpA) 67 dB- Außenschallpegel (LwA) 108 dB- Vibrationswert an Händen/Armen < 2.50 m/s²- Lenkräder (vorne / hinten) 2 / 2- Steuerungen 2 Joysticks- Sicherheit Zulassung der Kabine Kabine ROPS - FOPS Stufe 2- Anbaugeräte Erkennungssystem (E-Reco) Standard
About this machine

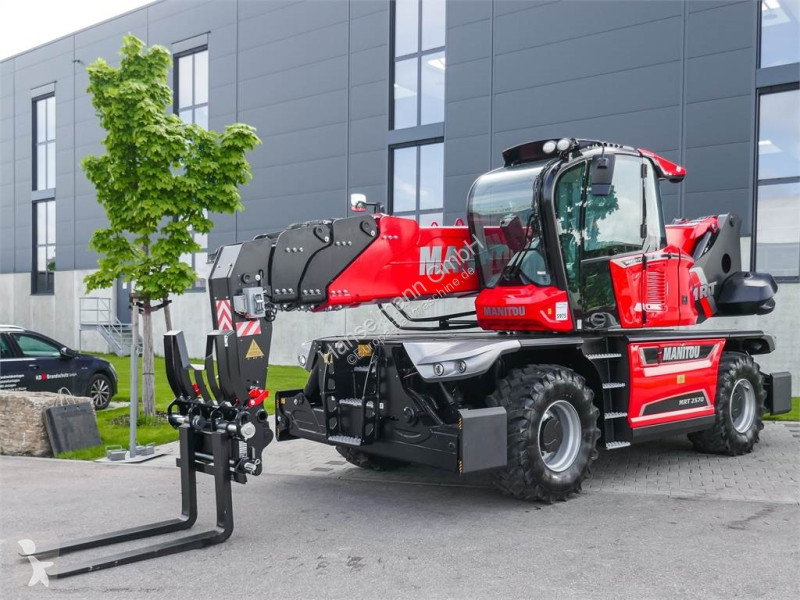

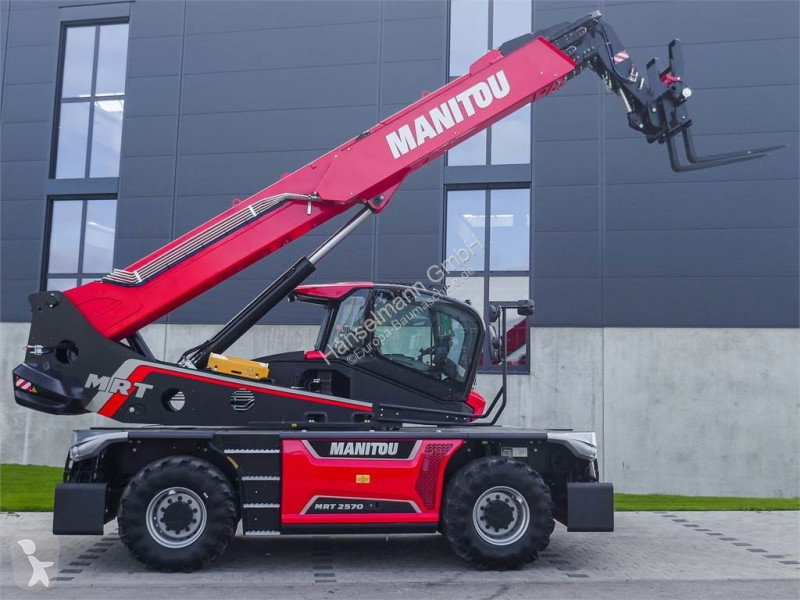

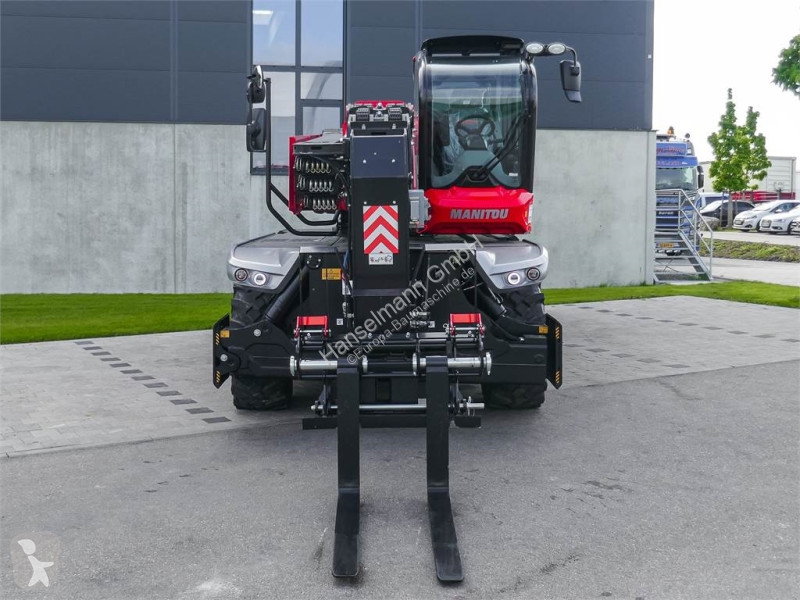

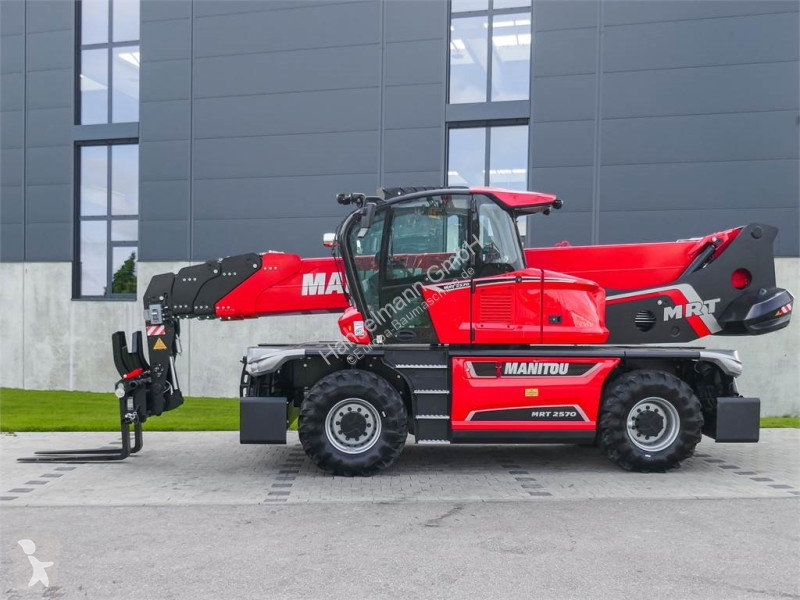

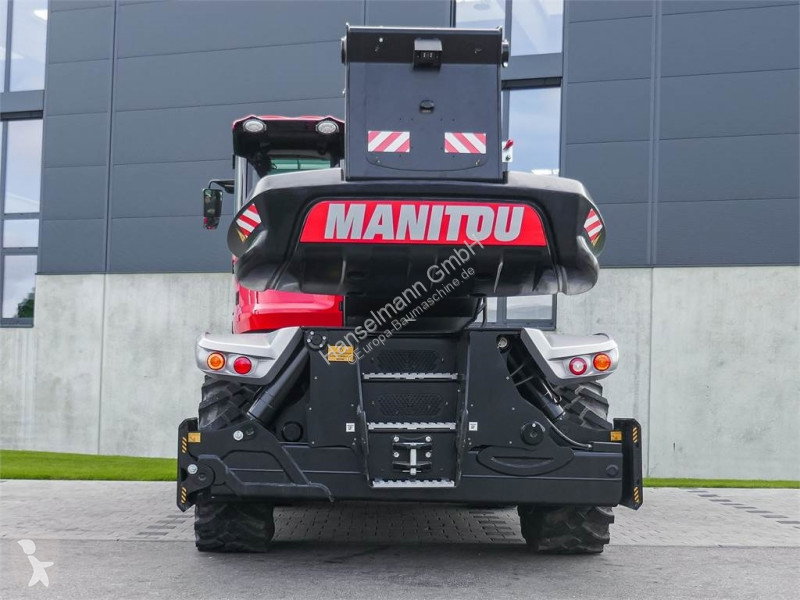

This Manitou MRT 2570 is a telehandler — also known as a telescopic handler — a versatile lifting machine used across construction, civil engineering, and industrial sites to raise, place, and transport heavy loads at significant height and reach. Manitou is a well-established French manufacturer with a long track record in materials handling, producing telehandlers, rough-terrain forklifts, and access platforms for the construction, agriculture, and logistics sectors worldwide.
Built in 2022 and offered in used condition from Germany, this machine is powered by a Yanmar 4TN107FTT-6SMU1 four-cylinder diesel engine displacing 4,567 cm³ and rated at 173 hp (127 kW), compliant with Stage V / Tier 4 emissions standards. Peak torque is 805 Nm at 1,500 rpm. The engine is water-cooled and supported by a 320-litre fuel tank and a 24-litre AdBlue tank for exhaust after-treatment. Two 12 V batteries rated at 120 Ah and 850 A cold-cranking current handle starting duties.
The transmission is hydrostatic with Speedshift, providing two forward and two reverse gears, with a maximum travel speed of 40 km/h and a traction force of 9,200 daN. Gradeability is 32.40% laden and 41.40% unladen. Steering operates in three modes — two-wheel, four-wheel, and crab — giving the machine strong manoeuvrability on constrained sites. Braking is handled by an automatic negative park brake combined with oil-bath multi-disc brakes on both front and rear axles.
The key performance figures are a maximum lift capacity of 7,000 kg, a maximum lift height of 24.8 m, and a maximum lateral reach of 20.5 m. The superstructure rotates a full 360°, with a tipping angle of 12° and a dump angle of 110°. Outriggers are dual-telescopic type and can be controlled individually or simultaneously. The hydraulic system uses a variable-displacement pump delivering 185 litres per minute at a working pressure of 350 bar. The hydraulic oil capacity is 300 litres and engine oil capacity is 13 litres. The machine is equipped with third and fourth hydraulic valve lines, expanding attachment compatibility.
The operator's cab is certified to ROPS and FOPS Level 2 standards and is controlled via two joysticks. The noise level at the operator station is 67 dB(A), with an external sound power level of 108 dB(A), and hand-arm vibration is rated below 2.50 m/s². Attachment recognition is handled by the E-Reco system as standard, automatically identifying mounted equipment.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
