2023 - Manitou MRT 2660 vision Telehandler()
- Listing No
- 764673
- Year
- 2023
- Manufacturer
- Manitou
- Model
- MRT 2660 Visio
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : g06209Construction Power Type : 7500002Max lift power : 6,000 kgLift height : 25.9 mOther information : · Max. Tragkraft 6000 kg· Max.Hubhöhe 25.90 m· Maximale seitliche Reichweite 21.70 m· Gesamtlänge mit Gabeln 9.28 m· Länge bis zur Vorderseite der Gabeln 8.08 m· Gesamtbreite 2.50 m· Gesamthöhe 3.10 m· Gesamtbreite der Kabine 0.96 m· Bodenfreiheit Maschine 0.38 m· Radstand 3.05 m· Kippwinkel 12 °· Schüttwinkel 110 °· Drehung des Oberwagens 360 °· Gewicht 18000 kg· Gabeln Länge / Gabeln Breite / Gabelquerschnitt 1200 mm x 100 mm x 60 mm· Reifenmodelle 445/65 R22,5· Antriebsräder (vorne / hinten) 2 / 2· Lenkart 2-rad Lenkung, 4-rad Lenkung, Krebsgang· Stützentyp Zweifach-Teleskop· Steuerung mit Stützen Stützenbefehle einzeln oder gleichzeitig· Hersteller Yanmar· Motornorm Stage V / Stufe 4· Motor Modell 4TN107FHT-6SMU1· Nennleistung Verbrennungsmotor / Leistung 156 Hp / 115 kW· Max. Drehmoment / Engine rotation (min) 602 Nm ... 1500 rpm· Anzahl der Zylinder - Tragfähigkeit der Zylinder 4 - 4567 cm³· Kühlsystem des Motors Wasserkühlung· Anzahl Batterien / Batterie 2 x 12 V· 12V Battery capacity 120 Ah· Battery starting current (EN)850 A· Getriebetyp Hydrostatisch· Getriebe / Anzahl der Gänge (vorwärts) / Anzahl der Gänge (rückwärts) Speedshift / 2 / 2· Max. travel speed 40 km/h· Zugkraft 8600 daN· Parkbremse Automatische negative Parkbremse· Festellbremse Ölbad Lamellenbremsen an den Vorder- und Hinterachsen· Steigfähigkeit - beladen / unbeladen 40.40 % / 45.50 %· Pumpenart Verstellpumpe· Hydraulikfördermenge 185 l/min· Hydraulikdruck 350 bar· Motoröl 13 l· Fassungsvermögen des Kraftstofftanks 270 l· Abgasnachbehandlung für Diesel (AdBlue®) 24 l· Geräuschpegel im Fahrerstand (LpA) 68 dB· Umgebungsgeräusch (LwA) 108 dB· Schwingungsbelastung Hand/Arm < 2.50 m/s²· Lenkräder (vorne / hinten) 2 / 2· Steuerungen 2 Joysticks· Sicherheit Zulassung der Kabine Kabine ROPS - FOPS Stufe 2· Anbaugeräte Erkennungssystem (E-Reco) Standard
About this machine

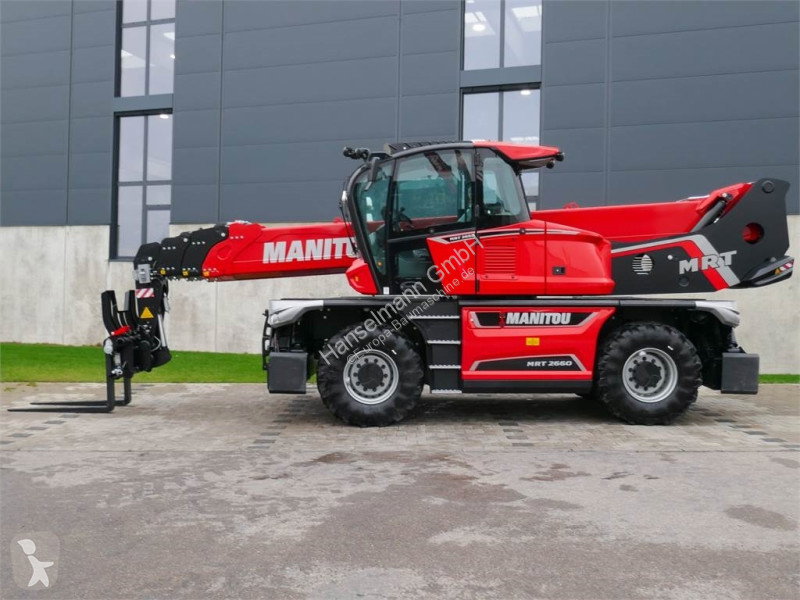

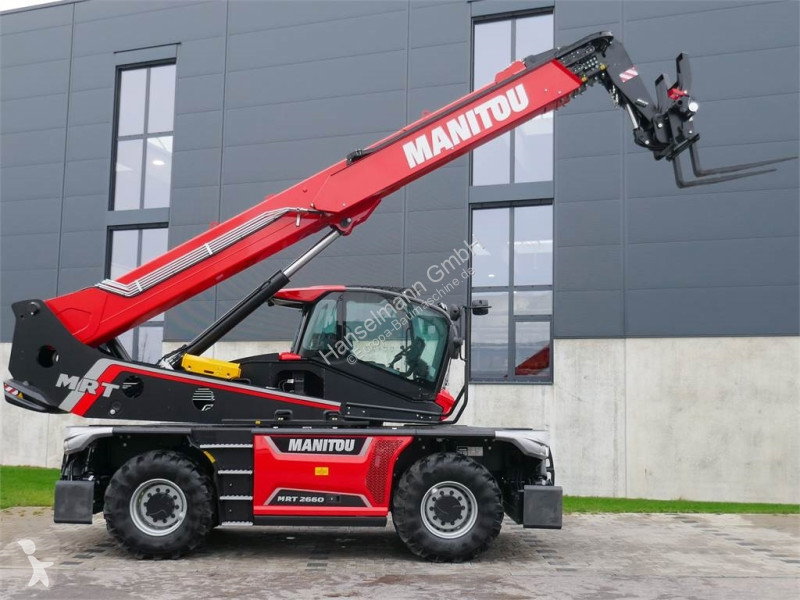

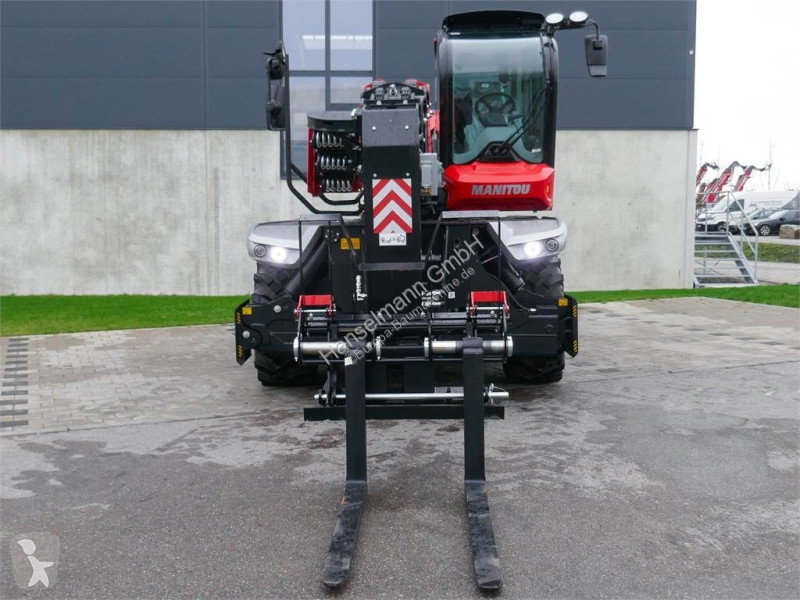

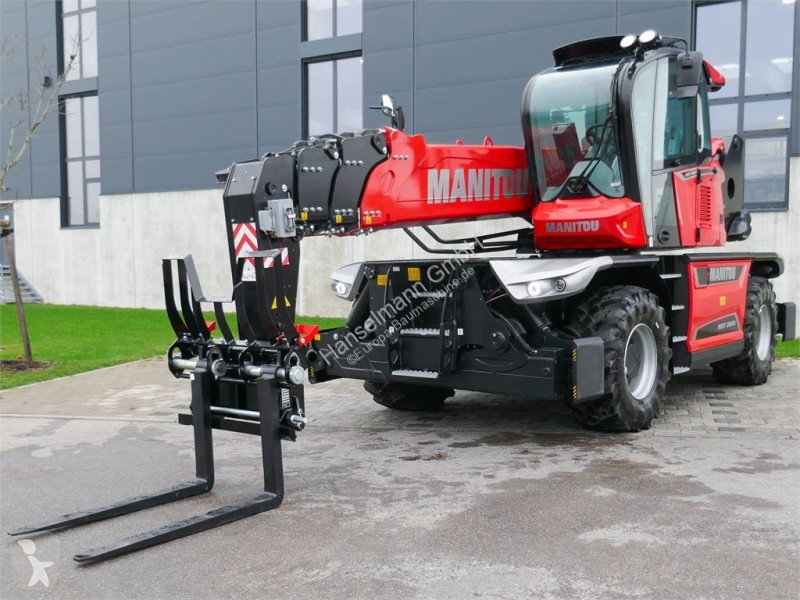

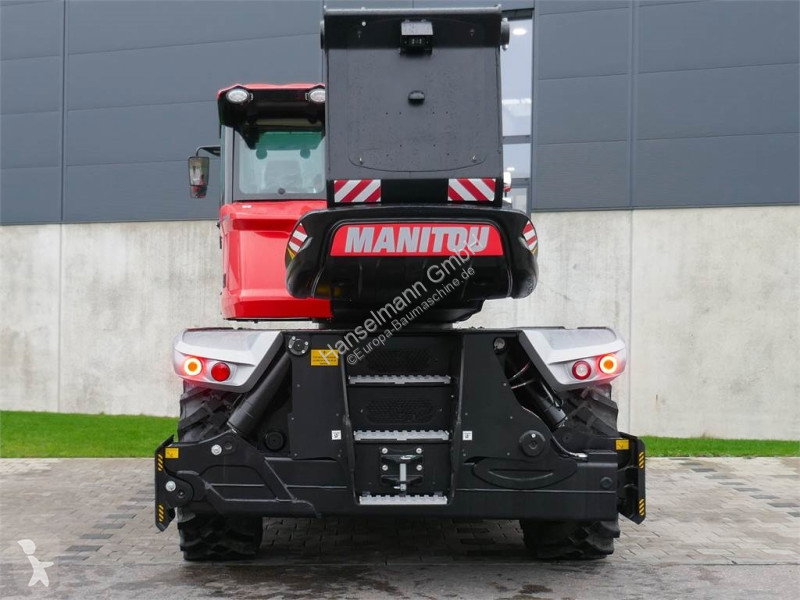

The Manitou MRT 2660 Vision is a used telehandler — sometimes referred to as a telescopic handler or reach forklift — dating from 2023 and currently located in Germany. Telehandlers are versatile lifting machines used across construction, infrastructure, and industrial sites to place heavy loads at height and reach, combining the functions of a forklift and a crane jib in a single compact unit. Manitou is a well-established French manufacturer with decades of experience building material handling and lifting equipment, serving construction, agriculture, and industry worldwide.
This machine is rated for a maximum lift capacity of 6,000 kg and a maximum lift height of 25.9 m, with a maximum lateral reach of 21.7 m, making it well suited to large-scale construction and heavy placement work. A full 360-degree upper-structure rotation broadens its working envelope considerably. Overall dimensions are 9.28 m in total length with forks, 2.50 m wide, and 3.10 m tall, with a wheelbase of 3.05 m and a ground clearance of 380 mm. The machine weighs 18,000 kg. Forks measure 1,200 mm × 100 mm × 60 mm and tyres are 445/65 R22.5.
Power comes from a Yanmar 4TN107FHT-6SMU1 four-cylinder, water-cooled diesel engine displacing 4,567 cm³ and producing 156 hp (115 kW). Maximum torque is 602 Nm at 1,500 rpm. The engine meets Stage V / Tier 4 emissions standards and is supported by a 270-litre fuel tank and a 24-litre AdBlue tank for exhaust after-treatment. Two 12 V batteries rated at 120 Ah and 850 A cold-cranking current provide starting power.
The hydrostatic transmission uses a Speedshift gearbox with two forward and two reverse speeds, giving a maximum travel speed of 40 km/h and a tractive force of 8,600 daN. Gradeability is 40.4% loaded and 45.5% unloaded. The machine offers three steering modes — two-wheel, four-wheel, and crab steering — via two driven and two steered axles front and rear. Braking is handled by an automatic negative parking brake and oil-bath multi-disc brakes on both axles. Outrigger support is provided by dual-telescopic stabilisers, with outrigger commands operable individually or simultaneously.
The hydraulic system uses a variable-displacement pump delivering 185 litres per minute at a working pressure of 350 bar. The operator station is ROPS/FOPS Level 2 certified and features dual-joystick controls. Noise levels are 68 dB(A) at the operator's ear and 108 dB(A) at the machine's sound power level, with hand-arm vibration below 2.50 m/s². The tipping angle is 12° and the dump angle is 110°. An attachment recognition system (E-Reco) is fitted as standard, allowing the machine to identify and automatically configure settings for compatible attachments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
