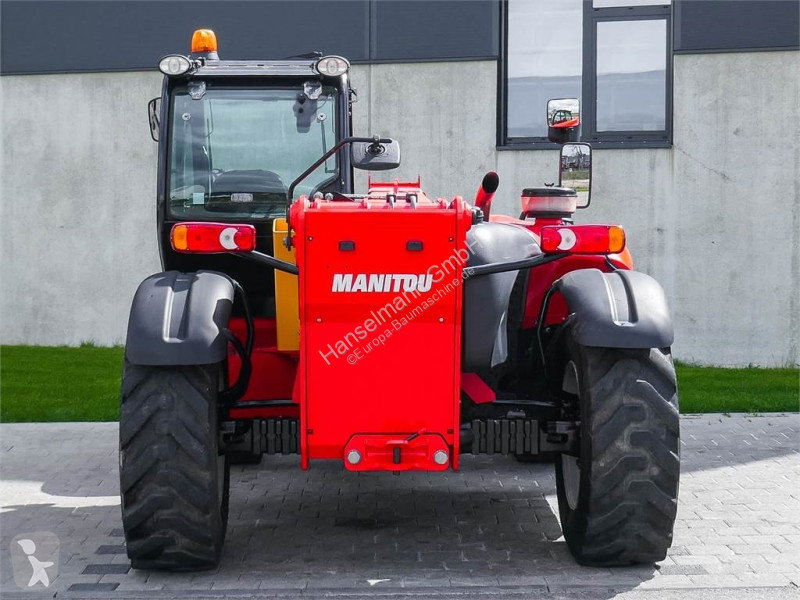

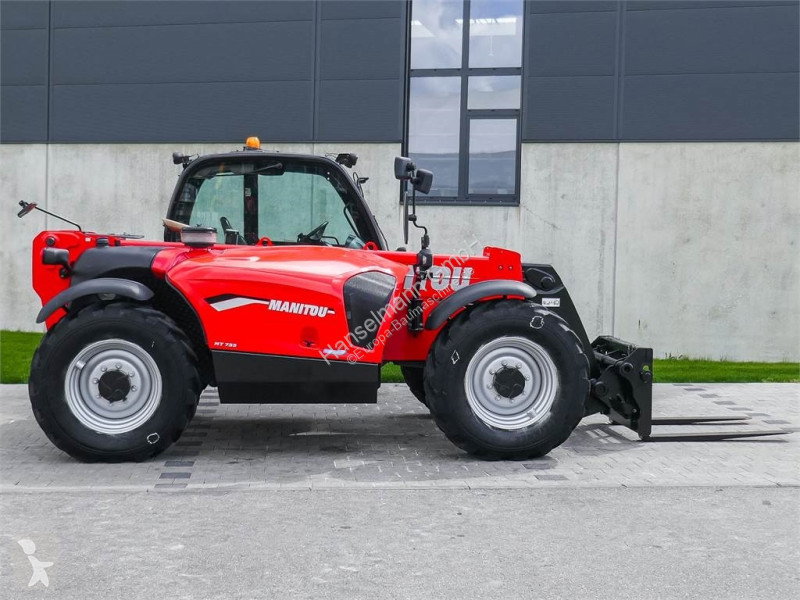

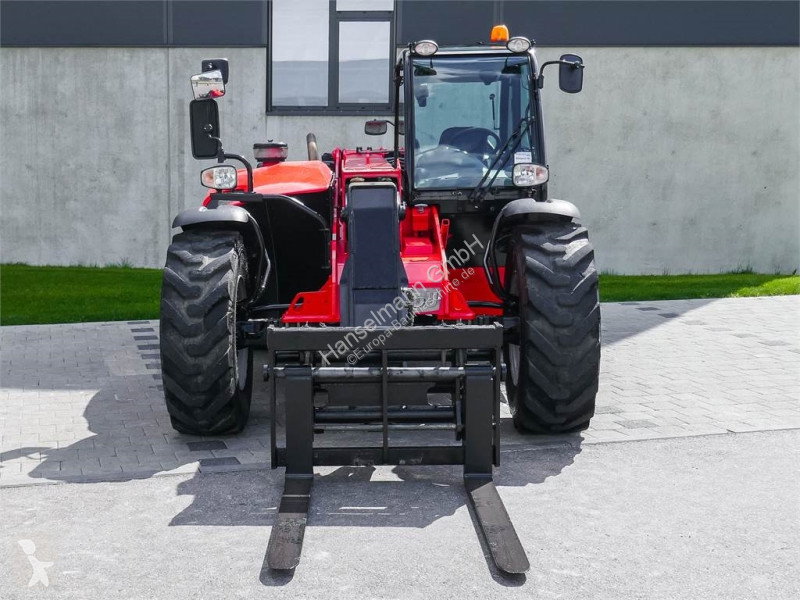

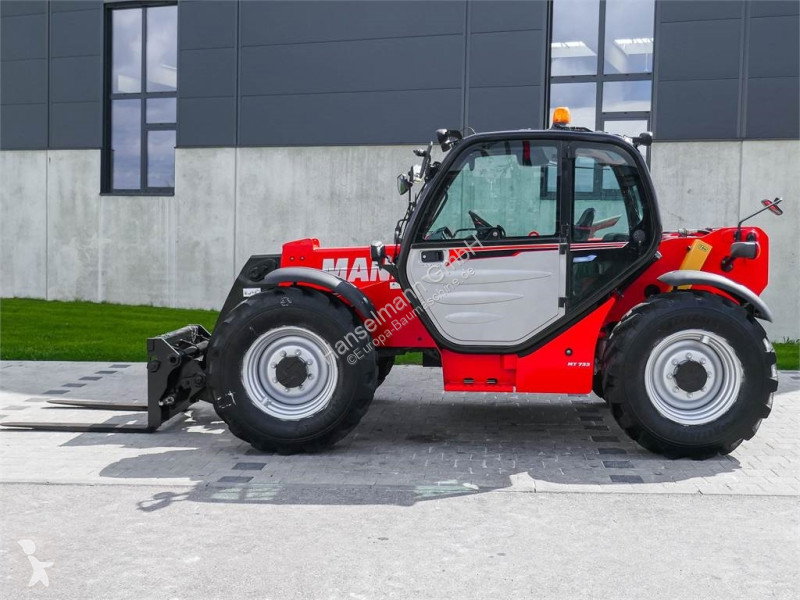

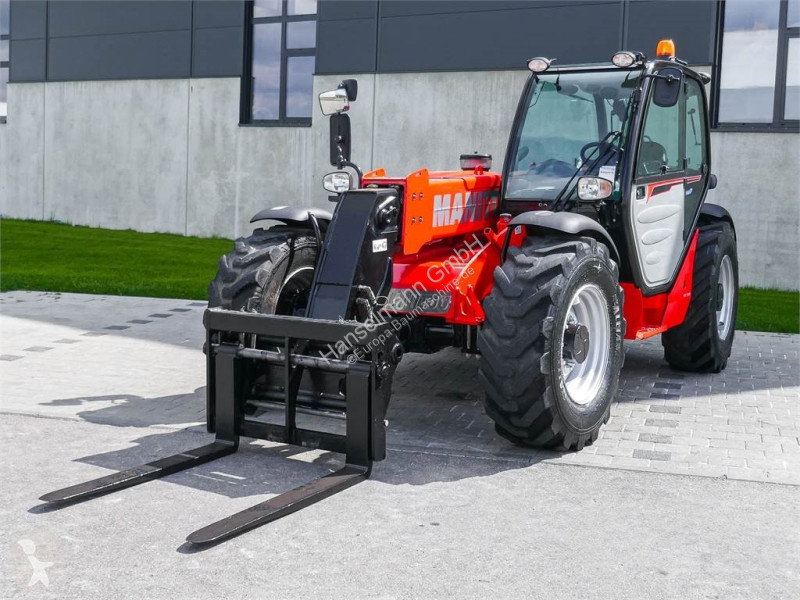

2021 - Manitou MT 733 Telehandler()
- Listing No
- 764509
- Year
- 2021
- Manufacturer
- Manitou
- Model
- MT 733
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : 5820Construction Power Type : 7500002Max lift power : 3,300 kgLift height : 6.90 mEngine : Diesel - DeutzAccessories : 3. Ventil,Other information : - Max. Tragkraft 3300 kg- Max. Hubhöhe 6,90 m- Max. Auslage 3,90 m- Ausbrechkraft mit Schaufel 5770 daN- Kippwinkel 12°- Schüttwinkel 114°- Wenderadius (über Räder) 3,80 m- Heben 8,3s- Senken 6s- Teleskop ausfahren 7,30s- Teleskop einfahren 4,50s- Ankippen 3,40s- Auskippen 2,80s- Motor Hersteller: Deutz- Motornorm: Stage 5/Tier iV Final- Motor Modell TD 3,6l- Anzahl der Zylinder / Tragfähigkeit der Zylinder 4-3621 cm³- Nennleistung Verbrennungsmotor - Leistung kW 75Hp / 55,4 kW- Max. Drehmoment / Motordrehzahl 340 Nm ... 1600 rpm- Zugkraft 8360 daN- Typ: Drehmomentwandler - Anzahl der Gänge (vorwärts/rückwärts) 4/4- Max. travel speed 24,90 km/h- Parkbremse Handbuch- Feststellbremse- Hersteller der Achsen: Dana- Pumpenart: Zahnradpumpe- Hydraulikfördermenge / Hydraulikdruck 92,70 l/min / 260 Bar- Motoröl: 10 l- Hydrauliköl: 128 l- Fassungsvermögen des Kraftstofftanks: 120 l- Geräuschpegel im Fahrerstand (LpA): 79 dB(A)- Umgebungsgeräusch (LwA) 104 dB(A)- Schwingungsbelastung Hand/Arm: <2,50 m/s²- Lenkräder (V/H) 2/2- Antriebsräder (V/H) 2/2- Sicherheit / Sicherheit Zulassung der Kabine Standard EN 15000 / ROPS - FOPS cab (level 2)- Steuerungen: JSM
About this machine
This Manitou MT 733 is a telehandler — also commonly known as a telescopic handler or reach forklift — a type of machine widely used across construction, agriculture, and industry for lifting, placing, and moving materials to heights and distances that conventional forklifts cannot reach. Manitou is a globally recognised manufacturer specialising in material handling equipment, with telehandlers among their core product lines serving contractors, farmers, and site logistics operations worldwide.
This 2021 machine is based in Germany and is offered in used condition. At its core it is rated for a maximum lift capacity of 3,300 kg and a maximum lift height of 6.90 m, with a maximum horizontal reach of 3.90 m. The tipping angle is 12° and the dump angle 114°, while the breakout force with a bucket attachment is rated at 5,770 daN, indicating robust digging and loading capability. The turning radius over the wheels is 3.80 m, which is compact for a machine in this class.
Power comes from a Deutz TD 3.6-litre four-cylinder diesel engine displacing 3,621 cc, meeting Stage 5 / Tier IV Final emissions standards. Rated output is 75 hp (55.4 kW), with a maximum torque of 340 Nm at 1,600 rpm. The drivetrain uses a torque converter transmission with four forward and four reverse gears, Dana axles front and rear, and a four-wheel-drive, four-wheel-steer configuration (2/2 drive and steering wheels both front and rear). Maximum travel speed is 24.90 km/h. Braking is handled by a manual park brake and a dedicated handbrake.
The hydraulic system uses a gear pump delivering 92.70 litres per minute at a system pressure of 260 bar. Cycle times are as follows: boom raise 8.3 seconds, boom lower 6.0 seconds, telescope extend 7.30 seconds, telescope retract 4.50 seconds, crowd in 3.40 seconds, and dump 2.80 seconds. The machine also features a third hydraulic valve circuit as standard. Fluid capacities include 128 litres of hydraulic oil, 120 litres of fuel, and 10 litres of engine oil.
The cab is certified to EN 15000 and is equipped with a ROPS/FOPS Level 2 protective structure. Controls are managed via a JSM (joystick steering module) system. Noise levels are 79 dB(A) at the operator station and 104 dB(A) ambient, and hand-arm vibration is rated at below 2.50 m/s². The internal stock reference for this unit is 5820.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
