2024 - Manitou MT 930H Telehandler()
- Listing No
- 764214
- Year
- 2024
- Manufacturer
- Manitou
- Model
- MT 930H
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : g06546Construction Power Type : 7500002Max lift power : 3,000 kgLift height : 8.85 mOther information : · Kippwinkel 11 °· Schüttwinkel 116 °· Wenderadius (über Räder) 3.35 m· Heben 10.24 s· Senken 7.95 s· Teleskop ausfahren 9.89 s· Teleskop Einfahren 9.48 s· Ankippen 3.06 s· Auskippen 2.44 s· Motornorm Stage V· Anzahl der Zylinder / Tragfähigkeit der Zylinder 4 - 3331 cm³· Nennleistung Verbrennungsmotor - Leistung (kW) 75 Hp / 54.60 kW· Max. Drehmoment / Motordrehzahl 265 Nm ... 1400 rpm· Zugkraft 3860 daN· Getriebetyp Hydrostatisch· Anzahl der Gänge (vorwärts / rückwärts) 2 / 2· Max. travel speed 24.90 km/h· Festellbremse Hydraulik· Pumpenart Zahnradpumpe· Hydraulikfördermenge / Hydraulikdruck 88 l/min / 245 bar· Motoröl 11 l· Hydrauliköl 115 l· Fassungsvermögen des Kraftstofftanks 90 l· Geräuschpegel im Fahrerstand (LpA) 74 dB· Umgebungsgeräusch (LwA) 103 dB· Schwingungsbelastung Hand/Arm < 2.50 m/s²· Lenkräder (vorne / hinten) 2 / 2· Sicherheit Zulassung der Kabine Kabine ROPS - FOPS Stufe 2
About this machine

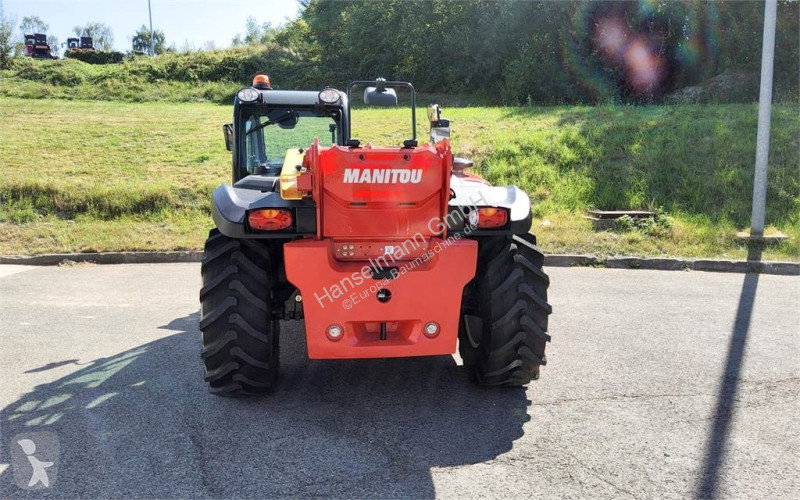

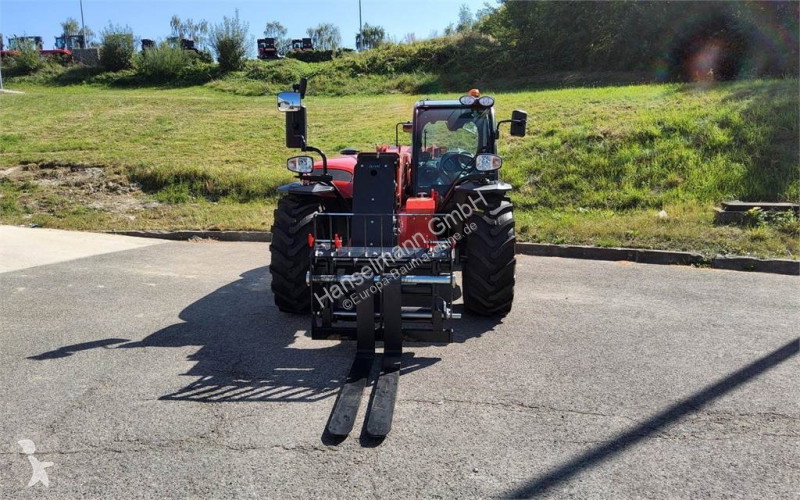

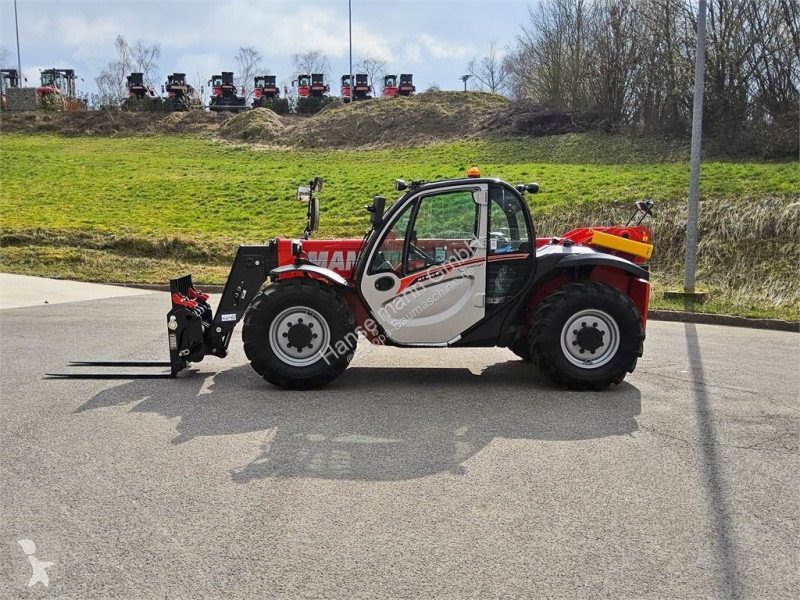

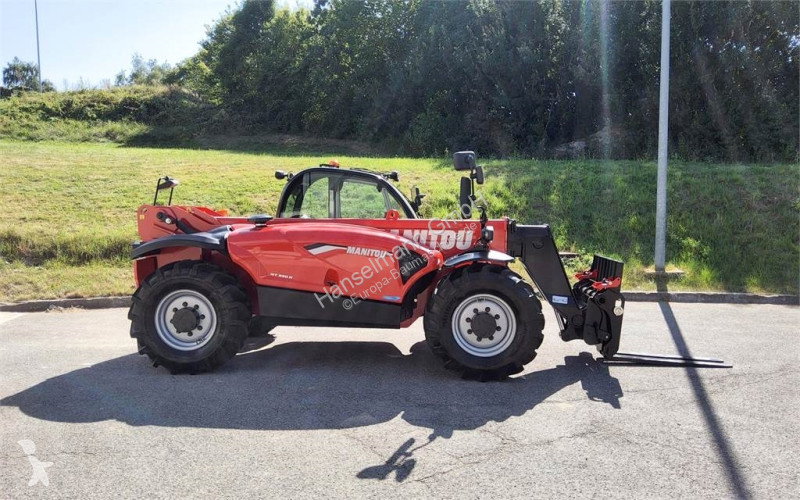

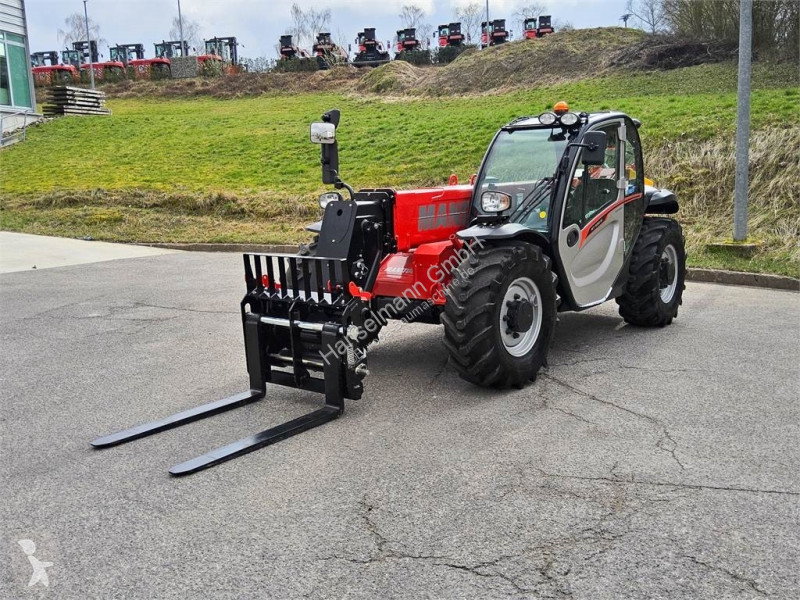

This Manitou MT 930H is a used telehandler — also commonly referred to as a telescopic handler — dating from 2024 and currently located in Germany. Telehandlers are versatile lifting machines used across construction, agriculture, and industrial sites to raise, place, and transport loads at height and reach, combining the functions of a forklift and a crane-style boom in a single compact unit. Manitou is a well-established French manufacturer recognised globally for its telehandlers, rough-terrain forklifts, and access equipment, serving the construction, agricultural, and industrial sectors for decades.
The machine has a rated maximum lift capacity of 3,000 kg and a maximum lift height of 8.85 metres, making it a capable mid-range unit suited to a wide variety of material-handling tasks on site. The boom geometry is complemented by a tipping angle of 11° and a crowd angle of 116°, giving operators good control over load positioning. The turning radius over the wheels is 3.35 metres, reflecting practical manoeuvrability on confined sites.
Cycle times are well documented: the boom raises in 10.24 seconds and lowers in 7.95 seconds. Telescopic extension takes 9.89 seconds and retraction 9.48 seconds. Crowd-in (tilting back) is completed in 3.06 seconds and crowd-out (dumping) in 2.44 seconds, indicating a responsive hydraulic system.
Power comes from a four-cylinder, 3,331 cm³ engine meeting Stage V emissions standards, producing 75 hp (54.60 kW) with a maximum torque of 265 Nm at 1,400 rpm. The drivetrain uses a hydrostatic transmission with two forward and two reverse gears, achieving a maximum travel speed of 24.90 km/h. Tractive effort is rated at 3,860 daN, reflecting strong pushing and pulling capability on varied terrain. Steering is provided by all four wheels (two front, two rear), aiding tight manoeuvring.
The hydraulic system uses a gear pump delivering 88 litres per minute at a working pressure of 245 bar. Fluid capacities include 115 litres of hydraulic oil, 11 litres of engine oil, and a 90-litre fuel tank. The parking brake is hydraulic. Operator environment noise is measured at 74 dB (LpA) at the cab, with an external sound power level of 103 dB (LwA). Hand-arm vibration exposure is declared at less than 2.50 m/s². The cab holds ROPS and FOPS Level 2 certification, providing structural protection against rollover and falling objects.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
