2023 - Manitou MT 933 easy Telehandler()
- Listing No
- 764348
- Year
- 2023
- Manufacturer
- Manitou
- Model
- MT 933 Easy
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : 5826Construction Power Type : 7500002Max lift power : 3,300 kgLift height : 9.07 mEngine : Diesel - Deutz TCD 3,6 L4Accessories : 3. Ventil,Other information : · Schüttwinkel: 12 Grad· Kippwinkel 114 Grad· Heben: 8,90s· Senken: 5,70s· Wenderadius (über Räder): 3,80m· Teleskop ausfahren: 14,6s· Teleskop einfahren: 8,80s· Ankippen: 3,30s· Auskippen: 3,10s· Motomom: Stage V / Tier 4 final· Anzahl der Zylinder / Tragfähigkeit: 4 - 3621 cm³· Nennleistung Verbrennungsmotor - Leistung (kW): 75 Hp / 55 kW· Max. Drehmoment / Motordrehzahl: 340 Nm ... 1600 rpm· Zugkraft 7320 daN· Anzahl der Gänge (v/h): 4/4· Maximale Geschwindigkeit: 24,90 km/h· Hydraulikfördermenge / Hydraulikdruck: 92,7 l/min / 260 bar· Motoröl: 10l· Hydrauliköl: 128l· Fassungsvermögen des Kraftstofftanks: 120l· Geräuschpegel im Fahrerstand (LpA): 79 dB· Umgebungsgeräusch (LwA): 104 dB· Schwingungsbelastung Hand/Arm < 2.50 m/s²· Lenkräder (vorne / hinten) 2 / 2· Sicherheit Zulassung der Kabine: Standard EN 15000 / Cabin ROPS - FOPS Level 2· Max. Hubhöhe: 9,07 m· Max. Auslage: 6,35 m· Ausbrechwinkel mit Schaufel: 5770 daN
About this machine

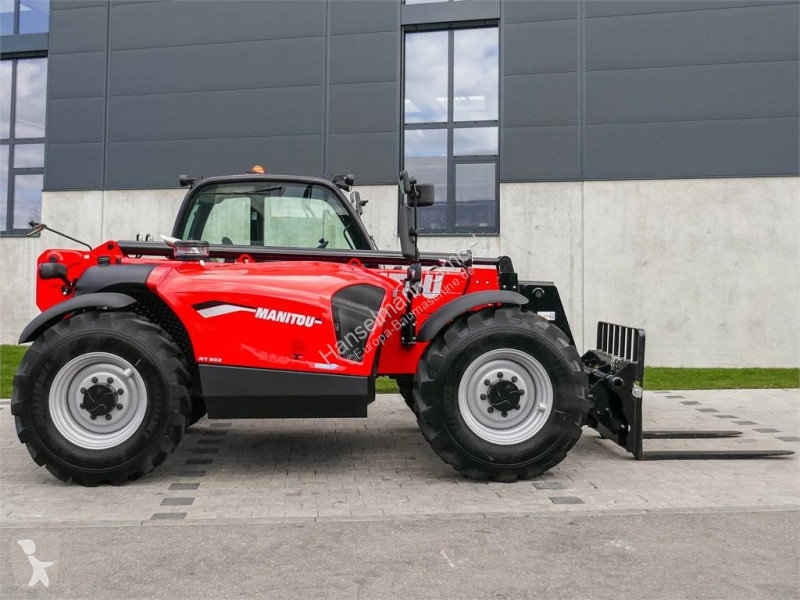

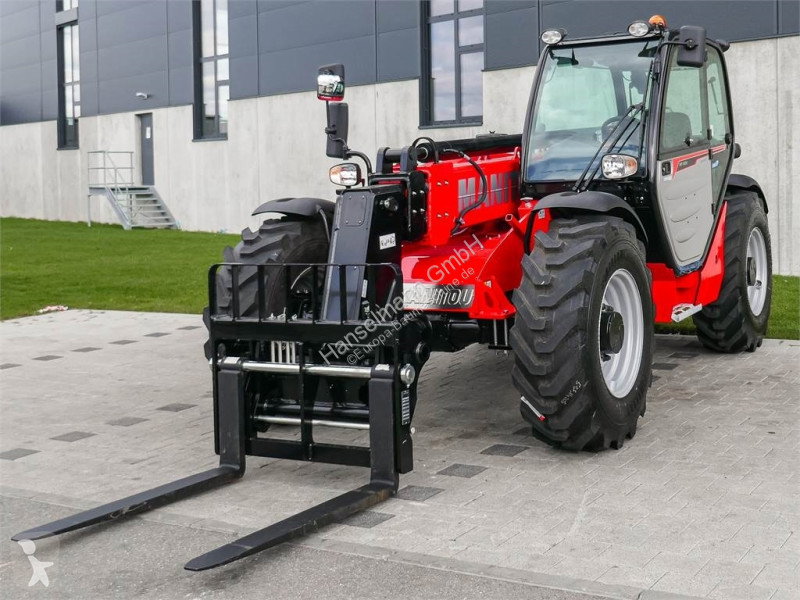

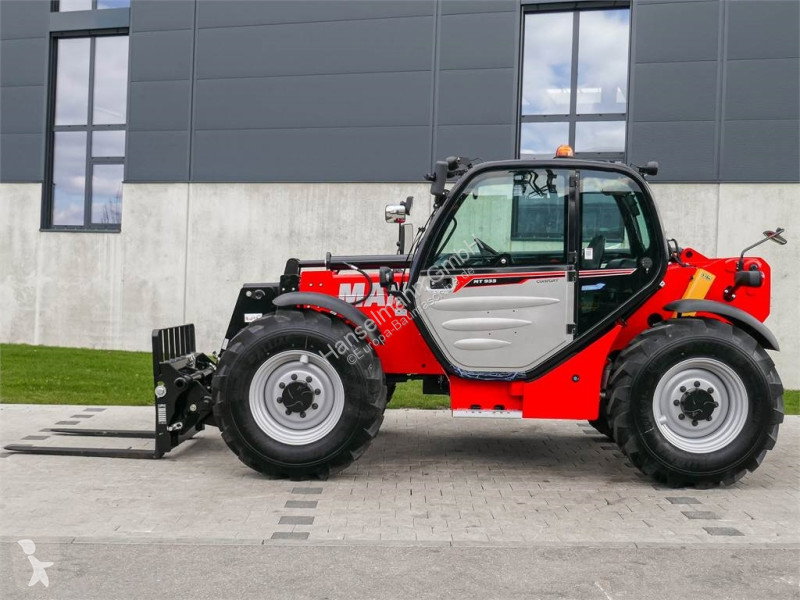

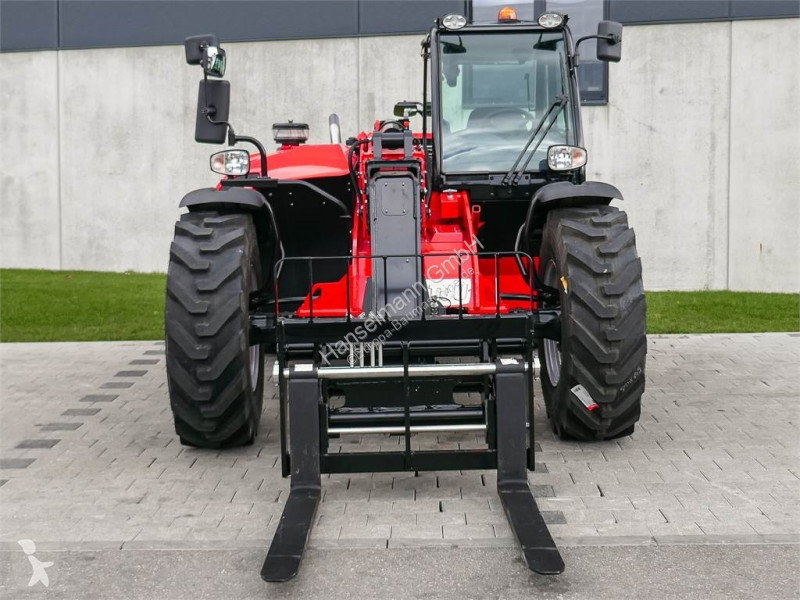

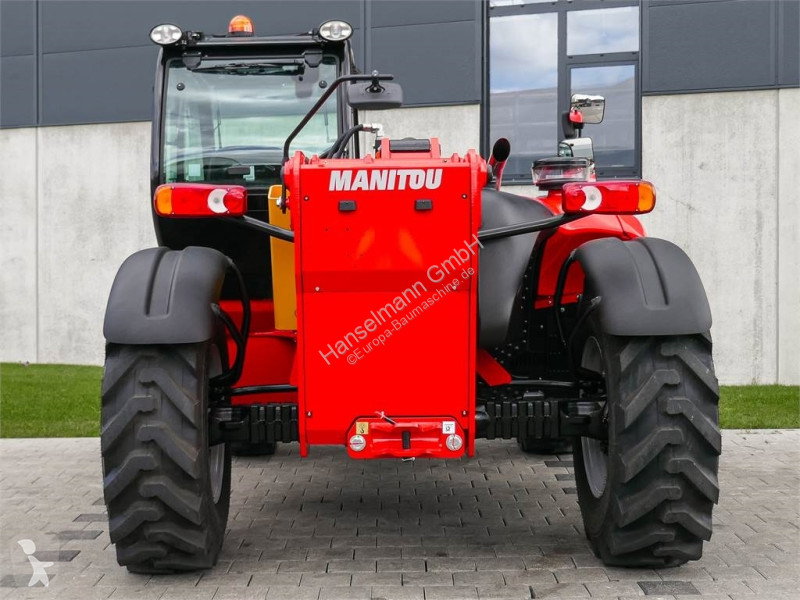

The Manitou MT 933 easy is a used telehandler — sometimes referred to as a telescopic handler or reach forklift — built for material handling across construction sites, agricultural operations, and industrial yards. Manitou is a well-established French manufacturer with a long history of producing lifting and handling equipment, including telehandlers, rough-terrain forklifts, and aerial work platforms, serving sectors that demand reliable load placement at height and reach.
This 2023 machine is powered by a Deutz TCD 3.6 L4 diesel engine displacing 3,621 cc across four cylinders, producing 55 kW (75 hp) with a peak torque of 340 Nm at 1,600 rpm. The engine meets Stage V / Tier 4 Final emissions standards, making it compliant with current European regulations. A four-speed forward and reverse transmission gives a maximum travel speed of 24.9 km/h, and the machine develops a tractive force of 7,320 daN. Steering is applied to all four wheels, two front and two rear, with a turning radius over the wheels of 3.80 m.
The telehandler has a maximum rated lift capacity of 3,300 kN and a maximum lift height of 9.07 m, with a maximum horizontal reach of 6.35 m. The attachment bucket generates a breakout force of 5,770 daN. Boom geometry is defined by a dump angle of 12 degrees and a crowd angle of 114 degrees. Cycle times give a practical sense of working pace: the boom raises in 8.90 seconds and lowers in 5.70 seconds, the telescopic section extends in 14.6 seconds and retracts in 8.80 seconds, and crowd and dump movements each complete in approximately 3.10 to 3.30 seconds.
The hydraulic system delivers a flow rate of 92.7 litres per minute at a working pressure of 260 bar, and the machine is fitted with a third auxiliary hydraulic valve. Fluid capacities include 10 litres of engine oil, 128 litres of hydraulic oil, and a 120-litre fuel tank. Operator environment is governed by a cab certified to EN 15000 with ROPS and FOPS Level 2 protection. In-cab noise is rated at 79 dB (LpA), with exterior sound power of 104 dB (LwA), and hand-arm vibration is declared below 2.50 m/s². The machine is located in Germany and carries the internal stock reference 5826.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
