2010 - Marchesini BL400 Labeler Machine()
- Listing No
- 1092093
- Year
- 2010
- Manufacturer
- Marchesini
- Model
- BL400
- Condition
- Used
- Location
- Italy
- Price
- POA
- Description
-

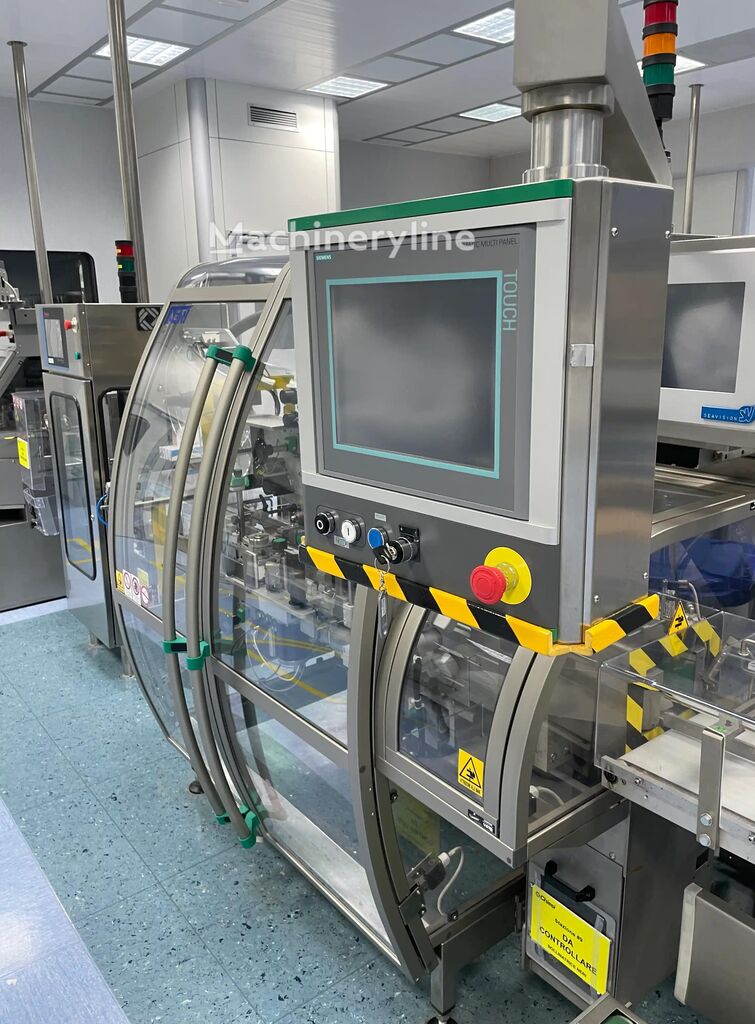

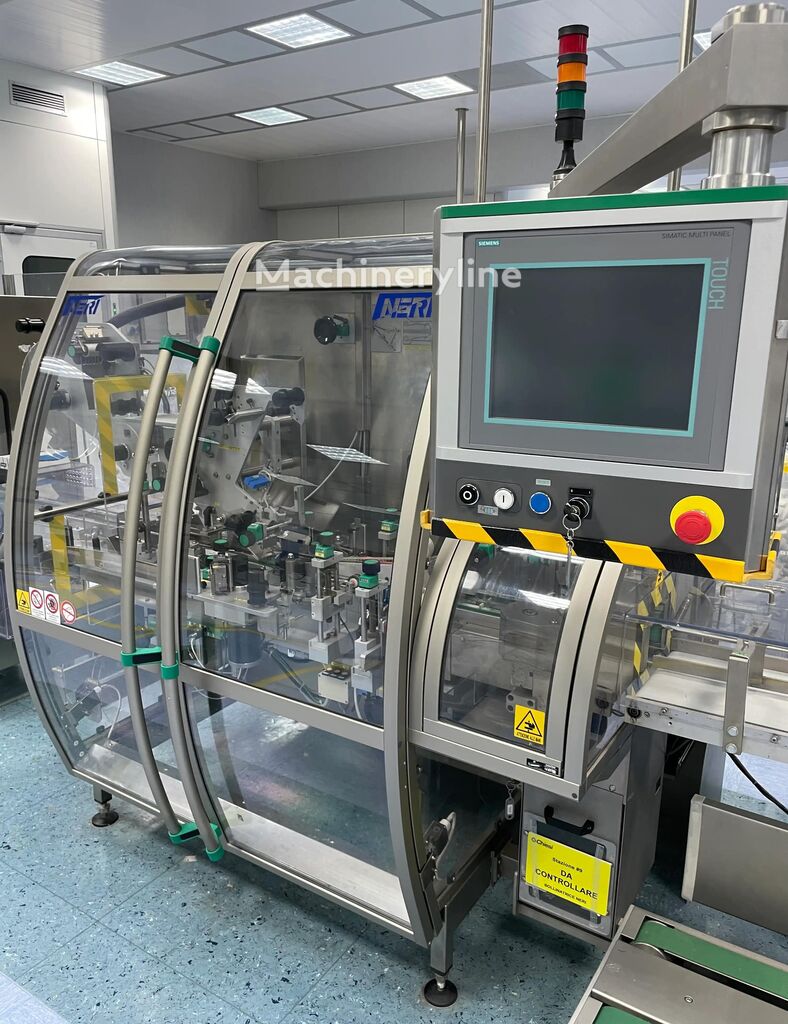

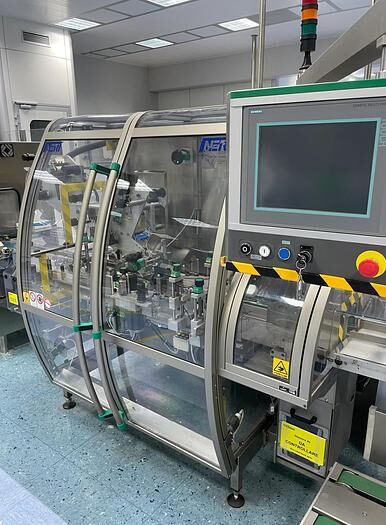

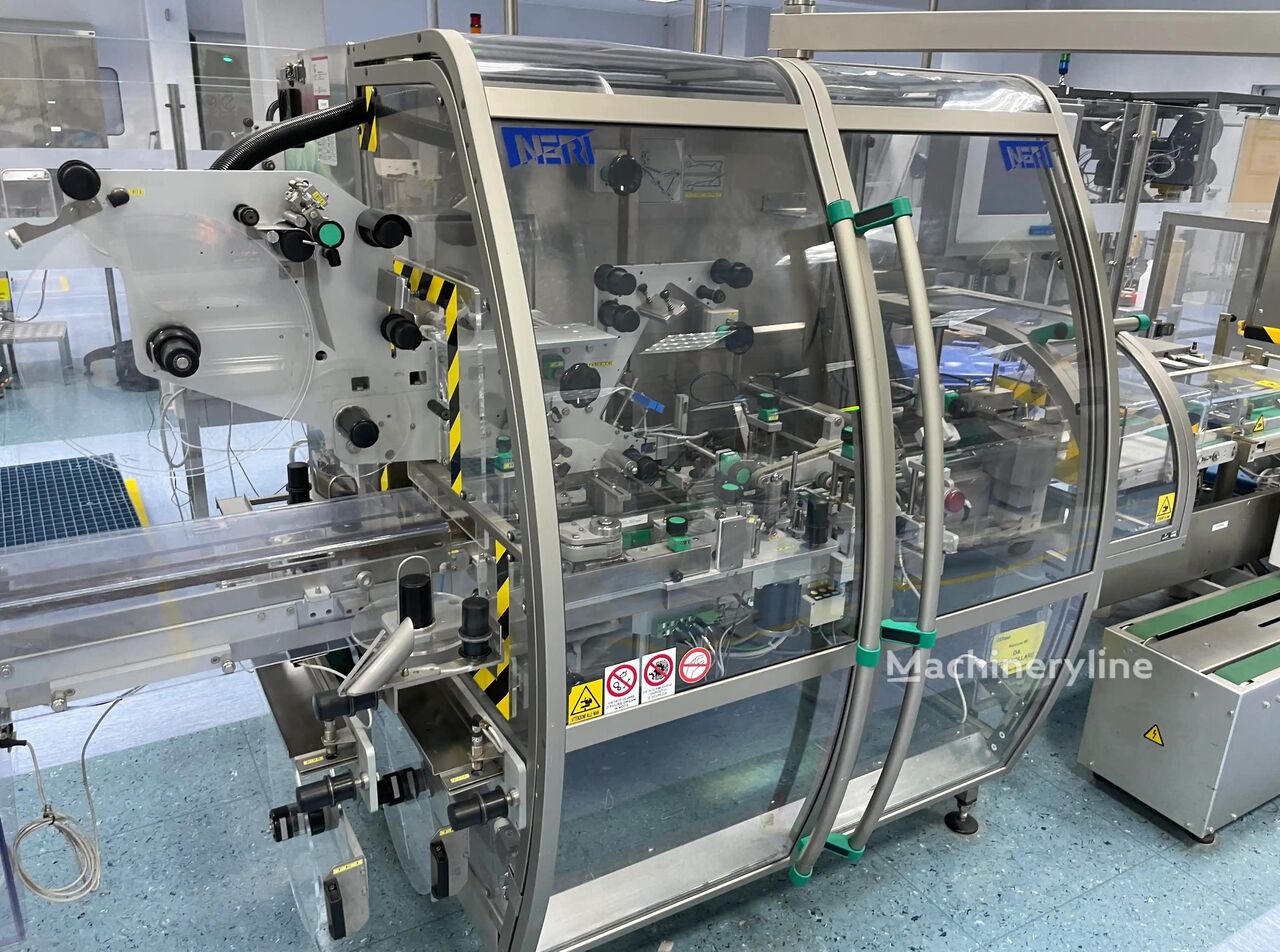

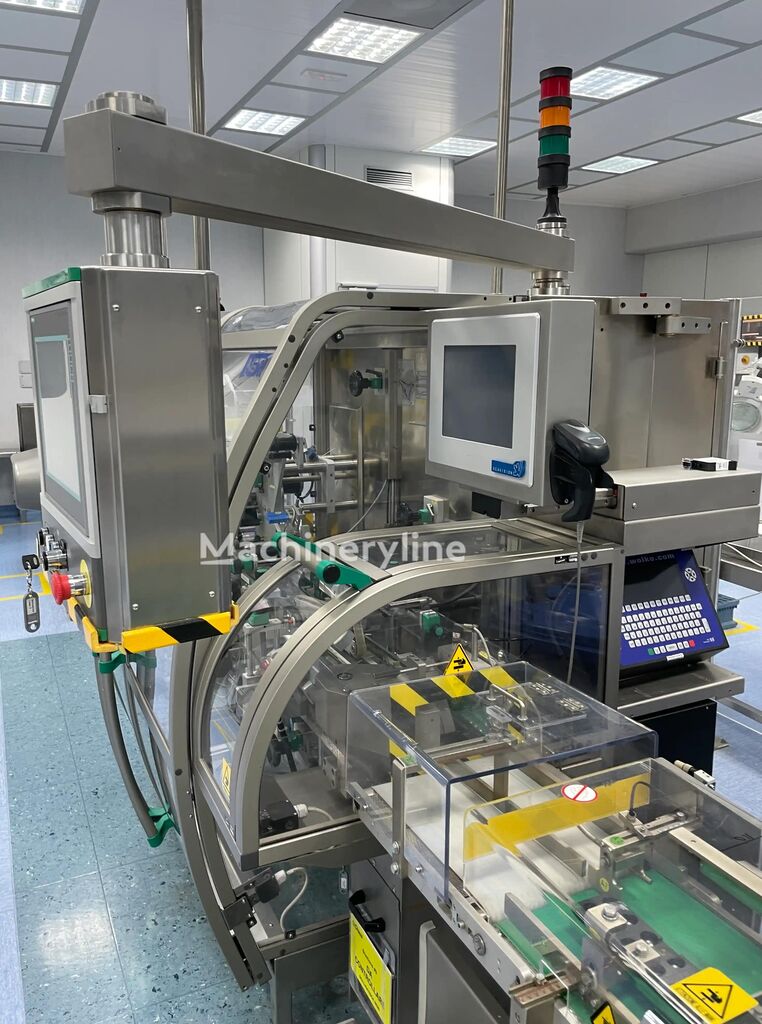

NERI MARCHESINI LABELLING MACHINE, MODEL BL400 Linear labeller with balcony construction, for easy clearance procedures. Can work in-line with other packaging machines or as free standing units, if fitted with required boxes infeed and outfeed devices. CHARACTERISTICS Labelling machine with balcony construction in satin stainless steel Electrical cabinet on machine board Positive transport system of carton in pitch, making the machine completely fail-safe The ergonomics reduce the accessibility to 70 cm only, and divide the machine in three areas: operative, mechanical and electrical Automatic unwinder and automatic label changing system with set-up by keyboard and possibility to memorize different label sizes Self-diagnosis on 6” colour touch display on a swiveling arm PRODUCTION CHARACTERISTICS Maximum rate: 400 pcs/min Label speed: 0 ÷ 50 m/min Carton width (A): 20 ÷ 180 mm Carton height (B): 15 ÷ 120 mm Carton length (C): 70 ÷ 200 mm Vignette height: 20 ÷ 60 mm Vignette length: 15 ÷ 80 mm Maximum reel diameter: 400 mm ENERGY USAGE Standard electric power supply: 380 - 220 V-50 Hz Installed power: 4 kW Compressed air pressure: 6 bar Compressed air consumption: 20 Nl/min Show the whole comment
About this machine
The Marchesini BL400 is a labeling machine — sometimes referred to as a label applicator — designed to apply self-adhesive labels to cartons at high speed within pharmaceutical and consumer goods packaging lines. Marchesini is a well-established Italian manufacturer with a long history of supplying automated packaging equipment, including cartoners, blister lines, and labeling systems, primarily to the pharmaceutical and cosmetics industries.
This particular machine is a linear labeler built to a balcony construction, meaning the mechanical and electrical assemblies are arranged to allow clear, unobstructed access for format changes and maintenance. It can be integrated in-line with other packaging machinery or operated as a free-standing unit when fitted with appropriate carton infeed and outfeed devices. The frame and guards are finished in satin stainless steel, and the electrical cabinet is mounted directly on the machine board to keep the footprint compact. The balcony layout divides the machine into three distinct zones — operative, mechanical, and electrical — with an operator access depth of just 70 cm, which contributes to both ergonomics and safety.
Product transport is positive and pitch-controlled, meaning cartons are moved in fixed, timed increments rather than by friction alone, making the system inherently fail-safe. The automatic label unwinder includes an automatic label-changing system with keyboard-based setup and the ability to store multiple label format memories. Machine status and self-diagnostics are presented on a 6-inch colour touchscreen mounted on a swiveling arm, giving operators clear visibility from different working positions.
In terms of production capacity, the machine is rated at a maximum output of 400 pieces per minute, with label web speed variable from 0 to 50 m/min. Carton dimensions that can be handled span widths from 20 to 180 mm, heights from 15 to 120 mm, and lengths from 70 to 200 mm. Label (vignette) dimensions range from 20 to 60 mm in height and 15 to 80 mm in length, with a maximum reel diameter of 400 mm.
Electrical supply requirements are 380/220 V at 50 Hz, with an installed power of 4 kW. The machine also requires compressed air at 6 bar, with a consumption of 20 Nl/min. This is a used machine, manufactured in 2010, and is currently located in Italy.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
