2005 - MBO K 760 4-SKTL Folding Machine()
- Listing No
- 1018369
- Year
- 2005
- Manufacturer
- MBO
- Model
- K 760 4-SKTL
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
max. size 76 x 120 cm age 2005 pallet feeder with suction head MC Control 4 folding pockets in the parallel fold section following knife shaft 2 folding knives in the cross fold section 1 additional folding pocket after the 1st cross fold stacking delivery Desta Delivery time: immediatelly from stock Ref: MB250171A Please ask for price. We ship and install worldwide!
About this machine
This MBO K 760 4-SKTL is a used folding machine — sometimes referred to as a paper folder or sheet folder — manufactured by MBO in 2005 and currently located in Germany. Folding machines of this type are used in commercial print finishing to automatically fold sheets of paper into a variety of configurations, and MBO is a well-established German manufacturer with a long history of producing precision folding and finishing equipment for the print and graphic arts industries.

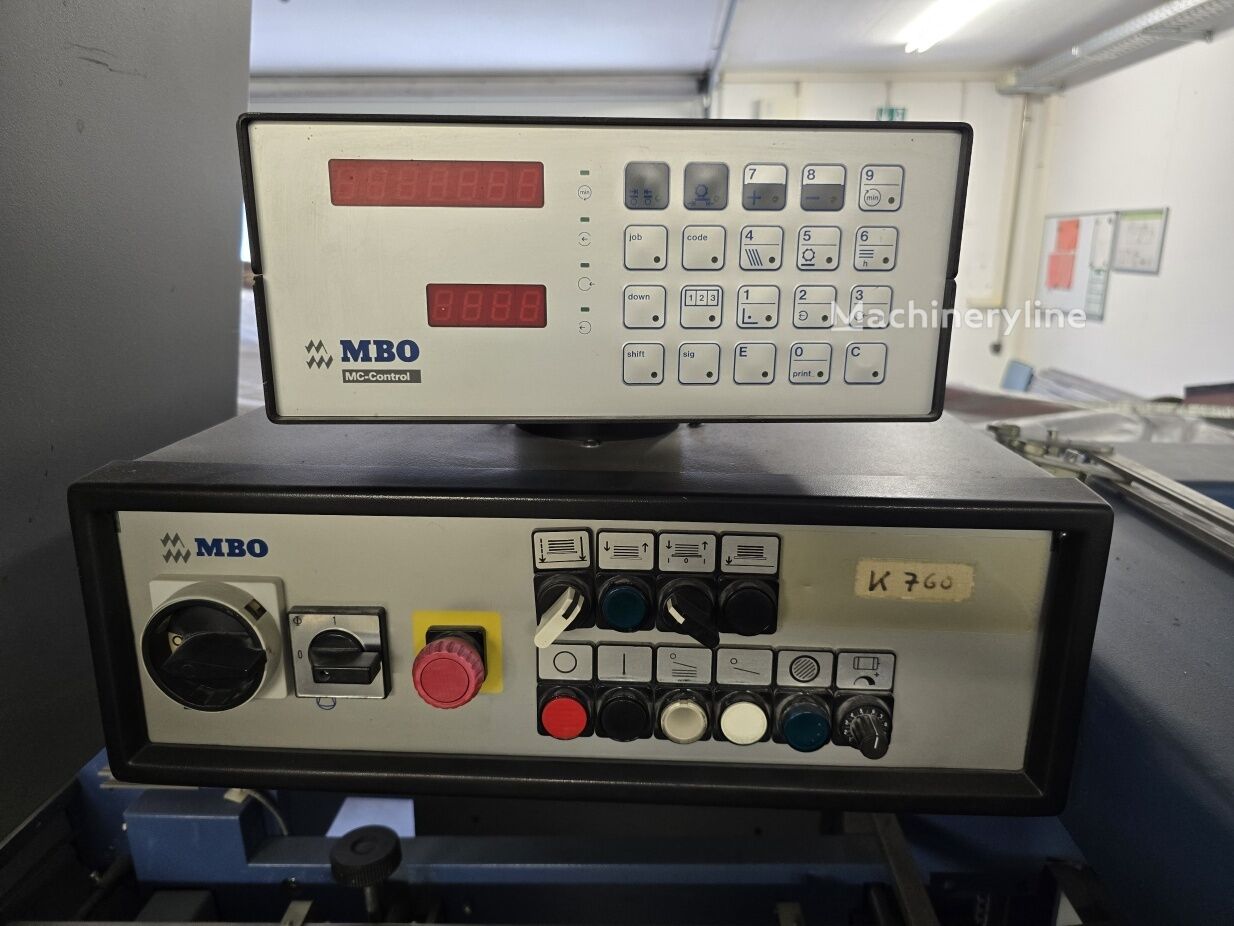

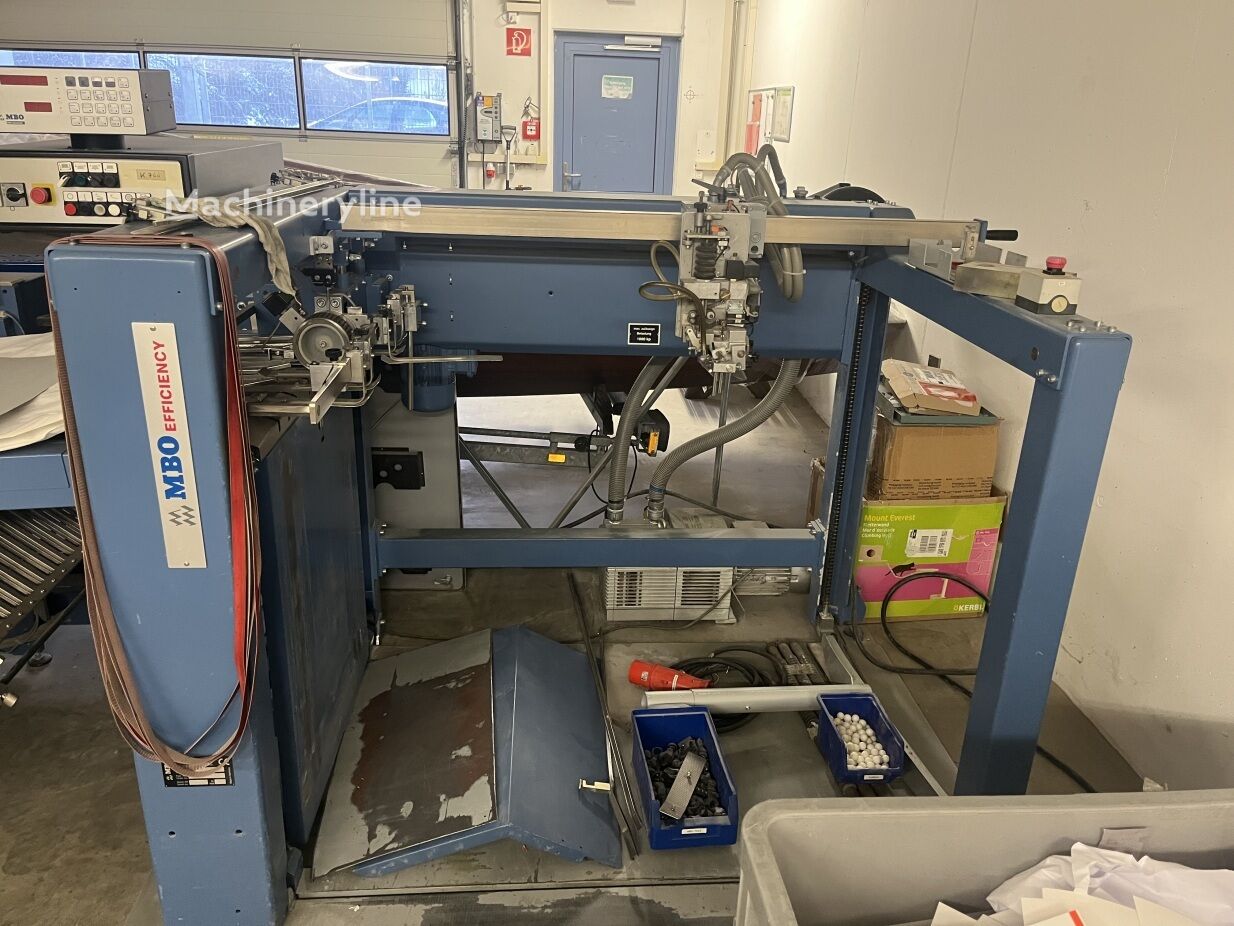

The machine accepts a maximum sheet size of 76 × 120 cm, placing it in the large-format category suitable for handling substantial press sheets. Feeding is handled by a pallet feeder equipped with a suction head, which draws sheets individually from a stack for consistent, automated infeed. The control system is MC Control, MBO's electronic management interface for setting and monitoring fold parameters.

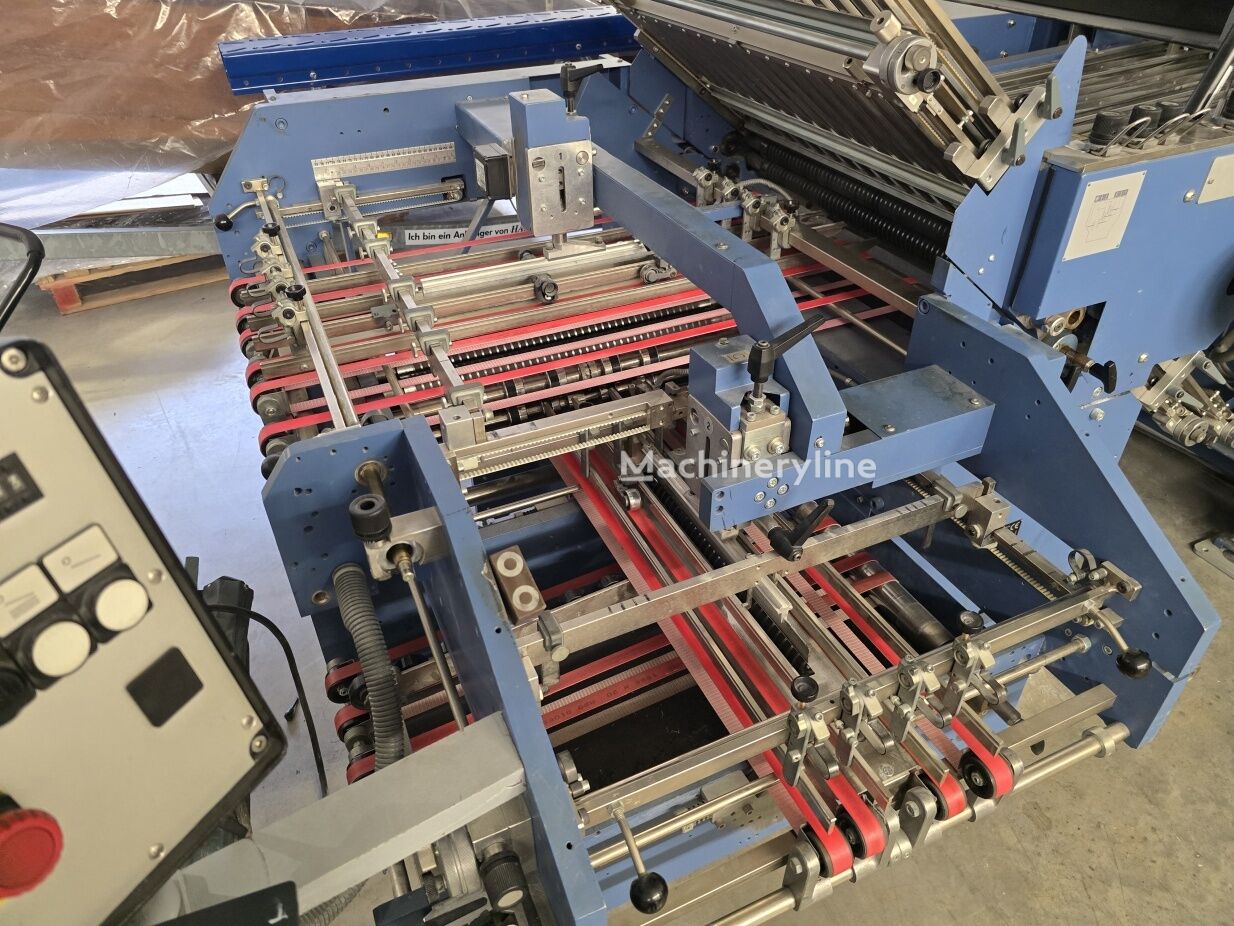

The folding configuration is notably comprehensive. The parallel fold section contains four folding pockets, allowing multiple sequential folds to be executed along the same axis in a single pass. Following the parallel section, a knife shaft is fitted, which uses a blade mechanism to initiate folds on thicker or more resistant substrates where buckle pockets alone may be insufficient. The cross fold section adds a further two folding knives, enabling folds perpendicular to the direction of travel, and an additional folding pocket is installed after the first cross fold, extending the range of fold combinations the machine can produce.
Delivery of finished work is handled by a Desta stacking delivery unit, which collects and stacks the folded output in an organised manner ready for the next finishing stage. The machine is available immediately from stock with the internal reference MB250171A.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
