About this machine

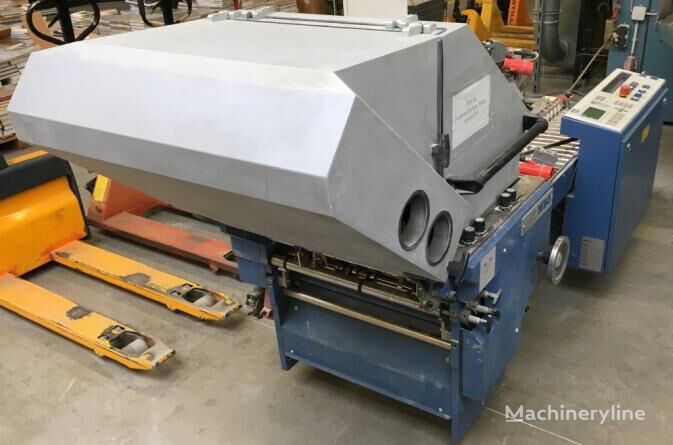

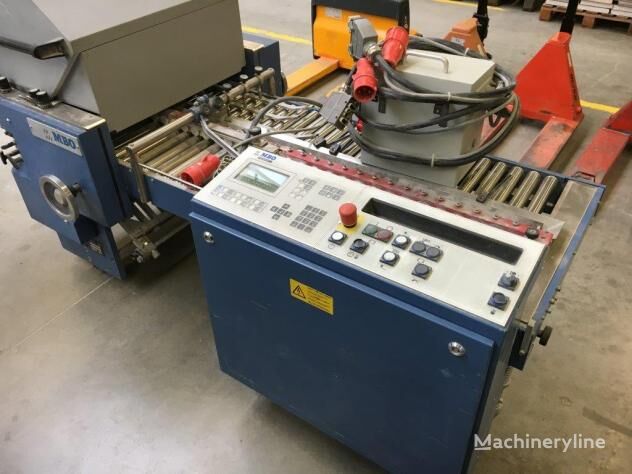

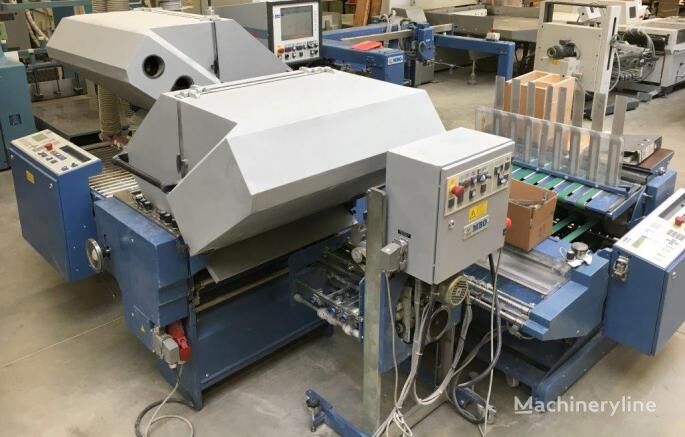

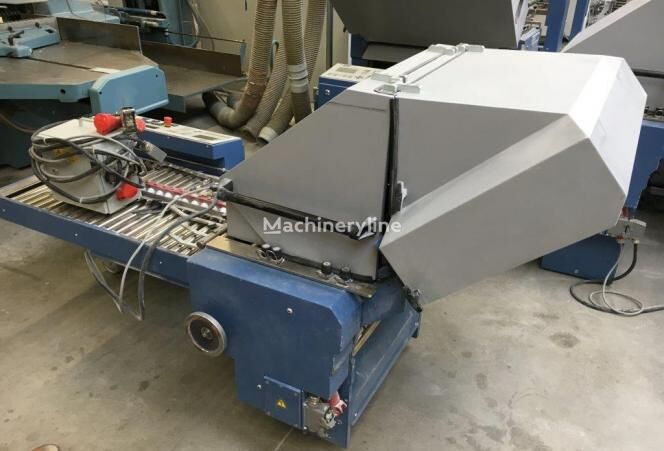

This MBO T -FP is a used folding machine, sometimes referred to as a paper folder, dating from 2003 and currently located in Germany. Folding machines are used in print finishing to automatically fold sheets of paper into a variety of formats — brochures, leaflets, mailers, and booklet signatures among them. MBO is a well-established German manufacturer with a long history of producing precision folding and finishing equipment for commercial print, bindery, and mailing operations.

The machine is configured as a semi-automatic adjustable combination buckle plate folder, meaning it combines multiple folding stations capable of producing a wide range of fold types through motorized, adjustable buckle pockets. Sheet feeding is handled by a pallet feeder, the FP , which is equipped with Vaculift technology and a navigator control system, allowing for smooth, automated sheet separation and feed management from a full pallet stack.

The main folding unit is arranged across three folding sections. The first section, FW 1, carries six motor-adjustable pockets with a maximum pocket depth of 76 cm. The second section, FW 2, is fitted with HighSpeed Guides and four motorized adjustable pockets, also at 76 cm. The third section, FW 3, also features HighSpeed Guides and includes two motorized adjustable pockets rated at 56 cm, along with a dedicated window fold pocket for producing parallel window folds. This three-section layout gives the machine considerable folding versatility across a wide range of job types and sheet sizes.

A mobile cross-break unit, the MBO Z2, is included and adds cross-perforating or scoring capability inline with the folding process. Delivery is handled by an MBO FA 82-ME Navigator vertical standing arch delivery with integrated pressing station; this unit is both mobile and height adjustable, with a working width of 82 cm. The integrated pressing station ensures that folded products are firmly creased and stacked neatly at output. A marking device with preselection counter is also fitted, allowing production batches to be counted and marked automatically.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
