2019 - Mccloskey I34R Quarry Crusher()
- Listing No
- 271982
- Year
- 2019
- Manufacturer
- Mccloskey
- Model
- I34R
- Condition
- Used
- Location
- USA
- Price
- POA
- Description
-

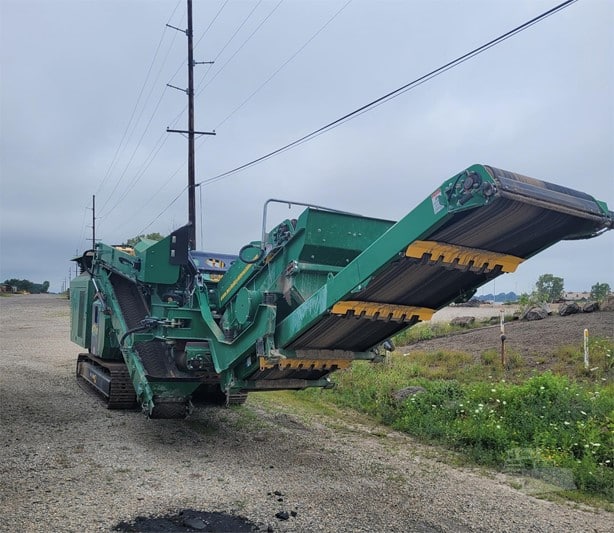

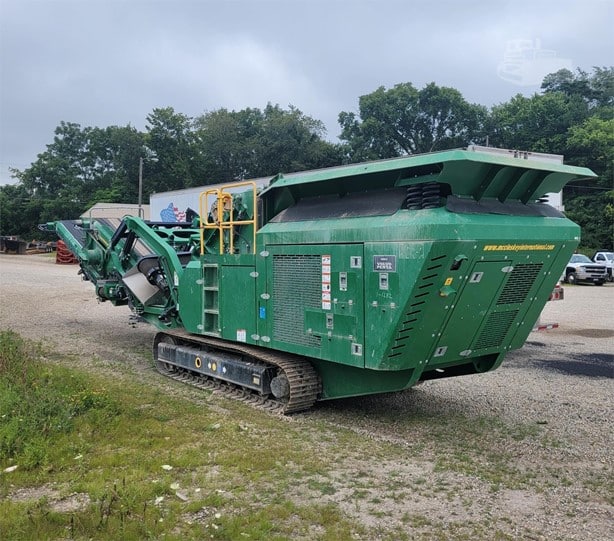

2019 MCCLOSKEY I34R TRACKED IMPACT CRUSHER . 3.6YD VIBRATING GRIZZLY FEEDER, 34" X 25.6" 4 BAR IMPACTOR, 252HP VOLVO D8 ENGINE, 36" MAIN CONVEYOR, RADIAL RETURN CONVEYOR, ERIEZ CROSSBELT MAGNET, FINES CONVEYOR, TOTAL WEIGHT 57,982LBS
About this machine
This 2019 McCloskey I34R is a used tracked impact crusher — sometimes referred to as a tracked impactor — a type of heavy quarry crusher designed to reduce hard rock, demolition rubble, and similar materials into sized aggregate through high-energy impact rather than compression. McCloskey is a well-regarded manufacturer of mobile crushing and screening equipment, building machines for quarrying, mining, recycling, and construction applications worldwide.

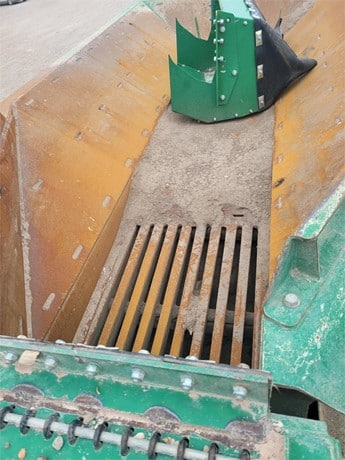

The machine is equipped with a 3.6-cubic-yard vibrating grizzly feeder, which pre-screens incoming material before it reaches the crushing chamber, improving throughput efficiency and reducing wear on the impactor. The primary crushing unit is a 34-inch by 25.6-inch four-bar impactor, offering a substantial feed opening suited to processing large-run quarry stone. Power comes from a 252-horsepower Volvo D8 engine, providing the output required to drive both the impactor and the supporting conveyor and screening systems.

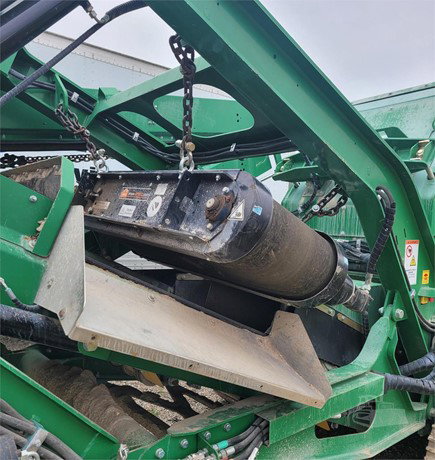

Material handling after crushing is handled by a 36-inch main conveyor, which carries processed aggregate away from the crusher. A radial return conveyor allows oversize material to be recirculated back into the feed for further reduction, helping to produce a more consistent, uniform product. A fines conveyor is also fitted to manage and discharge the smaller fractions produced during crushing. An Eriez crossbelt magnet is mounted to remove ferrous metal contamination from the crushed output, a feature particularly valuable in recycling and demolition applications.
The machine has a total operating weight of 57,982 pounds and is located in Ohio, USA.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
