Meusburger Curtainside Semi Trailer()
- Listing No
- 630643
- Year
- Manufacturer
- Meusburger
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Accessoires ABS Centraal smeersysteem EBS Stuuras Laadvermogen : 40720 kg Apk gekeurd tot : 02/2025 Liftas Lucht veringsysteem Opbouw: 4-ass. Vlakke MEGA oplegger met elektrische huifopbouw // 2x naloop gestuurd Datum 1e registratie: 26-02-2014 Lengte oplegger: 1.390 cm Breedte: 255 cm Hoogte laadvloer: +- 90 cm Lengte inwendig: 1.360 cm Breedte inwendig: 247 cm verbreedbaar tot 587 cm Hoogte inwendig: 308 cm. verhoogbaar tot 353 cm Aantal assen: 4 stuks Aantal stuurassen: 2 (naloop, 3e en 4e) Aantal liftassen: 1 (1e) Vering: Lucht GVW: 51.500 kg Ledig gewicht: 10.780 kg Laadvermogen: 40.720 kg Bandenmaat: 235/75x17.5” Gemiddeld profiel in %: 60 % Remmen: Trommelremmen 40 % Apk t/m: 02-2025 Merk assen: BPW Centrale vetsmeering: Ja Oplegger technisch in goede staat! payload weight : 40720 kg MOT until : 02/2025 Air suspension system Construction: 4-axle flat MEGA trailer with electric roof and side curtains // 2x friction steering Date 1st registration: 26-02-2014 Length trailer: 1.390 cm Width: 255 cm Height loading floor: +- 90 cm Length inside: 1.360 cm Width inside: 247 cm. widened till 587 cm Height inside: 308 cm. adjustable till 353 cm Number of axles: 4 Number of steering axles: 2 (friction 3e and 4e) Number of Lift axles: 1 (1e) Suspension: Luft GVW: 51.500 kg Unladen weight: 10.780 kg Payload: 40.720 kg Tire size: 235/75 x 17.5 " Average profile in%: 60 % Brakes: drum brakes 40 % MOT t/m: 02-2025 Brand axles: BPW Central lubrication: Yes Trailer technical in good condition! Ladekapazität : 40720 kg HU : 02/2025 Konstruktion: 4-achs. Flache MEGA auflieger mit Elektrische Planen // 2x nachlauf gelenkt 1. Registrierung Datum: 26-02-2014 Länge auflieger: 1.390 cm Breite: 255 cm Höhe Ladeboden: +- 90 cm Länge innen: 1.360 cm Breite innen: 247 cm. Verbreitbar bis 587 cm Höhe innen: 308 cm. Hebbar bis 353 cm Anzahl der Achsen: 4 Anzahl der Lenkachsen: 2 (Nachlauf 3e und 4e) Anzahl der Liftachsen: 1 (1e) Federung: Luft GVW: 51.500 kg Leergewicht: 10.780 kg Nutzlast: 40.720 kg Reifen Größe: 235/75 x 17,5 " Durchschnittliche Profil in %: 60 % Bremsen: Trommel-Bremsen 40 % TUV t/m: 02-2025 Marke Achsen: BPW Zentrale fettschmierung: Ja Auflieger technisch im gute Zustand! poids de la charge utile : 40720 kg Contrôle technique jusqu'à : 02/2025 Carga útil : 40720 kg ITV aprobó a : 02/2025 Show the whole comment
About this machine

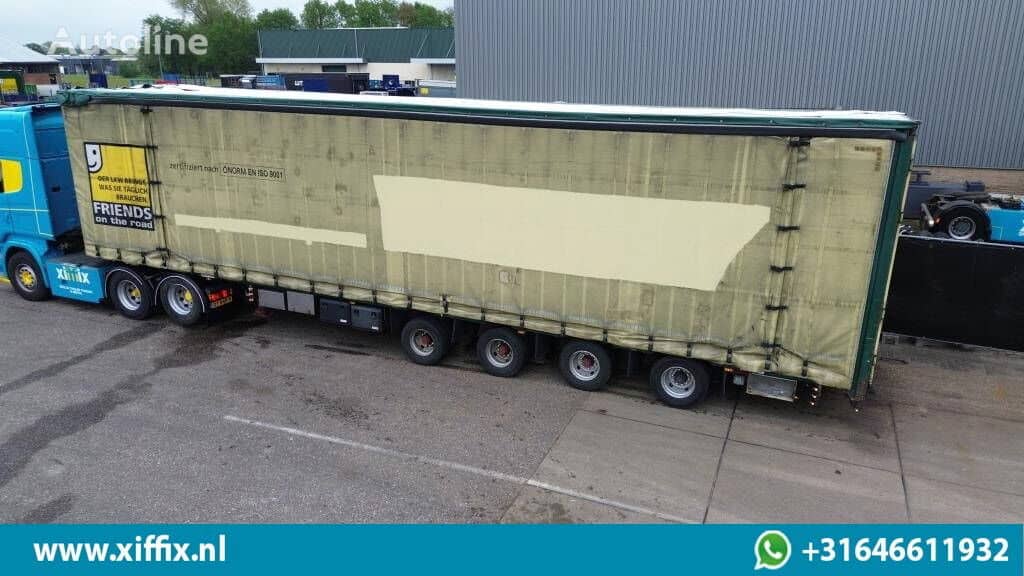

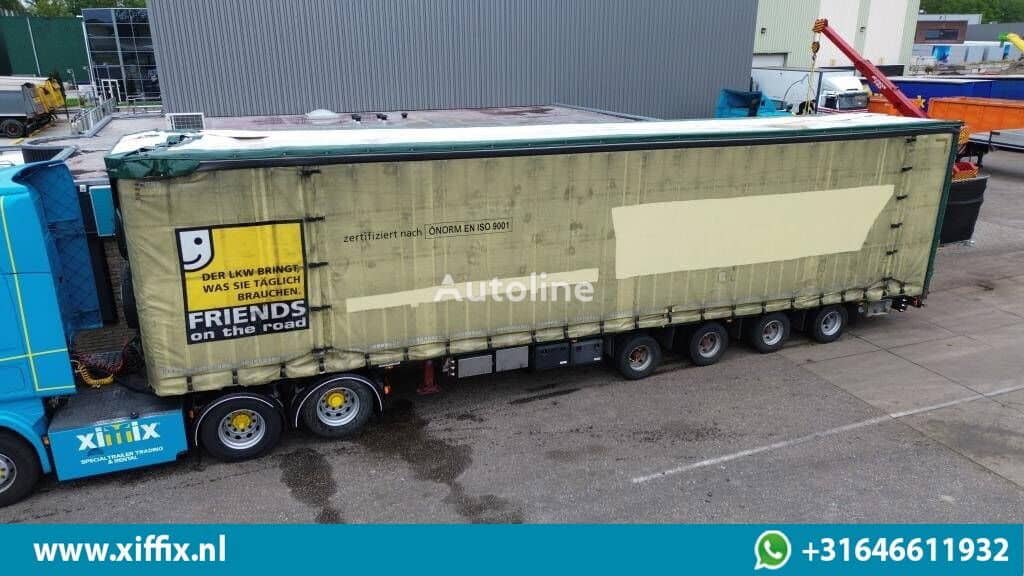

This Meusburger is a used curtainside semi-trailer — sometimes referred to as a tautliner — located in the Netherlands. Curtainside semi-trailers are a staple of general freight transport, combining the load security of an enclosed body with rapid side access for fork-lift loading and unloading. Meusburger is an Austrian manufacturer with a long-established reputation for producing heavy-duty trailers and semi-trailers serving the European road haulage industry.

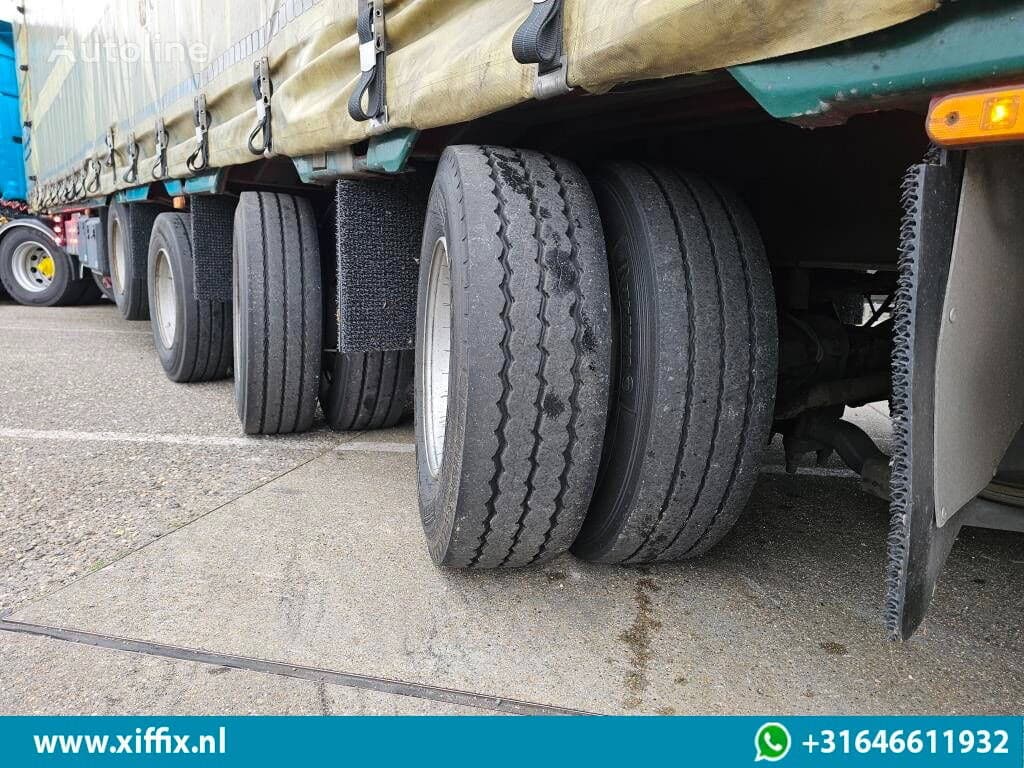

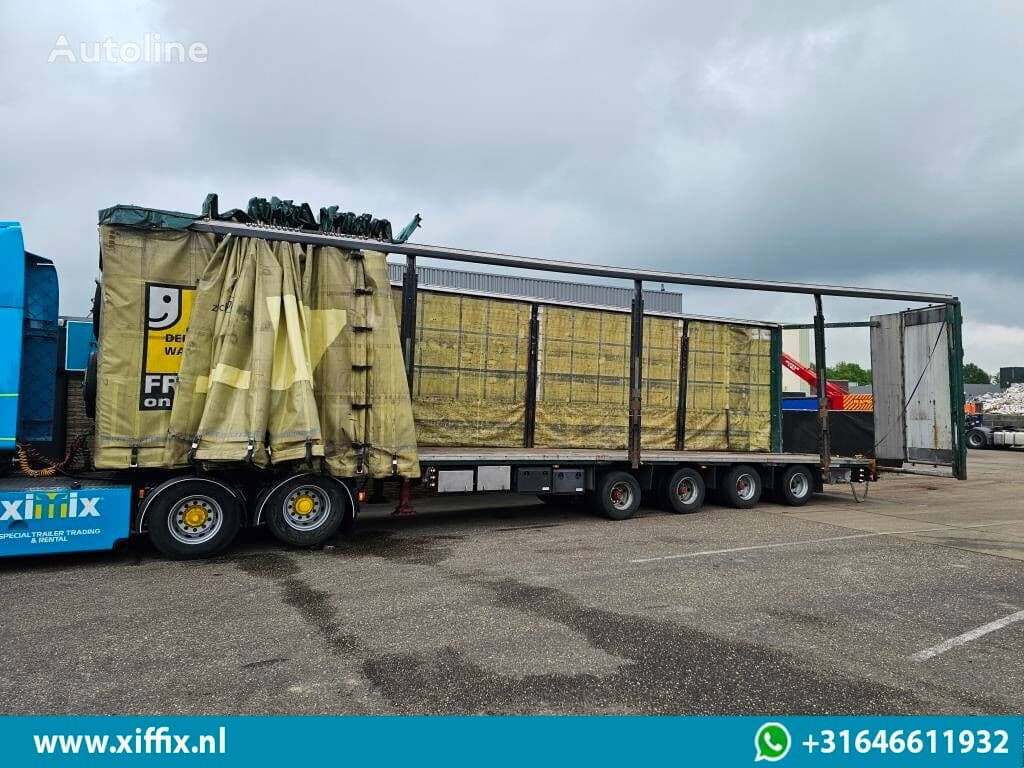

This particular unit is a four-axle flat MEGA semi-trailer fitted with an electric curtainside superstructure, making it suitable for oversized or high-cube loads that exceed standard trailer clearances. Of the four axles, two are steering axles — the third and fourth, operating on a friction-steering principle — and one is a lift axle on the first position, giving the operator flexibility to reduce rolling resistance and tyre wear when running at lighter loads. All axles are BPW branded, a widely respected marque in the European trailer industry. Suspension throughout is air, and the trailer is equipped with both ABS and EBS for enhanced braking safety. Brakes are drum type with approximately 40% remaining lining life. A central lubrication system is fitted, reducing maintenance demands on the axle and suspension components.
The trailer measures 13.90 m in overall length with an internal load length of 13.60 m and a standard internal width of 2.47 m. A notable feature is the expandable width: the body can be widened to 5.87 m internally, making this unit well suited for abnormal or wide loads. Internal height stands at 3.08 m in standard configuration and can be raised to 3.53 m, consistent with MEGA-specification trailers designed to carry tall palletised freight. The loading floor sits approximately 90 cm from the ground.
The gross vehicle weight is rated at 51,500 kg, the unladen weight is 10,780 kg, and the payload capacity is 40,720 kg. Tyres are 235/75 × 17.5 inches with an average tread depth of around 60%. First registered on 26 February 2014, the trailer holds a valid roadworthiness certificate (APK/MOT) until February 2025. The seller describes the trailer as being in good technical condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
