2024 - Meyer VC 4500 Roller()
- Listing No
- 1052924
- Year
- 2024
- Manufacturer
- Meyer
- Model
- VC 4500
- Condition
- Used
- Location
- Germany
- Price
- $23,900
- Description
-
Illumination VC 4500 (0010) MEYER double knife roller (0020) Double knife roller 4.5 mtr Knife roller (0030) with 12 individually spring-mounted knife elements (0040) Very good soil copying due to the individually suspended (0050) roller elements. For full-surface cultivation (0060) the rows of rollers are offset (0070) First row of rollers offset to the left and the second row of rollers offset to the right (0080) offset to the right (0090) 4.5 m working width (0100) 450mm roller diameter (0110) front knife roller equipped with 10 knives (0120) rear knife roller equipped with 8 knives (0130) Knife with serrated edge (larger cutting surface) (0140) each knife unit suspended with 2 leaf springs (0150) Knives can be used on both sides (rotatable) (0160) KAT 3 three-point linkage (0170) Hydr. folding (0180) Locking valves in the hydraulic cylinders (0190) Mechanical transport sensor (0200) Maintenance-free bearing with double groove bearing (0210) Powder-coated base frame (0220) Star ring roller in 4.5 m working width (0230) Lighting with warning signs and holder
About this machine

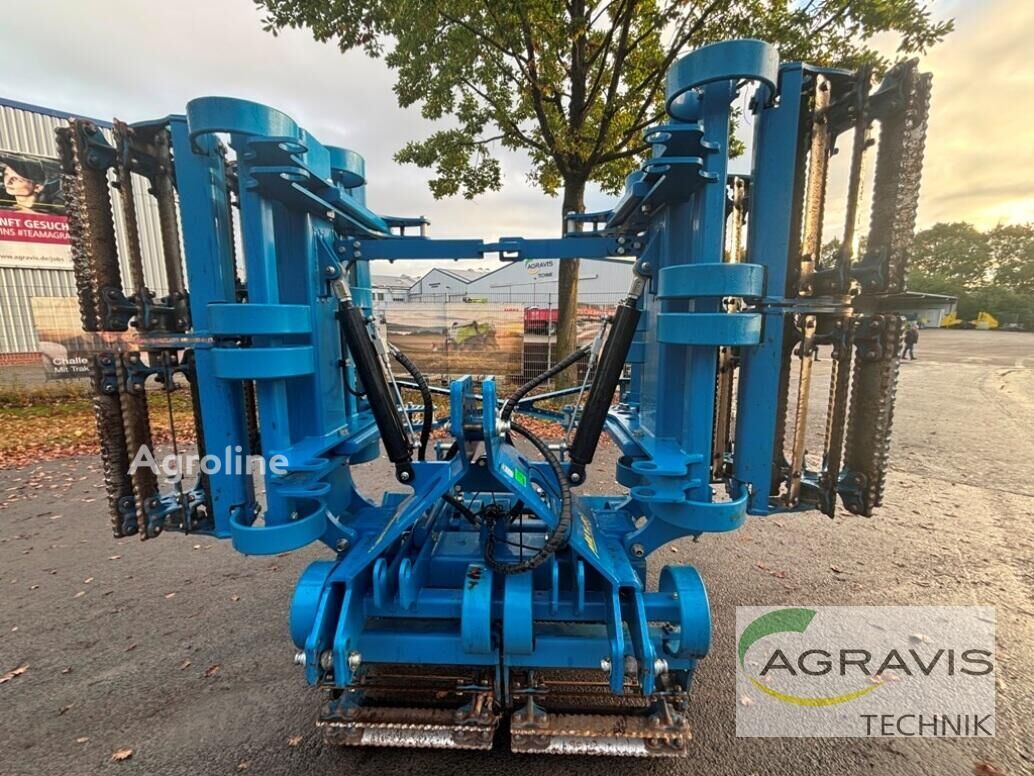

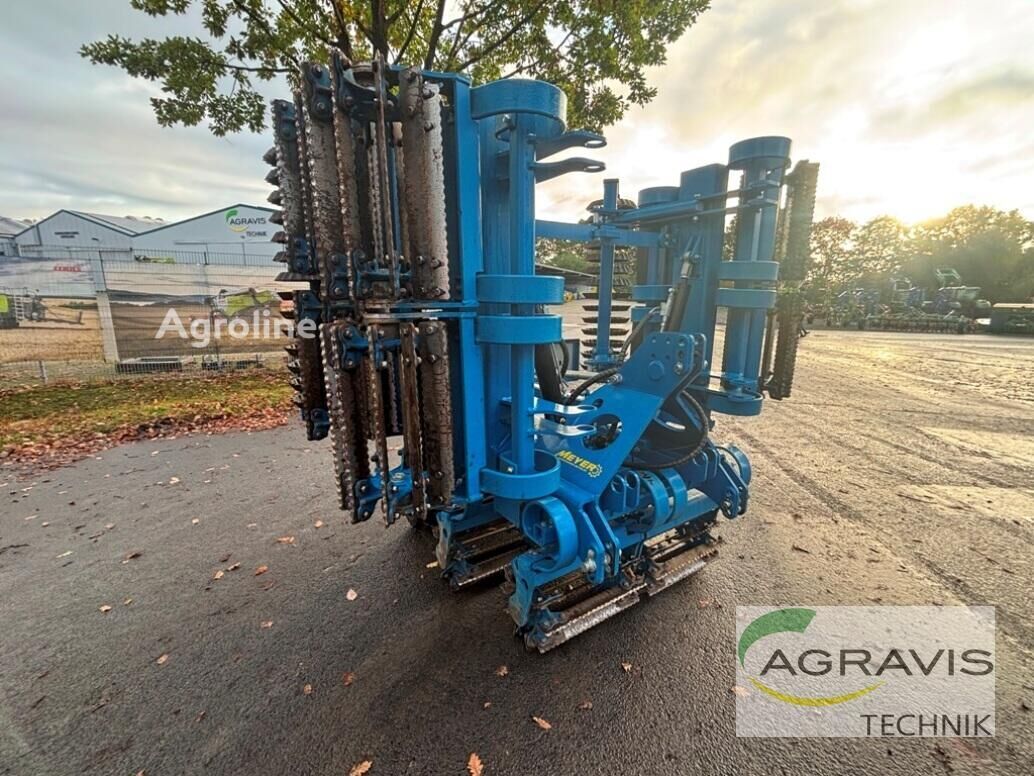

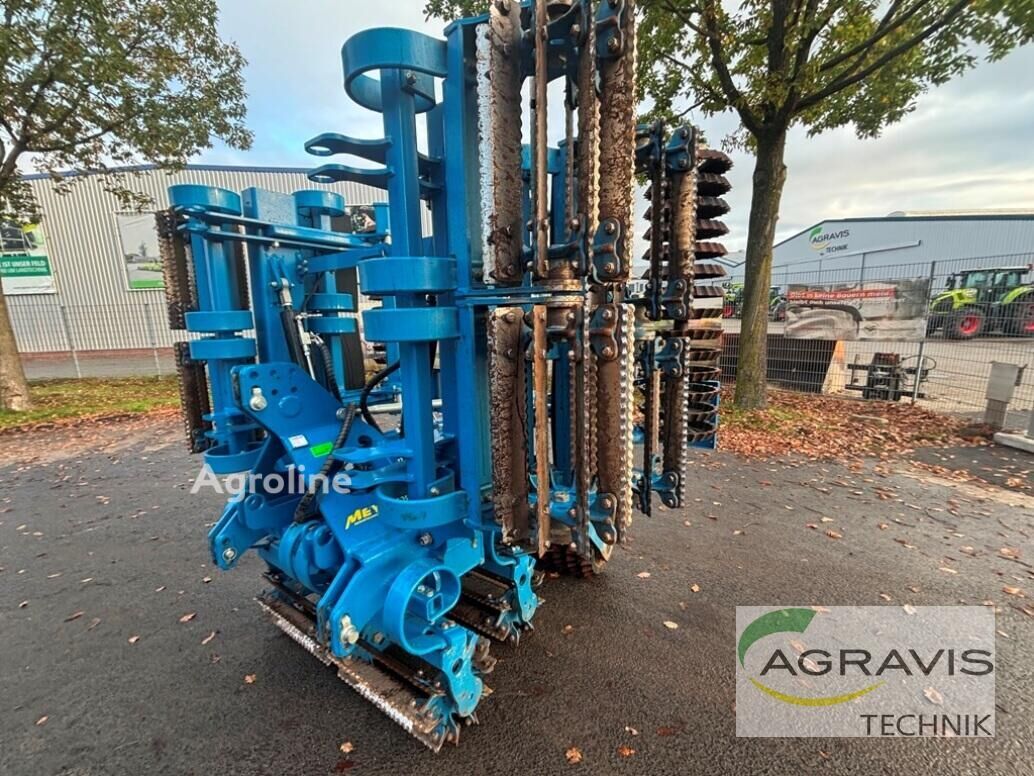

The Meyer VC 4500 Roller is a double-knife roller designed for soil cultivation and seedbed preparation in arable farming. Meyer manufactures a range of soil-working machinery and implements for professional agriculture. This machine is used to break up and consolidate soil across a full working width, particularly where even, thorough coverage and fine tilth are required.
The VC 4500 features a 4.5-metre working width and is built around two offset rows of knife rollers. The front row is offset to the left and the rear row to the right, ensuring complete surface coverage during operation. Each roller has a diameter of 450 millimetres and is equipped with individually spring-mounted knife elements—the front roller carries 10 knives and the rear roller carries 8 knives. This independent suspension system allows excellent soil copying and adaptation to uneven ground. The knives themselves have serrated edges to increase the cutting surface, and each knife unit is suspended using two leaf springs. The knives are double-sided and can be rotated to extend their service life.

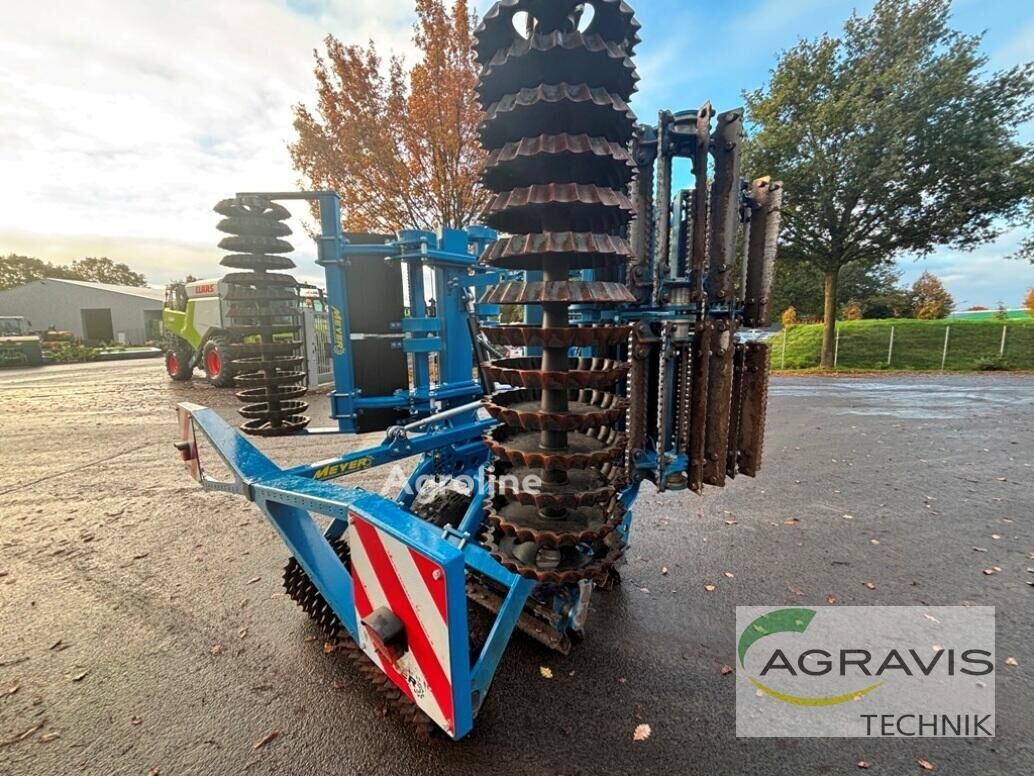

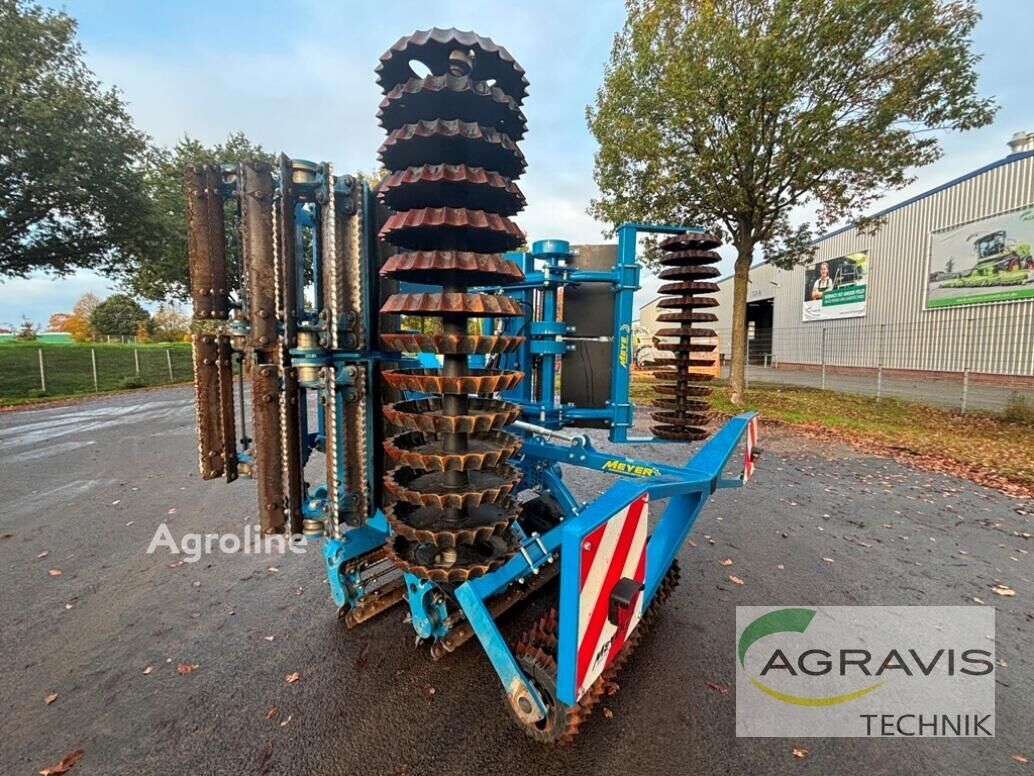

The implement is fitted with a star ring roller across the full 4.5-metre working width, complementing the knife action. It connects via a CAT 3 three-point linkage and features hydraulic folding for transport, with locking valves integrated into the hydraulic cylinders for safety. A mechanical transport sensor is included. The base frame is powder-coated for durability, and the machine uses maintenance-free bearings with double groove bearing design. The roller is equipped with lighting and warning signs with holders for road and field safety.
This machine was manufactured in 2024 and is in used condition. It is located in Germany and is priced at $23,900.
