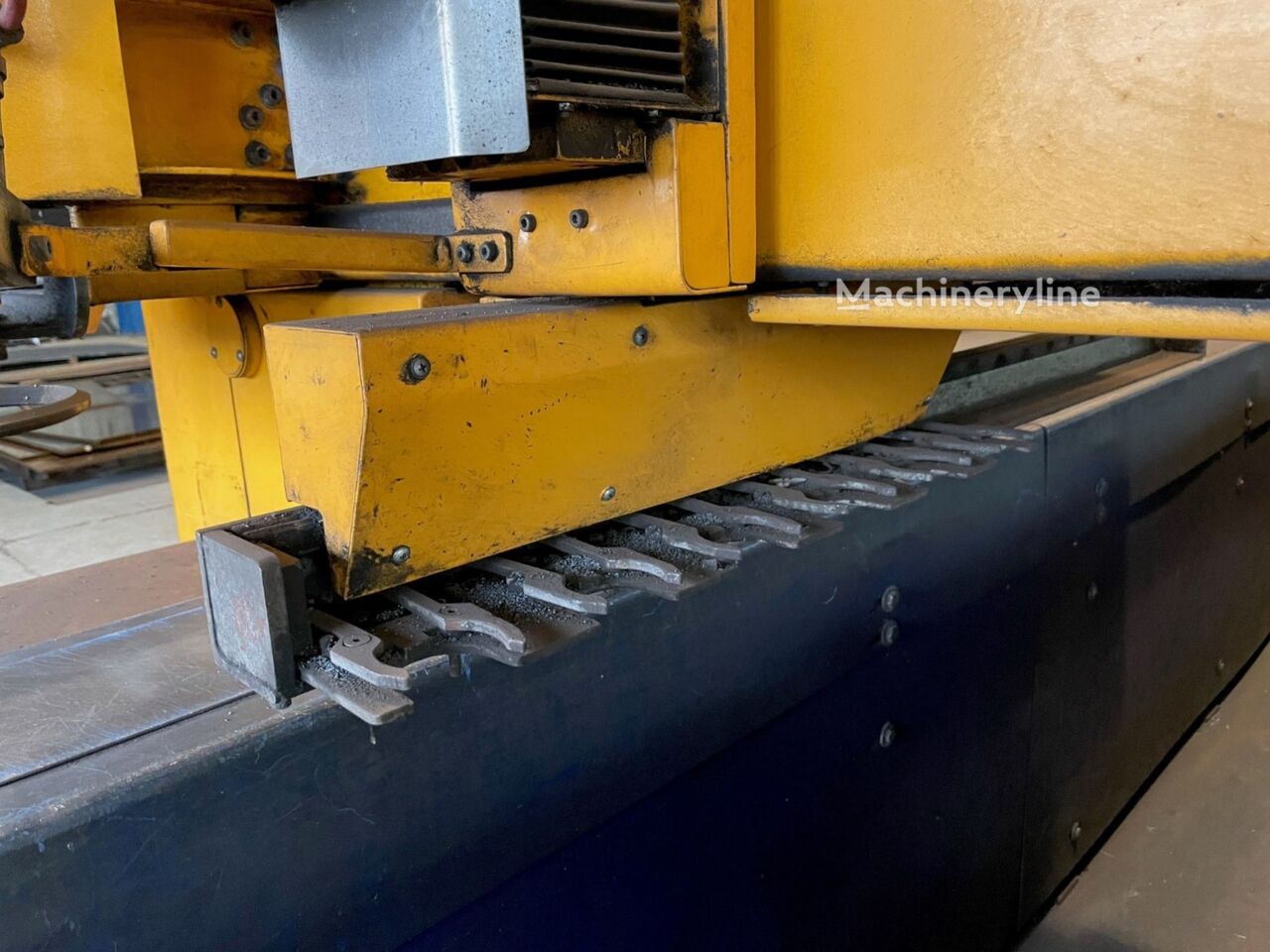

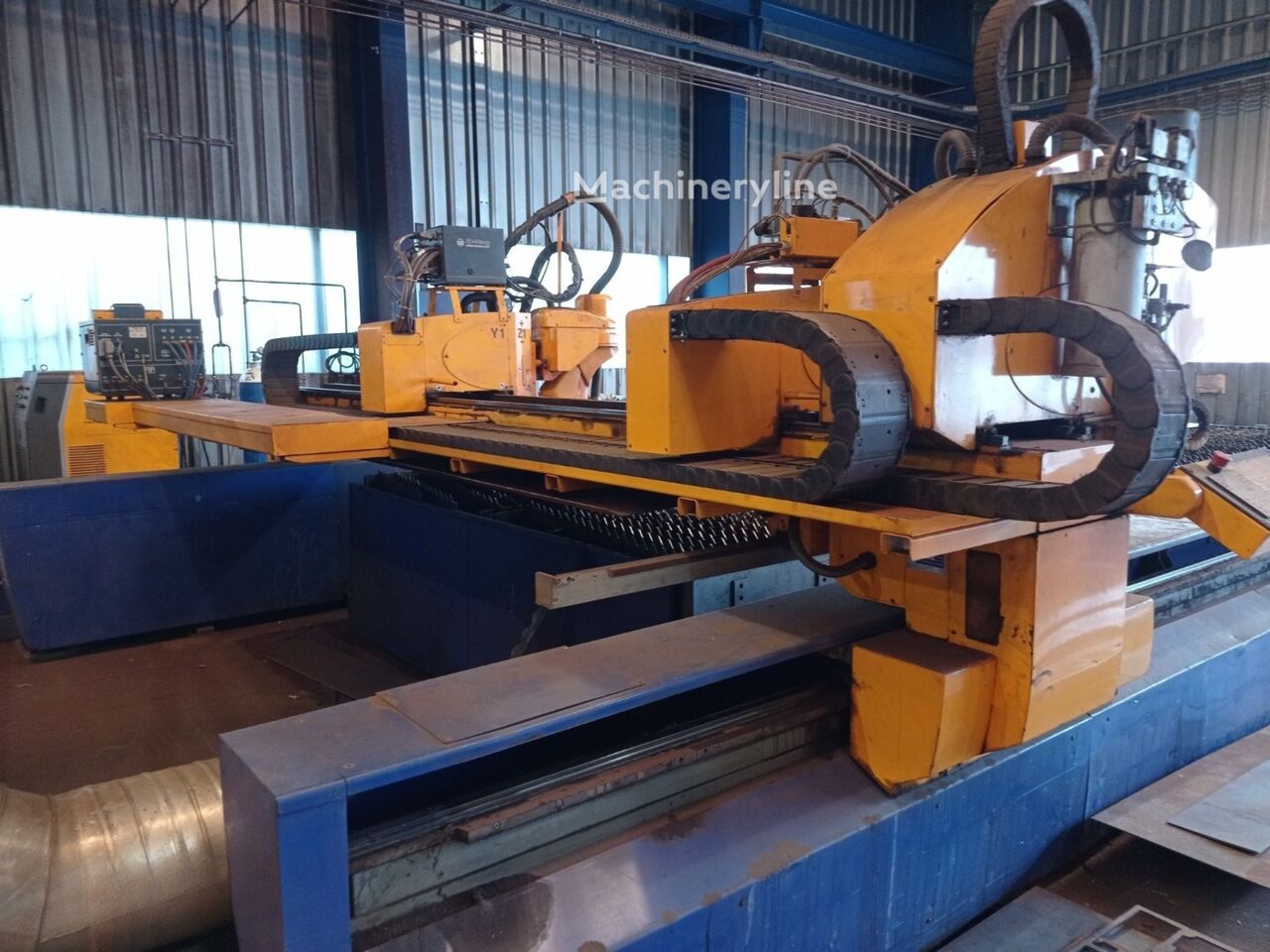

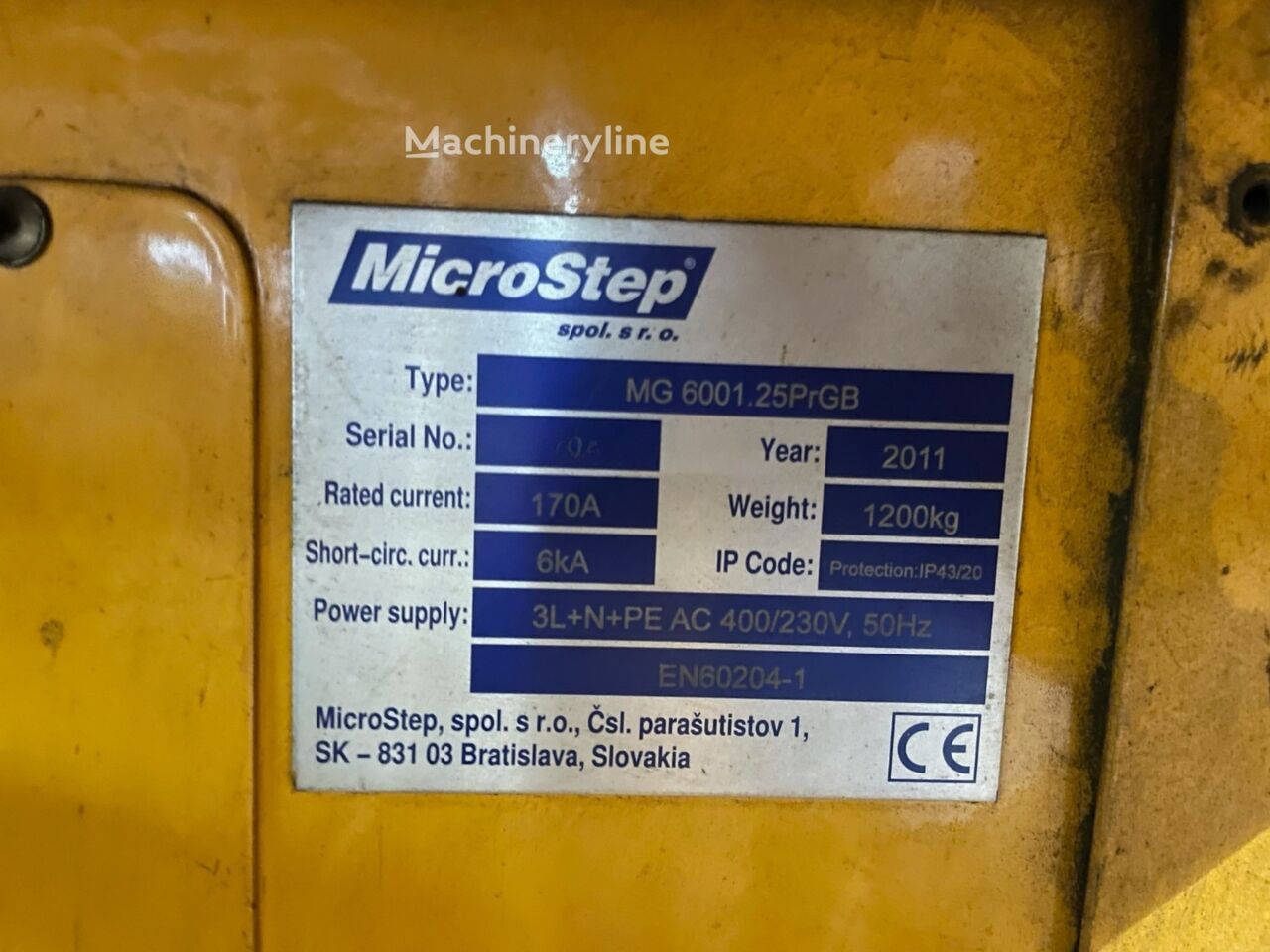

2011 - Microstep MG 6001.25PRGB Plasma Cutter()
- Listing No
- 975630
- Year
- 2011
- Manufacturer
- Microstep
- Model
- MG 6001.25PRGB
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This MicroStep EasyCut 6001.25PrGB was manufactured in 2011. It is a CNC plasma/oxyfuel cutting machine designed for industrial, heavy-duty applications. Features include a large working area of 6000 × 2500 mm, dual-side driven gantry, and compatibility with CAM software like mCAM and AsperWin. It supports up to 6 oxyfuel torches and offers options like automatic height control. Note: the gas console is defective. Contact us for more information about this machine. Condition: Out of use for a while; gas console/gas mixer defective (Kjellberg type, last reported by service technician) Working area: 6000 × 2500 mm Cutting technologies: Plasma and/or oxyfuel (can be combined) Max material thickness:Oxyfuel: up to 300 mmPlasma: approx. 35–60 mm (depending on power source, e.g., Hypertherm HPR) Oxyfuel: up to 300 mm Plasma: approx. 35–60 mm (depending on power source, e.g., Hypertherm HPR) Control: MicroStep iMSNC or CyberFab CNC control; compatible with mCAM and AsperWin Operating temperature: –10 °C to +45 °C Multi-torch capability: Up to 2–6 oxyfuel torches possible Machine structure: Dual-side driven gantry for accuracy and repeatability Remarks: Machine not in operation for a long time; gas console fault detected (Kjellberg type) Additional equipment Plasma power source (e.g., Hypertherm HPR) – determines plasma cutting capacity Oxyfuel equipment: oxyfuel heads/torches (up to 2–6 possible) Plasma cutting head Automatic torch height control Software modules: mCAM (CAM for production prep), AsperWin (automatic nesting) Production system integration (PPS) Gas console/gas mixer (Kjellberg type; currently defective) application type: Cutting Location: Hungary machine type: Plasma Cutting Machine
About this machine
The Microstep MG 6001.25PRGB is a CNC plasma cutting machine — sometimes referred to as a plasma table or plasma profile cutter — built for heavy-duty industrial cutting operations. Microstep is a well-established European manufacturer of CNC cutting systems, supplying plasma, oxyfuel, and laser cutting machinery to metal fabrication, shipbuilding, and structural steel industries. This example was manufactured in 2011 and is currently located in Germany.
The machine offers a large working area of 6,000 × 2,500 mm, making it suited to full-size sheet and plate processing. Its structure is built around a dual-side driven gantry, which provides the rigidity and positional repeatability demanded by industrial-grade cutting work. The machine supports both plasma and oxyfuel cutting technologies, either independently or in combination on the same cutting run.

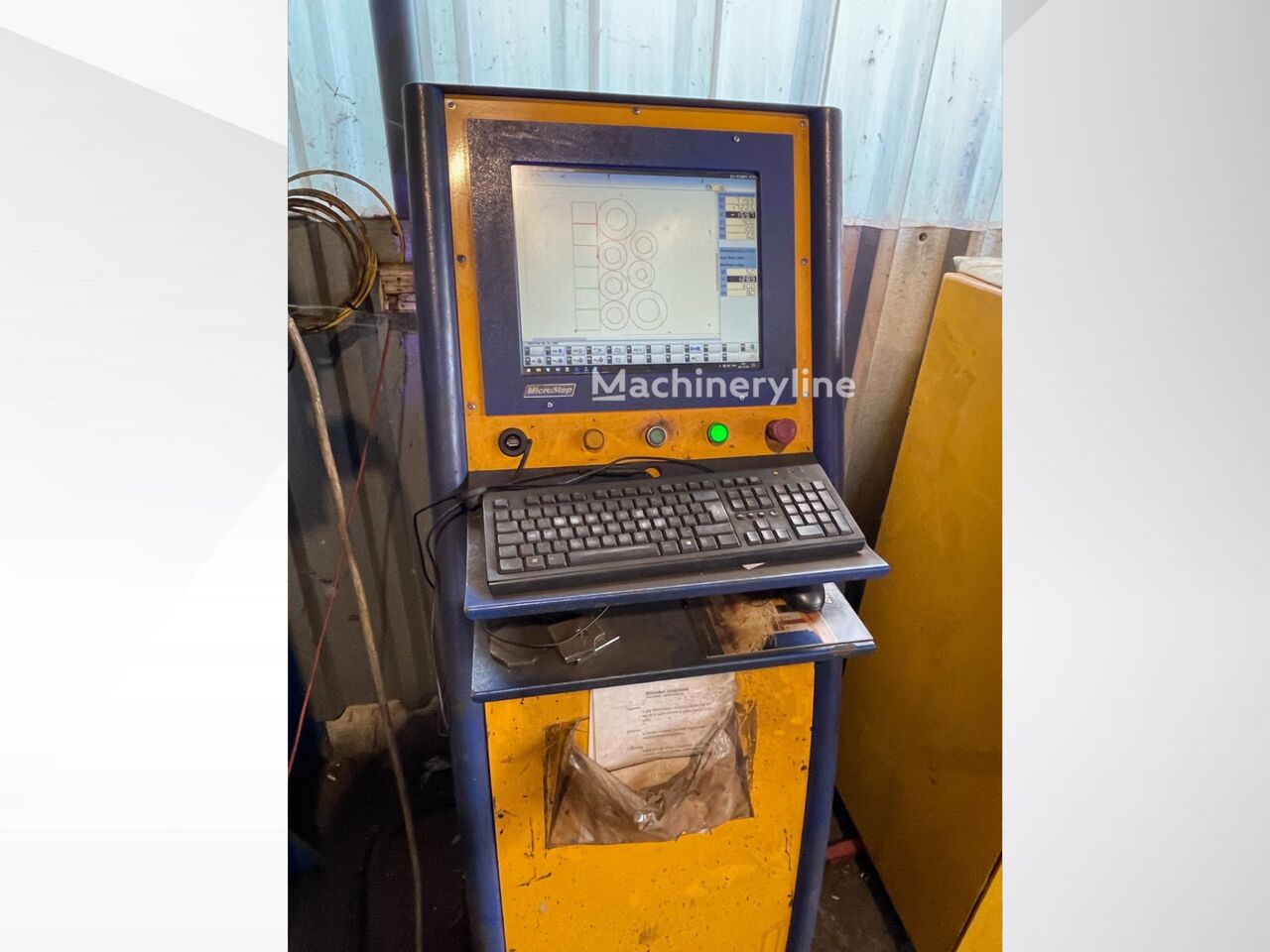

Plasma cutting capacity is approximately 35–60 mm depending on the plasma power source fitted, with Hypertherm HPR units cited as a compatible example. Oxyfuel cutting extends the maximum material thickness considerably, up to 300 mm, making the machine suitable for heavy structural plate work. Multi-torch oxyfuel cutting is supported, with between two and six oxyfuel torches configurable on the gantry. Additional equipment noted as part of the machine includes a plasma cutting head with automatic torch height control, oxyfuel torches, a plasma power source, and software comprising mCAM for CAM and production preparation and AsperWin for automatic nesting. Production system integration (PPS) capability is also referenced. The CNC control runs on MicroStep iMSNC or CyberFab CNC control hardware. The machine is rated for an operating temperature range of –10 °C to +45 °C.

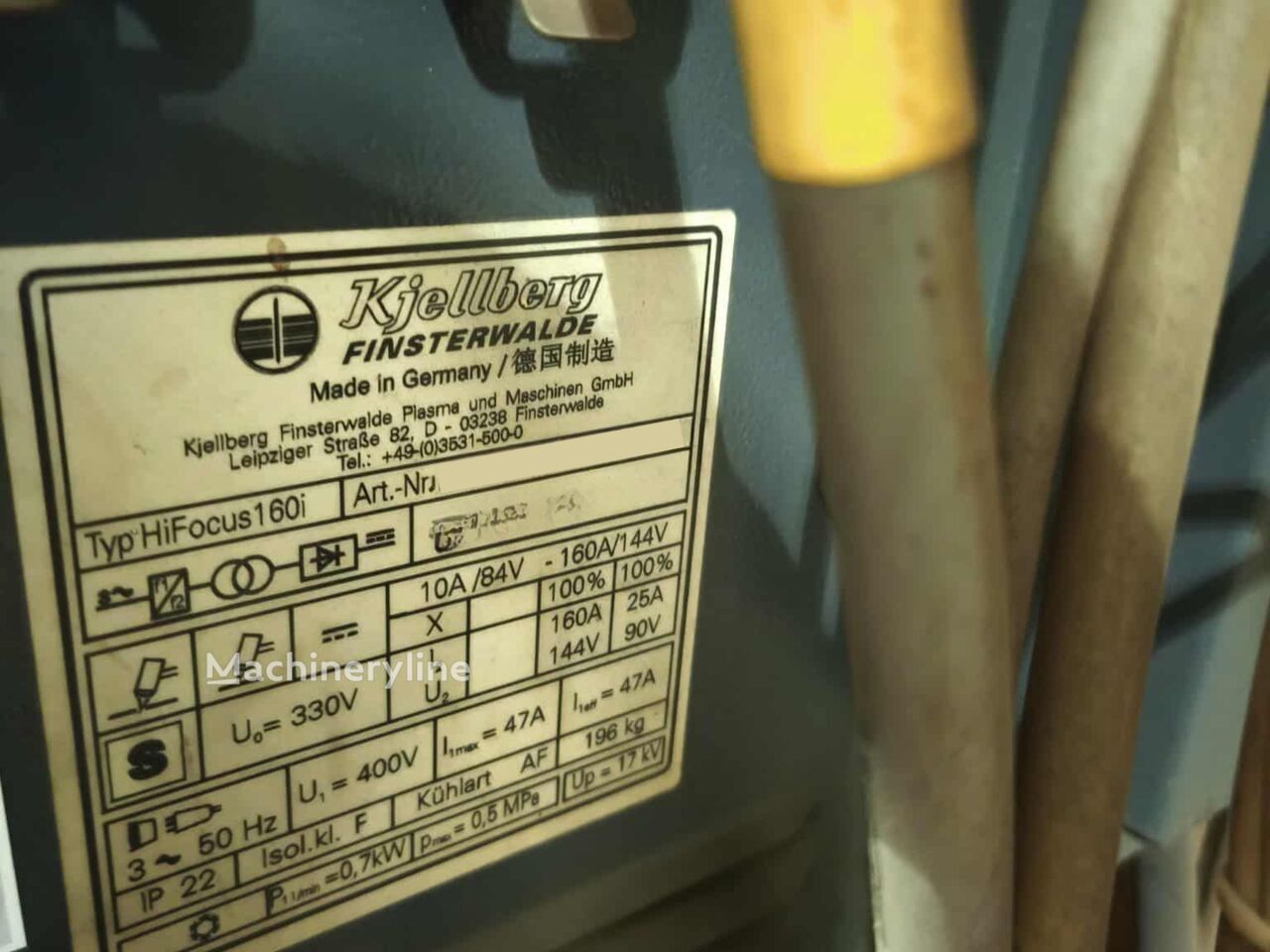

Buyers should note that this machine has been out of operation for an extended period. A fault has been confirmed on the gas console and gas mixer, identified as a Kjellberg-type unit, with the defect last reported by a service technician. This component will require assessment and repair or replacement before the machine can be returned to full operational use. All other specifications are as described above.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
