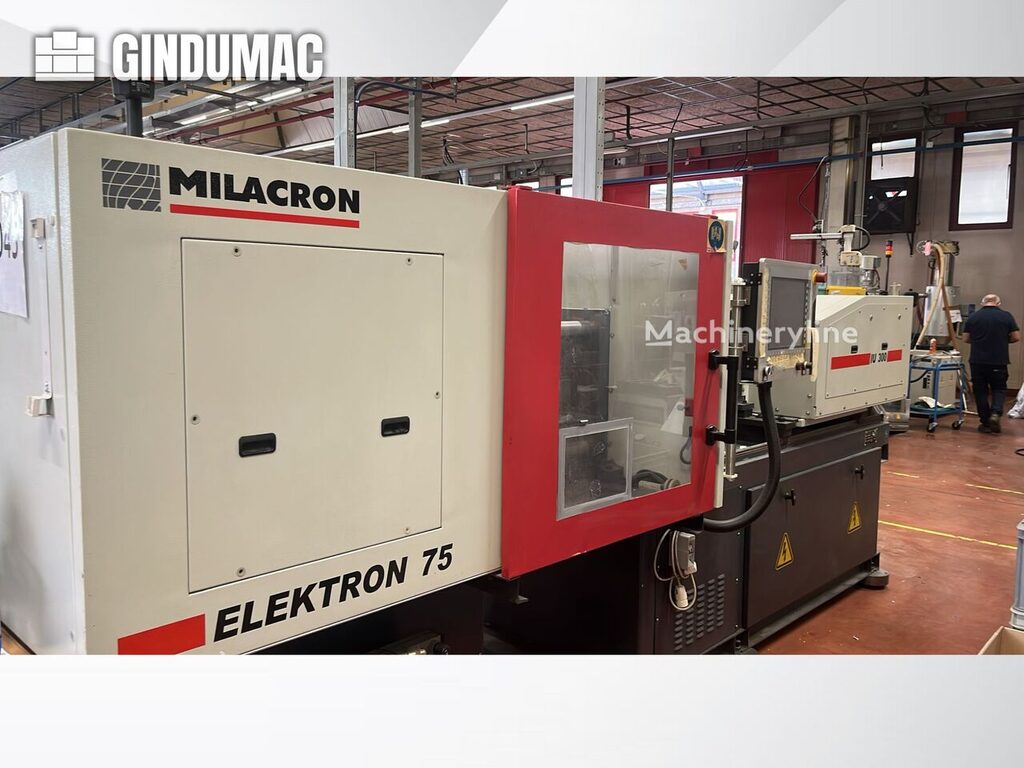

2011 - Milacron Elektron 75 Injection Moulding
()- Listing No
- 1151706
- Year
- 2011
- Manufacturer
- Milacron
- Model
- Elektron 75
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Milacron ELEKTRON 75 was manufactured in 2011. It features a screw diameter of 18 to 32 mm and a clamp force of 750 kN. The machine dimensions are 4.36 × 1.42 × 1.95 m, and it weighs 4700 kg. If you are looking to get high-quality injection moulding capabilities, consider the Milacron ELEKTRON 75 machine we have for sale. Contact us for more information about this machine. Location: IT Clamp Force: 750 kN Injection Unit: 300 Screw Diameter (mm): A 18 / B 25 / C 32 Injection Pressure (bar): A 2500 / B 1943 / C 1488 Shot Volume (cm³): A 103 / B 140 / C 183 Shot Weight (PS g): A 113 / B 154 / C 201 Injection Rate (cm³/s): A 117 / B 159 / C 208 Screw L/D Ratio: 25 Plasticizing Capacity (g/s): A 9.2 / B 11.2 / C 11.2 Screw Speed (rpm): 125 Tie Bar Distance: 575 × 570 mm Platen Size: 750 × 765 mm Min Mould Height: 250 mm Max Mould Height: 480 mm Opening Stroke: 320 mm Max Daylight: 800 mm Ejector Stroke: 150 mm Ejector Force (kN): 25 Mould Platen Hole Spacing: 405 × 380 mm Number of Core Pullers: 4 + 1 Nozzle Radius: R = 300 mm Nozzle Orifice: Ø 48 mm Hydraulic Oil Capacity: 97 / 130 L Thread Size for Mounting: M10 Screw Stroke: 165 mm Mould Weight Max: 400 kg Additional information
About this machine
The Milacron Elektron 75 is a used injection molding machine — sometimes referred to as an injection moulding press — built in 2011 and currently located in Germany. Injection molding machines are used to produce plastic components by injecting molten material into a mould under pressure, and are found across industries ranging from automotive and consumer goods to medical devices and packaging. Milacron is a well-established manufacturer of plastics processing equipment, with a long history of supplying injection molding machinery to industrial and commercial production environments worldwide.
At the heart of this machine's specification is a clamp force of 750 kN, with a tie bar distance of 575 × 570 mm and platen dimensions of 750 × 765 mm. The mould height can be set anywhere between 250 mm and 480 mm, with a maximum daylight of 800 mm and an opening stroke of 320 mm. The ejector delivers 25 kN of force over a stroke of 150 mm, and the machine accommodates moulds weighing up to 400 kg. Mould platen hole spacing is 405 × 380 mm, with an M10 thread size for mounting, and the nozzle has a radius of R 300 mm with an orifice diameter of 48 mm. Four plus one core pullers are fitted.
The injection unit is rated at 300 and accepts three screw configurations. Screw A has a diameter of 18 mm, delivering an injection pressure of 2,500 bar, a shot volume of 103 cm³, a shot weight of 113 g (PS), an injection rate of 117 cm³/s, and a plasticizing capacity of 9.2 g/s. Screw B has a diameter of 25 mm, with an injection pressure of 1,943 bar, a shot volume of 140 cm³, a shot weight of 154 g, an injection rate of 159 cm³/s, and a plasticizing capacity of 11.2 g/s. Screw C has a diameter of 32 mm, producing an injection pressure of 1,488 bar, a shot volume of 183 cm³, a shot weight of 201 g, an injection rate of 208 cm³/s, and a plasticizing capacity of 11.2 g/s. All three screws share an L/D ratio of 25, a screw stroke of 165 mm, and a maximum screw speed of 125 rpm. Hydraulic oil capacity is listed at 97 to 130 litres.
The machine measures 4.36 × 1.42 × 1.95 metres and has an operating weight of 4,700 kg, making it a compact yet capable platform suitable for a range of precision moulding applications.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
