2004 - Millipore Semi Automatic Laboratory Equipment()
- Listing No
- 1219966
- Year
- 2004
- Manufacturer
- Millipore
- Model
- Semi Automatic
- Condition
- Used
- Location
- Germany
- Price
- $14,500
- Description
-

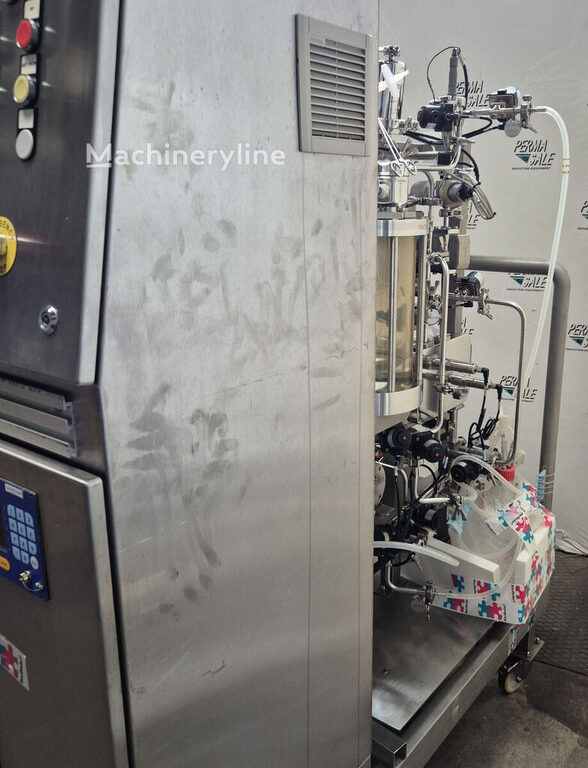

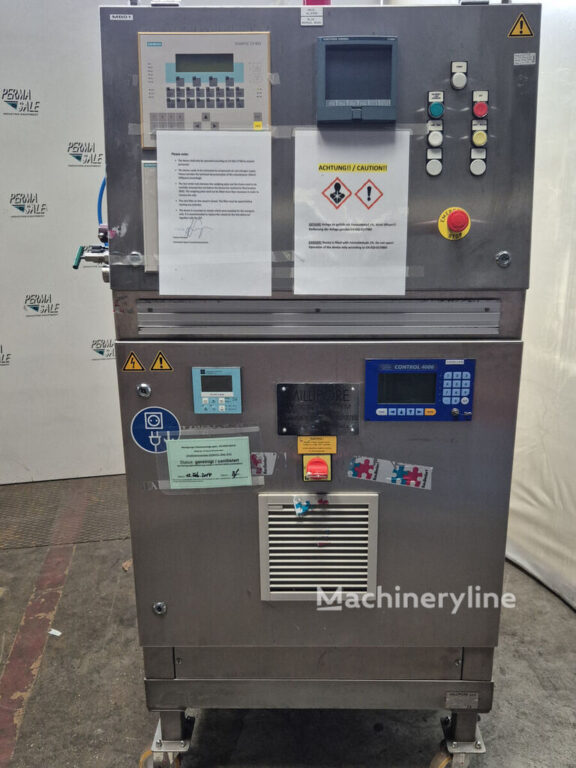

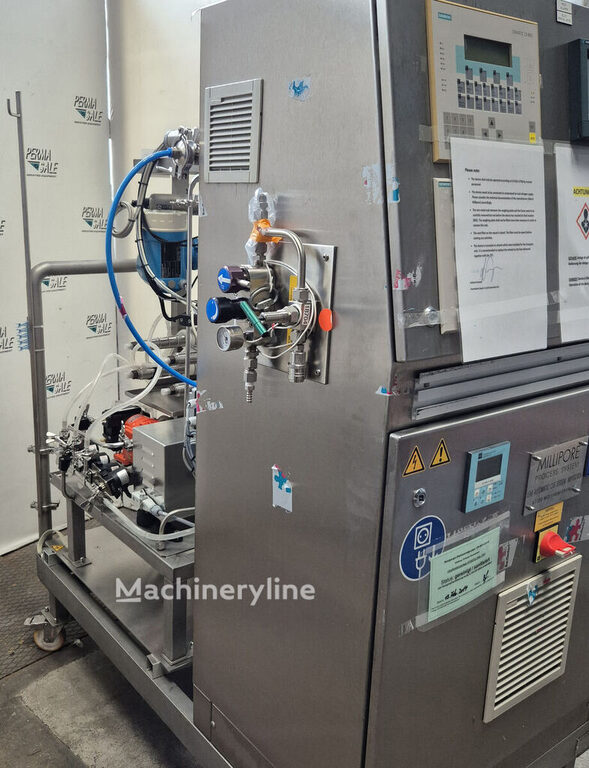

model/type: Semi-automatic CUF system operating pressure: max. 3 bar The Millipore CUF System (Semi-Automatic CUF System MSPO07836) is a semi-automated solution for the concentration and filtration of biological fluids using crossflow ultrafiltration. Its robust design and reliable control make this system ideal for laboratory, pilot, and production environments in the biopharmaceutical industry. The system consists of the parts shown in the pictures. Advantages: - Semi-automatic control: Combination of Siemens S7 controller and GEA Control 4000 - Flexible process integration: Multiple inlets and outlets, clearly labeled - High-quality components: including stainless steel valves, Nord-Motor, E+H sensors - Versatile: Suitable for concentration, diafiltration and washing processes --------------------------------------------------------------- 3. General functions - Ultrafiltration system with semi-automatic process control - Siemens S7 controller with operator panel and warning messages - Multi-stage fluid path control via manual and automated valves - Integrated pumps and sensors for monitoring pressure and flow - Application in cell harvesting, concentration or buffer exchange --------------------------------------------------------------- 4. CO₂ savings Purchasing this used CUF system saves approx. 2,500–3,500 kg CO₂, as the production of a new system is eliminated. This corresponds to the average annual CO₂ emissions of a mid-size car. Tension: 1×230V / 50Hz Operating pressure: max. 3 bar Engine: Nord SK 63L/4 TF, 0.18 kW at 1380 rpm Location: Molsheim, France Condition: Used, well-maintained condition, ready for use with visible signs of wear
About this machine
This Millipore Semi Automatic Laboratory Equipment is a semi-automatic crossflow ultrafiltration system — sometimes referred to as a CUF system — designed for the concentration and filtration of biological fluids in laboratory, pilot, and production settings. Millipore is a well-established manufacturer of filtration and purification equipment, serving the biopharmaceutical, life sciences, and research industries with a broad range of fluid-handling and separation technologies.
The unit is identified by the manufacturer as a Semi-Automatic CUF System, model reference MSPO07836. It is built around a crossflow ultrafiltration process, making it suitable for cell harvesting, concentration, diafiltration, buffer exchange, and washing processes — core operations in biopharmaceutical manufacturing and laboratory-scale bioprocessing.

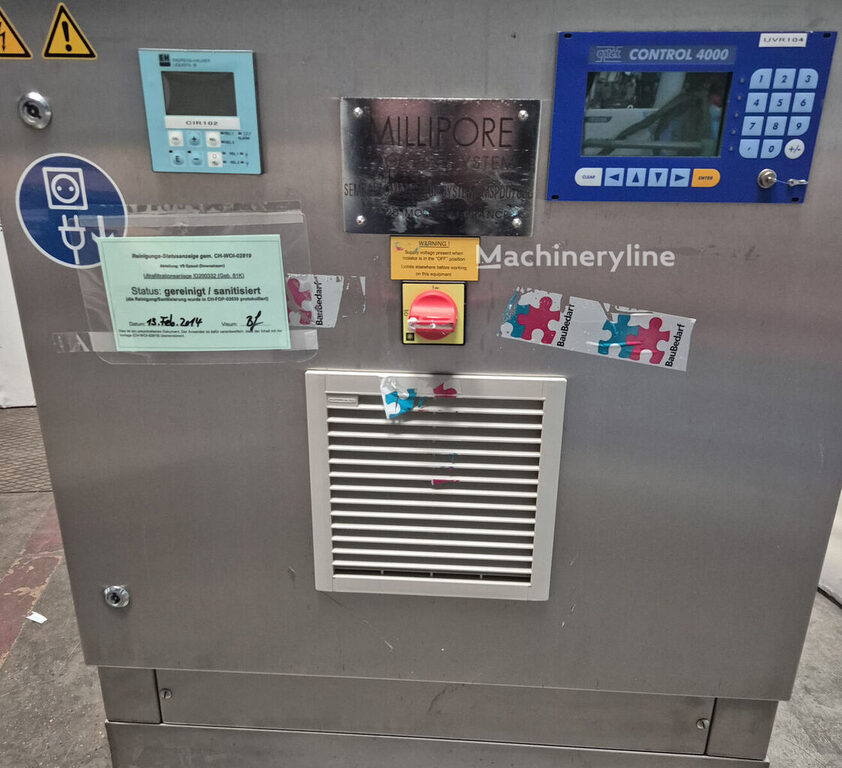

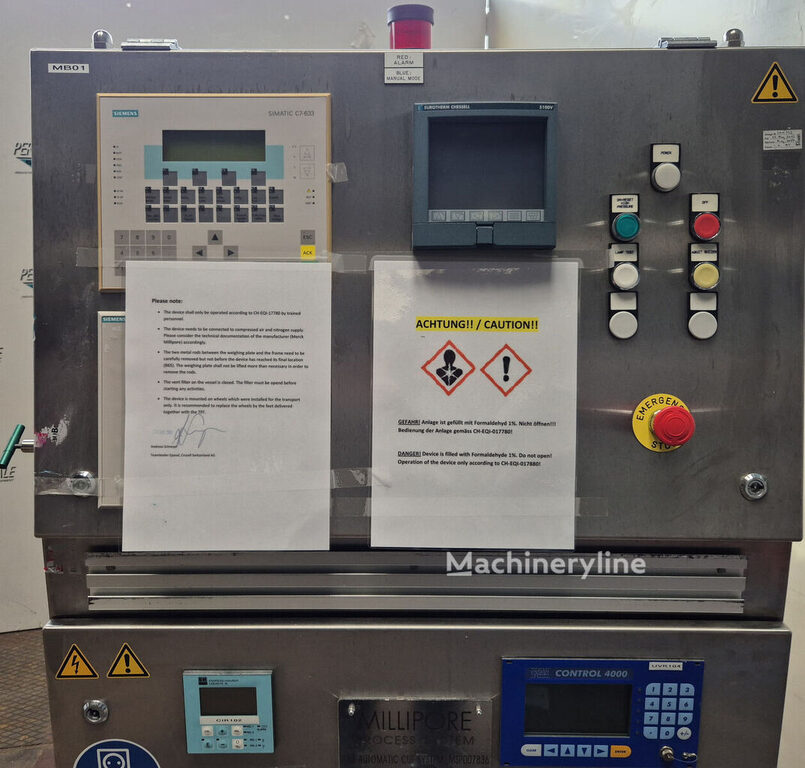

Process control is handled through a combination of a Siemens S7 programmable logic controller and a GEA Control 4000 operator panel, providing semi-automatic operation with integrated warning messages. The fluid path is managed through a multi-stage valve arrangement combining both manual and automated valves, with multiple clearly labelled inlets and outlets to support flexible process integration. Pressure and flow are monitored continuously by integrated Endress+Hauser sensors.
The drive unit is a Nord SK 63L/4 TF motor rated at 0.18 kW at 1,380 rpm. The system operates at a maximum working pressure of 3 bar and is powered by a single-phase 230 V / 50 Hz supply. Wetted and structural components include stainless steel valves, reflecting the hygienic construction standards expected in biopharmaceutical applications.
The machine dates from 2004 and is offered in used, well-maintained condition, ready for use with visible signs of wear consistent with its age and prior service. It is located in Molsheim, France, and is listed at $14,500.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
