2003 - MW Schickart Tirelli Chico Beverage Machine()
- Listing No
- 1014577
- Year
- 2003
- Manufacturer
- MW Schickart
- Model
- Tirelli Chico
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Year: 2003 Type: hot or cold product filling line for pots and bottles Application : Suitable for viscous products such as creams in the cosmetics / pharmaceutical or other industries Type : Automatic linear filler Manufacturer: Tirelli Model : CHICO 2P Year: 2003 Number of heads : 4 units Volumetric filling technology with 2 metering pistons Jacketed 25 L hopper + piping Temperature controller Pneumatic bottle-lock centring device PLC controls and configuration Linear conveyor with pallet chain SISE 95E6E 13 DC60 temperature controller (3.5 KW / 90°C / Water) – Year 2014 Type : Automatic capping machine with star wheel Type of cap: screw cap Manufacturer: Tirelli Model : RO Year: 2003 Automatic cap feeder : vibrating bowl + giraffe conveyor Presence / jamming / dispensing sensors Pick and place Type: Automatic jar / bottle unscrambler Manufacturer: Romaco Bosspack Model : MS150 Year: 2003 Output : up to 150 jars / min Product dimension : Diameter: 30 mm min / 100 mm max Height : 50 mm min / 200 mm max Width : 30 mm min / 100 mm max Length : 30 mm min / 100 mm max Machine dimensions : Length : 150 cm Depth : 340 cm Height : 140 cm Video in running condition : show contacts Show the whole comment
About this machine

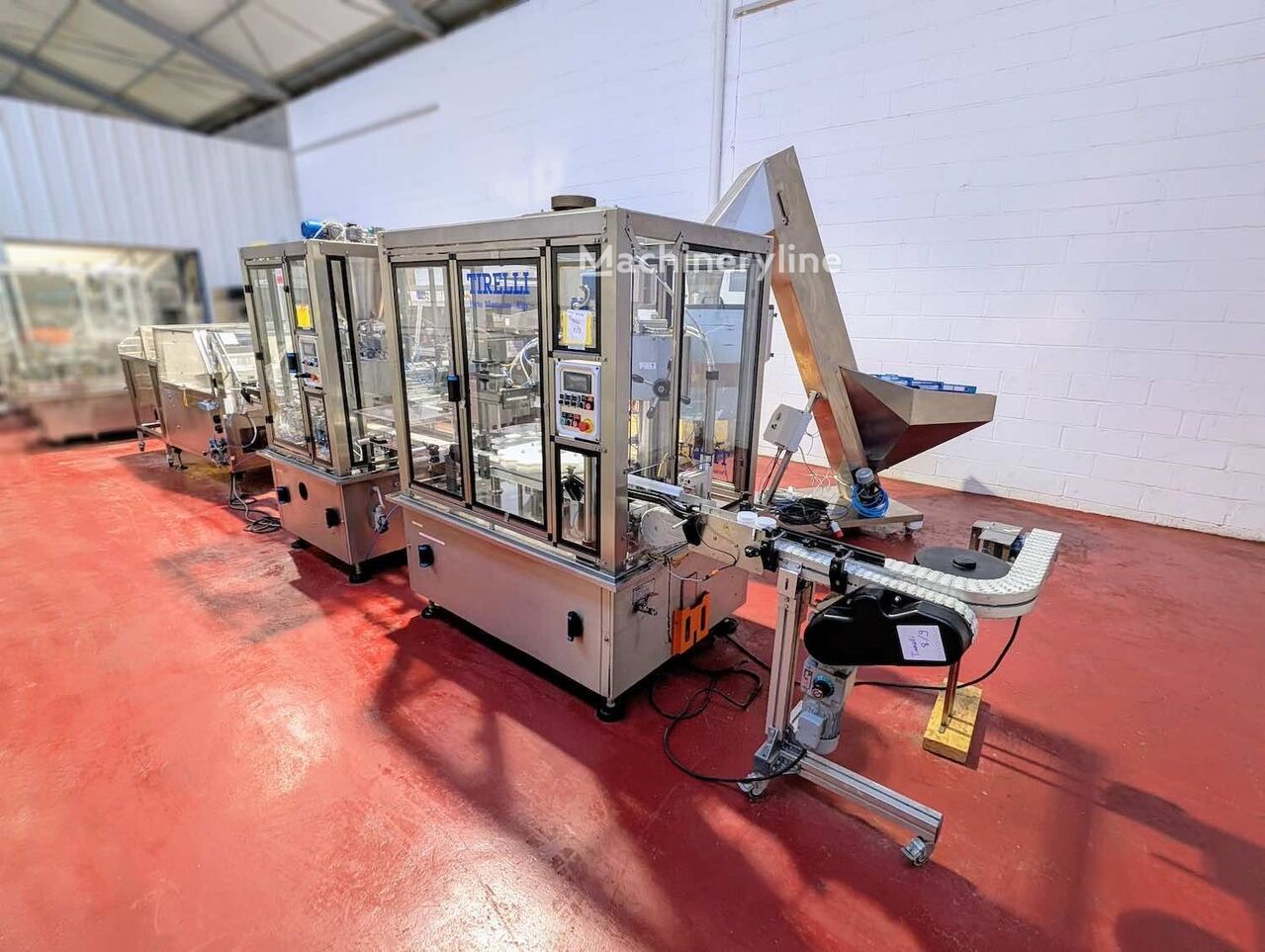

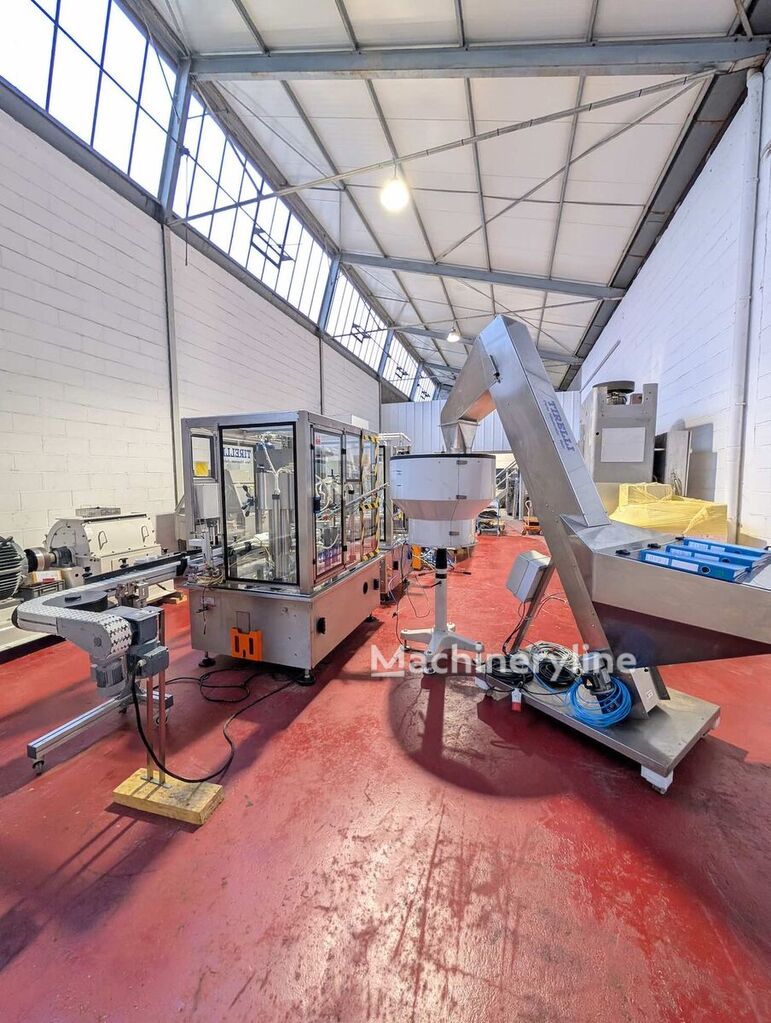

This MW Schickart Tirelli Chico is a complete beverage filling line — sometimes referred to as a liquid filling line — dating from 2003 and offered used from France. As a integrated production line rather than a single standalone unit, it combines automatic filling, capping, and container handling into one continuous system, making it suitable for hot or cold product filling into pots and bottles. Notably, the line is also suited to viscous products such as creams, giving it applicability across the cosmetics and pharmaceutical industries as well as food and beverage production.

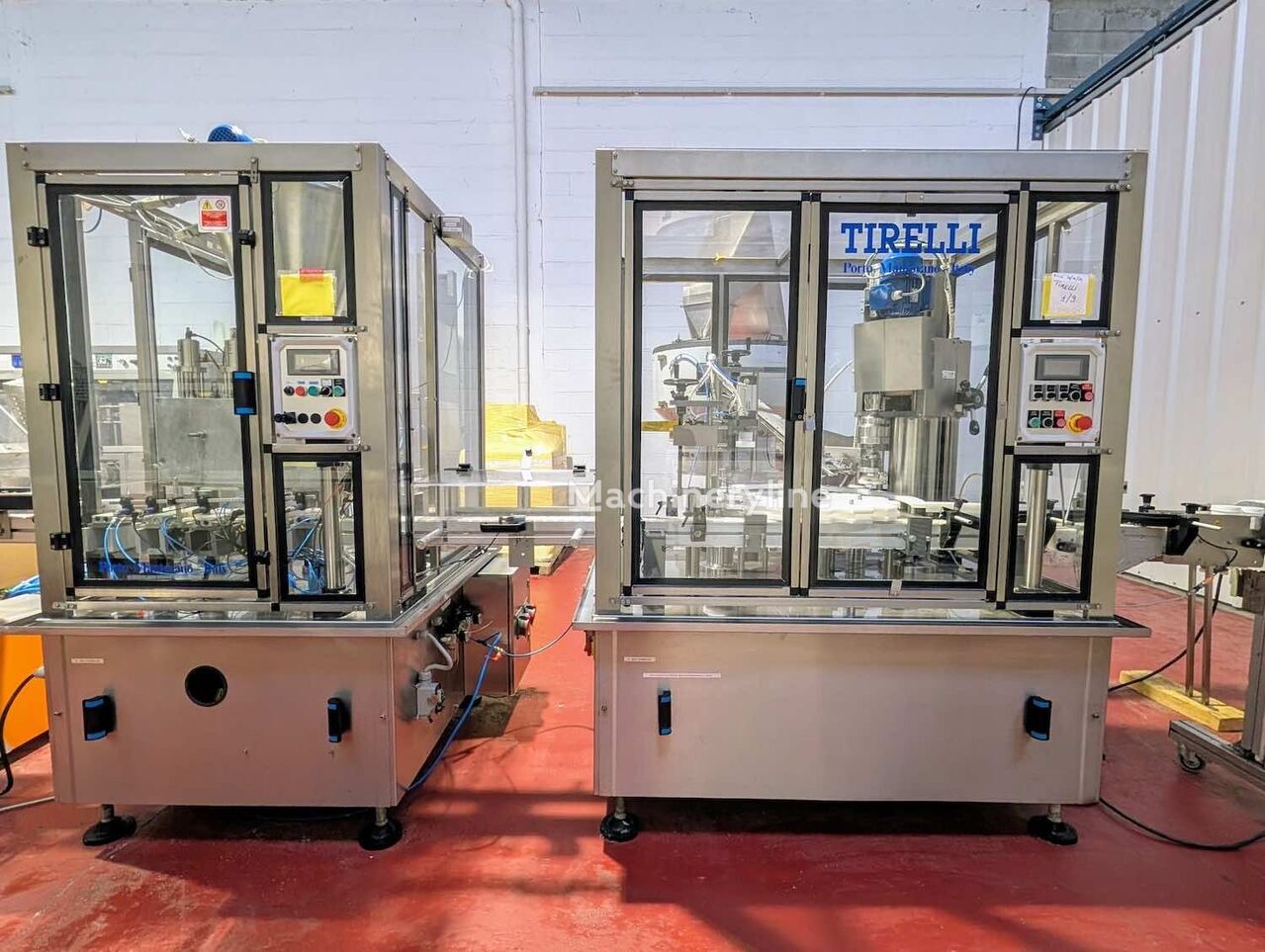

The heart of the system is a Tirelli model Chico 2P automatic linear filler, also from 2003. It operates on volumetric filling technology using two metering pistons and is equipped with four filling heads. Product is fed from a jacketed 25-litre hopper with associated pipework, allowing temperature-sensitive or viscous materials to be maintained at the correct viscosity during filling. A temperature controller is included, and the system features a SISE 95E6E 13 DC60 temperature controller rated at 3.5 kW with a maximum temperature of 90°C using water as the heat transfer medium; this controller was replaced or upgraded in 2014. Bottle positioning during filling is managed by a pneumatic bottle-lock centring device. The machine is governed by PLC controls and configuration, and product moves along a linear conveyor with a pallet chain.

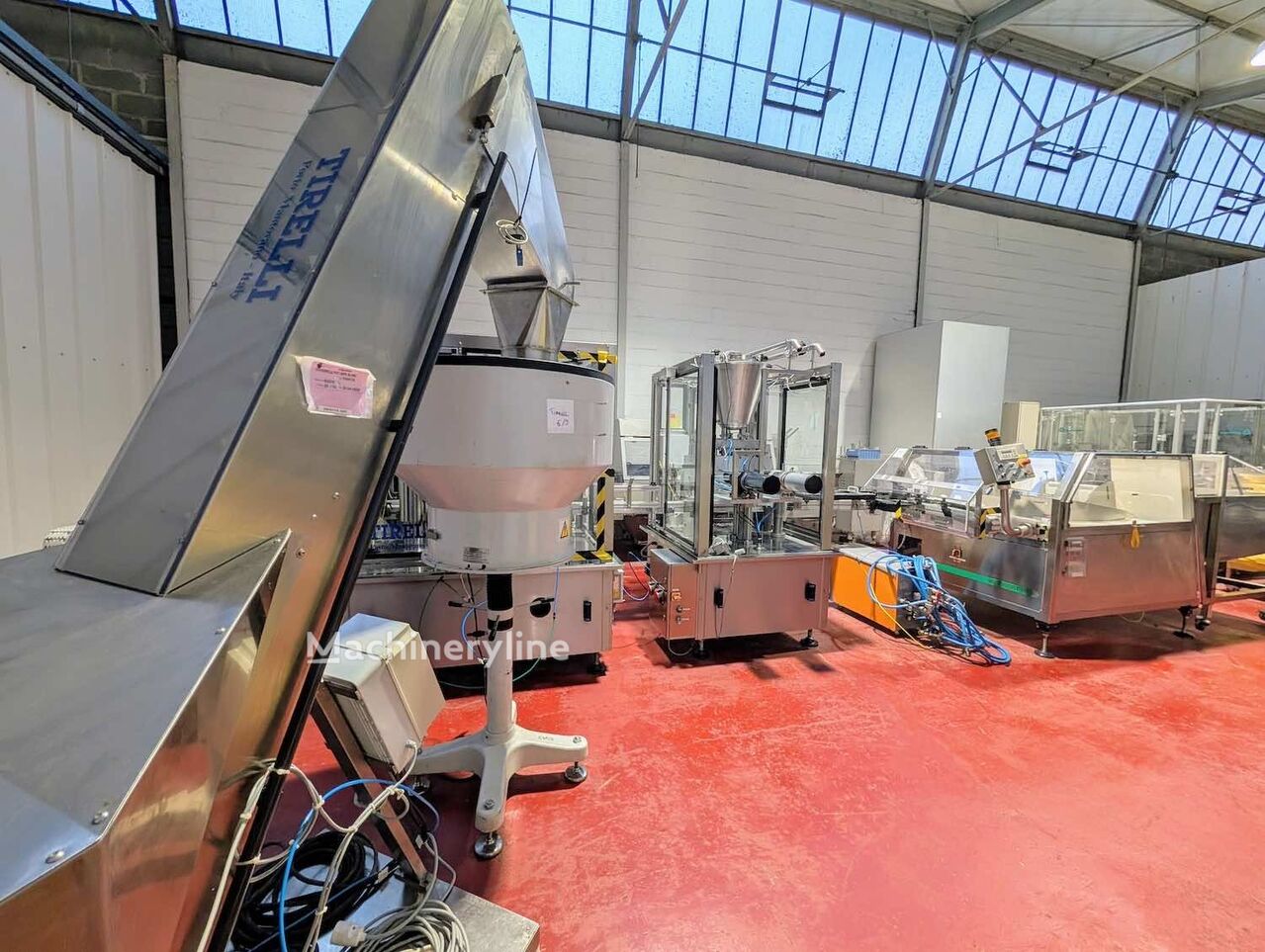

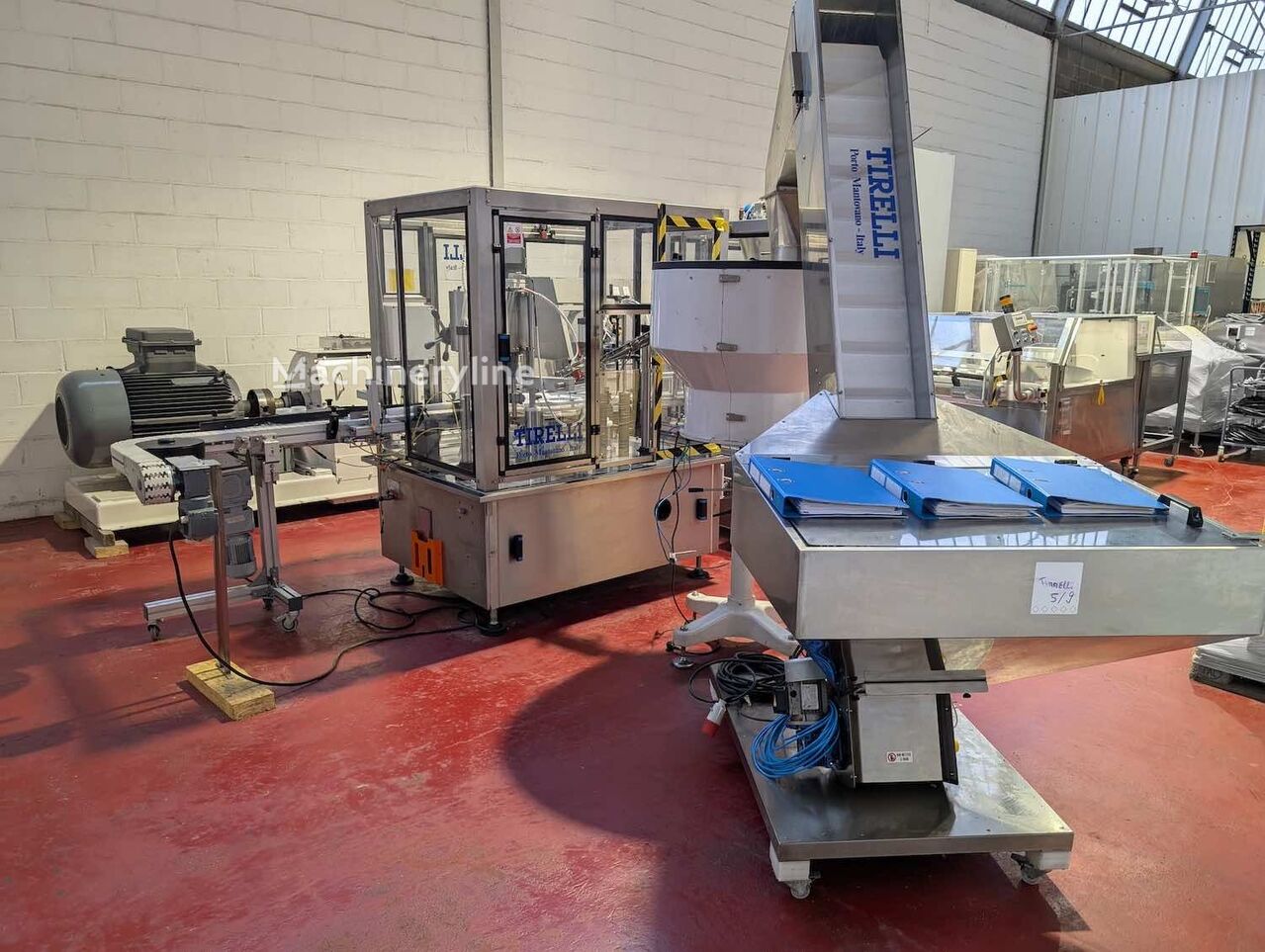

Capping is handled by a second Tirelli unit, the model RO automatic capping machine with a star wheel mechanism, also dated 2003. It is configured for screw caps and is fed automatically via a vibrating bowl and giraffe conveyor combination. The capper is equipped with presence, jamming, and dispensing sensors, and uses a pick-and-place system to apply caps.
Container feeding at the infeed of the line is managed by a Romaco Bosspack model MS150 automatic jar and bottle unscrambler, again from 2003. This unit is rated to handle up to 150 jars per minute. It accepts containers within a broad dimensional range: diameter from 30 mm to 100 mm, height from 50 mm to 200 mm, and width and length each between 30 mm and 100 mm. The unscrambler itself measures 150 cm in length, 340 cm in depth, and 140 cm in height. A video of the line in running condition is available through the seller.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
