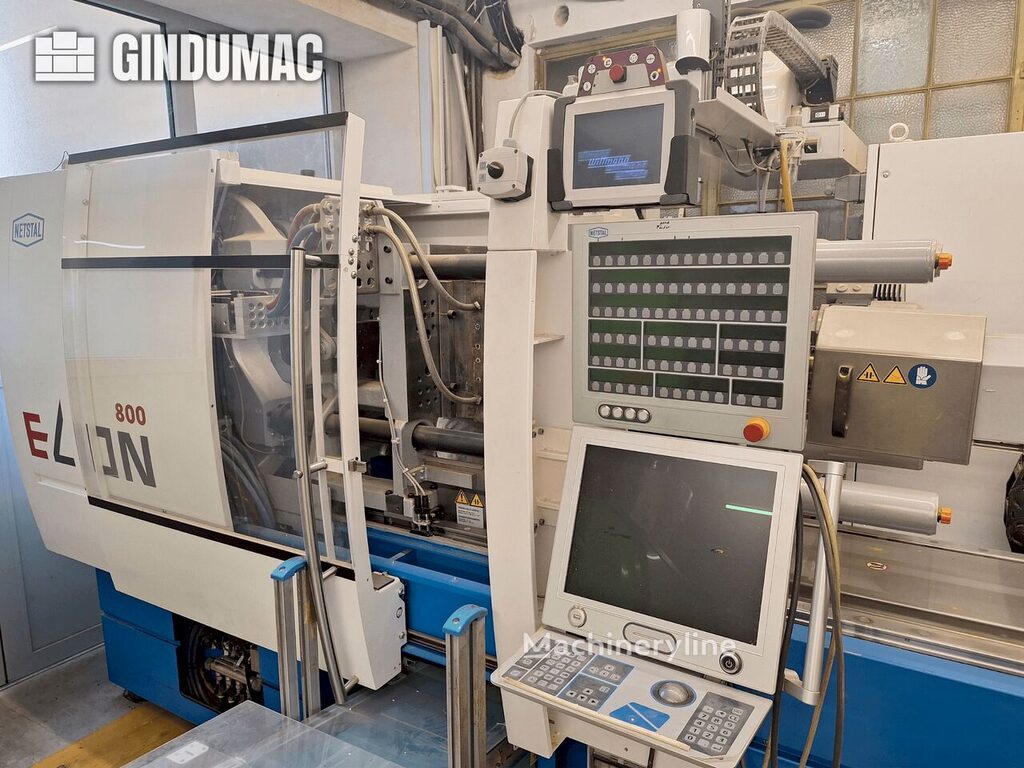

2021 - Netstal Elion 800-270 Injection Moulding
()- Listing No
- 1151607
- Year
- 2021
- Manufacturer
- Netstal
- Model
- Elion 800-270
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Netstal Elion 800-270 was manufactured in 2021. It features a robust AXOS control system and a high-speed injection unit capable of 450 mm/s. The machine includes a screw diameter of 40 mm and a fully integrated 9 kW hydraulic unit. It supports a tool installation height range of 200–500 mm and is equipped with a Euromap 67 robot interface. If you are looking to get high-quality injection molding capabilities, consider the Netstal Elion 800-270 machine we have for sale. Contact us for more information. Location: DE Injection Unit: 270 Powermaster with injection speed of up to 450 mm/s Screw Diameter: 40 mm, type B, 3-zone screw Nozzle Type: Pneumatically controlled needle valve nozzle with additional heating zone Minimum Installation Height: 200 mm Maximum Installation Height: 500 mm Hydraulic Unit: Fully integrated hydraulic unit 9 kW with 140 bar operating pressure Pneumatics: 1 Air valve to 890 Liter, 1 additional Air valve to 890 Liter Safety Cover Execution: Locked doors, top Operator Identification: User recognition via PIN EUROMAP 67: Standard + dynamic retraction Interfaces: Colour feeder, Freely Configurable DIO: 4x Output/2x Input Tool Monitoring: Available on DFP Voltage Fluctuation Compensation: UPS present Additional information Minimum Installation Height: 200 mm Maximum Installation Height: 500 mm
About this machine
The Netstal Elion 800-270 is a used injection moulding machine — sometimes referred to as a plastic injection press — manufactured in 2021 and currently located in Germany. Injection moulding machines are used to produce plastic components by injecting molten material into a mould under pressure, making them fundamental to industries such as automotive, packaging, medical devices, and consumer goods manufacturing. Netstal is a Swiss manufacturer with a long-standing reputation for producing high-performance, precision injection moulding machines, particularly in demanding applications that require speed, repeatability, and process stability.
The machine is equipped with the 270 Powermaster injection unit, which delivers an injection speed of up to 450 mm/s, positioning it firmly in the high-speed performance bracket. The screw is 40 mm in diameter, configured as a Type B, 3-zone screw, which supports consistent plasticising across a range of materials. The nozzle is a pneumatically controlled needle valve type with an additional heating zone, providing precise shut-off and improved thermal management at the nozzle tip.
Mould installation is accommodated across a height range of 200 mm minimum to 500 mm maximum, giving the machine meaningful flexibility in tooling selection. The fully integrated hydraulic unit runs at 9 kW with an operating pressure of 140 bar, and the machine also features two air valves, each rated to 890 litres, for pneumatic circuit support.

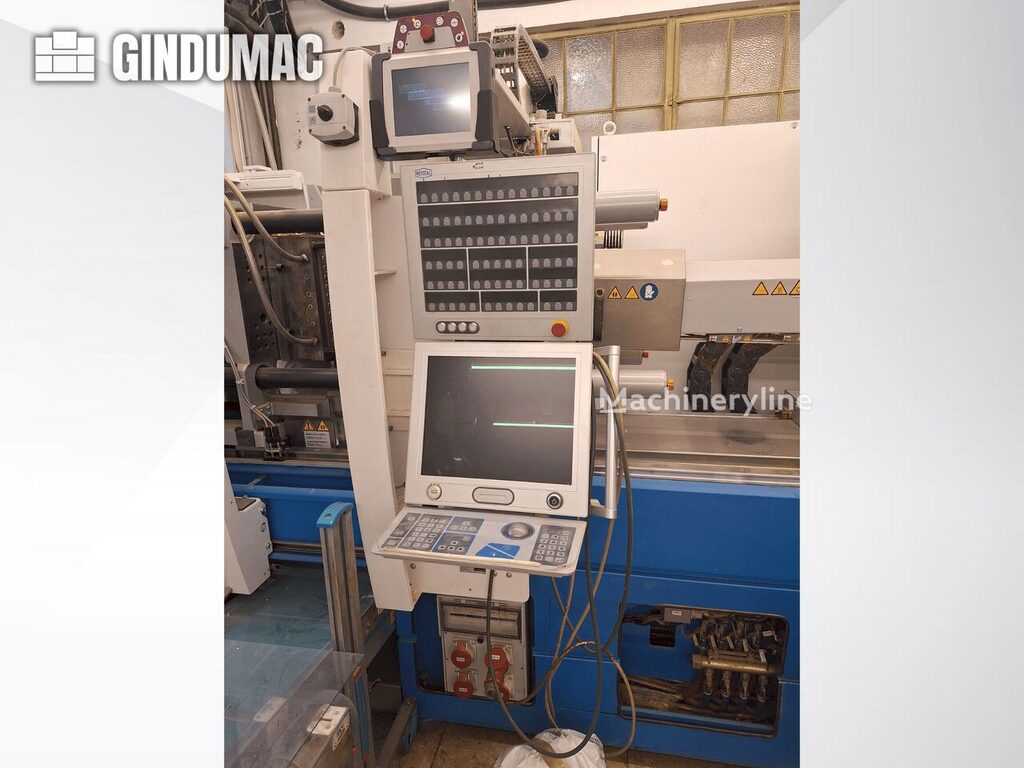

Control and connectivity are handled by the AXOS control system, which includes user recognition via PIN for operator identification. The machine is fitted with a standard Euromap 67 robot interface with dynamic retraction, enabling integration with external automation. Additional interface options include a colour feeder connection and freely configurable digital I/O — four outputs and two inputs. Tool monitoring is available via DFP, and a UPS is present to provide voltage fluctuation compensation, protecting the machine and process against power supply irregularities.
Safety features include locked doors with a top safety cover execution. The machine is described as used and is available from its current location in Germany.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
