Normag ASV015 10-K-SP Laboratory Equipment()
- Listing No
- 1220073
- Year
- Manufacturer
- Normag
- Model
- ASV015 10-K-SP
- Condition
- Used
- Location
- Germany
- Price
- $1,000
- Description
-

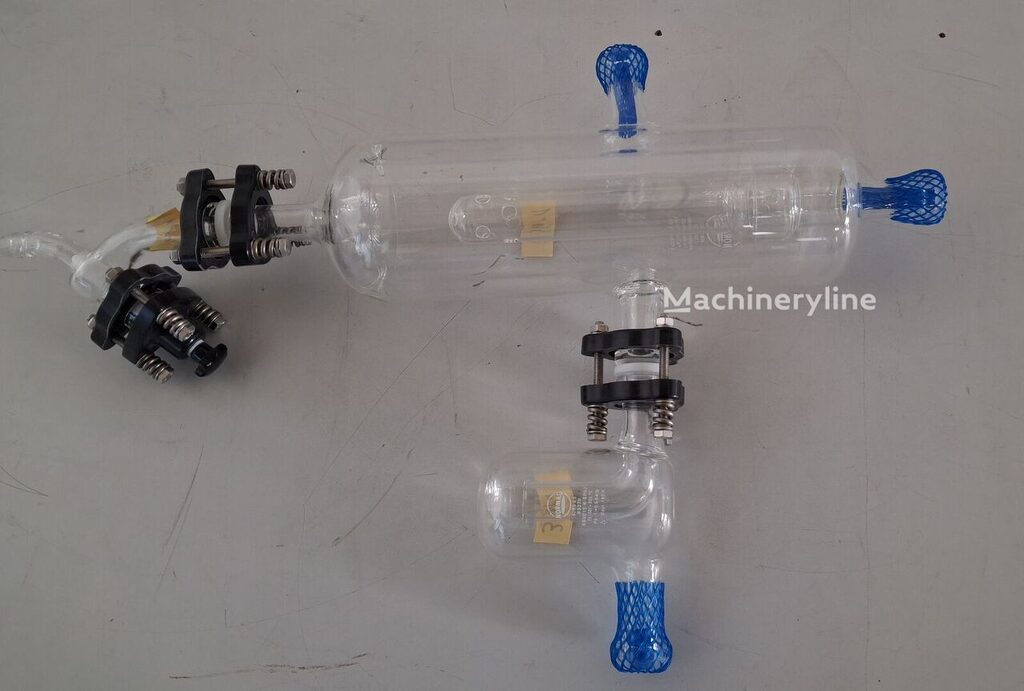

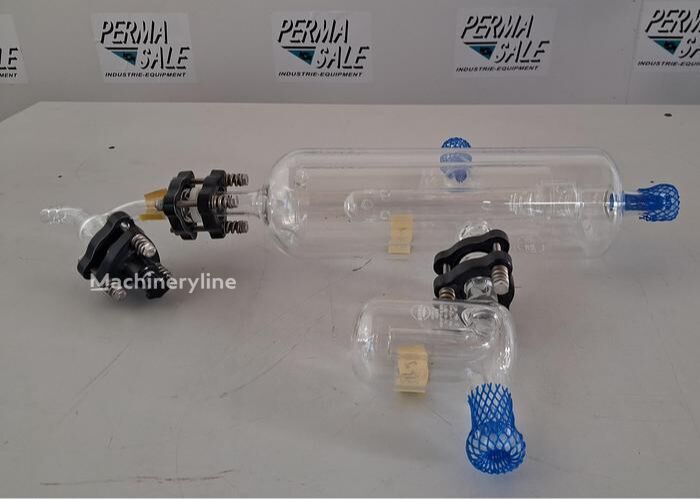

Safety tested: Federally loaded safety valve with defined Type: ASV015/10-K-SP01 and SP02 material: Borosilicate glass 3.3 * Contact pressure (Ps): 1.0 bar (±0.5 bar) * Blow-off capacity (Qst allowed): 180 kg/h * Construction: With spring mechanism and flange connection * Purge capacity (Qst allowed): 180 kg/h The Normag safety valve made of borosilicate glass 3.3 is a high-quality glass construction component for pressure relief in chemical or pharmaceutical plants. It has been specifically designed for use in glass reactor systems and is suitable for working areas with aggressive media as well as temperature fluctuations. The system consists of the parts shown in the pictures. Advantages: - Corrosion resistant: Made of chemically resistant borosilicate glass 3.3 - Safety tested: spring-loaded safety valve with defined response pressure - Compressive strength: Operating pressure 1 bar (±0.5 bar) - High flow rate: Blow-off capacity up to 180 kg/h - Process temperature: Operating temperature range from -50 °C to +200 °C - Transparency: Visual inspection of medium & condition always possible - Ready for installation: Including seals, mounting & spring mechanism --------------------------------------------------------------- 2. General functions - Safety valve for pressure relief in glass reactor systems - Transparent construction for visual process control - Used as part of overpressure protection systems - Compatible with standard flange systems in glass apparatus - Feder-loaded backpressure relief for automatic opening at defined system pressure - Process-safe & low maintenance --------------------------------------------------------------- 3. CO₂ savings By reusing this glass component instead of buying a new one, not only energy is saved for production, but also resource consumption is reduced. ♻️ Estimated CO₂ savings: 120 – 180 kg CO₂ This corresponds to about the CO₂ emissions of a 500–700 km long car driving path or one Monthly electricity bill of a two-person household. --------------------------------------------------------------- 4. Device details (type plate data in German) Manufacturer: Normag Laboratory and Process Technology GmbH Type: ASV015/10-K-SP01 and SP02 Material: Borosilikatglas 3.3 Part numbers: - 63371 (SP01) - 63370 (SP02) - Temperature range (Ts): -50 °C to +200 °C - Set pressure (Ps): 1.0 bar (±0.5 bar) - Bleed capacity (Qst permissible): 180 kg/h - Condition: Used, very good condition, no cracks, no visible chips - visually and functionally flawless - Construction: With spring mechanism and flange connection
About this machine
The Normag ASV015 10-K-SP is a laboratory safety valve designed for pressure relief in glass reactor systems and related chemical or pharmaceutical process equipment. Sometimes referred to as a pressure relief valve or overpressure protection valve, it is a specialist component used to protect glass apparatus from excess system pressure by automatically opening at a defined set pressure. Normag Labor- und Prozesstechnik GmbH is a recognised German manufacturer of laboratory and process technology equipment, with a long-standing focus on glass apparatus, reactor systems, and associated components for the chemical, pharmaceutical, and research sectors.

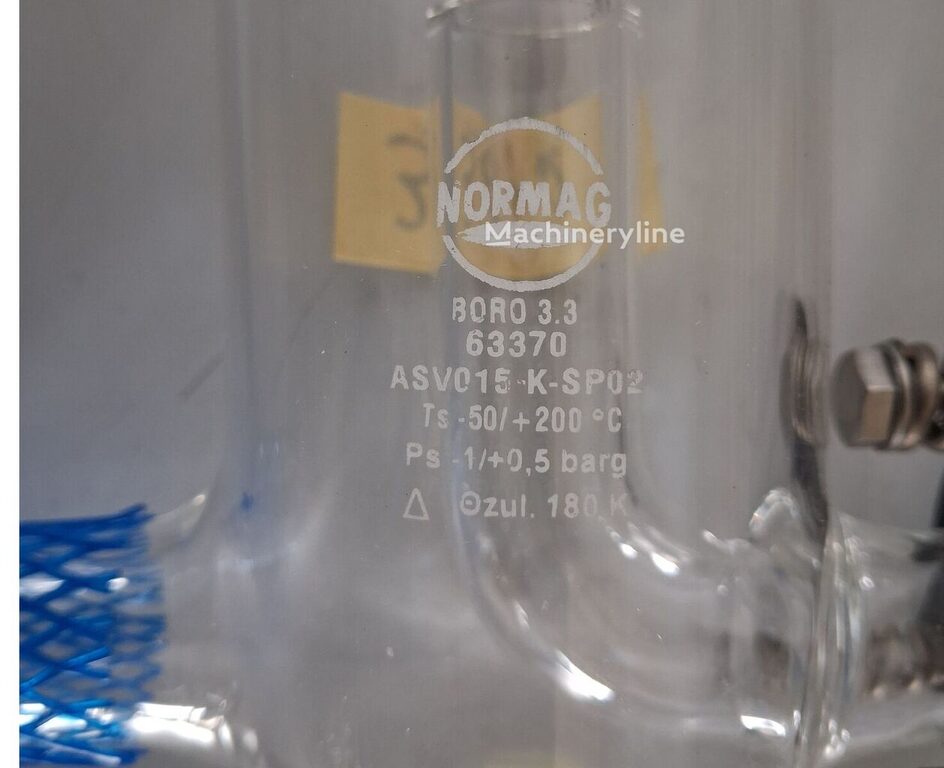

This unit is available in two variants — type ASV015/10-K-SP01 (part number 63371) and ASV015/10-K-SP02 (part number 63370) — both manufactured from borosilicate glass 3.3, a chemically resistant material widely used in laboratory and process glassware for its durability against aggressive media and thermal fluctuation. The set contact pressure is 1.0 bar (±0.5 bar), and the permissible blow-off and purge capacity is rated at 180 kg/h. The operating temperature range extends from -50 °C to +200 °C, making it suitable for demanding thermal process environments.

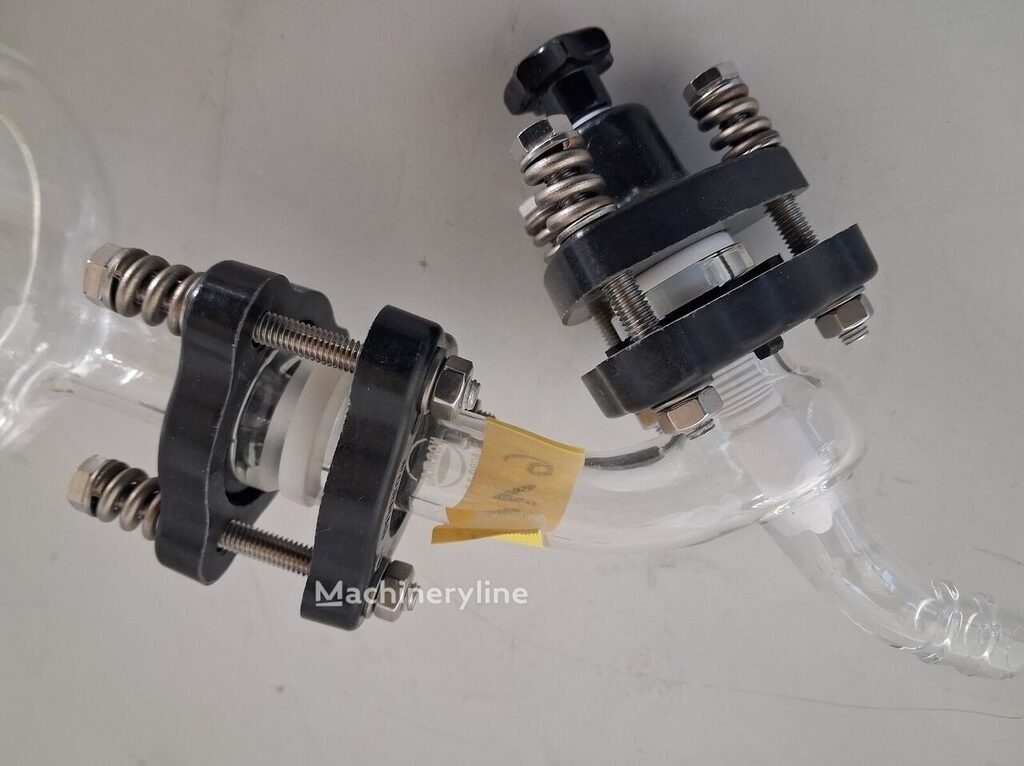

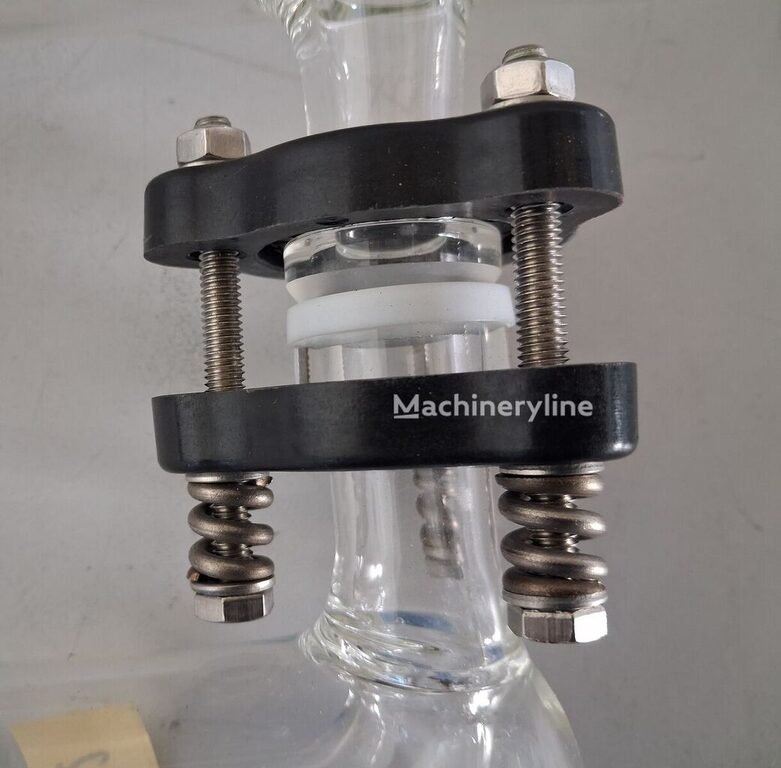

Construction incorporates a spring mechanism and flange connection, enabling compatibility with standard glass apparatus flange systems and straightforward installation. The transparent borosilicate glass body allows continuous visual inspection of the medium and valve condition during operation without interrupting the process. The unit is supplied complete with seals, mounting hardware, and the spring mechanism, and is described as ready for installation.
The valve is listed in used condition and is reported to be in very good functional and visual condition, with no cracks, no visible chips, and no impairment to operation. It is located in Germany and is priced at $1,000.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
