Normag Rohr DN 15 TYP Laboratory Equipment()
- Listing No
- 1219873
- Year
- Manufacturer
- Normag
- Model
- Rohr DN 15 TYP
- Condition
- Used
- Location
- Germany
- Price
- $70
- Description
-

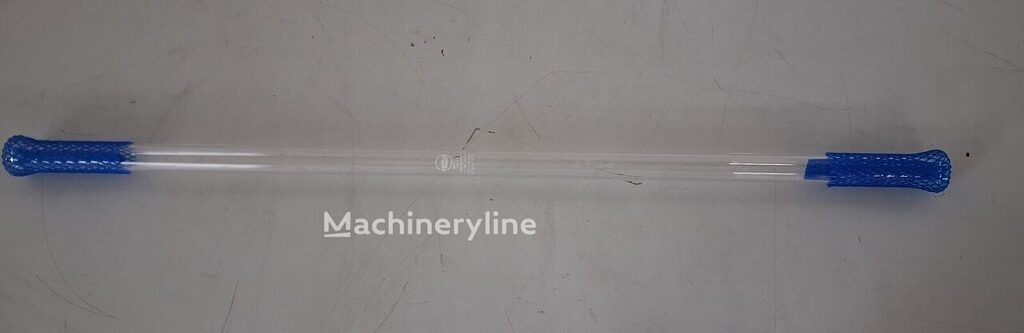

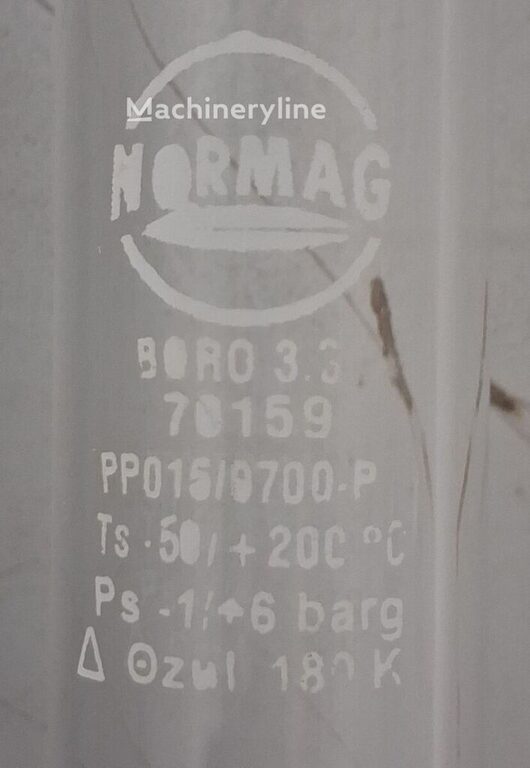

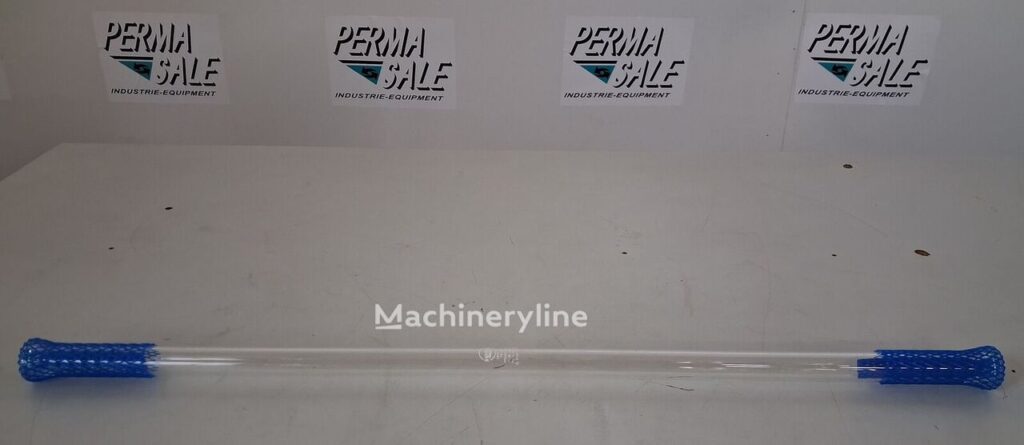

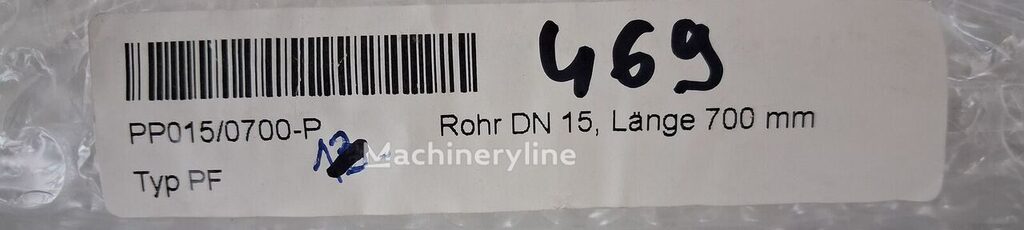

Model designation: PP015/0700-P material: Borosilicate glass 3.3 Serial number / batch number: 70159 pressure range: -1 to +6 bar Temperature range: -50 / +200 °C Resistance to temperature cycling (Δ): 180 K usable length: 700 mm standard: DIN-compliant, laboratory quality Origin: Made in Germany Pipe DN 15, length 700 mm – Type PF, Normag – Borosilicate glass tube with flange connections This glass tube of Normag (Type PF, DN 15, length 700 mm) is a precision-made laboratory glass from Borosilikat 3.3 , equipped with double-sided flange connections. Ideal for use in laboratory setups, reactor systems, and glass apparatus with thermal or pressure requirements. The system consists of the parts shown in the pictures. --------------------------------------------------------------- 2. General functions - Laboratory glass connection element - For modular systems in chemical, bio- or pharmaceutical laboratories. - Material: Borosilicate glass 3.3 - High chemical resistance, ideal for aggressive media. - Temperature- and pressure-resistant - Usable up to +200 °C and 6 bar overpressure (as well as -1 bar vacuum). - Double-sided standard flange - For standardized connection with glass components according to DIN. --------------------------------------------------------------- 3. CO₂ savings Reusing this used glass tube saves emissions generated during the energy-intensive production of laboratory glassware. Estimated CO₂ savings: 20 – 35 kg CO₂ This corresponds to about a car journey of approximately 120–140 km in a mid-size car. --------------------------------------------------------------- 4. Device details (type plate data in German) Manufacturer: Normag Type: Pipe DN 15 / Type PF Model designation: PP015/0700-P Material: Borosilikatglas 3.3 Serial number / batch number: 70159 Pressure range: P.S.: -1 to +6 barg Temperature range: Ts: -50 / +200 °C Resistance to temperature cycling (Δ): 180 K Useful length: 700 mm Origin: Made in Germany Condition: Used, very good condition, no visible cracks or chips Standard: DIN-conformant, laboratory quality Special features: Blue protective caps present on both ends
About this machine
This used Normag Rohr DN 15 TYP, model PP015/0700-P, is a piece of laboratory glassware — specifically a borosilicate glass tube with double-sided flange connections, designed for use in modular laboratory apparatus, reactor systems, and process glass assemblies. Sometimes referred to as a laboratory glass pipe or flanged glass tube, it is a precision connection element for chemical, biochemical, and pharmaceutical laboratory setups. Normag is a well-established German manufacturer specialising in laboratory glassware and modular glass systems for scientific and industrial process applications.
The tube is fabricated from Borosilicate glass 3.3, a material prized for its high chemical resistance and suitability for contact with aggressive or reactive media. It carries a rated pressure range of -1 to +6 barg, making it suitable for both vacuum and overpressure applications, and a temperature range of -50 °C to +200 °C. Its resistance to temperature cycling is rated at ΔT 180 K, indicating robust performance under thermal shock conditions. The usable length is 700 mm, and the nominal diameter is DN 15.
Both ends are fitted with standard DIN-compliant flange connections, allowing direct integration with other DIN-standard glass components in modular laboratory systems. The unit is Made in Germany and conforms to DIN laboratory quality standards. It carries batch number 70159.
This example is offered in used condition and is described as being in very good condition, with no visible cracks or chips. Blue protective caps are present on both ends, preserving the flange faces. The unit is located in Germany and is listed at $70.
