Nowicki MH-212 SAS Meat Processing()
- Listing No
- 1177288
- Year
- Manufacturer
- Nowicki
- Model
- MH-212 SAS
- Condition
- Used
- Location
- Poland
- Price
- POA
- Description
-
Nastrzykiwarka Metalbud Nowicki MH-212 SAS z serwonapędami jest przeznaczona do realizacji najbardziej złożonych procesów nastrzyku obejmujących szerokie spektrum surowców. Model ten potrafi nastrzykiwać dowolny produkt nie wyższy niż 160 mm, który możemy umieścić na przenośniku o szerokości 750 mm. Gęsty układ punktów wtryskowych (212) pozwala uzyskać równomierne i wysokie wyniki nastrzyku. Nastrzykiwarka solanki MH-212 SAS Liczba igieł szt. 212 Typy igieł: Ø3 mm do kurczaka Prędkość przenośnika (regulowana w 3 prędkościach) Szerokość przenośnika: 750 mm Maks. wydajność: do 6000kg/h Wydajność dla całych kurczaków: 15% wtrysku Bph Do 5000 kurczaków / h Wydajność piersi kurczaka: 35% wtrysku, do 2 800 kg/h Skok głowicy wtryskowej: od 40 do 210 mm Liczba suwów: od 10 do 60 suwów/min Ciśnienie solanki: od 0,5 do 4,5 bara Objętość wtrysku: 5÷100%. Sprężone powietrze: od 6 do 8 barów Zużycie sprężonego powietrza: 1 do 2 m3/h Napięcie i częstotliwość* V; Hz 400V / 3ph / 50 Hz Moc zainstalowana: ~17,5 kW Wymiary: L= 2900mm x W= 1650 / 2530mm z filtrem x H= 2500mm Waga: 1350kg Filtr obrotowy solanki FBN-212 Pojemność zbiornika: 250l Moc zainstalowana: 1,04 kW Wymiary: L= 1900mm x W= 790mm x H= 750mm Waga: 180kg Wymiary zestawu MH-212SAS + FBN-212: L= 2900mm x W= 2550mm x H= 2500mm Urządzenie powystawowe, nigdy nie używane! Show the whole comment
About this machine

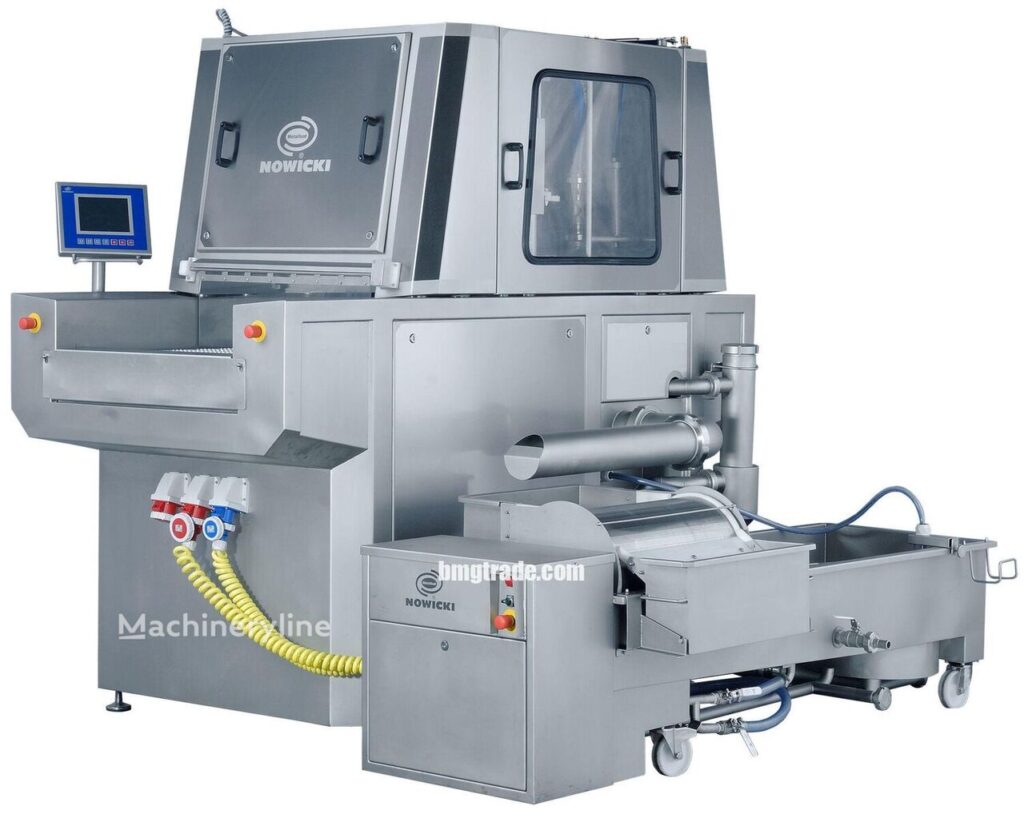

The Nowicki MH-212 SAS is a brine injector — sometimes referred to as a meat injector or marinade injector — a type of meat processing machine used to introduce brine or marinade solutions uniformly into raw meat products before further processing or cooking. Nowicki, operating under the Metalbud Nowicki brand, is a well-established Polish manufacturer specialising in industrial meat processing equipment, supplying machinery for poultry, pork, and beef processing operations worldwide.
This machine is equipped with 212 injection needles arranged in a dense pattern to ensure even brine distribution across the product. The needles are 3 mm in diameter and are suited for poultry applications including whole chickens and chicken breast. Products up to 160 mm in height can be processed on the 750 mm wide conveyor belt, which operates at three selectable speeds. The injection head stroke is adjustable between 40 and 210 mm, and the stroke rate ranges from 10 to 60 strokes per minute. Brine pressure is variable from 0.5 to 4.5 bar, and injection volume can be set anywhere between 5 and 100%.
Maximum throughput reaches up to 6,000 kg per hour in general use. For whole chickens at a 15% injection level, capacity is up to 5,000 birds per hour, while chicken breast processing at a 35% injection level yields up to 2,800 kg per hour. The machine runs on a 400 V / 3-phase / 50 Hz power supply and has an installed power of approximately 17.5 kW. Compressed air requirements are 6 to 8 bar, with consumption of 1 to 2 m³ per hour. The injector itself measures 2,900 mm long by 1,650 mm wide (or 2,530 mm wide with the filter) by 2,500 mm high, and weighs 1,350 kg.
The unit is supplied together with a Nowicki FBN-212 rotary brine filter, which features a 250-litre tank capacity, an installed power of 1.04 kW, and dimensions of 1,900 mm long by 790 mm wide by 750 mm high, weighing 180 kg. The combined footprint of the injector and filter unit is 2,900 mm long by 2,550 mm wide by 2,500 mm high. According to the seller, this is an ex-exhibition machine that has never been used in production, and it is located in Poland.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
