1998 - PAC Flaschenreinigungsmaschine Beverage Machine()
- Listing No
- 940315
- Year
- 1998
- Manufacturer
- PAC
- Model
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

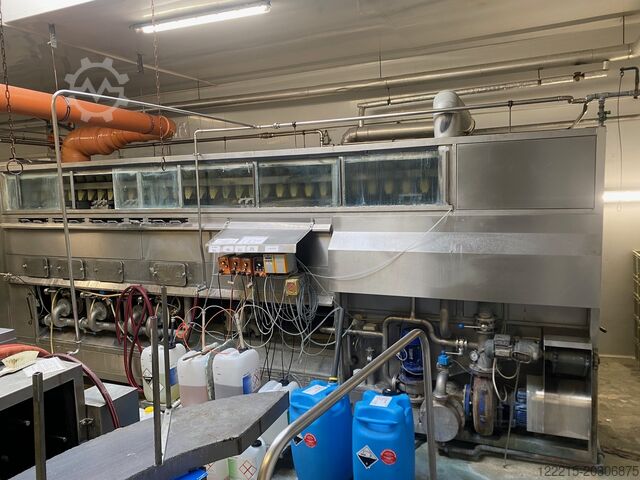

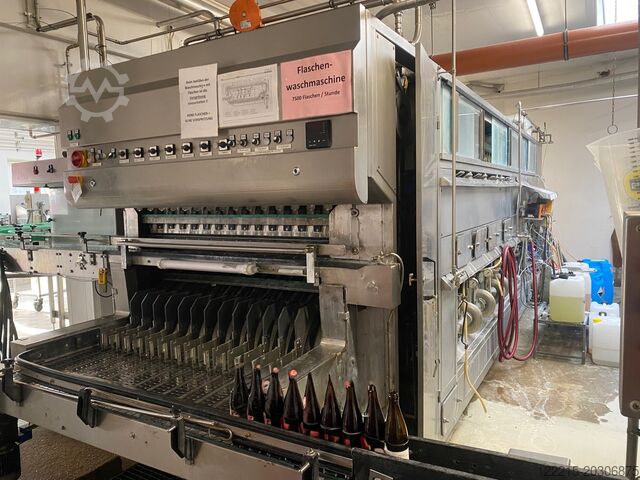

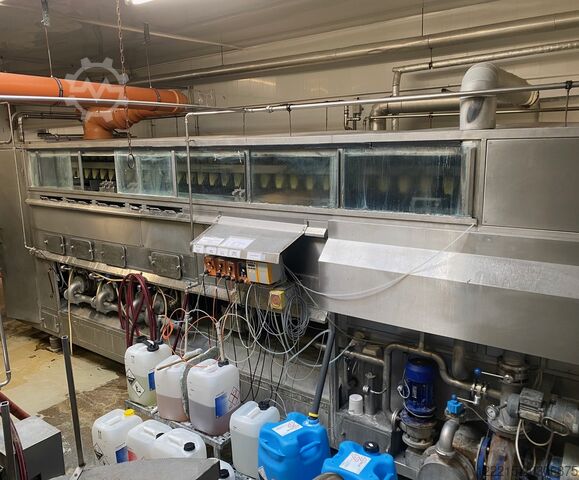

Overview This bottle washer was manufactured in 1998 by the German company PAC. The CB 14-0,5L-R-7 LII Compact model is a fully automatic returnable glass bottle washer designed for medium-capacity beverage filling lines. With a throughput of 7,500 bottles per hour, it ensures effective cleaning through a multi-stage process using caustic and hot-water baths. The unit has 14,175 operating hours and is in good working condition. Technical data Capacity: 7,500 bottles/hour Adjustable speed range: 3,750 – 7,875 bottles/hour Cycle time: 6.72 seconds Total treatment time: 11.65 minutes Bottle formats: Up to Euro-NRW Bottle rows per carrier: 14 Bottles inside machine: 1,456 Bottle carrier trays: 110 Effective spray times: Hot lye 8.96 seconds Lye II 8.96 seconds Hot water II 8.96 seconds Hot water I 8.96 seconds Cold water: 13.44 seconds Fresh water max.: 8.96 seconds Utilities Water consumption: 3.25 – 3.38 m³/h at 60°C Power connection: 12.0 – 12.9 kW Thermal energy consumption: 3,528 × 1000 kJ/h Dimensions Length with cabinet: 7,020 mm Width of frame: 1725 mm Height: 2300 mm Fo Upngexn A S Non Ioft Request more information Request more information Already requested
About this machine
This PAC Flaschenreinigungsmaschine Beverage Machine is a beverage machine — specifically a fully automatic returnable glass bottle washer, sometimes referred to as a bottle cleaning machine — designed to clean and prepare reusable glass bottles for refilling within medium-capacity beverage production lines. PAC is a German manufacturer, and this unit was built in Germany in 1998, reflecting the engineering standards associated with German beverage and packaging machinery of that era.
The machine operates at a rated throughput of 7,500 bottles per hour, with an adjustable speed range spanning 3,750 to 7,875 bottles per hour, allowing operators to match output to line requirements. The cycle time stands at 6.72 seconds per cycle, while the total treatment time a bottle undergoes inside the machine is 11.65 minutes. Bottle formats up to Euro-NRW can be accommodated, and the machine handles 14 bottles per carrier row. At any given moment, 1,456 bottles are present inside the machine across 110 bottle carrier trays.
Cleaning is achieved through a multi-stage process incorporating caustic and hot-water baths. The effective spray times are precisely specified: hot lye, lye II, hot water II, and hot water I each receive 8.96 seconds of spray treatment, cold water receives 13.44 seconds, and fresh water spray runs for a maximum of 8.96 seconds per stage.
In terms of utilities, water consumption is rated at 3.25 to 3.38 cubic metres per hour at 60 °C, and the electrical power connection requirement falls between 12.0 and 12.9 kW. Thermal energy consumption is specified at 3,528,000 kJ/h.
The machine's overall dimensions are 7,020 mm in length including the cabinet, 1,725 mm in frame width, and 2,300 mm in height. The unit has accumulated 14,175 operating hours and is offered in used, good working condition, currently located in Germany.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
