2023 - Red Rhino 7000 Plus Quarry Crusher()
- Listing No
- 817498
- Year
- 2023
- Manufacturer
- Red Rhino
- Model
- 7000 Plus
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Concasseur à mâchoires sur chenilles 12 tonnes - Ouverture de la mâchoire : 700 mm x 400 mm Entrainement hydraulique - Réglage hydraulique de la granulométrie : 30 mm - 120 mm Longueur : 8 660 mm au travail - 7 540 mm en transport - Largeur : 2 284 mm Hauteur de chargement : 2 650 mm Choix de la motorisation : Moteur Kubota V3307-CR-T-E5 ou Caterpillar 2.2 T4F/SV. Diesel - 55KW / 74 Ch Stage V Chenilles à patins acier - Caoutchouc en option - Overband en sortie du tapis d’extraction
About this machine

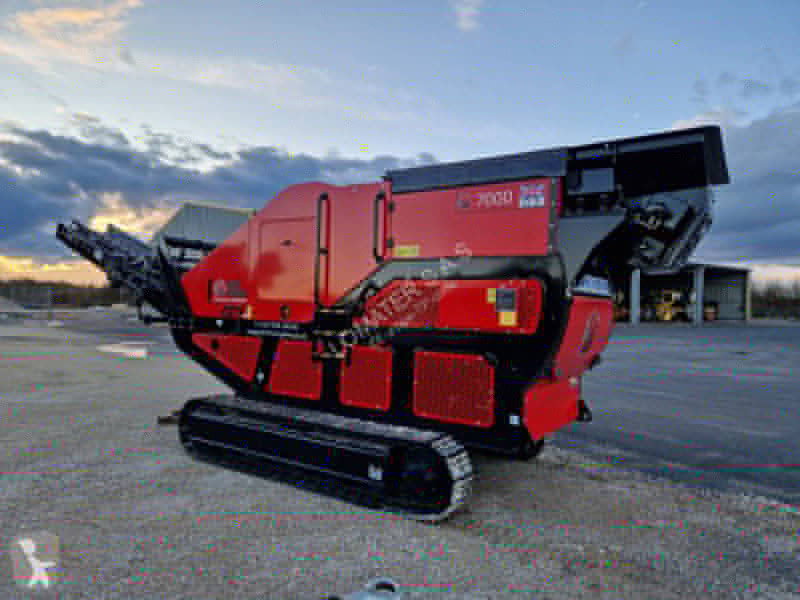

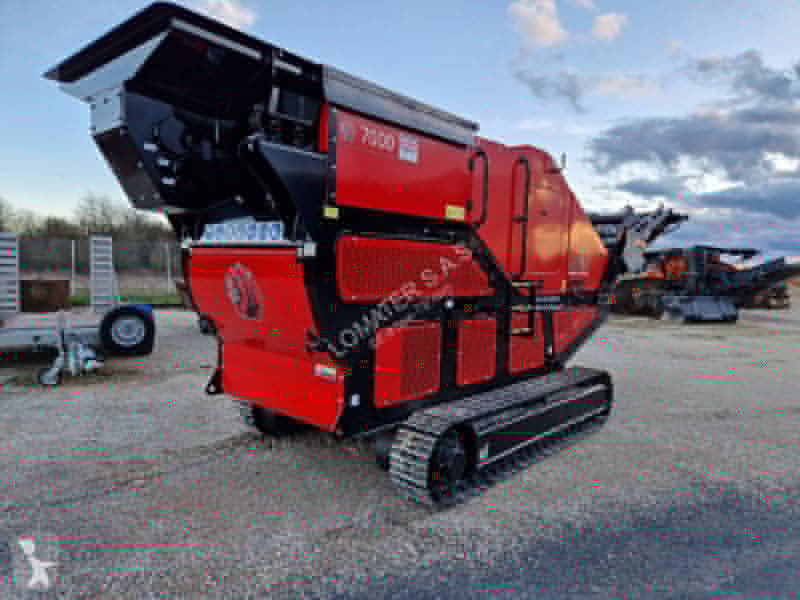

The Red Rhino 7000 Plus Quarry Crusher is a tracked jaw crusher designed for primary and secondary stone reduction in quarrying, mining, and aggregate production. It is engineered to break down large rock material into graded stone suitable for construction, road building, and industrial applications.
This machine features a jaw opening of 700 mm × 400 mm, capable of processing material down to a final product size of 30–120 mm through hydraulic granulometry adjustment. The crusher is mounted on steel-padded tracks, with rubber track options available, allowing it to traverse rough quarry terrain while maintaining stability during operation.
The working dimensions are 8,660 mm in length, 2,284 mm in width, and 2,650 mm loading height. For transport, the machine reduces to 7,540 mm in length, facilitating relocation between sites. The unit weighs approximately 12 tonnes and is powered by either a Kubota V3307-CR-T-E5 or Caterpillar 2.2 T4F/SV diesel engine, both rated at 55 kW (74 horsepower) and compliant with Stage V emissions standards. Power is delivered via hydraulic drive, which also controls the granulometry setting.
The machine is equipped with an overband magnet at the discharge conveyor outlet to remove ferrous contamination from the crushed material. The unit is used, manufactured by Red Rhino, and was built in 2023.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
