Rico TYP 126 Beverage Machine()
- Listing No
- 937507
- Year
- Manufacturer
- Rico
- Model
- TYP 126
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Karton und Kiste 6er Siemens S7 SEW Servomotoren Maschinengestell voll Edelstahl VARI Einpacker 1 Kopf Maschinenleistung: 350 Hübe pro Stunde Kopf zur Zeit 2 x 6 Fl. pro Karton 4200 Fl./h Technische Daten Gewicht: 2000 kg Maße mit Transportbändern (B x H x T): 3200 mm x 2650 x 1750 mm Ffo Upngnoxytwgjvot Pneumatischer Betriebsdruck: ca. 10 bar Elektrische Anschlusswerte: • Betriebsspannung 400 V / 50 Hz / N / PE • Anschlussleistung ca. 5 KW • Steuerspannung 24 V Emissionen: Schalldruck: < 70 dB (A) Schutzklasse/Einbauräume: DIN EN 60204 / VDE 0113 / IP 54 / EN 60529 Leistung pro Stunde: 4200 Anzahl Köpfe: 1 Takte / min: 350 Request more information Request more information Already requested
About this machine

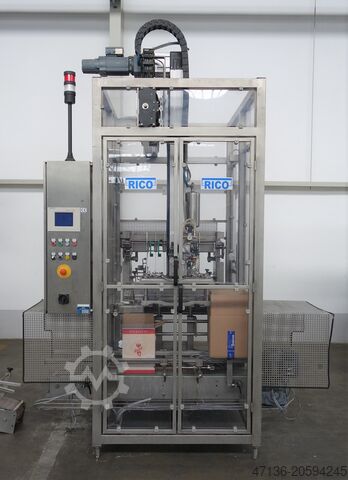

The Rico TYP 126 is a used beverage machine — a category of industrial packaging equipment commonly used in bottling and drinks production lines to group, pack, and case finished containers. Rico specialises in packaging machinery for the beverage industry, and this machine is designed to place bottles into cartons automatically.
The machine is configured as a single-head packer (VARI Einpacker, 1 head) and operates at a rated cycle rate of 350 strokes per hour. The current head format is 2 × 6 bottles per carton, yielding a throughput of 4,200 bottles per hour at that configuration. The machine handles both carton and crate formats in a six-pack arrangement.

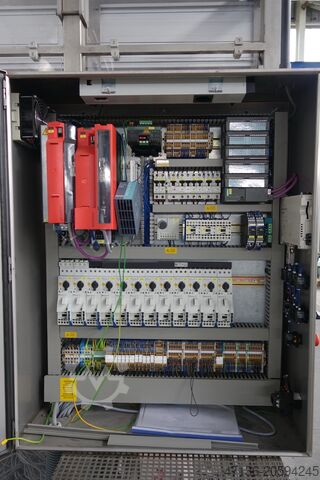

Control is handled by a Siemens S7 programmable logic controller, while the drive system uses SEW servo motors — both well-regarded components in automated packaging applications. The entire machine frame is constructed in full stainless steel, making it suitable for the hygienic demands of beverage production environments.
Electrically, the machine connects to a 400 V / 50 Hz / N / PE supply, with a connected load of approximately 5 kW and a control voltage of 24 V. Pneumatic operation requires a working pressure of approximately 10 bar. Noise emissions are rated at less than 70 dB(A), and the machine conforms to DIN EN 60204 / VDE 0113 with an ingress protection rating of IP 54 to EN 60529.

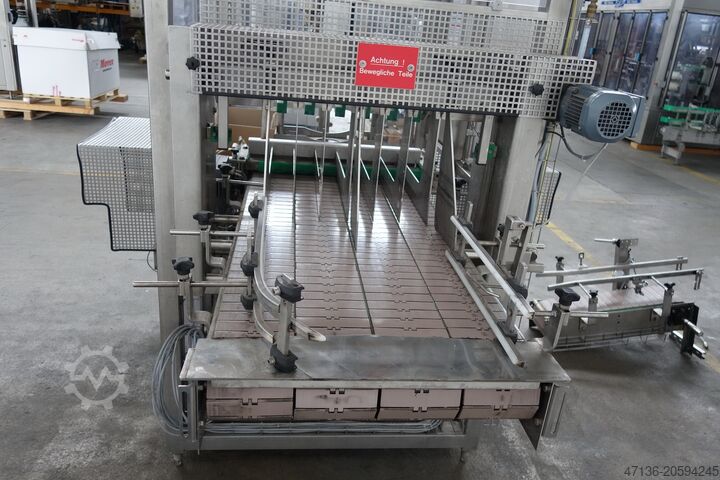

The machine weighs 2,000 kg. Overall dimensions including the conveyor belts are 3,200 mm wide × 2,650 mm high × 1,750 mm deep. It is located in Germany and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
