2012 - Rippert Drehkolbengeblaese Dust Collector()
- Listing No
- 927497
- Year
- 2012
- Manufacturer
- Rippert
- Model
- Drehkolbengeblaese
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Medium pressure conveyor for wood chips approx. 4 tons per hour conveyor pipe originally 180 m 150 mm partly existing Air capacity approx. 2.350 m³/h Motor power three-phase motor according to IEC 55 kW Protection class IP54 1 Housing made of high quality grey cast iron, equipped with two dynamically balanced dynamically balanced rotary pistons, with hardened and ground, angularly toothed precision timing gears, each mounted in roller bearings. Drives by means of V-belts, with the two pulleys and the corresponding high-performance narrow V-belts as well as a protective cover. 1 drive unit with motor tensioning rails, shaft connection with easy-to-fit Taper-Lock tensioning bushes, completely mounted on a common base support. 1 combined intake-filter-silencer (absorption silencer) 1 resonance-absorption-pressure silencer, version as base unit 1 basic unit 1 pressure valve 1 non-return damper 1 elastic connection sleeve with clamps Dco Upnob Uyizognkeb 1 pressure gauge 1 set of vibration isolators with fixing screws 1 Electrical pressure monitoring consisting of pressure transmitter and display unit as well as electrical output signal 1 acoustic enclosure made of galvanized sheet steel with oil collecting tray and ceiling painting RAL 5001, segmental construction with inner lining and forced ventilation, fan wheel driven by fan shaft. Sound hood for outdoor installation. The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine
This Rippert Drehkolbengeblaese is a used dust collector — sometimes referred to as a dust extraction unit or industrial vacuum system — dating from 2012 and currently located in Germany. Dust collectors of this type are used in woodworking, processing, and manufacturing environments to capture airborne particles and convey bulk material pneumatically, protecting air quality and keeping production areas clear. Rippert is a German manufacturer with an established reputation in industrial air-handling and conveying technology, supplying dust and chip extraction systems to the woodworking and timber processing industries.
This particular machine is configured as a medium-pressure conveyor system designed for wood chip transport, with a rated throughput of approximately four tonnes per hour. The conveying pipe infrastructure originally extended to 180 metres in 150 mm diameter pipework, part of which remains in place. Air capacity is stated at approximately 2,350 m³/h, delivered by a three-phase motor rated at 55 kW and built to IEC standards. The motor carries an IP54 protection rating, making it suitable for dusty or lightly wet industrial environments.

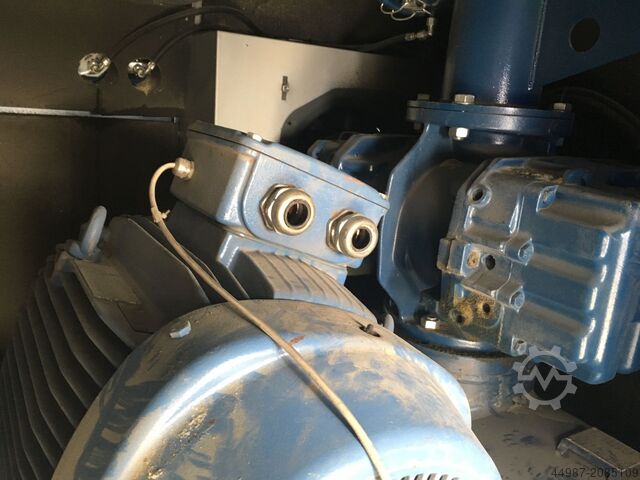

At the heart of the blower unit is a housing manufactured from high-quality grey cast iron, containing two dynamically balanced rotary pistons — the working principle from which the German designation Drehkolbengebläse derives. The timing gears are hardened, ground, and angularly toothed precision components, and all rotating assemblies run in roller bearings. Drive is transmitted via V-belts, with both pulleys and the corresponding high-performance narrow V-belts included, along with a protective cover. The complete drive unit is mounted on a common base frame incorporating motor tensioning rails and Taper-Lock tensioning bushes for straightforward assembly.

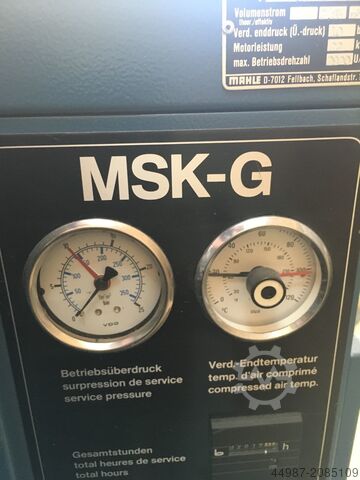

The package includes a combined intake-filter-silencer with absorption silencing, a resonance-absorption pressure silencer, and a pressure valve with a non-return damper. Connections are made via an elastic sleeve with clamps, and a pressure gauge is fitted as standard. Vibration isolators with fixing screws are included to limit structure-borne noise transmission. Electrical pressure monitoring is provided through a pressure transmitter and display unit with an electrical output signal, allowing integration into wider process control.

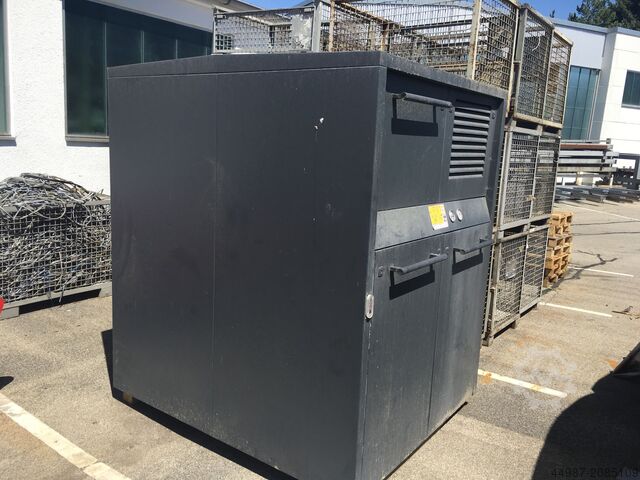

The unit is housed within an acoustic enclosure fabricated from galvanised sheet steel, finished in RAL 5001 with an oil collecting tray and internal lining. The enclosure is of segmental construction, ventilated by a fan wheel driven off the fan shaft, and is rated for outdoor installation, broadening the range of sites to which this machine can be deployed.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
