2025 - Robland Z 400 X-1 Wood Saw
()- Listing No
- 992983
- Year
- 2025
- Manufacturer
- Robland
- Model
- Z 400 X-1
- Condition
- Used
- Location
- Germany
- Price
- $18,350
- Description
-
Gut zu wissen: CE Kennzeichnung, 3 Achsen elektrisch verstellbar Schlittenlänge: 3200 mm Schnittbreite am Breitenanschlag: 1250 mm Schnittbreite am Ablänganschlag: 3200 mm Schnittiefe: 125 mm Vorritzer: ja Höhenverstellung Sägeblatt: elektrisch Schwenkverstellung Sägeblatt: elektrisch Verstellung Breitenanschlag: elektrisch Anzeige Sägeblatt Winkel: Digital Anzeige Schnitthöhe: Digital Anzeige Breitenanschlag: Digital Anzeige Ablänglineal: Scala Sägeblattdurchmesser: 400mm Drehzahlen: 3000 / 4000 / 5000 U/min Motorbremse: ja / automatisch Absauganschluss: 80mm und 120mm Standort: in 6 Wochen wieder verfügbar
About this machine
The Robland Z 400 X-1 is a used wood saw — sometimes referred to as a panel saw or sliding table saw — designed for accurate ripping, cross-cutting, and sizing of timber and sheet materials. Robland is a well-established Belgian manufacturer of woodworking machinery, known for producing robust and versatile machines for professional joiners, furniture makers, and timber workshops. This example is located in Germany and is available again in approximately six weeks.

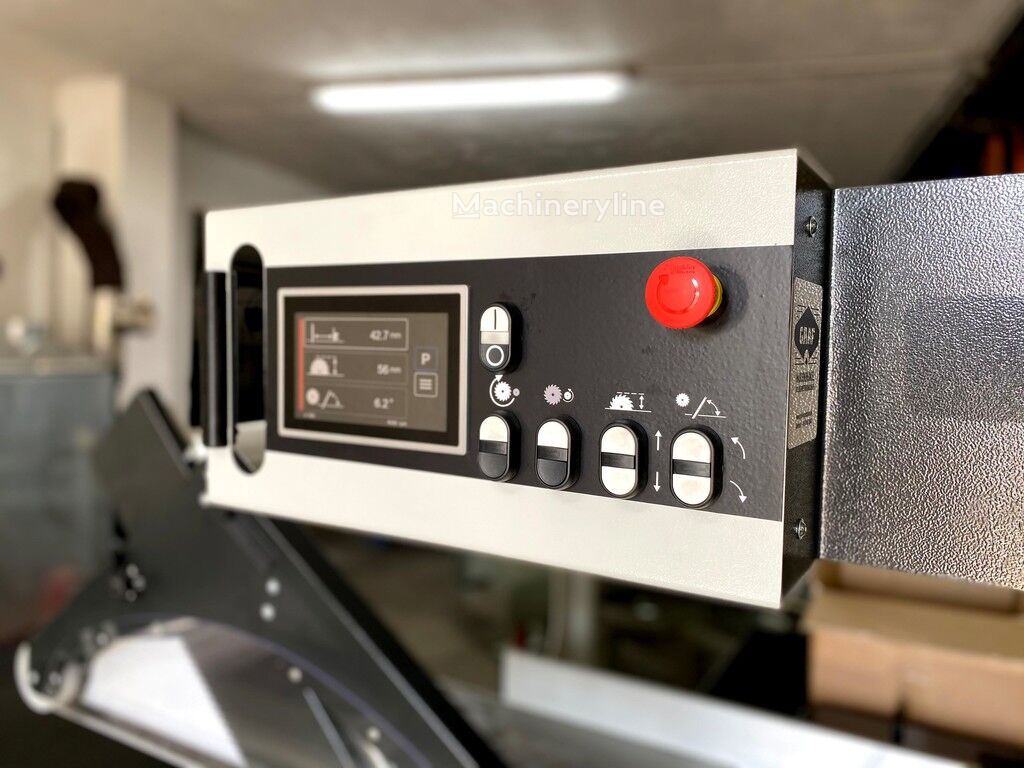

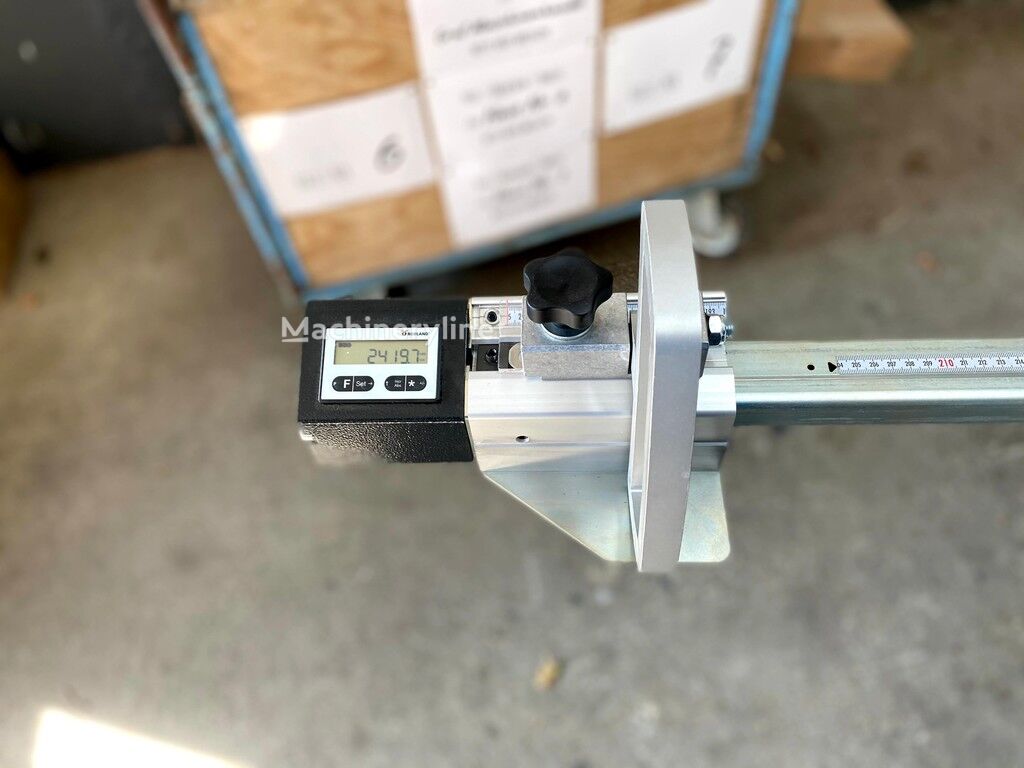

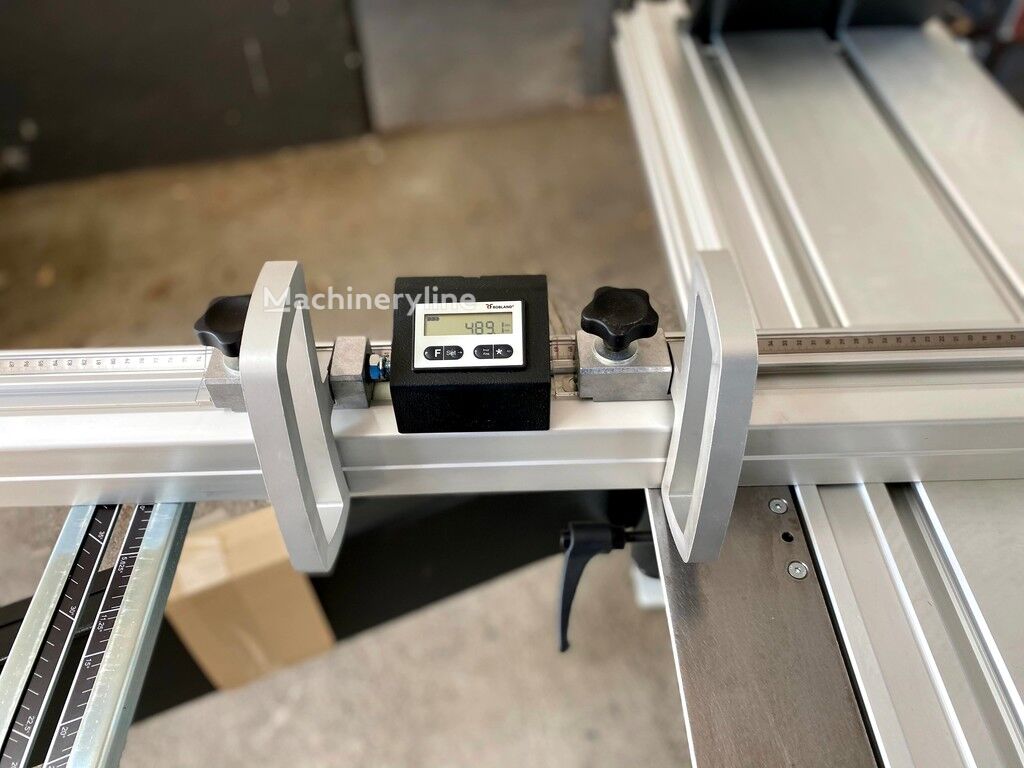

The machine carries CE certification and features three axes that are electrically adjustable, lending it a high degree of precision and ease of setup. The main saw blade measures 400 mm in diameter and can be raised and lowered electrically, with blade height displayed on a digital readout. Blade tilting is also electrically controlled, with the blade angle shown on a separate digital display. The rip fence is likewise electrically adjusted and its position read off a digital scale, making repeatable cuts straightforward and efficient. The cross-cut rule is read via a mechanical scale. A scoring blade (Vorritzer) is fitted as standard, which is particularly important when cutting veneered or laminated panels to prevent tearout on the underside.
The sliding table runs to 3,200 mm, which determines the maximum cross-cut length and corresponds to the stated cross-cut capacity of 3,200 mm. Ripping width at the rip fence reaches 1,250 mm, making the machine well suited to full-size sheet goods. Maximum depth of cut is 125 mm. The main blade offers three selectable speeds — 3,000, 4,000, and 5,000 RPM — allowing the operator to match blade speed to the material being processed. An automatic motor brake is fitted, bringing the blade to a safe stop promptly after the machine is switched off. Dust extraction is accommodated via two connection points, one of 80 mm and one of 120 mm diameter, for integration with workshop extraction systems.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
