Rohde RTO2064 Rohde Laboratory Equipment()
- Listing No
- 1219033
- Year
- Manufacturer
- Rohde
- Model
- RTO2064 Rohde
- Condition
- Used
- Location
- Poland
- Price
- $35,000
- Description
-
Oscilloscope RTO2064 Rohde & Schwarz High -class digital oscilloscope 6 GHz, 4 channels: • 20 heads/s, • acquisition memory: 50 msamples per channel, max. 2 g samples, • acquisition speed: 1 million mileage per second, • to the 16-bit vertical resolution, • Integrated spectral analysis, • high resolution 12.1-inch capacitive touch screen with gesture support, • We offer a complete solution for multi -romant testing (protocol tester), • 16 digital channels (option), • high range of dynamics and sensitivity of EMI debugging, • Vector signal exploration software (see options), • 100 MHz function generator, any generator of any waveforms and an eight -channel patterns generator, • LAN 1 GB/s network, type A: 2 × USB 3.1, 2 × USB 2.0, type B: 1 × USB 3.1, GP-IB (optional), DVI and display port for an external monitor, external trigger, release output.
About this machine

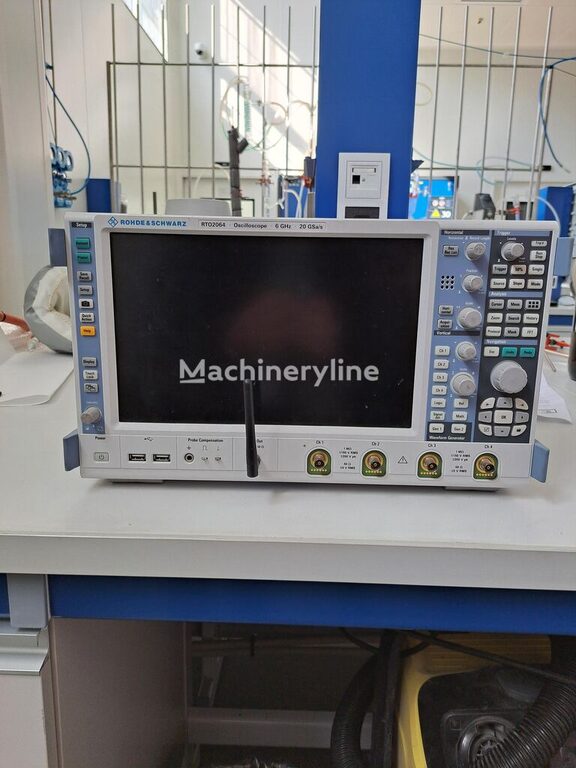

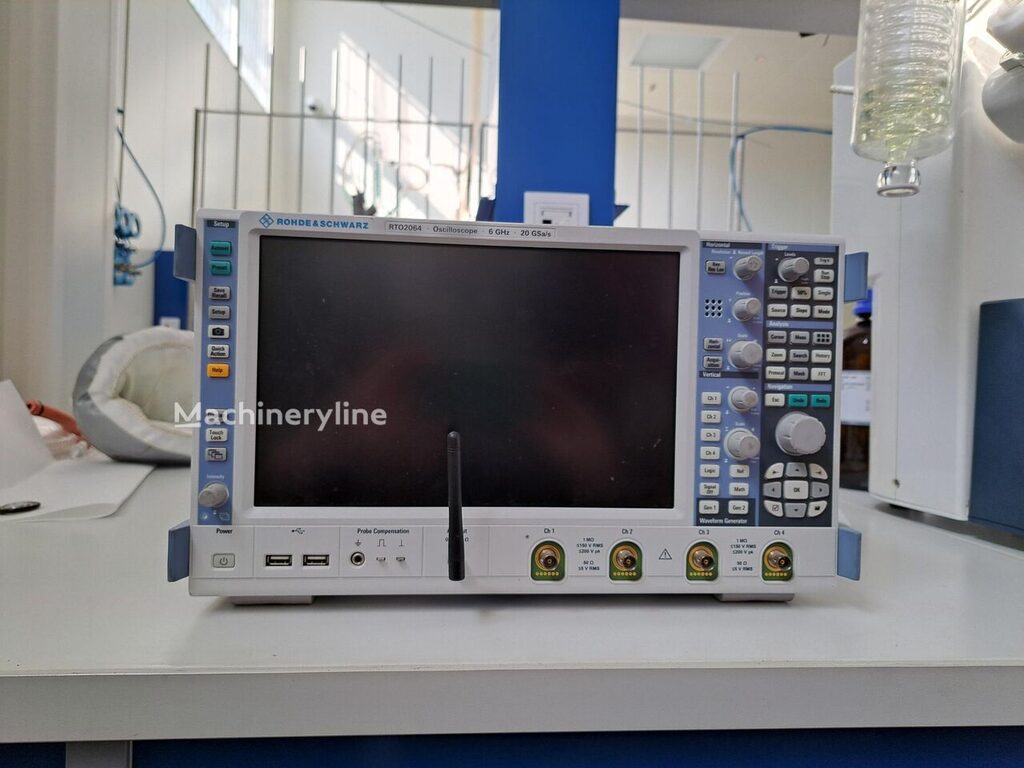

This listing is for a used Rohde & Schwarz RTO2064 laboratory oscilloscope — also referred to as a digital storage oscilloscope — a high-precision instrument used in electronics development, testing, and measurement applications. Rohde & Schwarz is a well-established German test and measurement company whose products serve industries including telecommunications, aerospace, defence, automotive, and research.
At its core, this is a four-channel digital oscilloscope with a 6 GHz bandwidth, making it suitable for analysing high-frequency signals with considerable accuracy. It delivers a waveform update rate of 20,000 frames per second, which supports the capture of rare or intermittent signal events in real time. Acquisition memory reaches 50 million samples per channel, with a maximum total of 2 gigasamples, and the acquisition speed is rated at 1 million waveforms per second. Vertical resolution extends to 16 bits, enabling fine amplitude detail to be resolved across a wide dynamic range.
The instrument features integrated spectral analysis, giving engineers the ability to examine signals in both time and frequency domains without external software. An optional Vector Signal Analysis software package extends this capability further for complex modulated signals. The unit also includes a 100 MHz function generator, an arbitrary waveform generator, and an eight-channel pattern generator, making it a multi-purpose platform for stimulus-response testing as well as passive measurement.
For protocol and multi-domain testing, the oscilloscope supports a complete protocol analysis solution. An optional 16-channel digital input expands it into a mixed-signal instrument. EMI pre-compliance debugging is supported through a high dynamic range and sensitivity specification suited to that application.

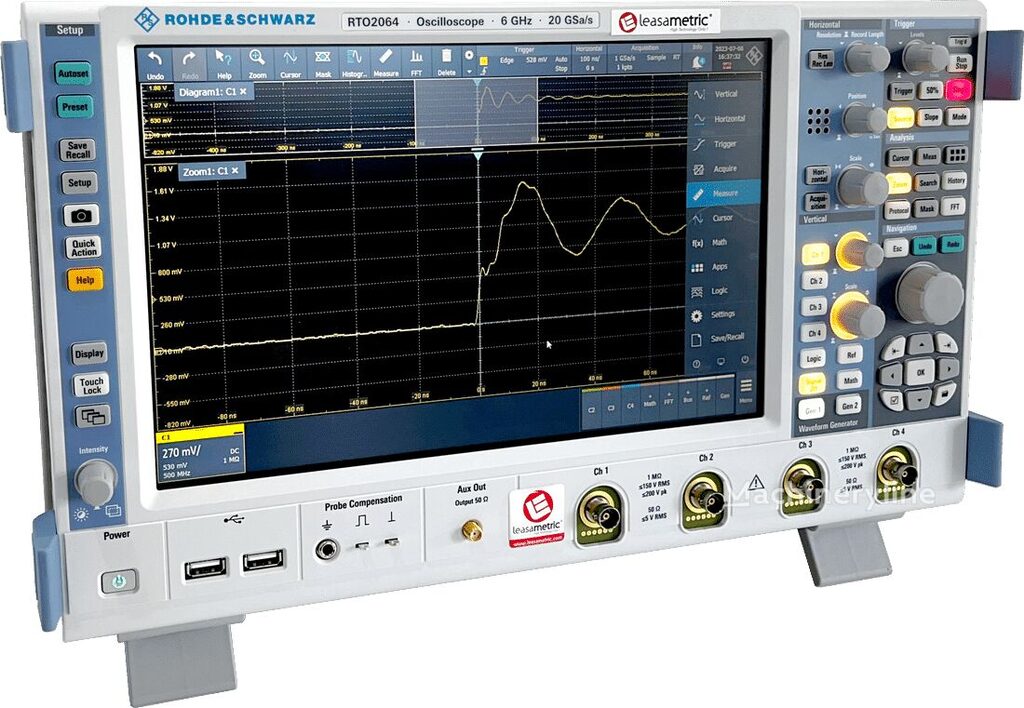

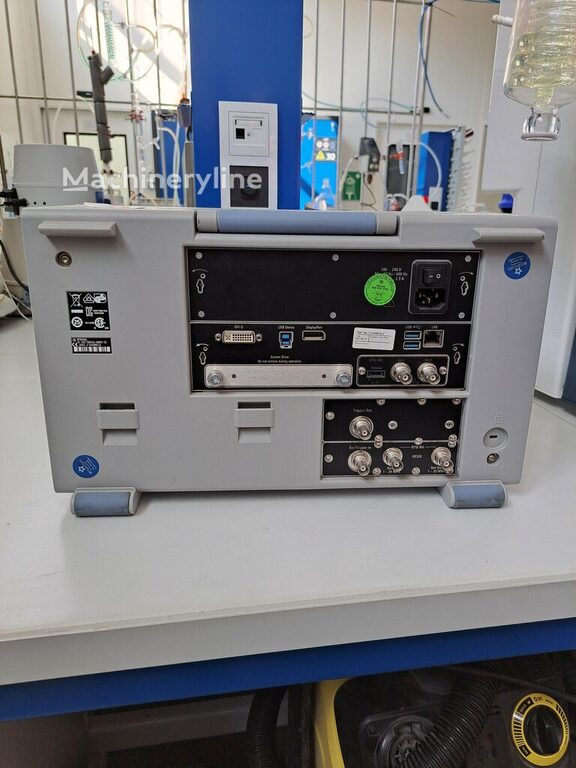

The user interface is built around a 12.1-inch capacitive touchscreen with gesture support, designed for efficient navigation of complex measurement setups. Connectivity is comprehensive: a 1 Gb/s LAN port, two USB 3.1 and two USB 2.0 Type-A ports, one USB 3.1 Type-B port, DVI and DisplayPort outputs for an external monitor, an external trigger input, and a trigger output are all included as standard. GP-IB connectivity is available as an option.
This unit is offered in used condition and is located in Poland, priced at $35,000.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
