2004 - Rudert Edelstahl Technik GmbH (D) Reaktor 10m3 – Reactor Laboratory Equipment()
- Listing No
- 1222356
- Year
- 2004
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: Reaktor 10m3 No: P033321 Working pressure: 2 Bar Working pressure jacket: 6 Bar Material: Stainless steel 1.4571 (316Ti) Volume: 10000 Ltr Motor: 37 kW 230/400 Volt Capacity: 10000 ltr Vessel sizes: dia. 2400x3500mm Manhole: dia 600 Top connections: DN100 (3x), DN150 (2x) DN250 (1x) Outlet: DN150 Max. temperature: 170 degr. C Speed mixing shaft: 47 rpm Floorspace: 2,8x2,7 M Total height: 5,9 M merk: Rudert Edelstahl Technik GmbH (D) General Pressure Vacuum possible Main Features Specified Features - Stainless Steel Reactor Reactor Dished bottom Dished top side Half coil jacketed With propellor stirrer Stainless Steel Reactors Information Mounted on legs CE
About this machine
This listing is for a used stainless steel reactor — sometimes referred to as a process vessel or mixing reactor — a type of laboratory and industrial equipment used for controlled chemical, pharmaceutical, or food-grade processing reactions. Such vessels are designed to contain, mix, heat, and pressurize substances under precisely managed conditions. Rudert Edelstahl Technik GmbH is a German manufacturer specialising in stainless steel pressure vessels and process equipment, serving industries including chemical processing, pharmaceuticals, and food and beverage production.

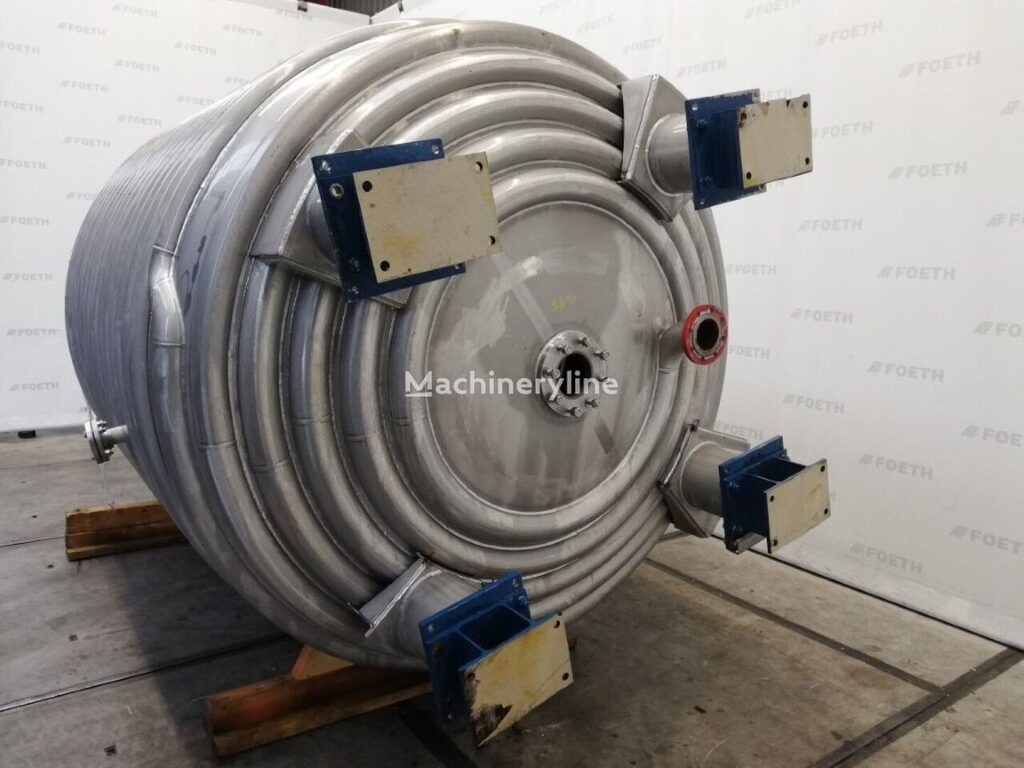

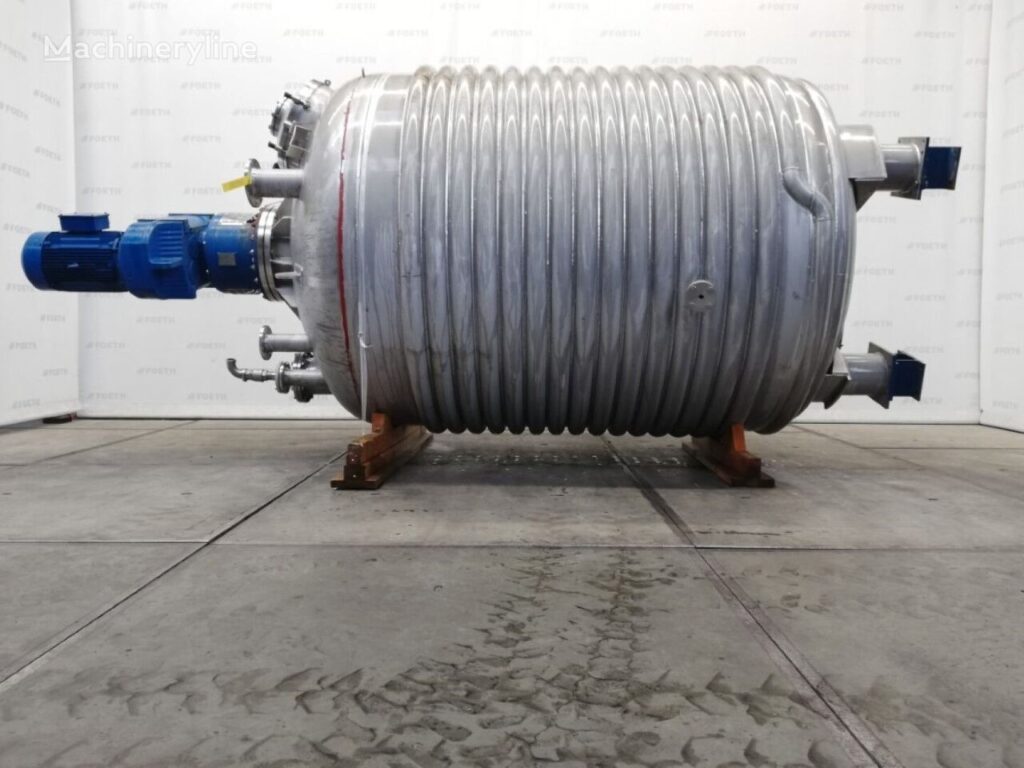

This reactor has a total capacity of 10,000 litres, with a vessel diameter of 2,400 mm and a straight-side height of 3,500 mm. It features a dished bottom and a dished top, and is mounted on legs, giving a total installed height of 5.9 metres with a floor footprint of 2.8 by 2.7 metres. The vessel is fabricated from stainless steel grade 1.4571, the European equivalent of AISI 316Ti, which offers excellent corrosion resistance and is well suited to aggressive process media.

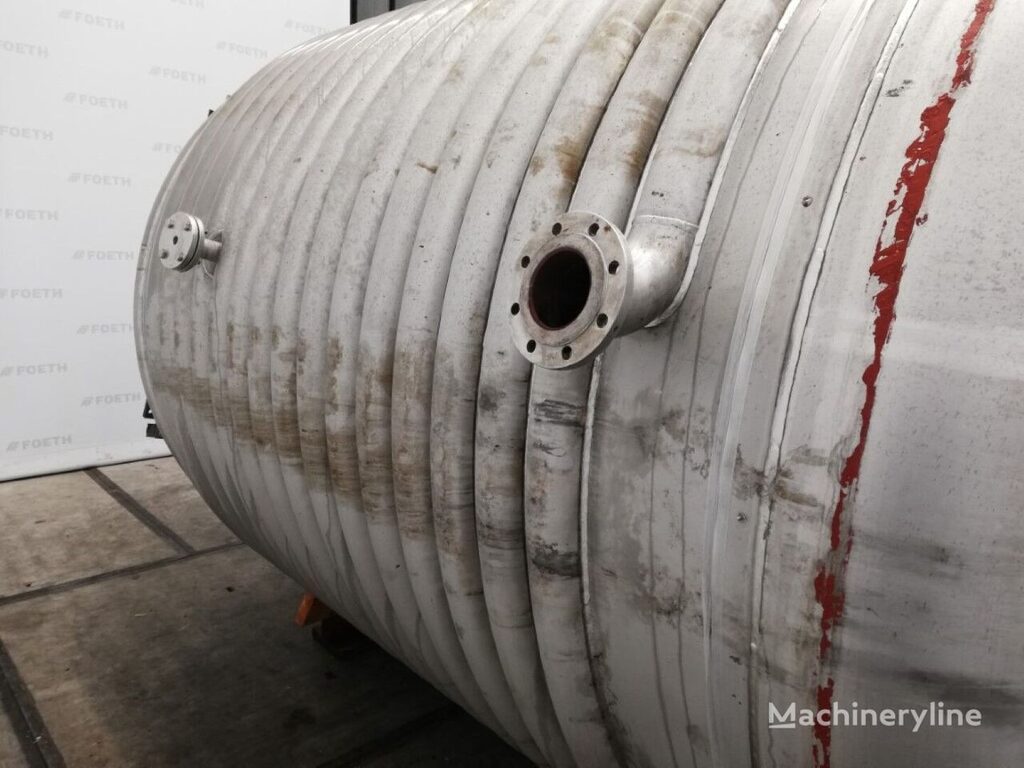

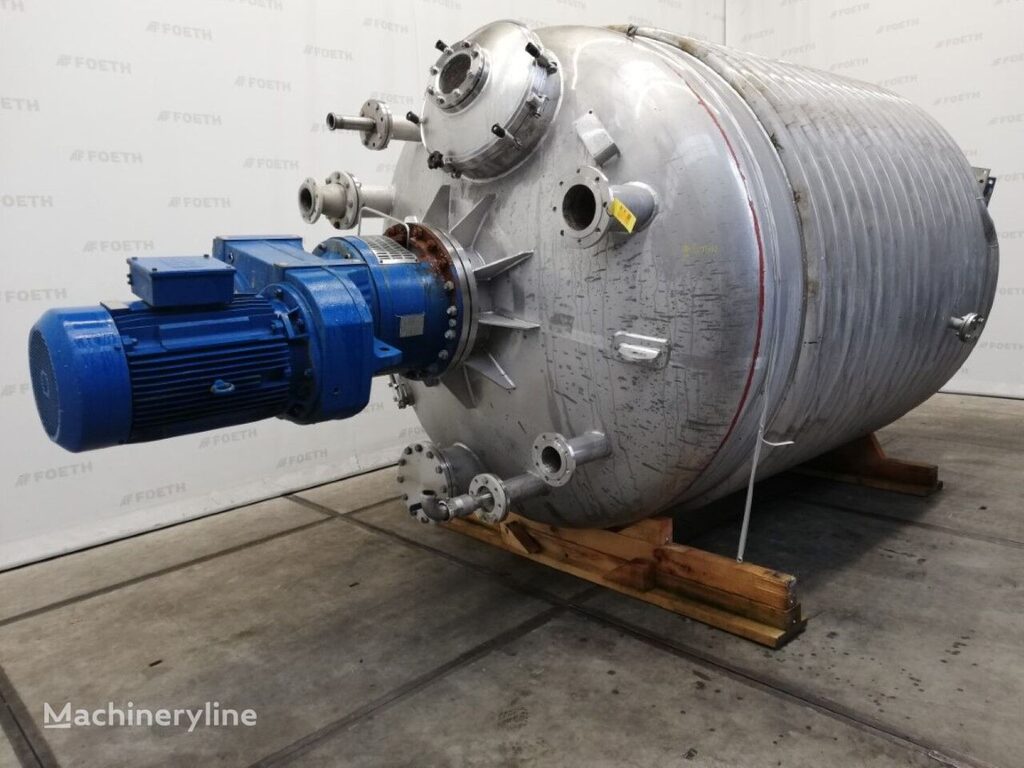

The reactor is rated for a working pressure of 2 bar and can also operate under vacuum. The heating and cooling jacket is a half-coil design rated to 6 bar, allowing efficient temperature control up to a maximum of 170 degrees Celsius. Agitation is provided by a propeller-type stirrer driven by a 37 kW electric motor running on 230/400 volt supply, with a mixing shaft speed of 47 rpm.

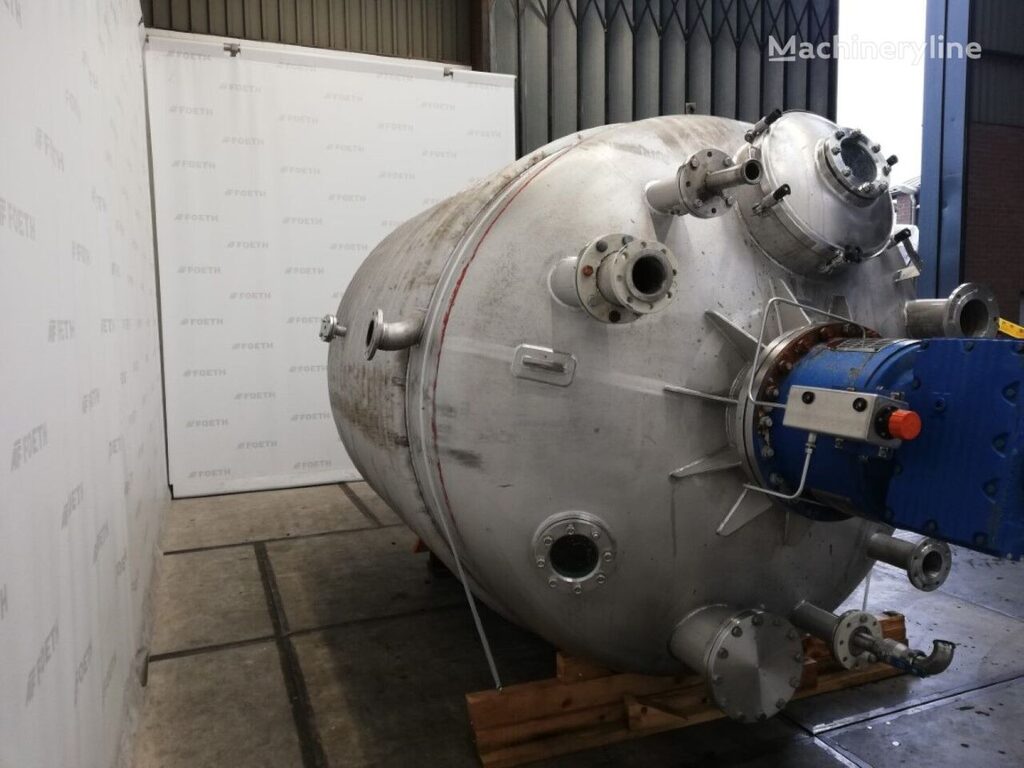

Top connections include three DN100 nozzles, two DN150 nozzles, and one DN250 nozzle. The vessel outlet is DN150. A manhole of 600 mm diameter provides internal access for inspection and cleaning. The unit carries CE marking and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
