2019 - Ruhle GR 50 Meat Processing()
- Listing No
- 1173890
- Year
- 2019
- Manufacturer
- Ruhle
- Model
- GR 50
- Condition
- Used
- Location
- Poland
- Price
- POA
- Description
-
Niezależnie od tego, czy chodzi o mięso, ryby, warzywa czy masło, Original GR 50 może być używany do szybkiego i niezawodnego siekania niemal każdej mrożonej lub głęboko mrożonej żywności szybko i niezawodnie. Cztery wydajne noże pionowe: listwa nożowa tnie płyty o grubości 35 mm 45 razy na minutę. Cztery pionowe noże dzielą płyty na kawałki o szerokości 65 mm. Wytrzymałe ostrza bez wysiłku przecinają zamrożone bloki. W zależności od zawartości wody, cięte materiały mogą być rozdrabniane w temperaturach od -40°C do +80°C. Dane techniczne Wysokość maszyny 1,626 1,838 mm Długość maszyny 2,035 3,059 mm Szerokość maszyny 838 1,559 mm Masa maszyny 630 kg Podłączone obciążenie 400 V, 6,9 kW, 16 A Wydajność robocza 3000 kg/h Wysokość wału/przejścia 250 mm Szerokość wału/przejścia 440 mm C0Q00X0Jqs Wysokość robocza 1 050 mm Skok ostrza 45 p/min
About this machine

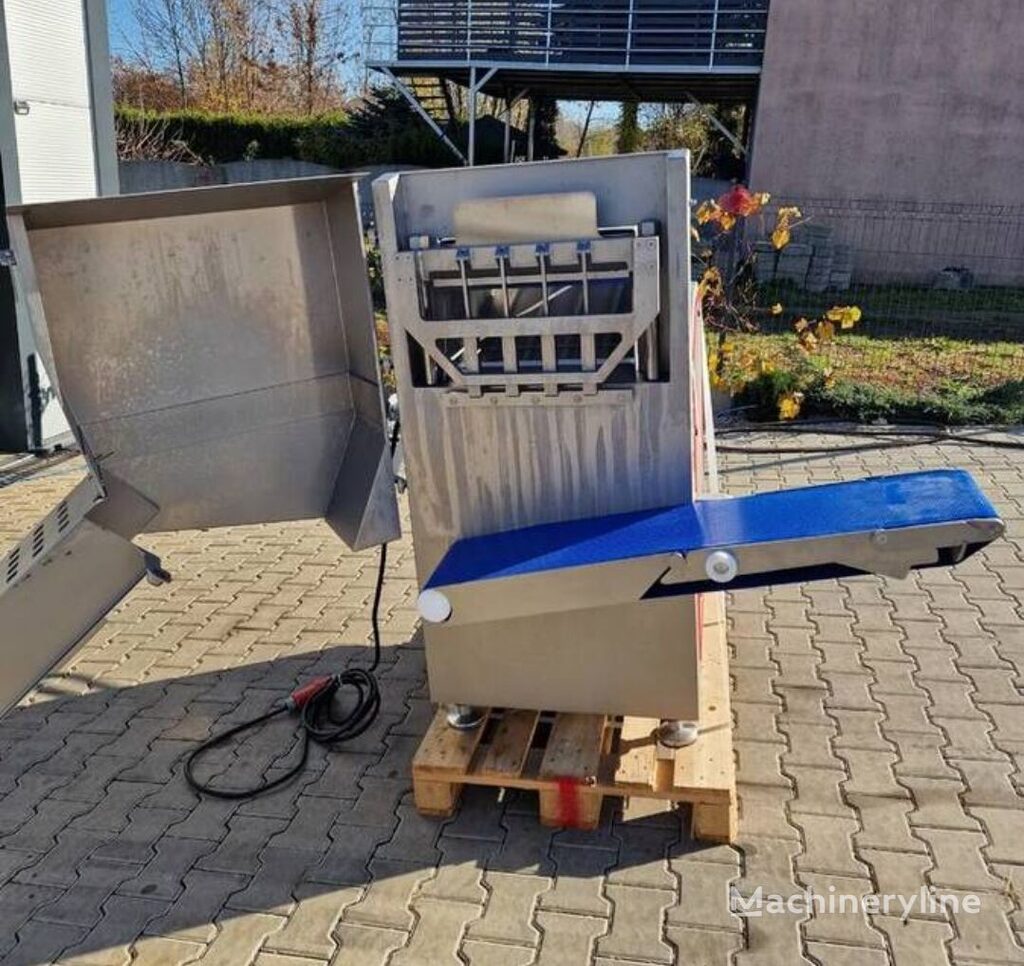

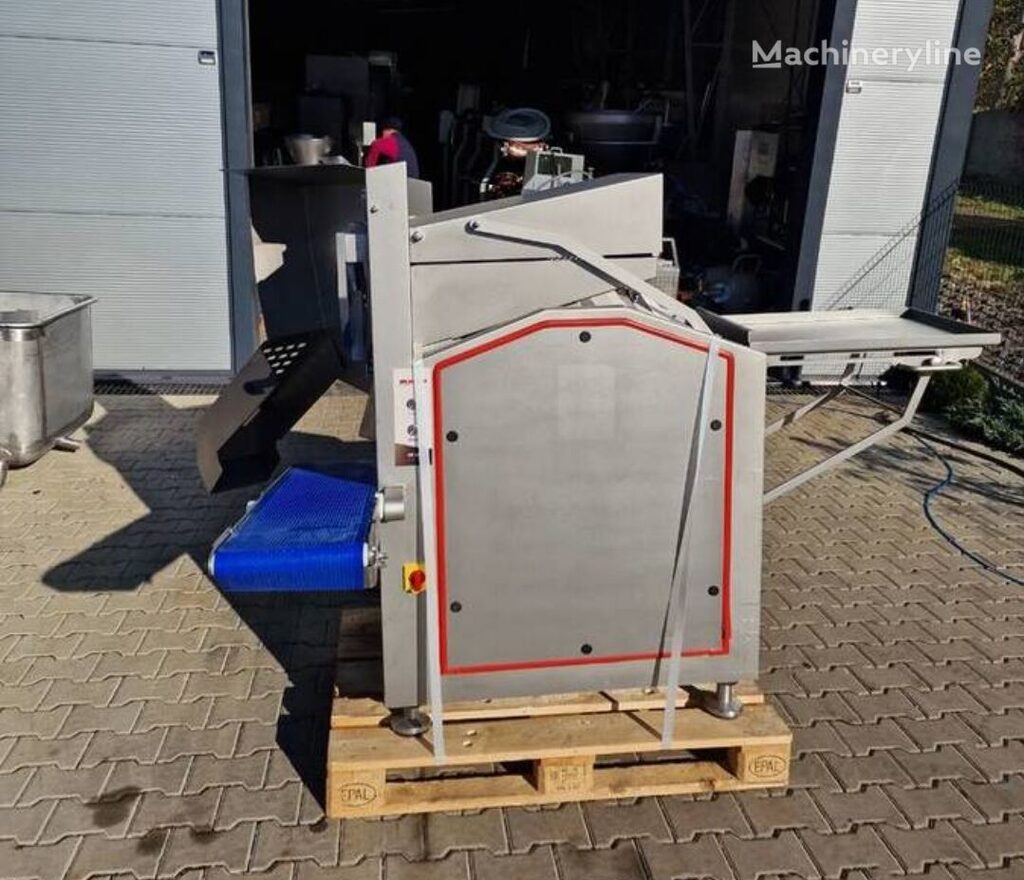

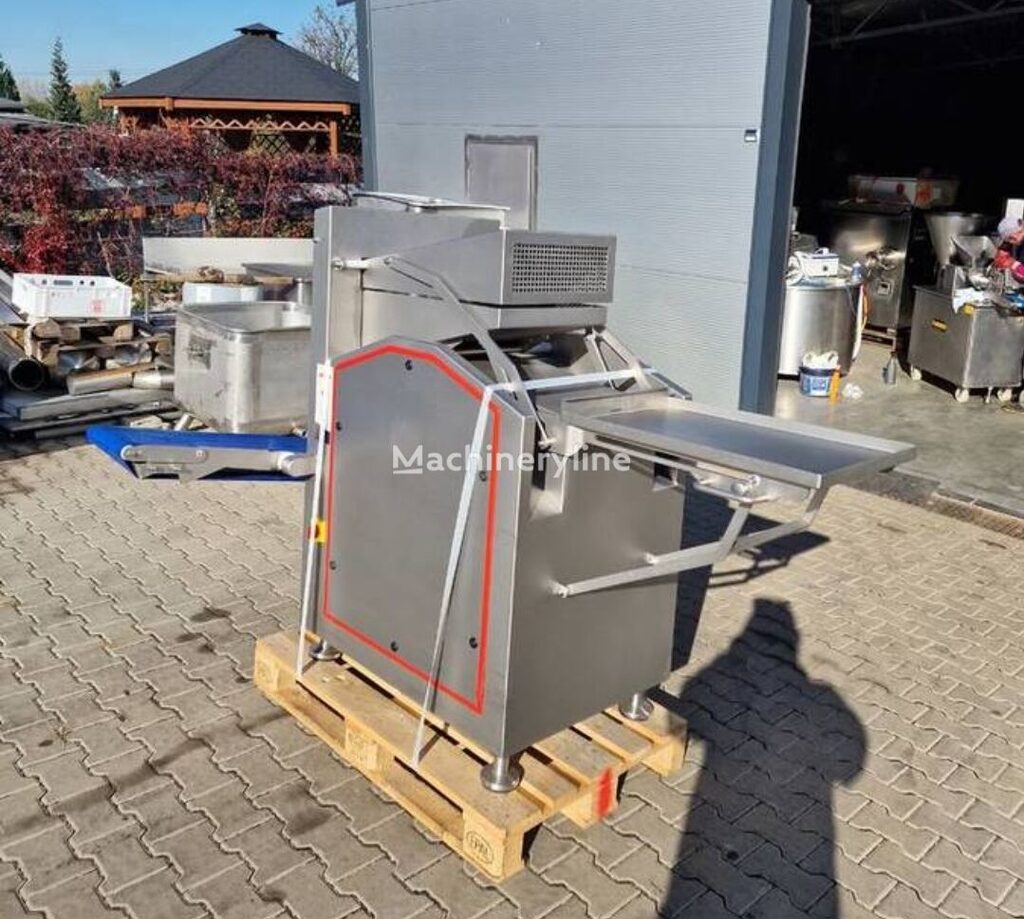

The Ruhle GR 50 is a meat processing machine — sometimes referred to as a block cutter or frozen food dicer — designed to chop and portion frozen and deep-frozen food products quickly and reliably. Machines of this type are central to high-volume food production lines, handling raw materials that would be unworkable with conventional cutting equipment. Ruhle is a well-established German manufacturer with a long history of producing industrial food processing equipment, particularly for the meat and fish industries, where precision cutting of frozen blocks is a standard production requirement.
This machine is capable of processing not only meat but also fish, vegetables, and butter, and can operate across a wide temperature range of -40°C to +80°C depending on the water content of the material being cut. Its cutting system combines a blade bar that sections frozen blocks into slabs 35 mm thick at a stroke rate of 45 cuts per minute, with four vertical knives that simultaneously divide those slabs into portions 65 mm wide. The robust blades are built to cut through solidly frozen blocks without difficulty, making the machine well suited to continuous industrial throughput.
The rated working capacity is 3,000 kg per hour. The shaft or passage opening measures 250 mm in height and 440 mm in width, determining the maximum cross-section of the blocks that can be fed through. The working height is 1,050 mm. The machine is electrically powered, requiring a 400 V supply and drawing 6.9 kW at 16 A.
Dimensionally, the machine has a height range of 1,626 to 1,838 mm, a length of 2,035 to 3,059 mm, and a width of 838 to 1,559 mm, reflecting adjustable or folded configurations. It weighs 630 kg. This example was manufactured in 2019, is offered in used condition, and is currently located in Poland.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
