1992 - Stephan MCH 20 P Meat Processing()
- Listing No
- 1174186
- Year
- 1992
- Manufacturer
- Stephan
- Model
- MCH 20 P
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
In-line Stephan Microcutter unit with Edak centrifugal pre-filter. Manufacturer: Stephan Mikrocut Model : MCH 20 P Type : In-line Cutter / emulsifier Year : 1992 Power : 15 KW Intensity : 23 A Speed : 2925 RPM Production : 3000 l/h Rotor stator : single stage Manufacturer : EDAK Model KSF 65 RH Type: centrifugal filter Year : 1999 Material: Stainless steel Double jacket Rotor Ø 150 x 350 mm
About this machine

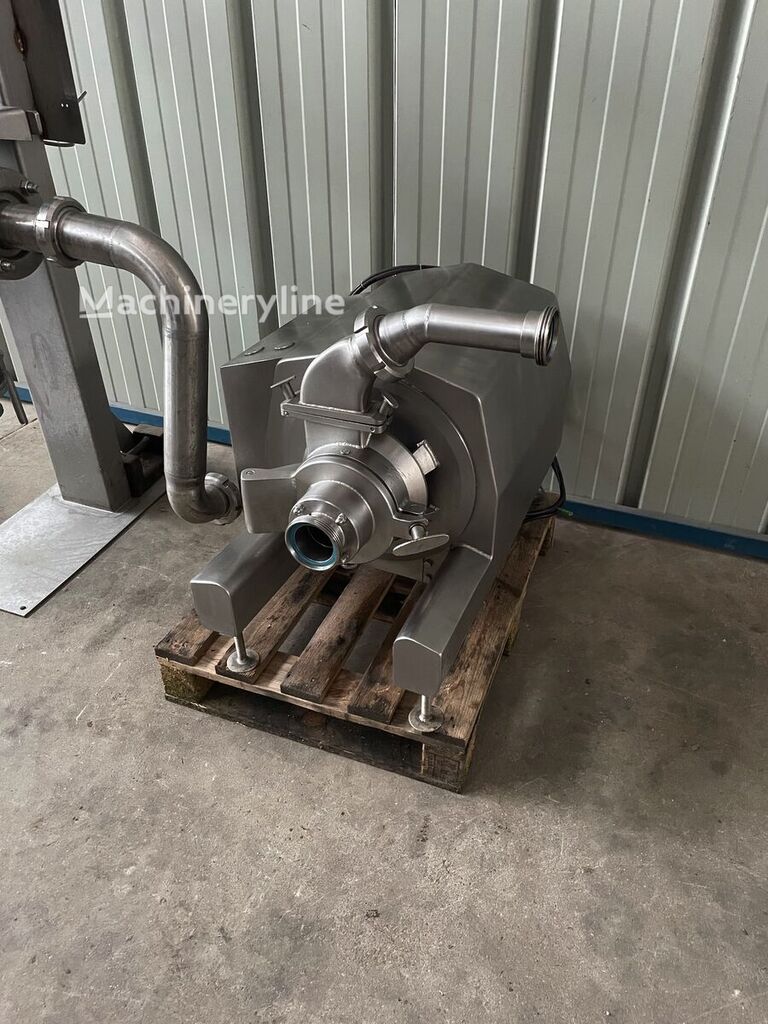

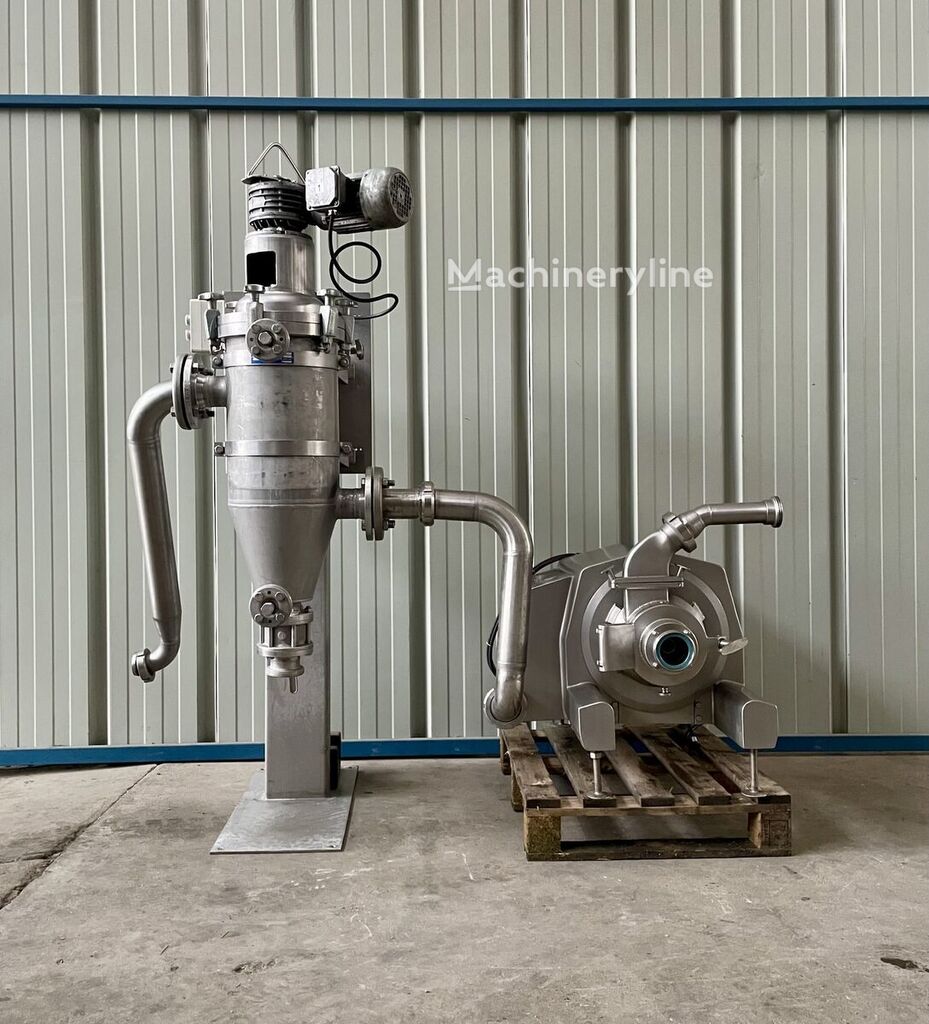

This Stephan MCH 20 P is an inline cutter and emulsifier — sometimes referred to as a colloid mill — used in meat processing applications to cut, emulsify, and homogenise product in a continuous flow. Stephan is a well-regarded German manufacturer with a long history of producing high-performance cutting, mixing, and emulsifying equipment for the food industry, particularly in meat, dairy, and related sectors.

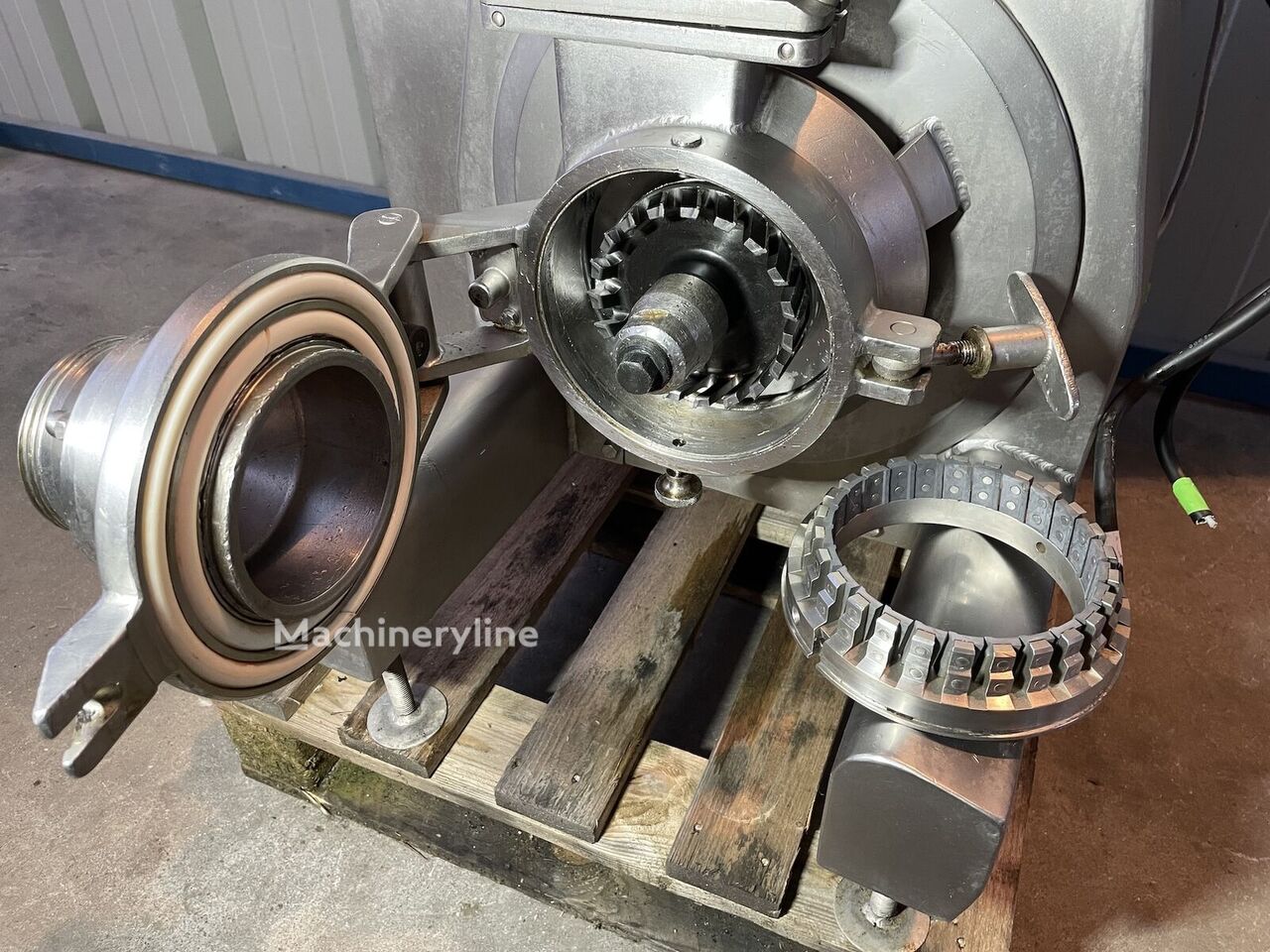

The unit dates from 1992 and is offered in used condition from a seller based in France. It operates as a single-stage rotor-stator system, delivering a throughput of 3,000 litres per hour. The main motor draws 23 A and runs at 2,925 RPM, with a rated power of 15 kW. As an inline machine, it processes product continuously as it passes through the cutting head, making it well suited to integration within a larger production line.

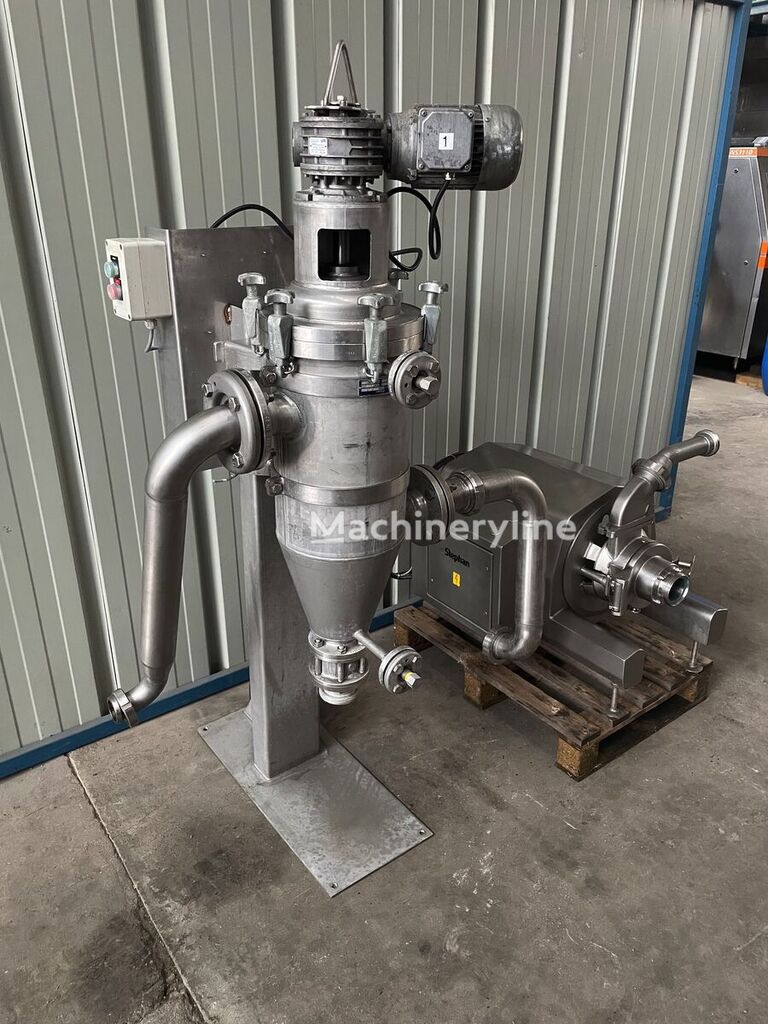

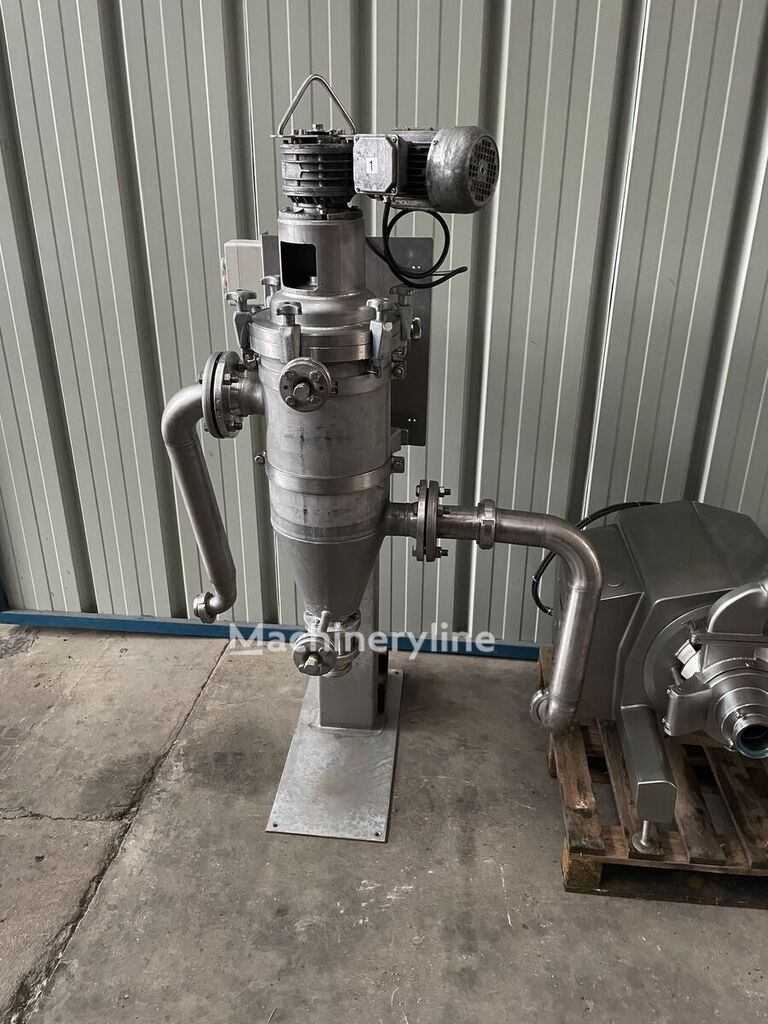

The listing also includes an Edak KSF 65 RH centrifugal pre-filter, manufactured in 1999. This unit is constructed in stainless steel and features a double jacket, with a rotor measuring 150 mm in diameter by 350 mm in length. The centrifugal filter is designed to remove bone fragments, sinew, and other undesirable matter from the product stream ahead of or alongside the emulsification stage, making the combination a practical matched pairing for continuous meat processing lines.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
