Stephan MCH 30 Meat Processing()
- Listing No
- 1173955
- Year
- Manufacturer
- Stephan
- Model
- MCH 30
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Microcutter Stephan MCH 30 Deze multifunctionele rvs doorloopcutter is een onmisbare emulgeermachine in de vlees, zuivel, kaas, groente, fruit, vega, pet- en babyfood industrie. Naast het emulgeren van zeer fijne productsoorten is het mogelijk om in één procesgang fijne producten met grovere stukken te produceren. Deze doorloopcutter versnijdt met hoge snelheid, grote hoeveelheden product in een homogene massa waarbij tevens de ingrediënten effectief vermengd worden. De instellingen kunnen variëren van grof tot fijne emulsies. Deze cutter is voorzien van een grote invoertrechter die op werkhoogte geplaatst is. Hierdoor kan het product eenvoudig (direct vanuit de schotelcutter) aangevoerd worden. Het is een ideale machine voor het versnijden van kaas, vis, wild gevogelte, deegwaren, groenten, fruit, vlees en andere voedingsmiddelen. Deze emulgator is volledig vervaardigd uit roestvast staal. De machine is verrijdbaar. Deze cutter is volledig vervaardigd uit roestvast staal. Productiecapaciteit: 4500kg/h (afhankelijk van het product, snijgrootte en aanvoer) Inhoud trechter: 170L Invoerhoogte trechter: 810mm Meegeleverde snijmaat: 0,7mm Spanning: 400V (3+N, 50Hz) Vermogen: 30kW Gewicht: 510kg Afmetingen machine in mm (BxDxH): 1750x1030x810mm Type machine: Microcutter Productiecapaciteit: 4500kg/h Materiaal: RVS Spanning: 400V (3+N, 50Hz) Afmetingen machine (BxDxH): 1750x1030x810mm
About this machine

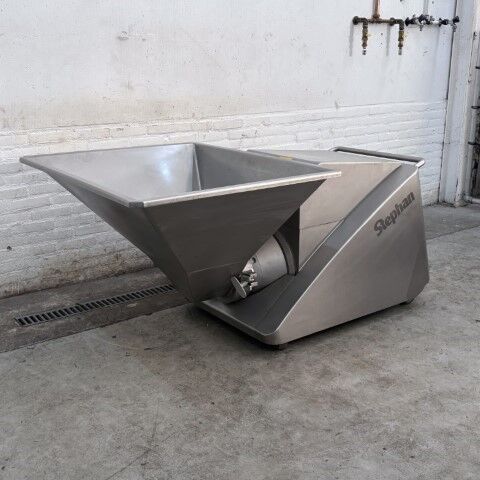

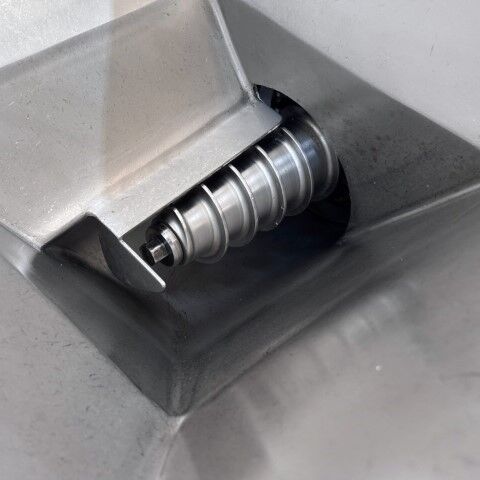

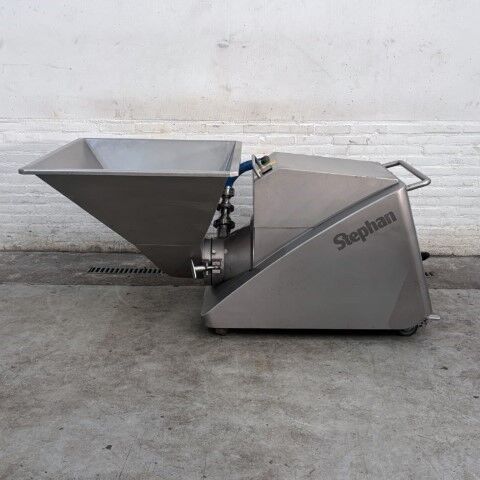

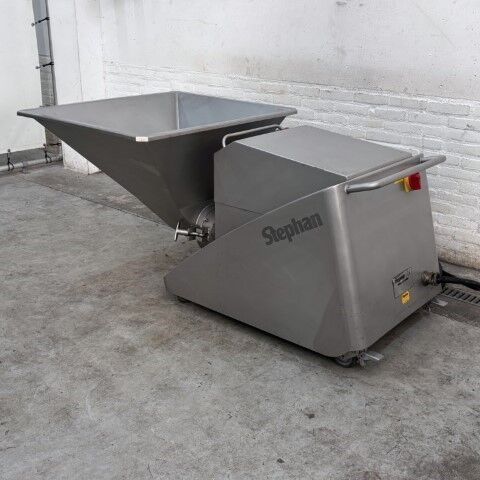

The Stephan MCH 30 is a used meat processing machine — specifically a continuous-flow microcutter, sometimes referred to as an inline cutter or emulsifier — designed to reduce large volumes of food product into a homogeneous mass at high speed while simultaneously blending ingredients. Stephan is a well-established manufacturer in the food processing industry, known for producing high-capacity cutting, mixing, and emulsifying equipment for meat, dairy, vegetable, and convenience food applications.

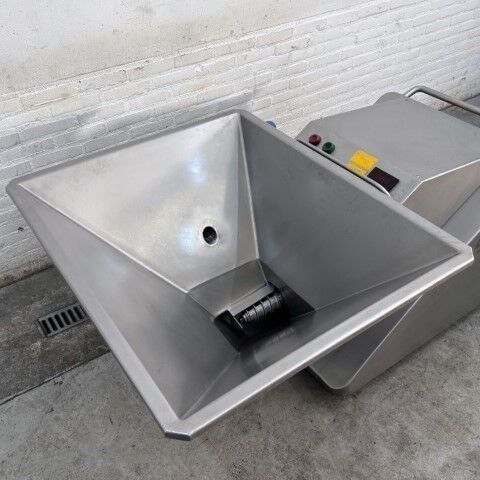

This machine is built entirely from stainless steel and is mounted on castors, making it mobile and easy to reposition within a production facility. The large infeed hopper, with a capacity of 170 litres and an infeed height of 810 mm, is designed to be positioned at working height so that product can be fed directly from a bowl cutter or other upstream equipment without the need for additional lifting. The cutting fineness can be varied from coarse reduction through to fine emulsions, and the unit is supplied with a 0.7 mm cutting size as standard.
With a rated production capacity of 4,500 kg per hour — dependent on product type, cut size, and feed rate — this machine is suited to high-throughput processing environments. It is applicable across a wide range of food categories, including meat, fish, poultry, cheese, vegetables, fruit, dough products, and pet or baby food. The motor runs on 400 V three-phase power (3+N, 50 Hz) and delivers 30 kW. The machine weighs 510 kg and has overall dimensions of 1,750 mm wide by 1,030 mm deep by 810 mm high. It is located in the Netherlands and is available in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
