2025 - Suhman SE-1060 Quarry Crusher()
- Listing No
- 807436
- Year
- 2025
- Manufacturer
- Suhman
- Model
- SE-1060
- Condition
- Used
- Location
- Spain
- Price
- POA
- Description
-
SE-1060 – Machacadora de Mandíbulas Planta de trituración móvil sobre orugas de alto rendimiento, diseñada para maximizar la productividad en proyectos de minería, fabricación de áridos para construcción y reciclaje de RCD. Equipada con una tolva de alimentación con alimentador vibrante con zona de separador de estériles grizzly, machacadora de mandíbulas modelo 1060 (C106), cintas transportadoras para acopio, y un grupo electrógeno diésel para operación autónoma. Su sistema de traslación sobre orugas garantiza movilidad y estabilidad incluso en terrenos difíciles, ofreciendo una solución versátil, robusta y de alta eficiencia para sus necesidades de trituración y cribado. SE-1060 Equipo de alimentación Volumen de la tolva (m³) 5 Dimensiones de la tolva (mm) 4200×2100 Altura de alimentación (mm) 3800 Alimentador vibrante con grizzly separador Dimensiones bandeja vibrante (mm) 3500×1000 Potencia (kW) 7,5 Machacadora de mandíbulas Modelo 1060 (C106) Boca de entrada (mm) 750×1000 Tamaño máx. de Alimentación (mm) Ø700 Ajuste CSS (mm) 70-200 Capacidad de procesamiento (t/h) 150-400 Potencia (kW) 110 Peso (t) 14,35 Separador de metales overband Modelo RCYD-12 Capacidad de procesamiento (t/h) 20 Dimensiones (mm) 2100x1450x420 Potencia (kW) 3 Peso (Kg) 900 Cinta transportadora de acopio principal Ancho/largo (mm) 1200×11000 Altura de descarga (mm) 3000 Potencia (kW) 15 Sistema de orugas País de origen Inglaterra Marca Strickland Especificación largo x ancho (mm) 4500×500 Inclinación máxima de desplazamiento (°) 30 Velocidad de desplazamiento (km/h) 0.8-1.5 Sistema de potencia Modelo FIAT Professional STAGE V Consumo de combustible (L/h) Potencia (kW) 255 Capacidad del tanque (L) 600 Normas de emisión STAGE V Marcas de accesorios Sistema de control (eléctrico) Chuan Ken Sistema de desplazamiento Strickland Bandas de goma Qingdao Global Moto-tambores de cintas transp. Xingli Motores eléctricos LAQL Maquinaria hidráulica Permco Motor FIAT Professional Alternador Stamford Acero estructural Modelos/Norma Q355B (Material utilizado para buques de guerra) Máquina completa Peso (t) 41 t Dimensiones de transporte (mm) 14850×3100×3800 Tamaño de trabajo (mm) 14850×3100×3800
About this machine

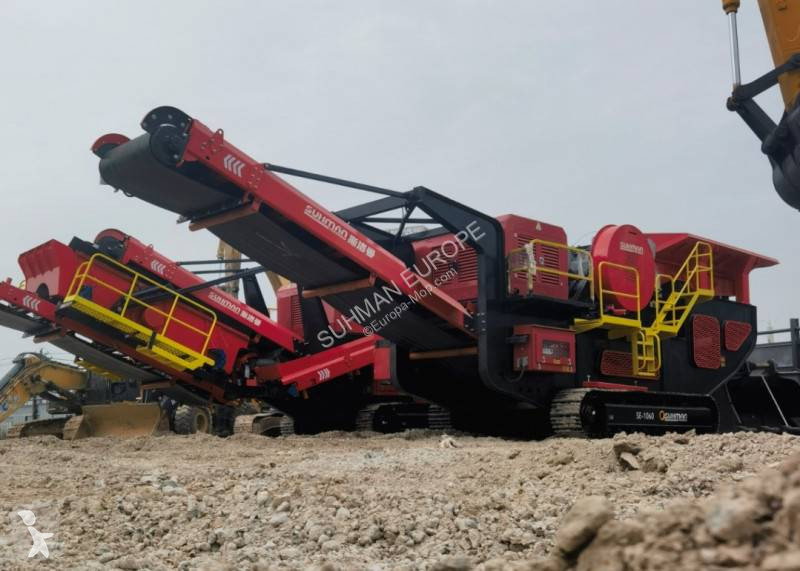

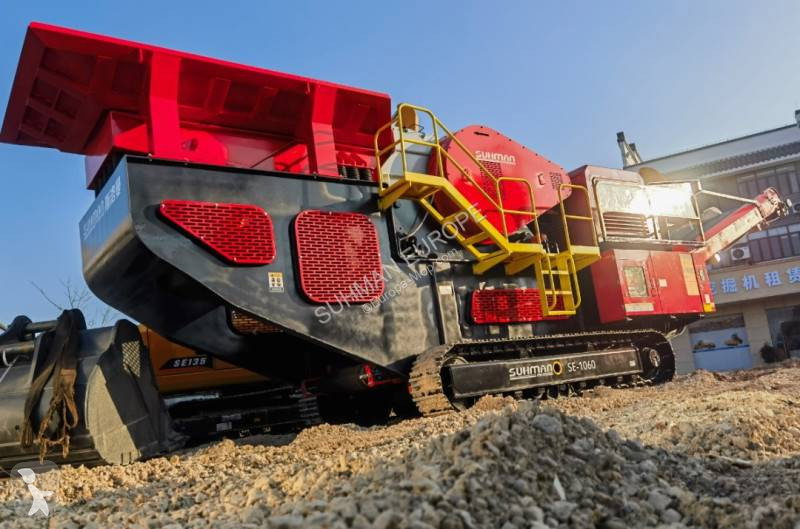

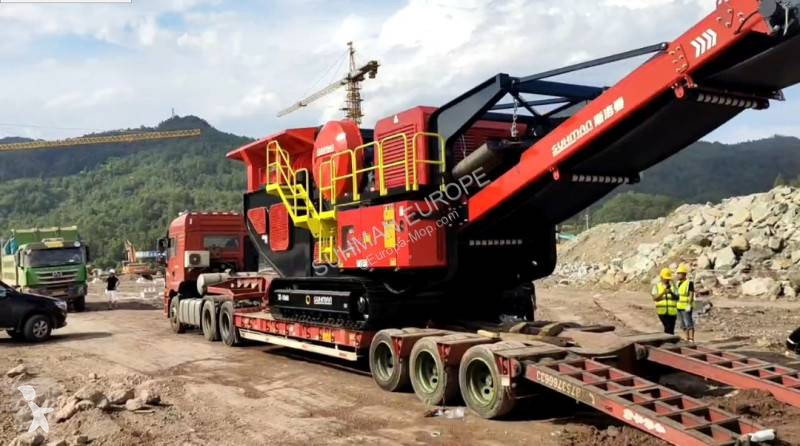

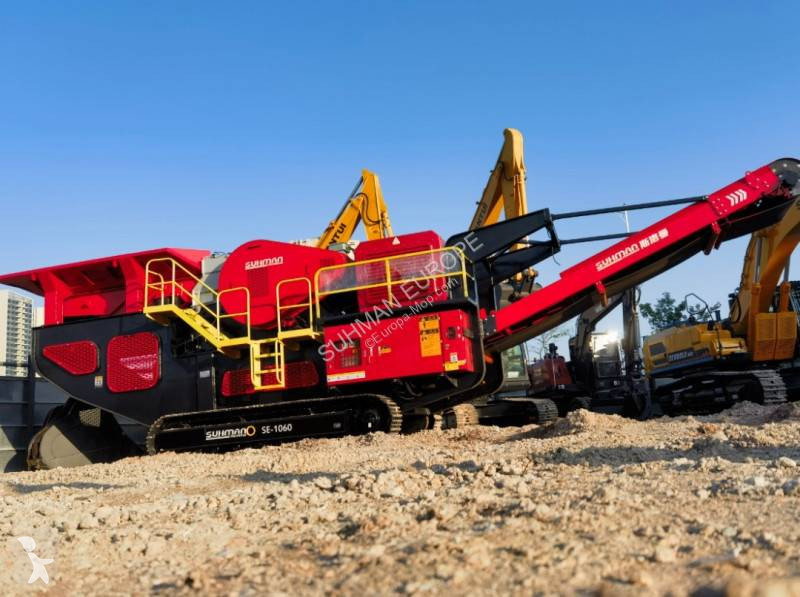

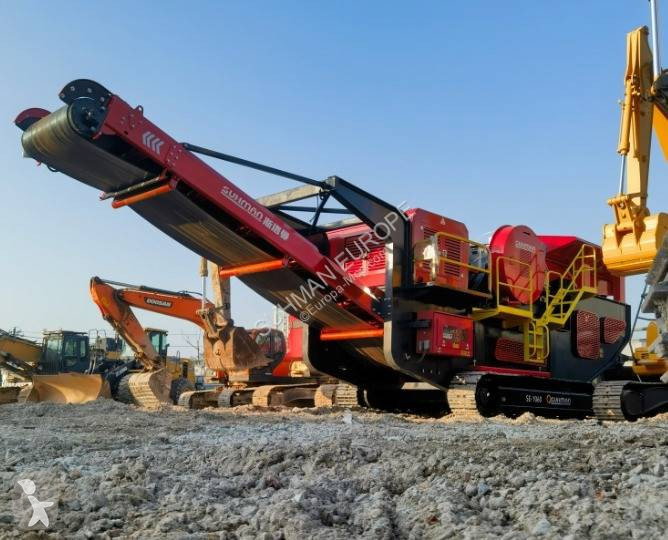

The Suhman SE-1060 Quarry Crusher is a mobile tracked jaw crushing plant engineered for high-capacity aggregate production and material processing. Jaw crushers are the primary equipment type used across mining, quarrying, construction aggregate manufacturing, and construction and demolition waste (CDW) recycling operations. This machine combines a complete processing circuit into a single mobile unit, delivering autonomous operation and site mobility for projects that require both crushing and screening capability.
The plant is built around a 1060 (C106) jaw crusher fed by a 5-cubic-metre hopper equipped with a vibrating feeder pan and integrated grizzly waste separator. The feeder pan measures 3500×1000 mm and runs on 7.5 kW of power. The jaw crusher itself accepts material up to 700 mm in diameter through a 750×1000 mm inlet, with a closed side setting (CSS) range of 70–200 mm. Processing capacity is rated at 150–400 tonnes per hour depending on material type and crusher settings. The jaw crusher is powered by a 110 kW motor and weighs 14.35 tonnes.
Processed material moves onto a 1200×11000 mm main stockpile conveyor belt running 15 kW, which discharges at 3000 mm height. An overband metal separator (RCYD-12 model) with 3 kW power and 20-tonne-per-hour capacity is integrated into the circuit to remove ferrous contamination. The machine features Strickland tracked undercarriage (4500×500 mm specification, English manufacture) capable of traversing slopes up to 30 degrees and moving at 0.8–1.5 km/h between sites, ensuring stability and mobility across difficult terrain.
The power plant is a FIAT Professional STAGE V diesel engine producing 255 kW with a 600-litre fuel tank, meeting Stage V emissions standards. Control systems are supplied by Chuan Ken, with structural steelwork constructed from Q355B grade material. The complete machine weighs 41 tonnes and measures 14850×3100×3800 mm in both working and transport positions. This unit was manufactured in 2025 and is currently located in Spain.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
