2025 - Suhman SE-1160 Quarry Crusher()
- Listing No
- 808365
- Year
- 2025
- Manufacturer
- Suhman
- Model
- SE-1160
- Condition
- Used
- Location
- Spain
- Price
- POA
- Description
-
SE-1160 – Machacadora de Mandíbulas Planta de trituración móvil sobre orugas de alto rendimiento, diseñada para maximizar la productividad en proyectos de minería, fabricación de áridos para construcción y reciclaje de RCD. Equipada con una tolva de alimentación con alimentador vibrante con separador de estériles grizzly, machacadora de mandíbulas modelo 1160 (C116), cintas transportadoras para acopio, y un grupo electrógeno diésel para operación autónoma. Su sistema de traslación sobre orugas garantiza movilidad y estabilidad incluso en terrenos difíciles, ofreciendo una solución versátil, robusta y de alta eficiencia para sus necesidades de trituración y cribado. Equipo de alimentación Volumen de la tolva (m³) 6 Dimensiones de la tolva (mm) 4200×2100 Altura de alimentación (mm) 4020 Alimentador vibrante con grizzly separador Dimensiones bandeja vibrante (mm) 4000×1120 Potencia (kW) 7,5 Machacadora de mandíbulas Modelo 1160 (C116) Boca de entrada (mm) 800×1160 Tamaño máx. de Alimentación (mm) Ø800 Ajuste CSS (mm) 70-200 Capacidad de procesamiento (t/h) 200-450 Potencia (kW) 132 Peso (t) 18,6 Separador de metales overband Modelo RCYD-12 Capacidad de procesamiento (t/h) 20 Dimensiones (mm) 2100x1450x420 Potencia (kW) 3 Peso (Kg) 900 Cinta transportadora de acopio principal Ancho/largo (mm) 1200×12000 Altura de descarga (mm) 3150 Potencia (kW) 15 Sistema de orugas País de origen Inglaterra Marca Strickland Especificación largo x ancho (mm) 4500×500 Inclinación máxima de desplazamiento (°) 30 Velocidad de desplazamiento (km/h) 0.8-1.5 Sistema de potencia Modelo FIAT Professional STAGE V Consumo de combustible (L/h) Potencia (kW) 255 Capacidad del tanque (L) 600 Normas de emisión STAGE V Marcas de accesorios Sistema de control (eléctrico) Chuan Ken Sistema de desplazamiento Strickland Bandas de goma Qingdao Global Moto-tambores de cintas transp. Xingli Motores eléctricos LAQL Maquinaria hidráulica Permco Motor FIAT Professional Alternador Stamford Acero estructural Modelos/Norma Q355B (Material utilizado para buques de guerra) Máquina completa Peso (t) 48 t Dimensiones de transporte (mm) 14850×3400×4020 Tamaño de trabajo (mm) 14850×3400×4020
About this machine

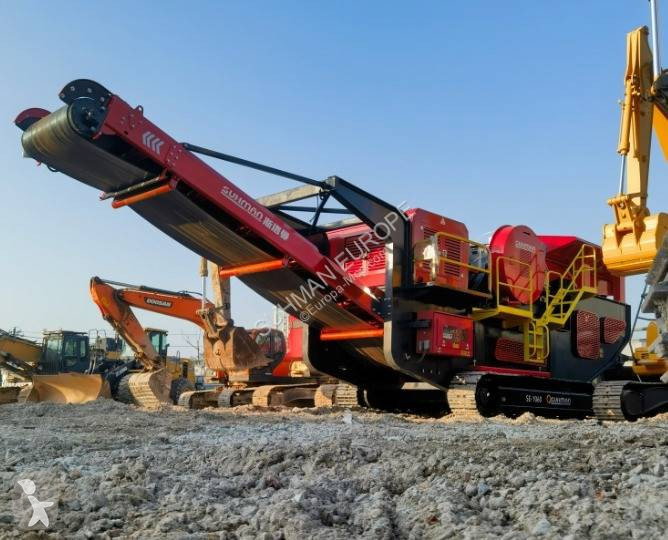

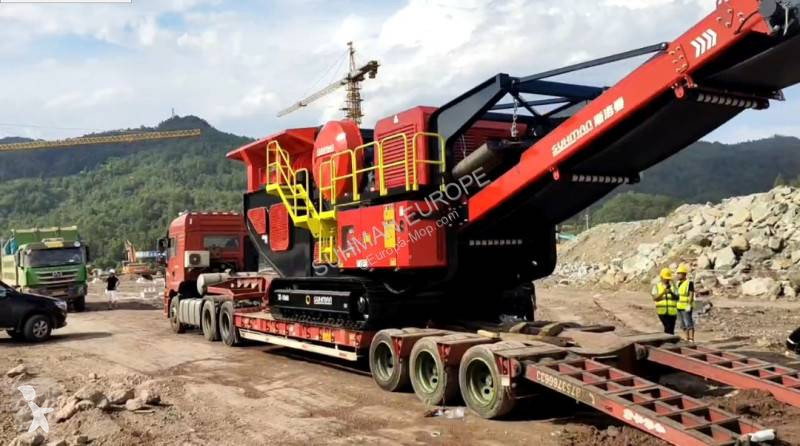

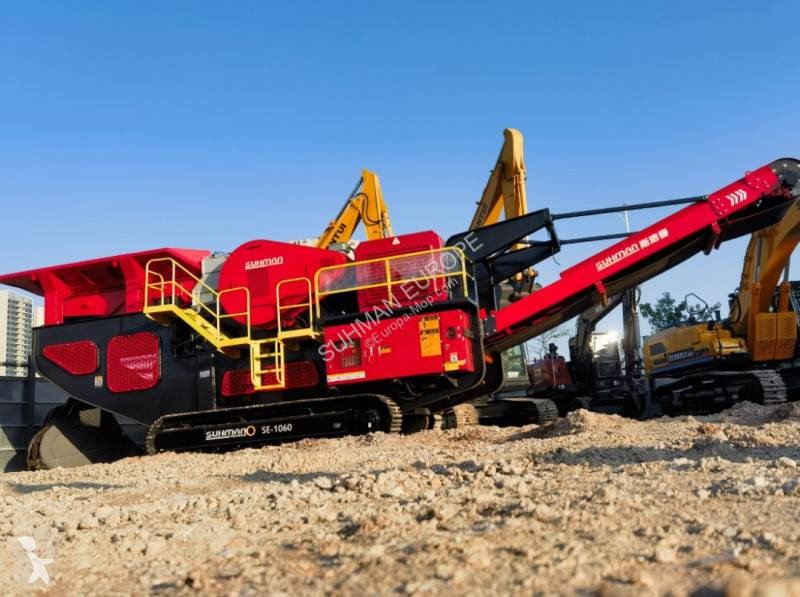

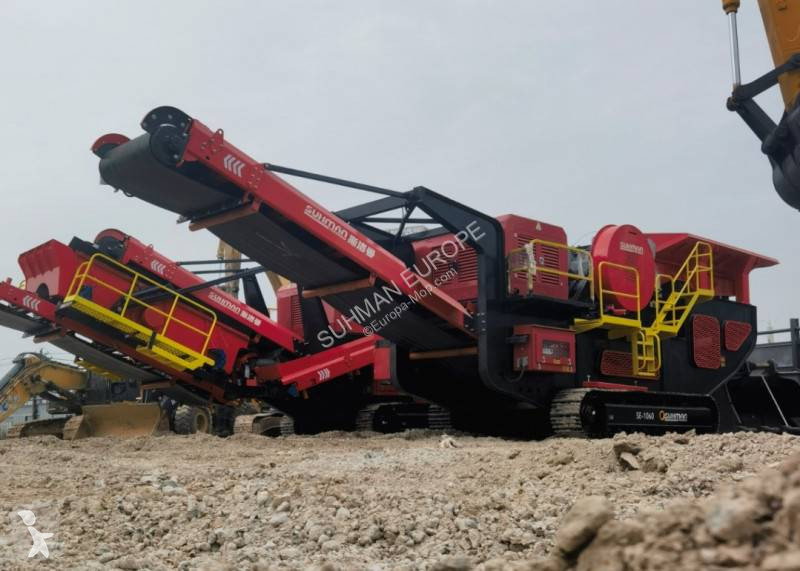

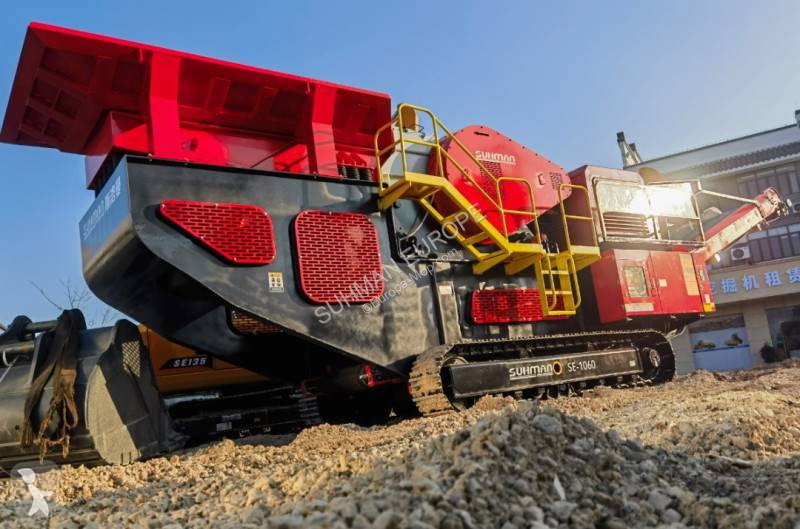

The Suhman SE-1160 Quarry Crusher is a mobile tracked jaw-crushing plant designed for high-volume aggregate production, mining operations, and construction and demolition waste recycling. The machine combines a primary jaw-crusher unit with integrated screening, metal separation, and material conveyance on a fully self-contained tracked platform, delivering a complete processing solution for demanding extraction and recycling applications.
The plant is built around a Suhman 1160 jaw-crusher module (C116) with an inlet opening of 800 × 1160 mm and a maximum feed size of 800 mm diameter. The crusher delivers a processing capacity of 200 to 450 tonnes per hour, with a closed side setting (CSS) adjustable between 70 and 200 mm. The primary crushing unit is powered by a 132 kW electric motor and weighs 18.6 tonnes.
Material enters via a 6-cubic-metre hopper (4200 × 2100 mm) mounted at a working height of 4020 mm. Below the hopper sits a vibrating feeder with integrated grizzly waste-separator measuring 4000 × 1120 mm and powered by a 7.5 kW motor. An overband metal-detector separator (RCYD-12 model) rated for 20 tonnes per hour is positioned downstream to remove ferrous contamination, with dimensions of 2100 × 1450 × 420 mm.
Crushed material is conveyed via a main stockpile belt measuring 1200 mm wide by 12000 mm long, with discharge height of 3150 mm, driven by a 15 kW motor. All material-handling components are powered and controlled via a Chuan Ken electrical control system.
The machine is mounted on a Strickland tracked undercarriage (4500 × 500 mm per side) capable of slopes up to 30 degrees and travel speeds of 0.8 to 1.5 km/h. Power is provided by a FIAT Professional Stage V diesel engine rated at 255 kW with a 600-litre fuel tank, meeting current Stage V emissions standards. The engine supplies hydraulic and electrical power for all crushing, screening, and conveyor functions, enabling fully autonomous operation on site.
The structural frame is fabricated from Q355B steel (a naval-grade material). The complete assembled machine weighs 48 tonnes and measures 14850 × 3400 × 4020 mm in both working and transport configuration. This unit was manufactured in 2025 and is offered in used condition from a location in Spain.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
