2025 - Suhman SF-380D Quarry Crusher()
- Listing No
- 807536
- Year
- 2025
- Manufacturer
- Suhman
- Model
- SF-380D
- Condition
- Used
- Location
- Spain
- Price
- POA
- Description
-
SF-380D – Trituradora de Impacto HSI Planta de trituración móvil sobre orugas de alto rendimiento, diseñada para maximizar la productividad en proyectos de minería, fabricación de áridos para construcción y reciclaje de RCD. Equipada con una tolva de alimentación con alimentador vibrante con zona de separador de estériles grizzly, trituradora de impactos HSI modelo 1213, criba vibrante de 1 o 2 pisos para una clasificación eficiente, cintas transportadoras para recirculación y acopio, y un grupo electrógeno diésel para operación autónoma. Su sistema de traslación sobre orugas garantiza movilidad y estabilidad incluso en terrenos difíciles, ofreciendo una solución versátil, robusta y de alta eficiencia para sus necesidades de trituración y cribado. Equipo de alimentación Volumen de la tolva (m³) 5 Dimensiones de la tolva (mm) 4200×2100 Altura de alimentación (mm) 3700 Alimentador vibrante con grizzly separador Dimensiones bandeja vibrante (mm) 3500×1300 Potencia (kW) 7,5 Trituradora de Impactos Modelo 1213 Boca de entrada (mm) 1380×1000 Tamaño máx. de Alimentación (mm) Ø500 Dimensiones del rotor (mm) 1200×1300 Capacidad de procesamiento (t/h) 150-350 Potencia (kW) 250 Peso (tn) 16 Separador de metales Overband Modelo RCYD-12 Capacidad de procesamiento (t/h) 20 Dimensiones (mm) 2100x1450x420 Potencia (kW) 3 Peso (Kg) 900 Cinta transportadora de salida de la trituradora Ancho/largo (mm) 1200×10000 Potencia (kW) 15 Criba en punta Dimensiones (largo x ancho) (mm) 5000×1500 Área de cribado (m2) 7,5 Granulometría máx. cribado (mm) 100 Capacidad de procesamiento (t/h) 150-350 Potencia (kW) 7.5 kW × 2 Número de pisos de la criba (mallas) 1 standard (2 opcional) Cinta transportadora de acopio principal Ancho/largo (mm) 1000×6000 Altura de descarga (mm) 2500 Potencia (kW) 7,5 Cinta transportadora horizontal recirculación Ancho/largo (mm) 500×2000 Potencia (kW) 3 Cinta transportadora de recirculación Ancho/largo (mm) 500×7000 Potencia (kW) 5,5 Sistema de orugas País de origen Inglaterra Marca Strickland Especificación largo x ancho (mm) 4500×500 Inclinación máxima de desplazamiento (°) 30 Velocidad de desplazamiento (km/h) 0.8-1.5 Sistema de potencia Modelo FIAT Professional STAGE V Consumo de combustible (L/h) Potencia (kW) 512 Capacidad del tanque (L) 600 Normas de emisión STAGE V Marcas de accesorios Sistema de control (eléctrico) Chuan Ken Sistema de desplazamiento Strickland Bandas de goma Qingdao Global Moto-tambores de cintas transp. Xingli Motores eléctricos LAQL Maquinaria hidráulica Permco Motor FIAT Professional Alternador Stamford Acero estructural Modelos/Norma Q355B (Material utilizado para buques de guerra) Máquina completa Peso (t) 48 t Dimensiones de transporte (mm) 15800×3450×3800 Tamaño de trabajo (mm) 15800×3450×4500
About this machine

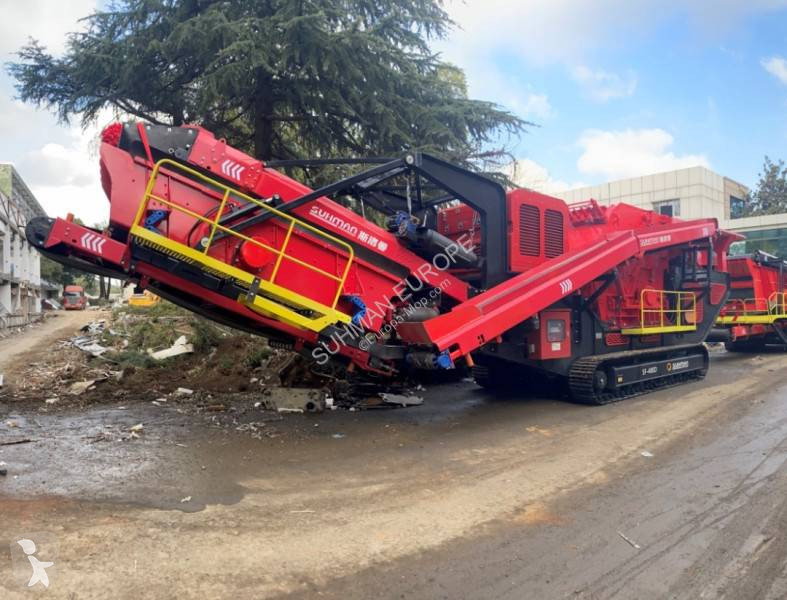

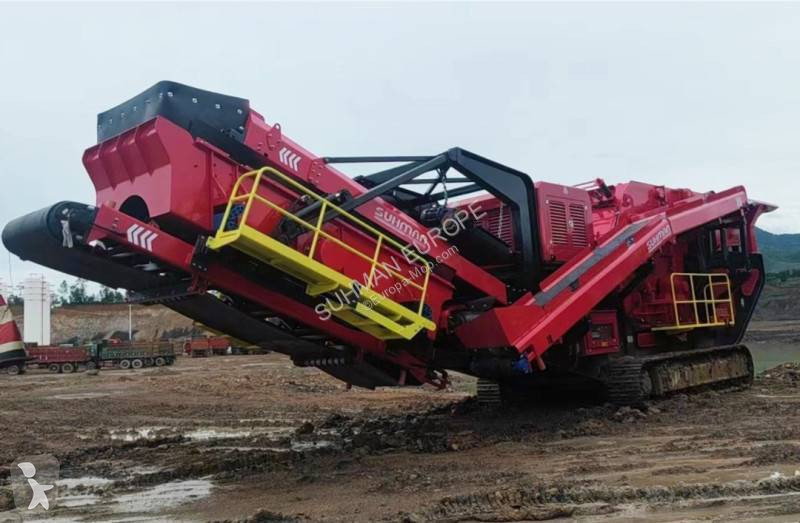

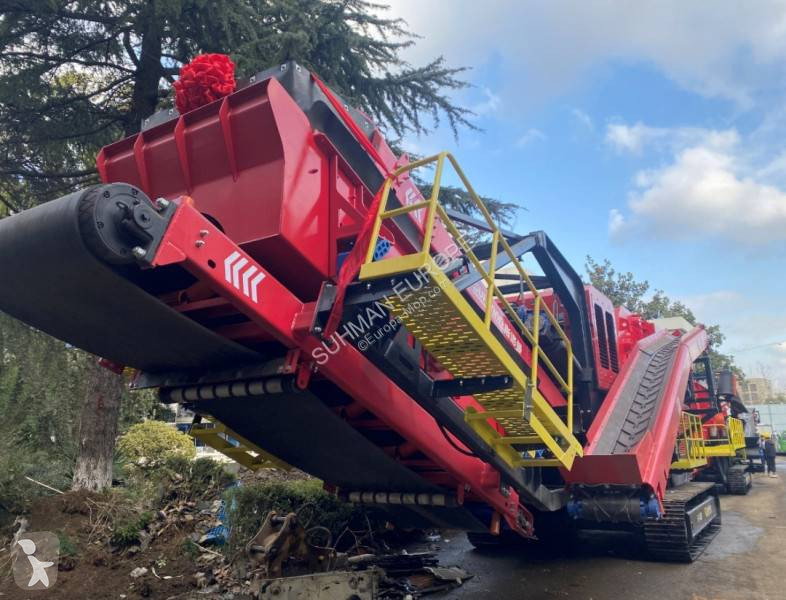

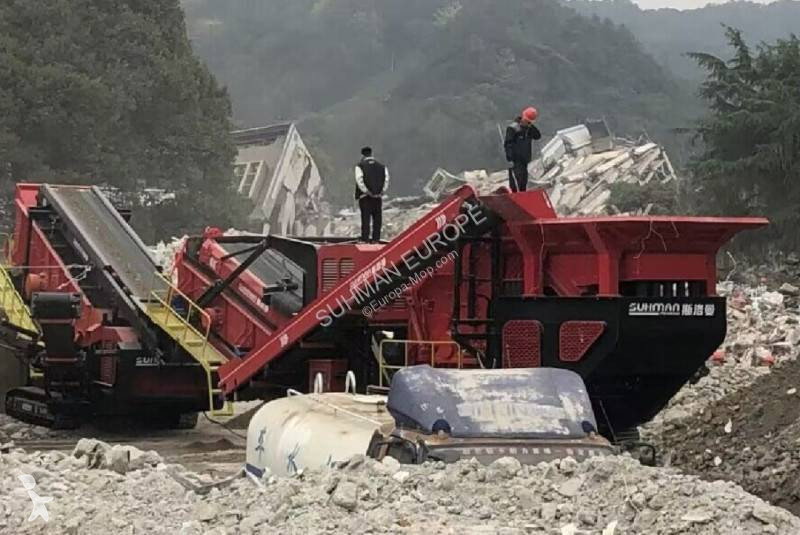

The Suhman SF-380D Quarry Crusher is a mobile tracked jaw and impact crushing plant designed for high-volume aggregate processing, quarrying, mining, and recycled construction waste (RCD) operations. This class of equipment combines primary and secondary crushing with vibrating screening and conveying systems in a single self-contained unit, enabling on-site processing and significant operational flexibility across difficult terrain.

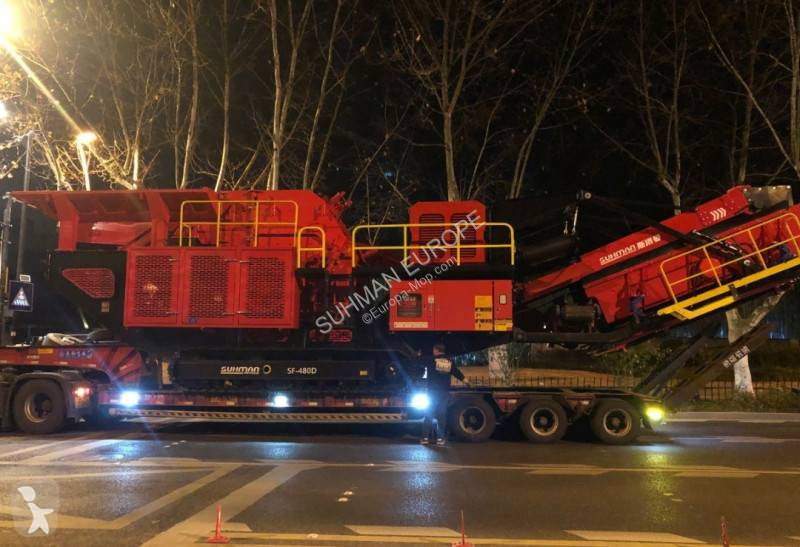

The machine is mounted on a Strickland tracked chassis (4500 × 500 mm) capable of slopes up to 30 degrees and travel speeds between 0.8 and 1.5 km/h, ensuring stability and mobility on uneven ground. The complete assembly weighs 48 tonnes and measures 15,800 × 3,450 × 4,500 mm in working position, with transport dimensions of 15,800 × 3,450 × 3,800 mm.
Feeding and initial separation are handled by a 5 cubic metre hopper (4200 × 2100 mm) mounted at 3,700 mm height, fed by a 7.5 kW vibrating feeder with integrated grizzly scalping screen. The feeder deck measures 3,500 × 1,300 mm, allowing pre-separation of fines and removal of oversized tramp material before the main crusher.
The primary crushing stage uses an HSI 1213 impact crusher with a 1380 × 1000 mm inlet capable of accepting material up to 500 mm diameter. The rotor dimensions are 1200 × 1300 mm, and the crusher is powered by a 250 kW motor, delivering processing capacity between 150 and 350 tonnes per hour depending on feed characteristics and size distribution.
Material exits the primary crusher onto a 1200 × 10,000 mm conveyor belt (15 kW) feeding the screening circuit. An overband metal separator (RCYD-12 model, 3 kW, 900 kg) is integrated into this stage with 20 tonnes per hour capacity and dimensions of 2100 × 1450 × 420 mm.
The vibrating screening deck measures 5000 × 1500 mm with 7.5 m² of active screening area, handling granules up to 100 mm and processing 150–350 tonnes per hour. The screen is fitted as standard with one deck; a second deck is available as an optional configuration. Screening power is supplied by dual 7.5 kW motors.
Material classification products are directed to a main stockpile conveyor (1000 × 6000 mm, 7.5 kW, 2500 mm discharge height) and a horizontal recirculation belt (500 × 2000 mm, 3 kW) that feeds material back to the crusher via a 500 × 7000 mm recirculation conveyor (5.5 kW), enabling closed-loop crushing and fine-tuning of final product gradation.
Power is supplied by a FIAT Professional STAGE V diesel engine rated at 512 kW with a 600 litre fuel tank, meeting current STAGE V emissions standards. System control is managed by a Chuan Ken electrical control panel. Supporting components include motors by LAQL, moto-drives by Xingli, hydraulic systems by Permco, an alternator by Stamford, and rubber bands by Qingdao Global. The primary structural steel conforms to Q355B, a marine-grade specification.
This machine is presented as used, located in Spain, and manufactured in 2025.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
