2025 - Suhman SF-580D Quarry Crusher()
- Listing No
- 811251
- Year
- 2025
- Manufacturer
- Suhman
- Model
- SF-580D
- Condition
- Used
- Location
- Spain
- Price
- POA
- Description
-
SF-580D – Trituradora de Impacto HSI Planta de trituración móvil sobre orugas de alto rendimiento, diseñada para maximizar la productividad en proyectos de minería, fabricación de áridos para construcción y reciclaje de RCD. Equipada con una tolva de alimentación con alimentador vibrante con zona de separador de estériles grizzly, trituradora de impactos HSI modelo 1315, criba vibrante de 1 o 2 pisos para una clasificación eficiente, cintas transportadoras para recirculación y acopio, y un grupo electrógeno diésel para operación autónoma. Su sistema de traslación sobre orugas garantiza movilidad y estabilidad incluso en terrenos difíciles, ofreciendo una solución versátil, robusta y de alta eficiencia para sus necesidades de trituración y cribado. Equipo de alimentación Volumen de la tolva (m³) 6 Dimensiones de la tolva (mm) 4200×2100 Altura de alimentación (mm) 3700 Alimentador vibrante con grizzly separador Dimensiones bandeja vibrante (mm) 3500×1440 Potencia (kW) 7,5 Trituradora de Impactos Modelo 1315 Boca de entrada (mm) 1540×1000 Tamaño máx. de Alimentación (mm) Ø700 Dimensiones del rotor (mm) 1300×1500 Capacidad de procesamiento (t/h) 200-450 Potencia (kW) 315 Peso (tn) 22 Separador de metales Overband Modelo RCYD-12 Capacidad de procesamiento (t/h) 20 Dimensiones (mm) 2100x1450x420 Potencia (kW) 3 Peso (Kg) 900 Cinta transportadora de salida de la trituradora Ancho/largo (mm) 1200×10000 Potencia (kW) 15 Criba en punta Dimensiones (largo x ancho) (mm) 5000×1500 Área de cribado (m2) 7,5 Granulometría máx. cribado (mm) 100 Capacidad de procesamiento (t/h) 150-350 Potencia (kW) 7.5 kW × 2 Número de pisos de la criba (mallas) 1 standard (2 opcional) Cinta transportadora de acopio principal Ancho/largo (mm) 1000×6000 Altura de descarga (mm) 2500 Potencia (kW) 7,5 Cinta transportadora horizontal recirculación Ancho/largo (mm) 500×2000 Potencia (kW) 3 Cinta transportadora de recirculación Ancho/largo (mm) 500×8000 Potencia (kW) 5,5 Sistema de orugas País de origen Inglaterra Marca Strickland Especificación largo x ancho (mm) 4500×500 Inclinación máxima de desplazamiento (°) 30 Velocidad de desplazamiento (km/h) 0.8-1.5 Sistema de potencia Modelo FIAT Professional STAGE V Consumo de combustible (L/h) Potencia (kW) 512 Capacidad del tanque (L) 600 Normas de emisión STAGE V Marcas de accesorios Sistema de control (eléctrico) Chuan Ken Sistema de desplazamiento Strickland Bandas de goma Qingdao Global Moto-tambores de cintas transp. Xingli Motores eléctricos LAQL Maquinaria hidráulica Permco Motor FIAT Professional Alternador Stamford Acero estructural Modelos/Norma Q355B (Material utilizado para buques de guerra) Máquina completa Peso (t) 58 t Dimensiones de transporte (mm) 16000×3450×3950 Tamaño de trabajo (mm) 16000×3450×4500
About this machine

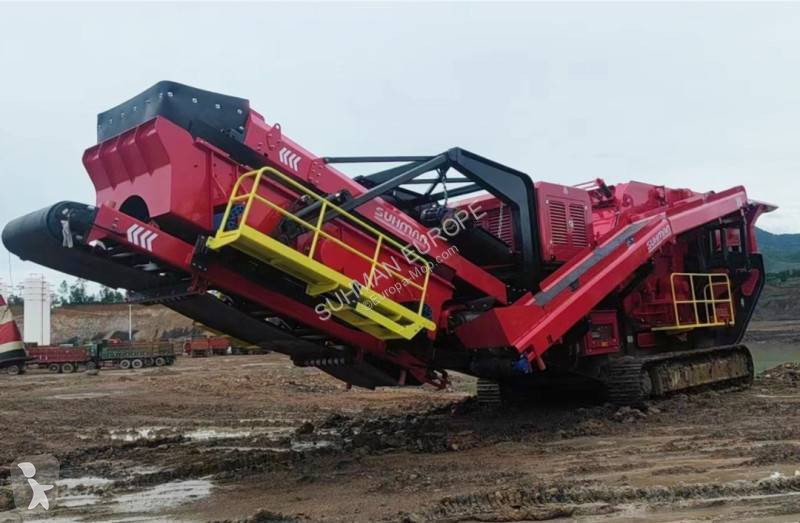

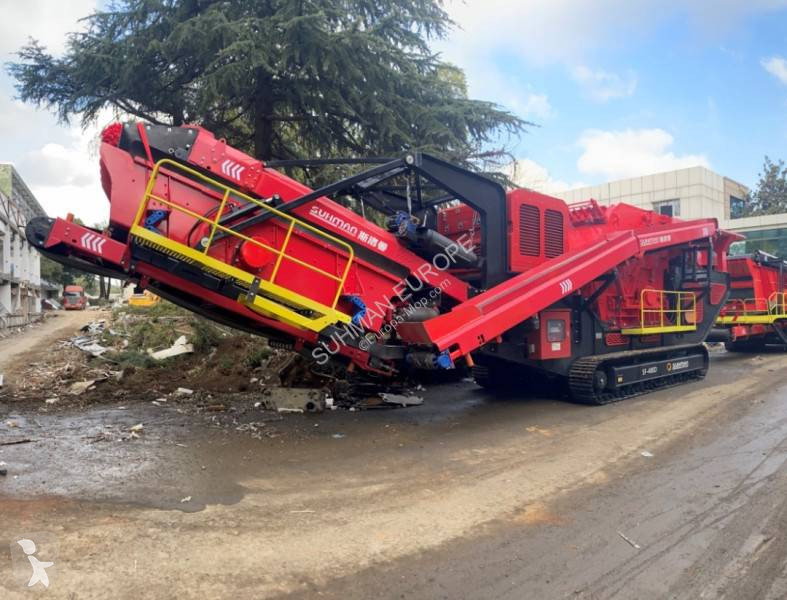

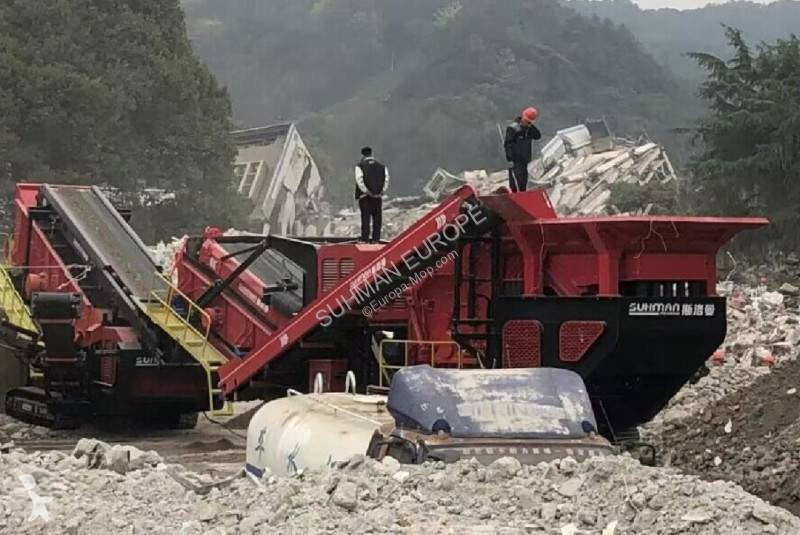

The Suhman SF-580D Quarry Crusher is a tracked mobile crushing and screening plant engineered for high-capacity aggregate production, mining operations, construction material manufacturing, and recycling of construction and demolition waste. The machine combines primary impact crushing with multi-stage screening and material handling into a single self-contained unit capable of operating autonomously on difficult terrain.
The plant is built around an HSI (Horizontal Shaft Impact) crusher, model 1315, rated for 200 to 450 tonnes per hour depending on feed characteristics and final product specification. The crusher accepts feed material up to 700 mm in diameter through an inlet measuring 1540 by 1000 mm, with a rotor assembly of 1300 by 1500 mm dimensions and a rated motor power of 315 kW. Material enters the system via a 6 cubic-metre hopper measuring 4200 by 2100 mm, fed by a 7.5 kW vibrating feeder with integral grizzly waste separator, which removes fines and uncrushable debris before primary crushing.
Crushed material passes to a steeple-point screening deck measuring 5000 by 1500 mm with a screen area of 7.5 square metres, capable of processing 150 to 350 tonnes per hour. The screen is equipped with one standard deck; a two-deck configuration is available as an option for finer gradation control up to 100 mm nominal top size. The vibrating screen assembly draws 7.5 kW per deck. An RCYD-12 overband metal separator rated at 20 tonnes per hour and 3 kW is integrated to remove ferrous contaminants before material leaves the plant.

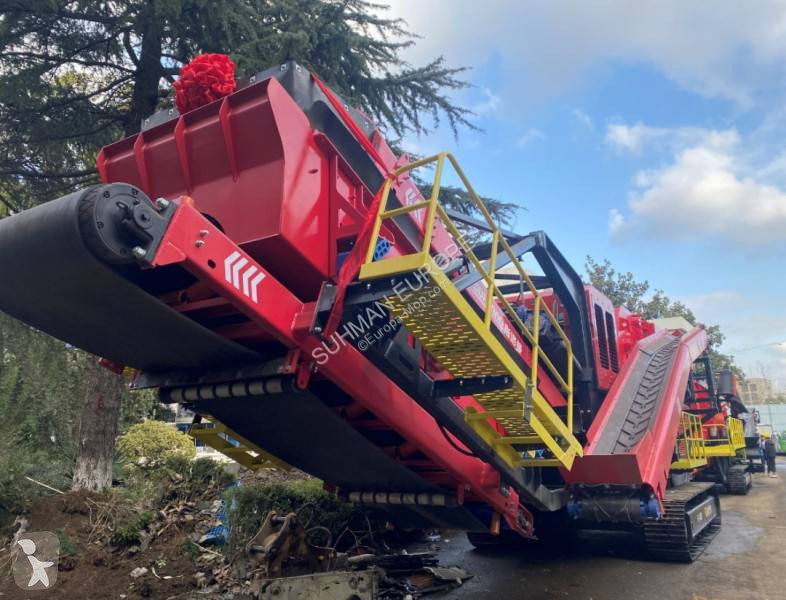

The machine incorporates three conveyor systems for material recirculation and stockpiling: a 1200 by 10000 mm discharge belt at 15 kW, a primary storage conveyor of 1000 by 6000 mm with a discharge height of 2500 mm at 7.5 kW, and two smaller recirculation belts of 500 by 2000 mm and 500 by 8000 mm at 3 kW and 5.5 kW respectively. This arrangement allows for flexible product sizing and closed-loop processing.
Power is supplied by a FIAT Professional Stage V diesel engine rated at 512 kW, compliant with current European emission standards. The fuel tank capacity is 600 litres, supporting extended operation without frequent refuelling. Mobility is provided by English-built Strickland caterpillar tracks measuring 4500 by 500 mm, with a maximum traverse gradient of 30 degrees and displacement speeds of 0.8 to 1.5 km/h, enabling deployment across quarries, construction sites, and recycling facilities with uneven or soft ground.

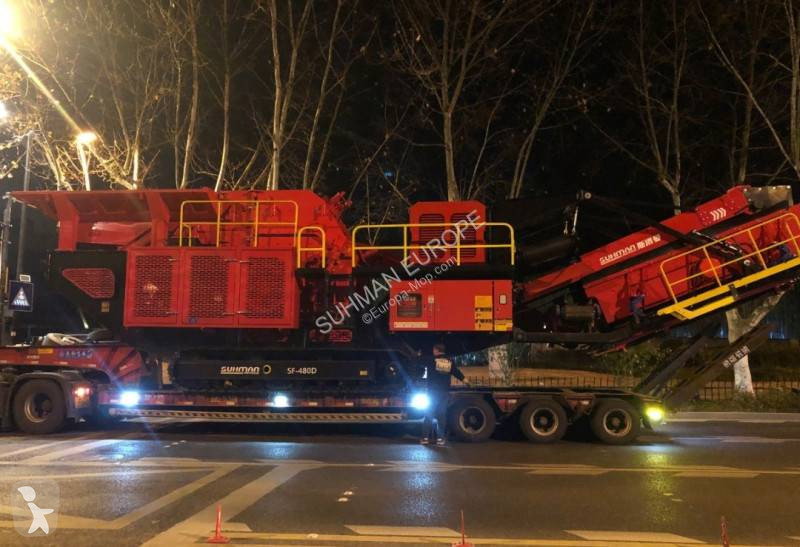

The complete plant weighs 58 tonnes and measures 16000 by 3450 by 3950 mm in working position, with transport dimensions of 16000 by 3450 by 3950 mm. The structural steel frame is fabricated from Q355B material, a specification used in naval construction, ensuring high durability under sustained operational stress. Electrical control is managed by a Chuan Ken system, with specialist components supplied by manufacturers including Permco (hydraulics), Stamford (alternator), Xingli (motor-drum drives), LAQL (electric motors), and Qingdao Global (rubber tracks). The unit is used and manufactured in 2025, currently located in Spain.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
