1986 - Superior ZM 1500 750 4 Laboratory Equipment()
- Listing No
- 1219610
- Year
- 1986
- Manufacturer
- Superior
- Model
- ZM 1500 750 4
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: ZM-1500/750/4 No: 5483 Material: Stainless steel 1.4301 (304) Surface: 1.1 m2 Size length: 1500 mm Sizes width: 750 mm Vibro sieve: (1x) Sieve surface: 1,1 m² Number of sieve decks: 3 Sieve sizes: 1500x750mm With cover: check Inlet: Dia: 200mm Outlet: Dia: 100 mm (4x) Motor: 2x 1,3 kW, 220/380 Volt Mounted on stainl. st. frame: check Floor space: 2,4x1,2 m Total height: 1,7 m Extra Specifications: sieve decks are not included General Main Features Specified Features - Vibro sieve Information
About this machine

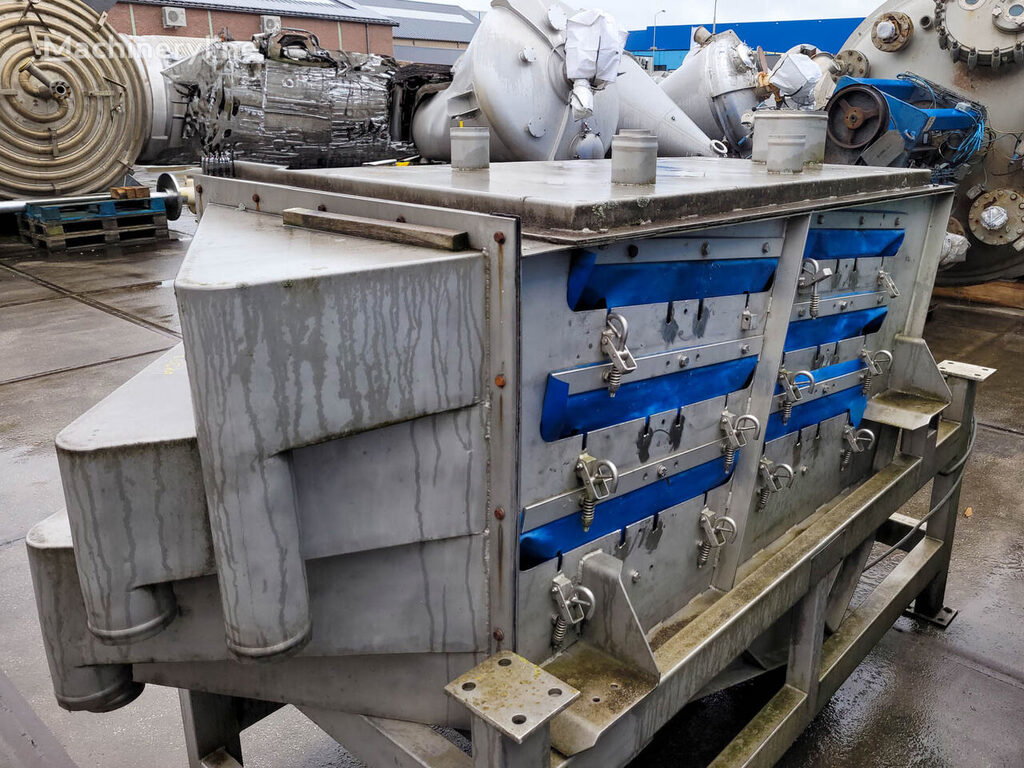

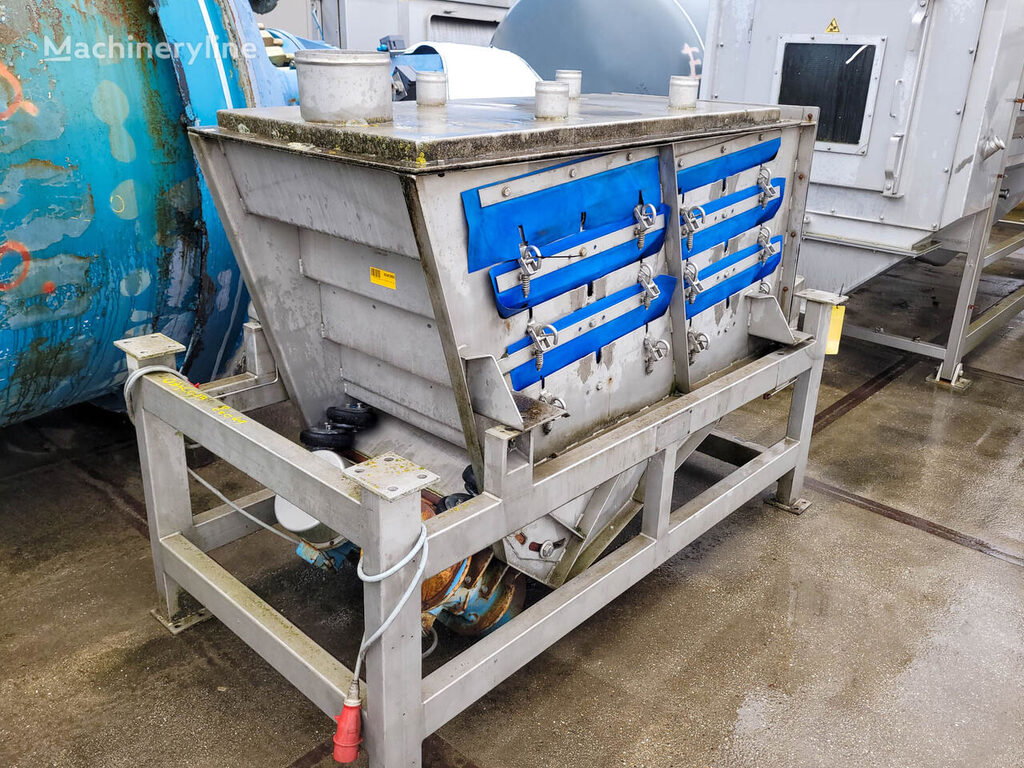

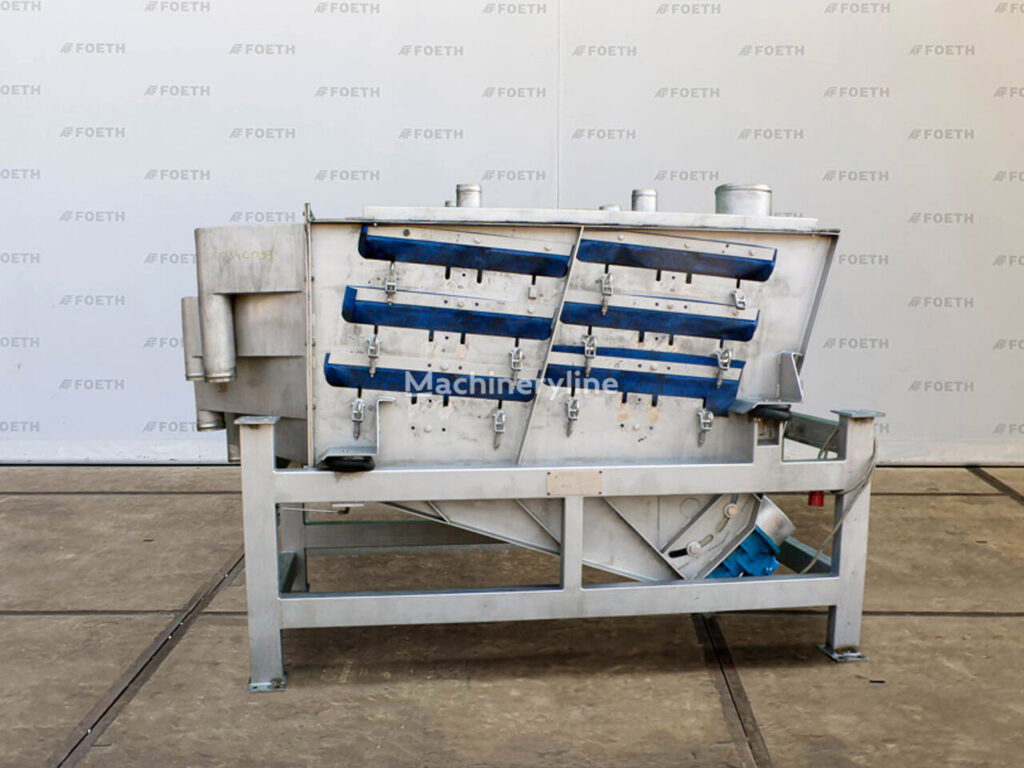

This Superior ZM is a laboratory vibro sieve — also referred to as a vibratory screener — used for the separation, classification, and screening of bulk materials by particle size. Machines of this type are widely employed in laboratory and production environments across the food, chemical, and pharmaceutical industries wherever precise material grading is required.
The unit is of welded stainless steel construction in grade 1.4301 (AISI 304), making it suitable for use with materials where hygiene, corrosion resistance, or product purity is a consideration. It is mounted on a stainless steel frame and carries the serial number 5483. The machine was manufactured in 1986 and is offered in used condition from Barneveld, Netherlands.

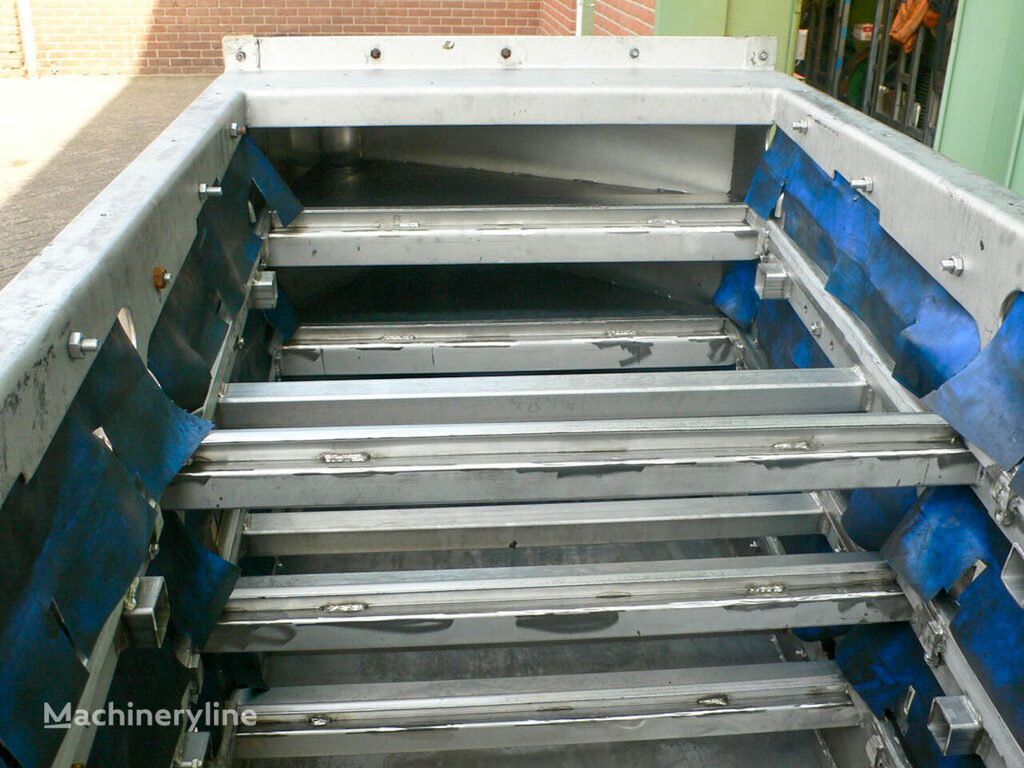

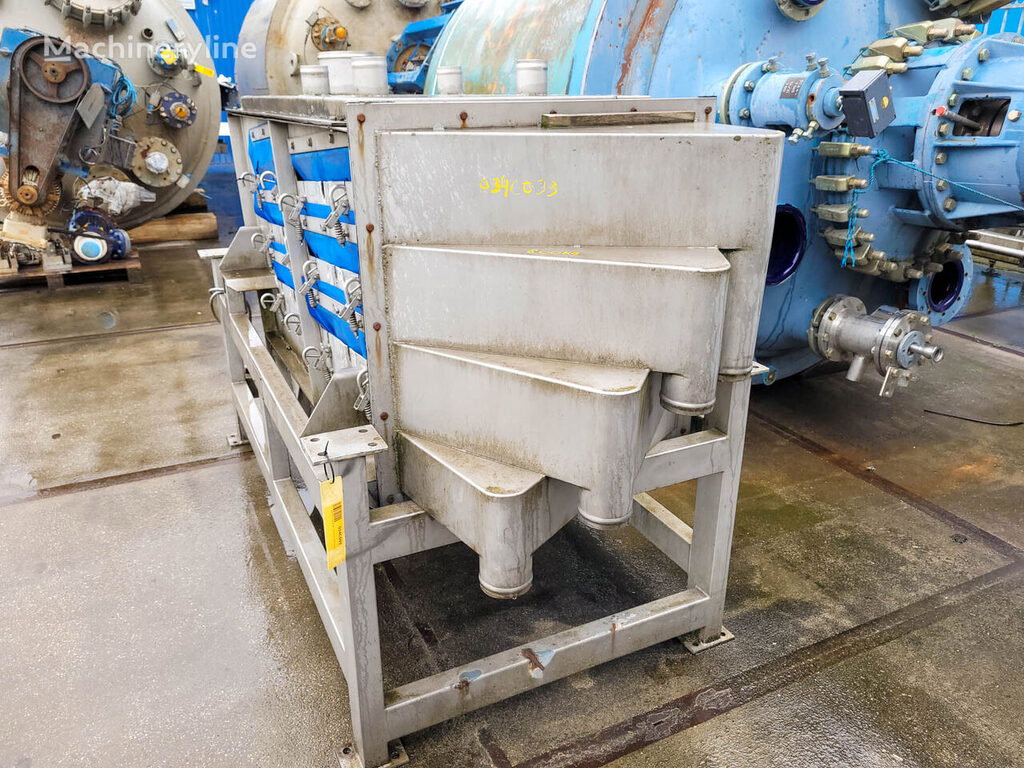

The sieve is configured as a three-deck unit with a sieve surface of 1.1 m² per deck and individual sieve frames measuring 1500 × 750 mm. Material is fed through a 200 mm diameter inlet and discharged via four outlets, each 100 mm in diameter, allowing separated fractions to be collected independently. A cover is fitted. It should be noted that the sieve decks themselves are not included with this machine.
Vibration is generated by two motors, each rated at 1.3 kW, configured for 220/380 V supply. The overall floor space occupied by the machine is 2.4 × 1.2 m, and the total installed height is 1.7 m.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
