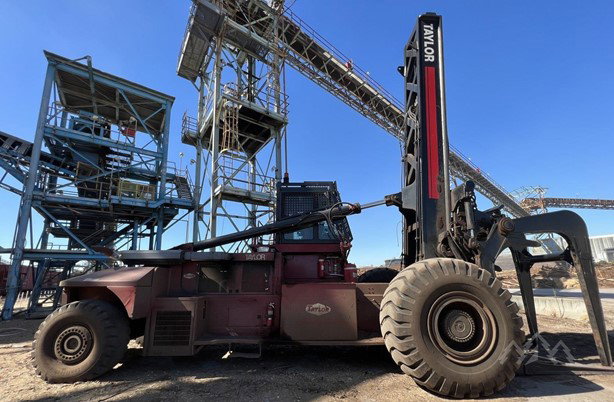

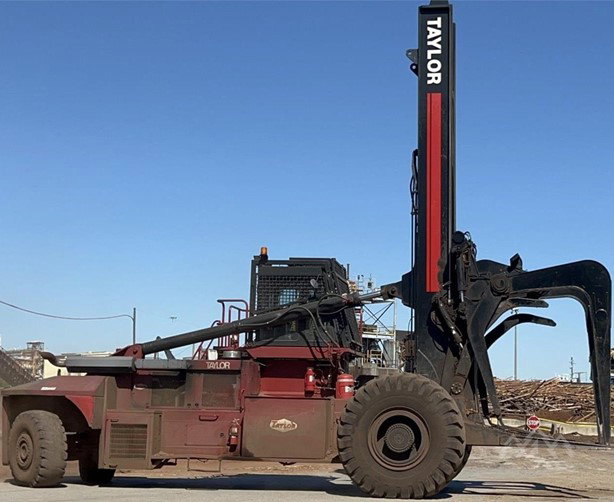

2023 - Taylor TXLS1000 Log Loader

• Listing No
• 1116382
• Year
• 2023
• Manufacturer
• Taylor
• Model
• TXLS1000
• Condition
• Used
• Location
• USA
• Price
• $N/A
• Description
• Taylor TXLS1000 Log Stacker, W/Grapple, X15 Cummins Diesel, Cab, AC, Joy Stick Controls, etc. 750.00 Hours on Factory Re-Man. Like New. REPO Unit Make Offer! Standard Features - TXLS-1000 The Taylor Heavy Duty Log Clamp features standard kickers and optional partial load hold-downs. The optional 30’ mast allows for maximized stacking when space is at a premium. 24’ Rigid Mast Log clamp with kickers 10-in X 108-in pin mounted Forks Cummins QSX15 400Hp Tier-3 diesel engine Donaldson dry-type air cleaner w/safety element & restriction indicator (vertical air intake extension with TaylorMax Precleaner) Dana 6422 4-Speed powershift transmission Powertrain Protection System for engine and transmission Kessler D-111W HD planetary drive axle with wet disc brakes Taylor 600 welded steel steer axle (single hydraulic cylinder design with heavyduty links from the cylinder ram directly to tapered roller bearing mounted spindles) Solid plate steer angle limitation (more contact area than bolt heads which require adjustment) 37.25 X 39 - 44PR bias pneumatic drive tires 21.00 X 25 - 32PR bias pneumatic steer tires CHASSIS: All-welded steel frame with 4 lifting eyes (lifting eyes not designed for level pick) Bolt-on counterweight Durable access platform with handrails Lockable Fuel Cap Large engine bay doors and side service doors open to expose drive train for ease of maintenance CAB: Enclosed, steel all-welded cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails and is isolation mounted for noise and vibration reduction) Air conditioned, heat/defrost and interior circulation fan Tinted glass with front and rear windshield wipers and front windshield washer Fully adjustable air ride seat mounted on a rotating platform with 45° of total rotation Arm rest mounted mini-wheel steer control Multifunction Joystick mounted on adjustable arm rest (11-button command with integrated directional shift control) Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock) Operator Presence System with timed idle (5 minute default, password adjustable from 1-120 minutes by end user) Taylor Integrated Control System (TICS). The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
