2018 - Vögele 1300-3I Asphalt Paver()
- Listing No
- 677582
- Year
- 2018
- Manufacturer
- Vögele
- Model
- Super 1300-3I
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), transport belt: 70% good, crawler: 70% good, augers 70% good, screed: 70% good, leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: full operational & good working condition. = More information = Year of manufacture: 2018 GVW: 10.800 kg Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), transport belt: 70% good, crawler: 70% good, augers 70% good, screed: 70% good, leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: full operational & good working condition. = Weitere Informationen = Baujahr: 2018 zGG: 10.800 kg Produktionsår: 2018 Totalvægt: 10.800 kg Año de fabricación: 2018 PBV: 10.800 kg Année de construction: 2018 PBV: 10.800 kg Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), transport belt: 70% good, crawler: 70% good, augers 70% good, screed: 70% good, leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: full operational & good working condition. = Meer informatie = Bouwjaar: 2018 GVW: 10.800 kg Rok produkcji: 2018 Dopuszczalna masa całkowita (dmc.): 10.800 kg Ano de fabrico: 2018 GVW: 10.800 kg Год выпуска: 2018 Полная масса автомобиля: 10.800 kg
About this machine

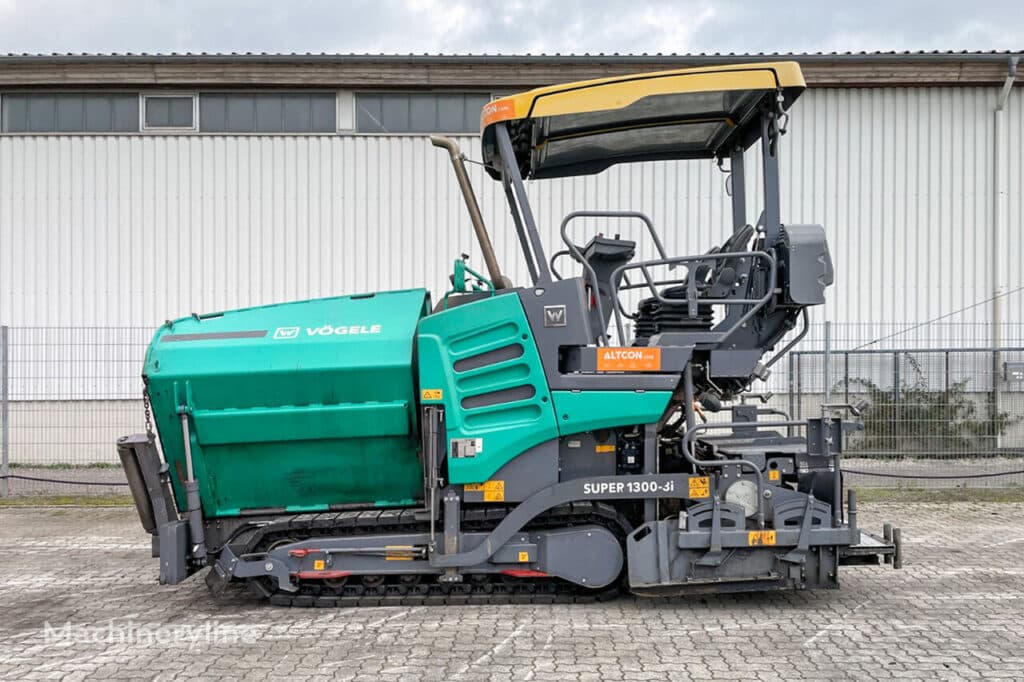

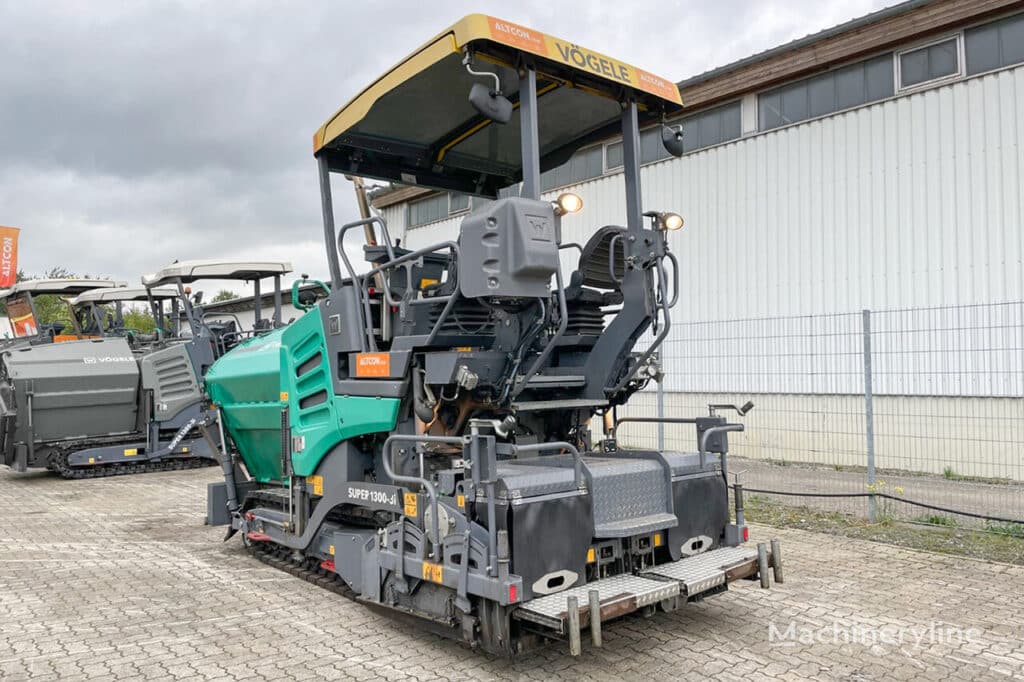

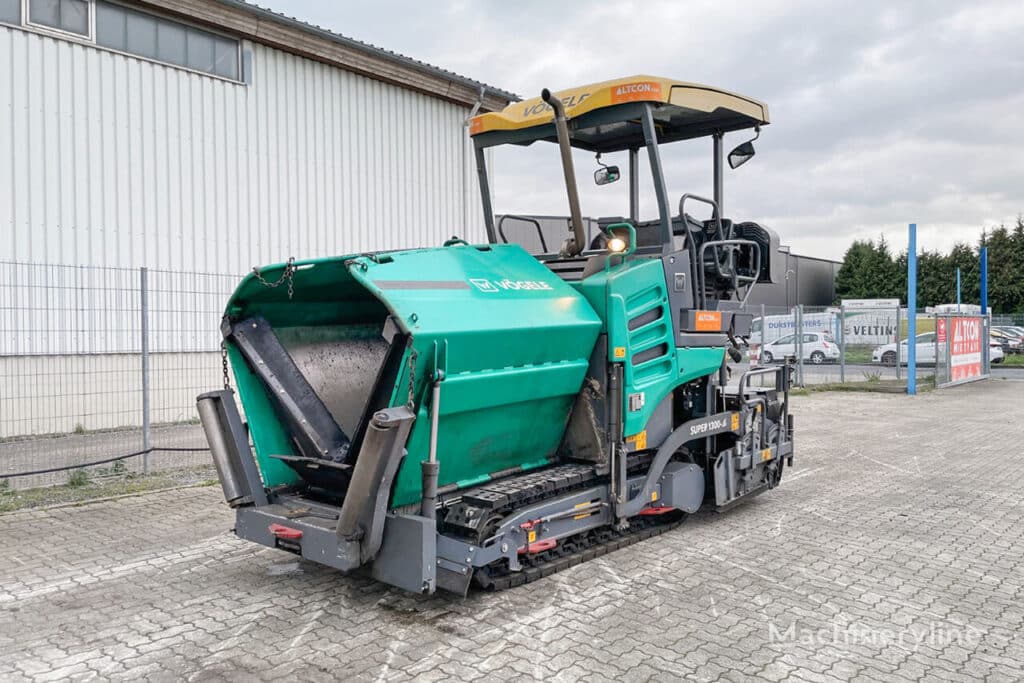

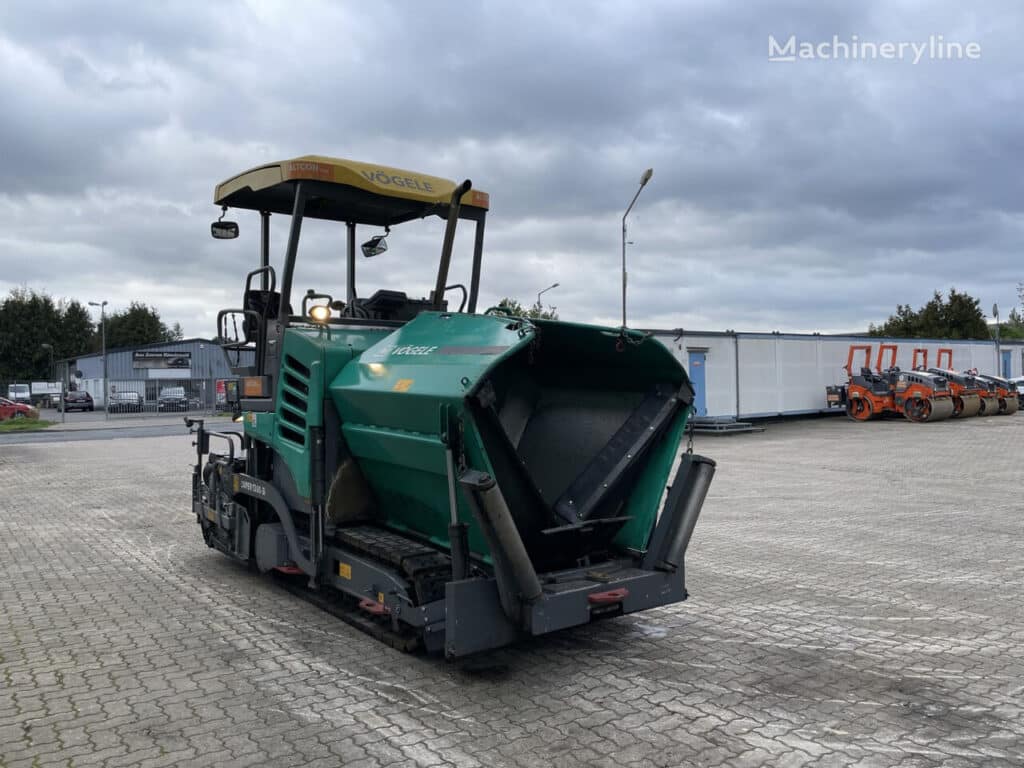

This is an asphalt paver—a tracked road construction machine used to lay and compact asphalt on road surfaces and pavements. Vögele is a globally recognised manufacturer of paving equipment and road-laying machinery, serving civil engineering and infrastructure industries worldwide.

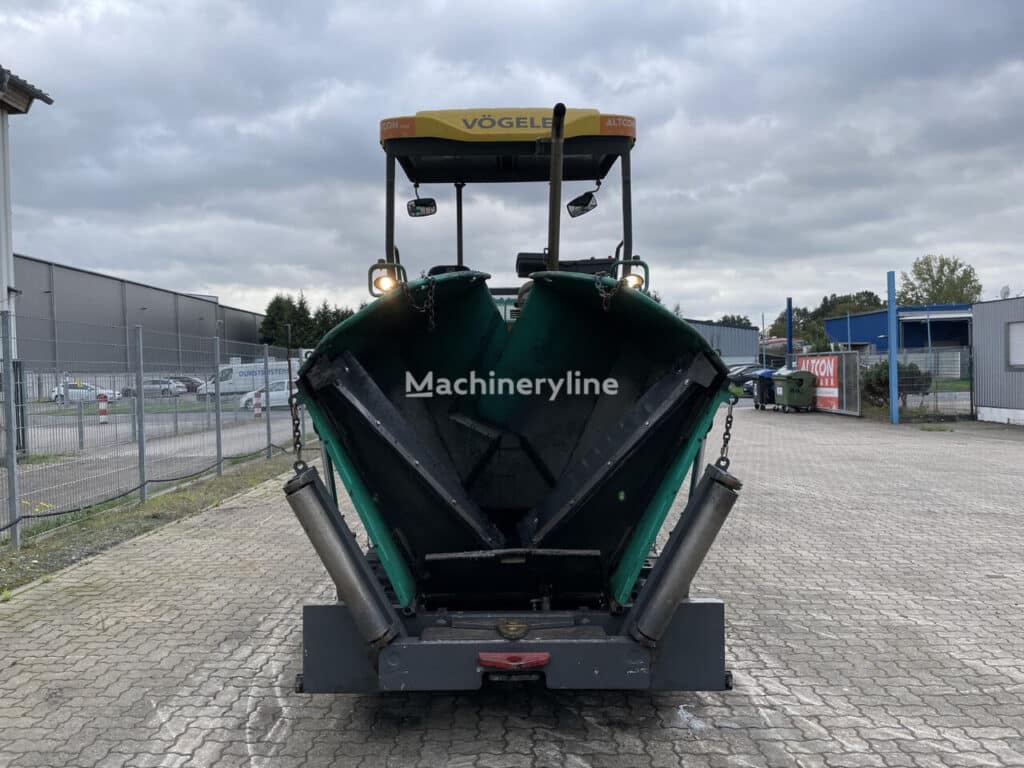

The machine is equipped with an AB340-3 TV screed featuring electrical heating and a working width adjustable from 1.8 to 3.4 metres, with provision for additional extensions. The paver is powered by a 4-cylinder DEUTZ TCD 3.6 L engine producing 74.4 kW and meets EU Stage 3b and US Tier 4 emission standards. Maximum paving speed reaches 30 metres per minute, with a laydown capacity of up to 350 tonnes per hour and maximum layer thickness of 25 centimetres. The hopper holds 10 tonnes of material.
Levelling is controlled by a Vögele Niveltronic Plus system with two levelling sensors, one slope sensor and associated wiring, combined with AutoSet Basic functionality. The operator cabin features an ErgoPlus control system, hardtop roof with wide sunshades, side warming, and halogen lighting. The machine has mechanical lifting side plates and is fitted with a transport belt, augers, and crawler tracks. All major components—transport belt, crawler, augers, and screed—are rated at approximately 70 per cent condition. The machine carries CE and EPA certification.
The paver was manufactured in 2018, has a gross vehicle weight of 10,800 kilograms, and is reported to be in full operational and good working condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
