Vögele 1300-3I Asphalt Paver()
- Listing No
- 676564
- Year
- Manufacturer
- Vögele
- Model
- Super 1300-3I
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: good working. = More information = GVW: 10.600 kg Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: good working. = Weitere Informationen = zGG: 10.600 kg Totalvægt: 10.600 kg PBV: 10.600 kg PBV: 10.600 kg Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: good working. = Meer informatie = GVW: 10.600 kg Dopuszczalna masa całkowita (dmc.): 10.600 kg GVW: 10.600 kg Полная масса автомобиля: 10.600 kg GVW: 10.600 kg
About this machine

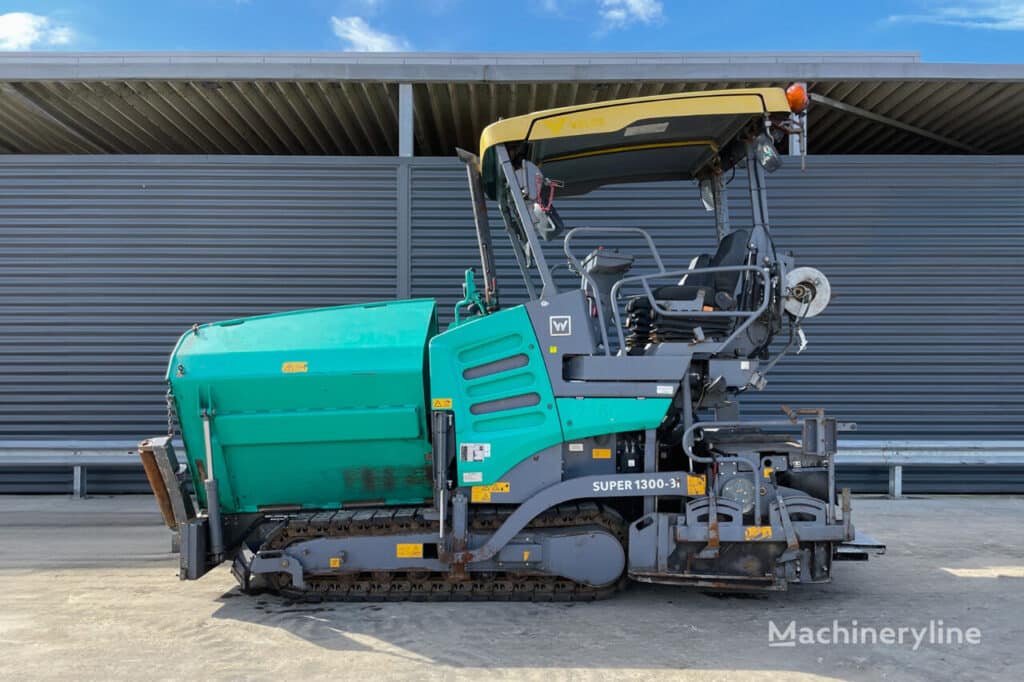

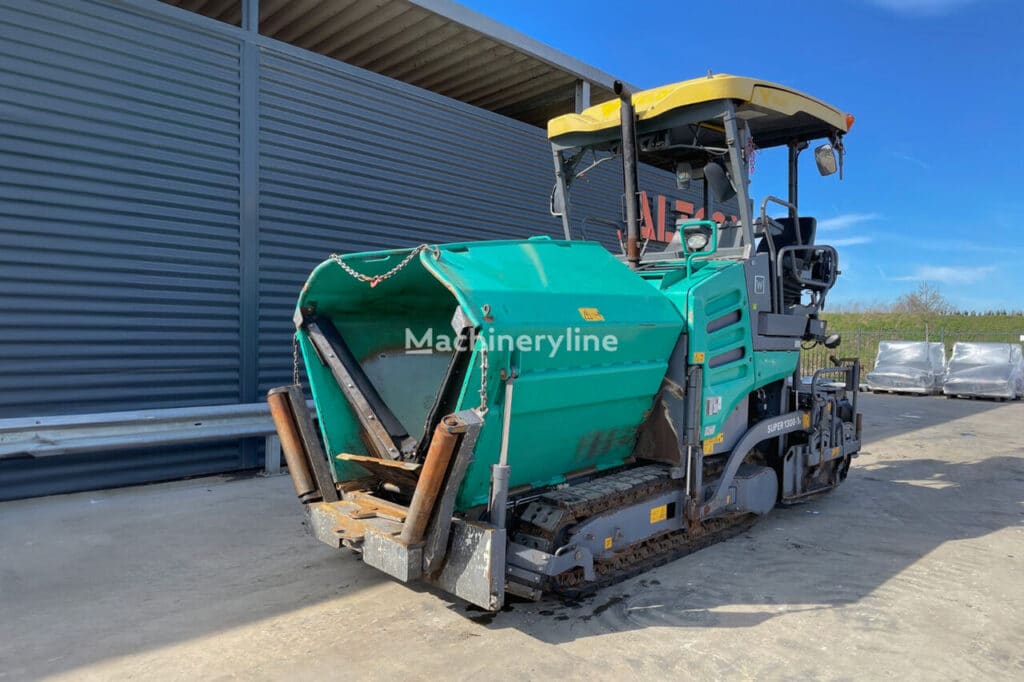

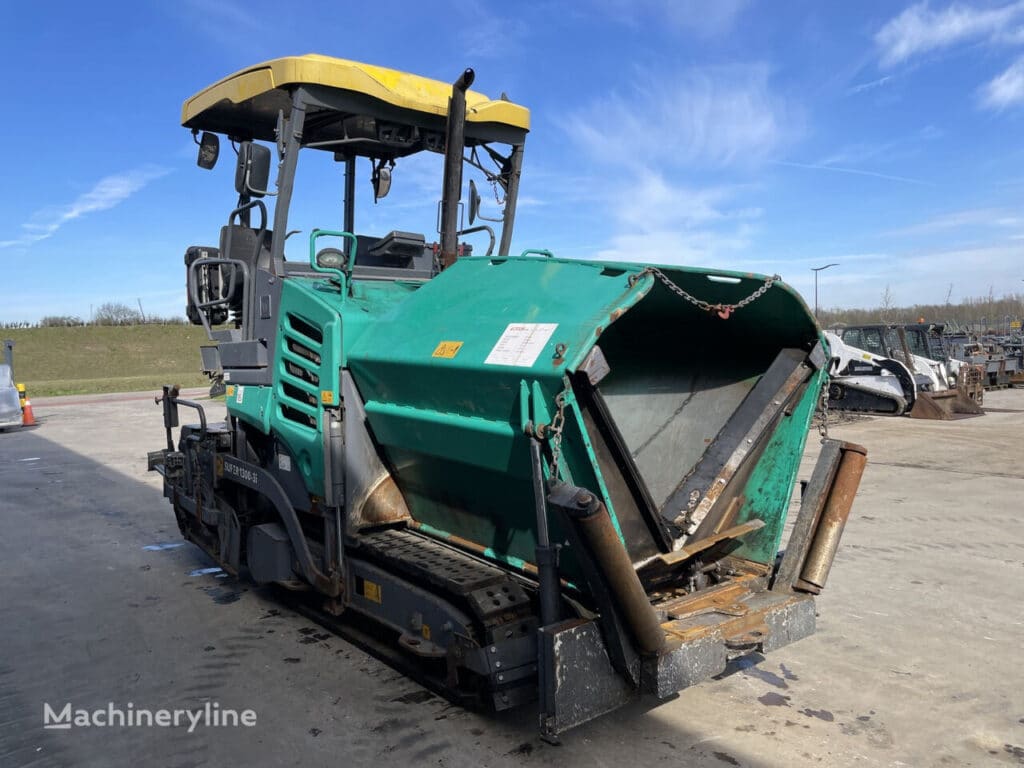

This is an asphalt paver – a road-laying machine used to spread and compact asphalt at controlled rates and thicknesses during highway, runway, and surface construction projects. Vögele is a leading manufacturer of paving equipment, serving civil engineering and road construction industries worldwide.

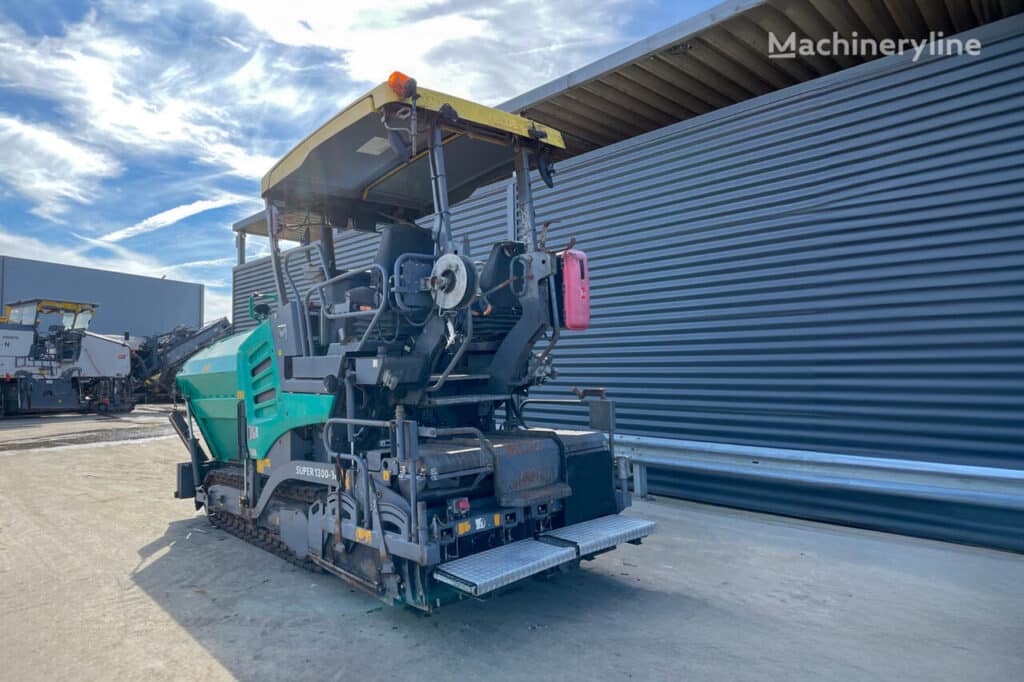

The machine is fitted with an AB340-3 TV screed equipped with electrical heating, with a working width adjustable from 1.8 to 3.4 metres, and provision for additional extensions. Levelling is managed by the Vögele Niveltronic Plus system, which incorporates two levelling sensors, one slope sensor, and an associated wire set, supported by AutoSet Basic automatic control. The operator station features an ErgoPlus system, hardtop canopy with wide sunshades, side warming, and halogen lights for all-weather visibility.

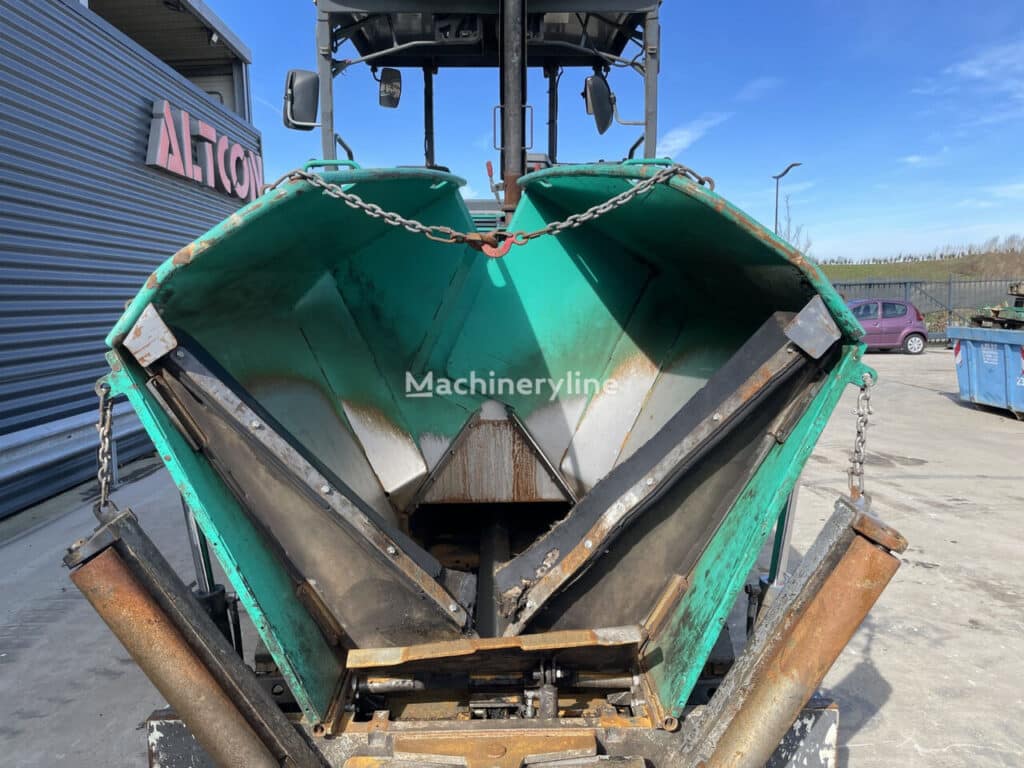

Power comes from a four-cylinder Deutz TCD 3.6 L4 engine rated at 74.4 kW, certified to EU Stage 3b and US Tier 4 emission standards. The machine can lay asphalt at rates up to 350 tonnes per hour, with maximum layer thickness capability of 25 centimetres and paving speeds of up to 30 metres per minute. The hopper capacity is 10 tonnes. Side plates are raised and lowered by a mechanical lifting system.
The machine is CE-certified and EPA-certified, currently in good working condition. Gross vehicle weight is 10,600 kilograms.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
