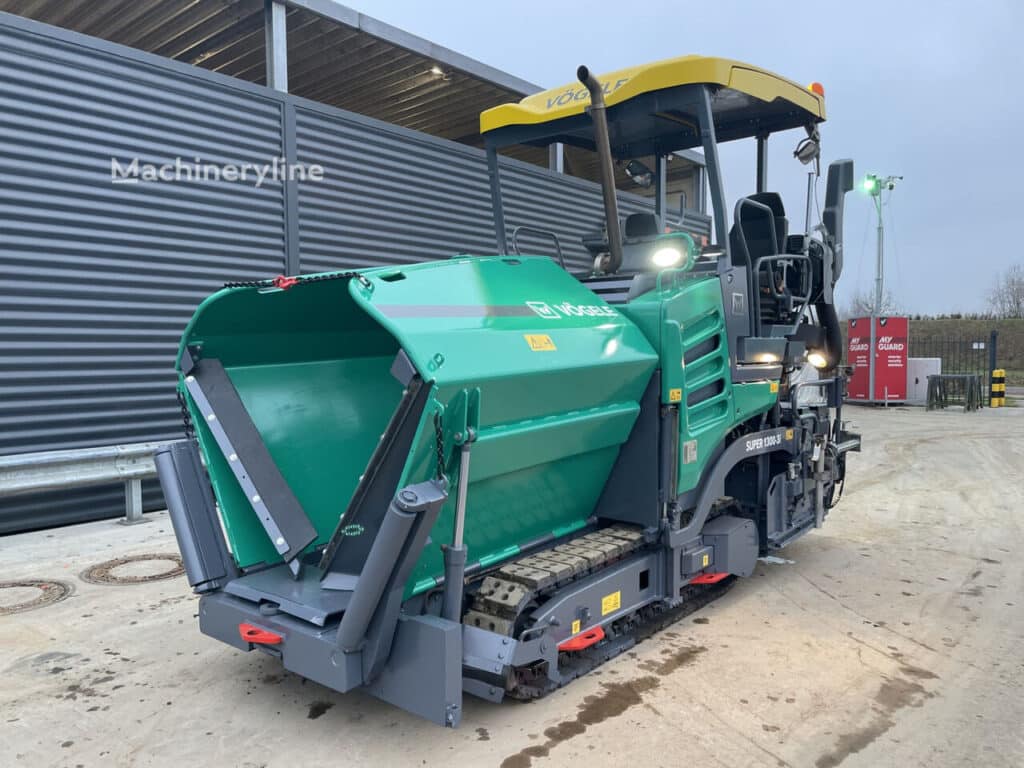

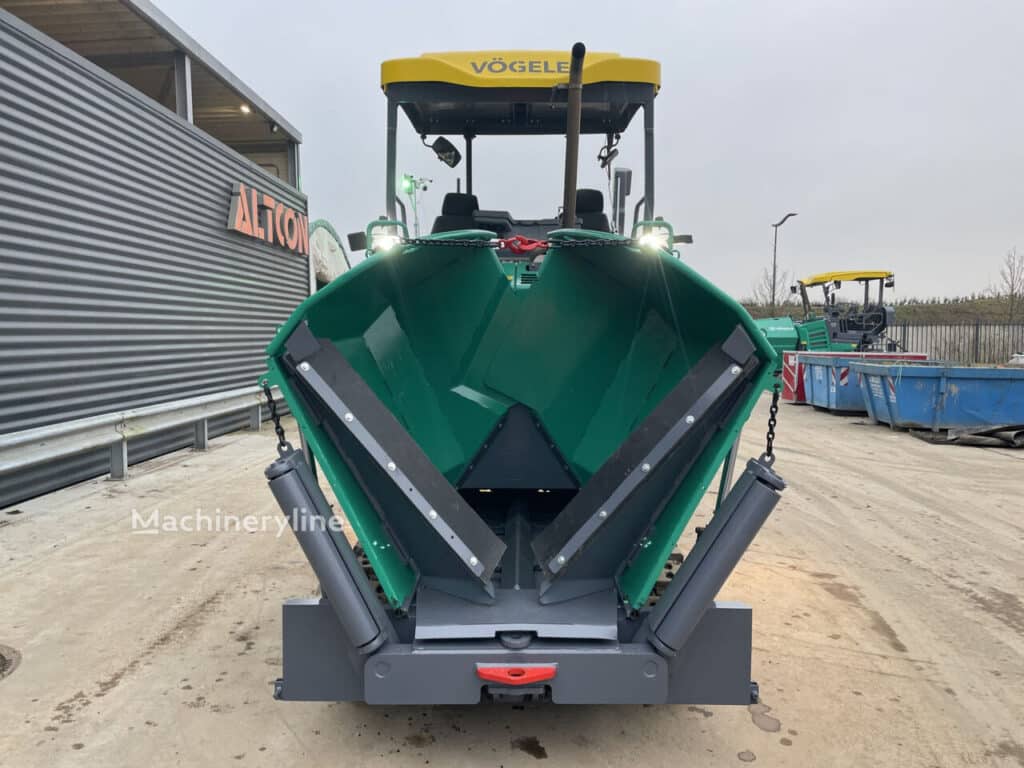

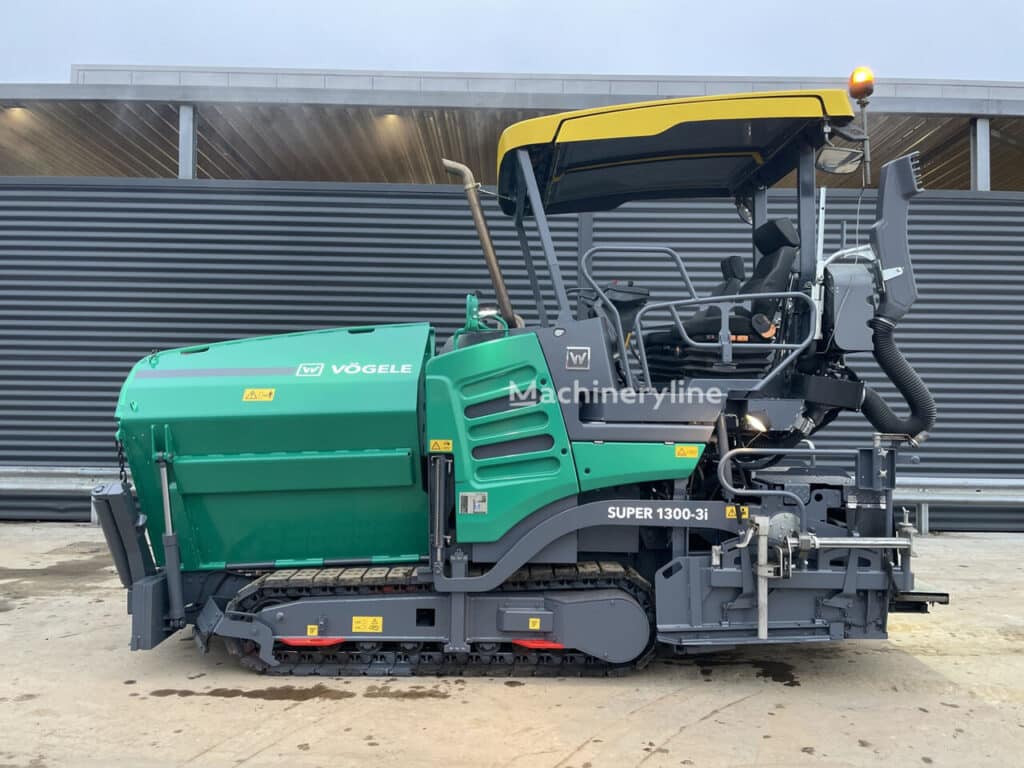

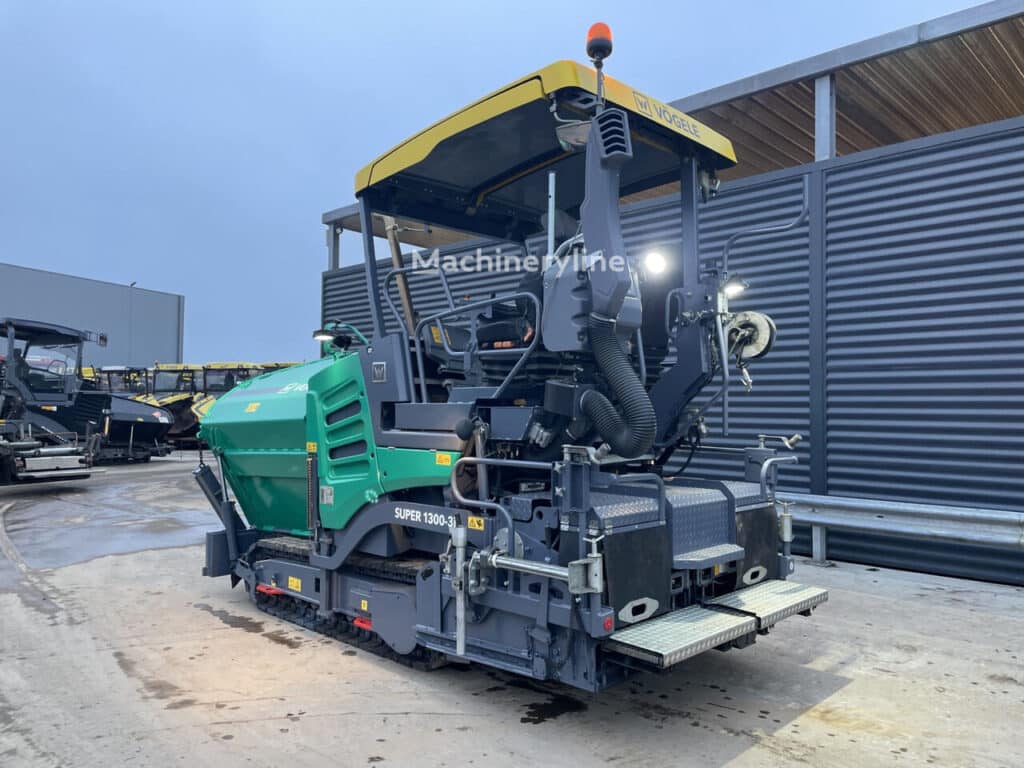

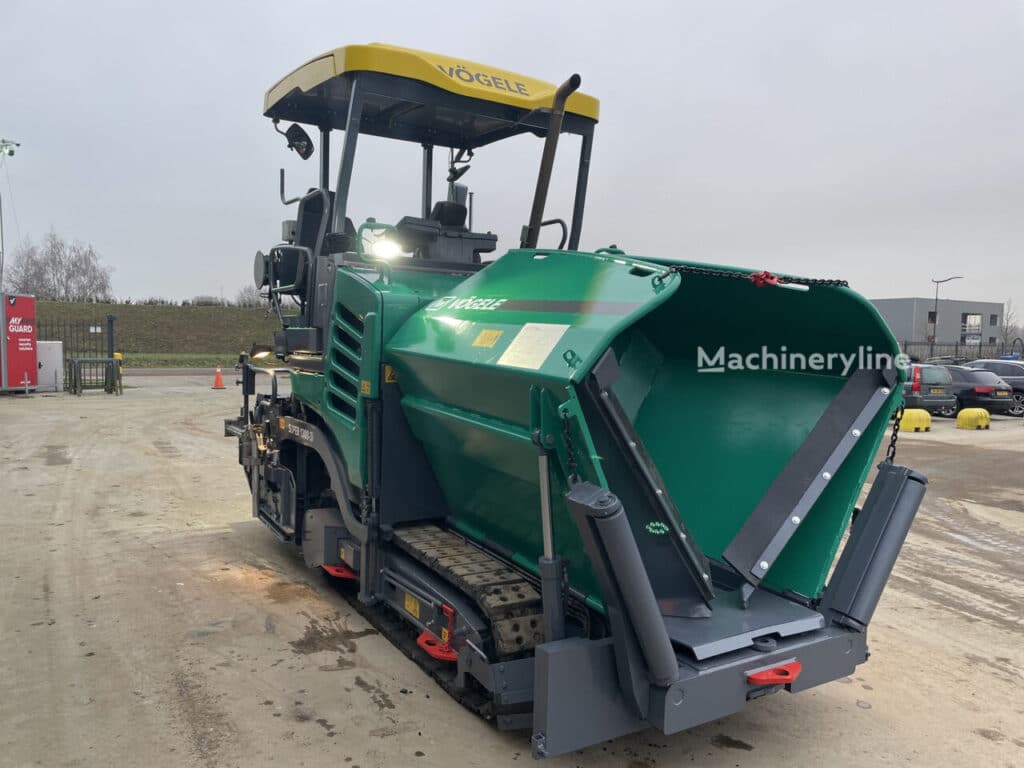

2019 - Vögele 1300-3I Asphalt Paver()
- Listing No
- 676977
- Year
- 2019
- Manufacturer
- Vögele
- Model
- Super 1300-3I
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: full operational & good working condition. = More information = Year of manufacture: 2019 GVW: 10.850 kg Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: full operational & good working condition. = Weitere Informationen = Baujahr: 2019 zGG: 10.850 kg Produktionsår: 2019 Totalvægt: 10.850 kg Año de fabricación: 2019 PBV: 10.850 kg Année de construction: 2019 PBV: 10.850 kg Screed AB340-3 TV with electrical heating (from 1,8 till 3,4 meter + additional extensions ON REQUEST), leveling system: VOGELE NIVELTRONIC PLUS (2x leveling sensors, 1x slope sensor, set wires), AutoSet Basic, 4x cyl engine DEUTZ TCD 3.6 L 4 / (output 74.4 kW), emission norm: EU stage 3b/ US tage TIER 4 laydown rate up to 350 t/hours, max. layer thickness 25 cm, hopper capacity 10 tonnes, pave speed up to 30 m/min, mechanical lifting system side plates, hardtop with wide sunshides, side warming, ErgoPlus operating system, halogen lights, CE- certified, EPA- certified, general condition: full operational & good working condition. = Meer informatie = Bouwjaar: 2019 GVW: 10.850 kg Rok produkcji: 2019 Dopuszczalna masa całkowita (dmc.): 10.850 kg Ano de fabrico: 2019 GVW: 10.850 kg Год выпуска: 2019 Полная масса автомобиля: 10.850 kg Byggnadsår: 2019 GVW: 10.850 kg
About this machine
This is an asphalt paver, a road-laying machine used to spread and compact hot asphalt concrete onto road surfaces. Vögele is a leading German manufacturer of paving equipment and road-construction machinery, serving civil engineering and infrastructure contractors worldwide.
This 2019 Vögele 1300-3I is a tracked asphalt paver in used condition, currently operational and in good working order. The machine is equipped with an AB340-3 TV screed featuring electrical heating and a working width range from 1.8 to 3.4 metres, with additional extensions available upon request. Levelling and slope control are managed by a Vögele Niveltronic Plus system comprising two levelling sensors, one slope sensor, and associated wire sensors, supported by AutoSet Basic automation.
Power is supplied by a four-cylinder Deutz TCD 3.6 L4 engine rated at 74.4 kW (approximately 101 horsepower), compliant with EU Stage 3b and US EPA Tier 4 emission standards. The paver has a material hopper capacity of 10 tonnes and can achieve a maximum paving speed of 30 metres per minute. Maximum layer thickness capability is 25 centimetres, with a laydown rate of up to 350 tonnes per hour.
The machine is equipped with mechanical side-plate lifting, a hardtop canopy with wide sunshades for operator protection, side warming for material conditioning, and an ErgoPlus operating cab. Halogen work lights are fitted. The paver carries full CE and EPA certification and has a gross vehicle weight of 10,850 kilograms.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
