2007 - Arburg 420A 1000-400 Injection Moulding()
- Listing No
- 1151918
- Year
- 2007
- Manufacturer
- Arburg
- Model
- 420A 1000-400
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Arburg 420A 1000-400 was manufactured in 2007. It features electromechanical main movements by servo drives, a modular plasticizing unit with adaptive temperature control, and a five-point double toggle clamping system with servo-electric adjustment. The Selogica control system enhances operational efficiency. If you are looking to get high-quality injection molding capabilities, consider the Arburg 420A 1000-400 machine we have for sale. Contact us for more information about this machine. Location: DE Electromechanical main movements by servo drives: dosing, injection, mold open/close, ejector Software packages (Pos 555/01–555/07): Extended mechanical cycle controls; Extended movements; Production control; Optimization/Operator assistance; Quality assurance control; Documentation Drive technology Hydraulic movement for nozzle displacement Thermoplastic processing Small hydraulic unit with accumulator 5.5 kW 10 cm³ pump (Pos 132/22) Machine platens with centering ring D125 mm (Pos 356/11) Injection unit (servo-controlled) Horizontal 400 injection unit Modular plasticizing unit with central coupling and adaptive temperature control Plasticizing assembly D25 mm high wear/corrosion resistance open nozzle (220/25) flat nozzle tip (300/00) heater band (320/00) (Pos 060/25) Heater band temperature up to 450 °C (Pos 427/02) Standard drive coupling double-flat (Pos 061/10) Without hopper (Pos 600/06) Servo-regulated programmable nozzle contact force (Pos 408/03) Clamping unit Five-point double toggle with servo-electric adjustment Electric mold height adjustment Prepared for mounting a linear robot on the fixed platen Mold protection via ejector position monitoring (Pos 605/05) Machine feet (Pos 605/03) Quick coupling for ejector bar (Pos 605/06) Electric ejector with position control (Pos 381/05) Programmable hydraulic core for parallel movements (Pos 382/00) Air blow unit 1 with pressure reducer (Pos 361/01) Machine cooling circuits regulated and programmable (Pos 525/02) Cooling water manifold with 4 manually adjustable circuits (Pos 512/04) Control electrical cabinet interfaces Selogica control Temperature-regulated electrical cabinet (Pos 605/07) Selogica Direct French language (Pos 131/05) Flash card reader (Pos 455/05) Operator authorization by card Euromap 65 (Pos 455/06) Acoustic alarm (Pos 457/00) Additional socket combination with RCD (Pos 444/01) 12 mold temperature measurement zones (Pos 469/12) Additional heater band for nozzle (Pos 468/01) Interface for HB-Therm mold temperature controller (Pos 453/01) USB serial interface for printer (Pos 454/03) Robot interface Euromap 67 (Pos 425/05) Electrical and mechanical preparation for external robot (Pos 425/02) Water shut-off valve (Pos 501/01) Interface for Thermolift dryer (Pos 464/01) Interface for color dosing unit (Pos 493/00) Additional equipment Electric conveyor belt programmable (Pos 412/02) Sorting flap for separating good/bad parts (Pos 375/00) Show the whole comment
About this machine

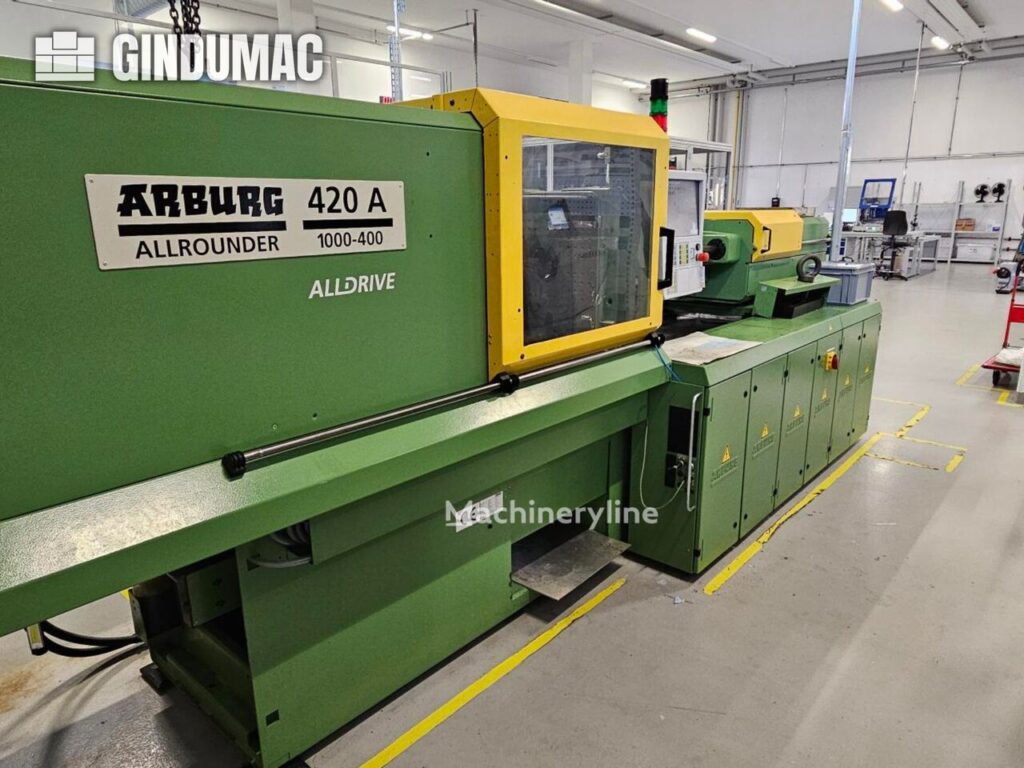

This Arburg 420A is a used injection moulding machine — sometimes referred to as an injection moulding press — dating from 2007 and currently located in Germany. Injection moulding machines are used to produce plastic components by injecting molten material into a mould under pressure, and they are found across a wide range of manufacturing industries including automotive, consumer goods, medical devices, and packaging. Arburg is a well-established German manufacturer with a long history of building precision injection moulding equipment, and the company is widely recognised for its all-electric and hybrid machine platforms as well as its proprietary Selogica control technology.

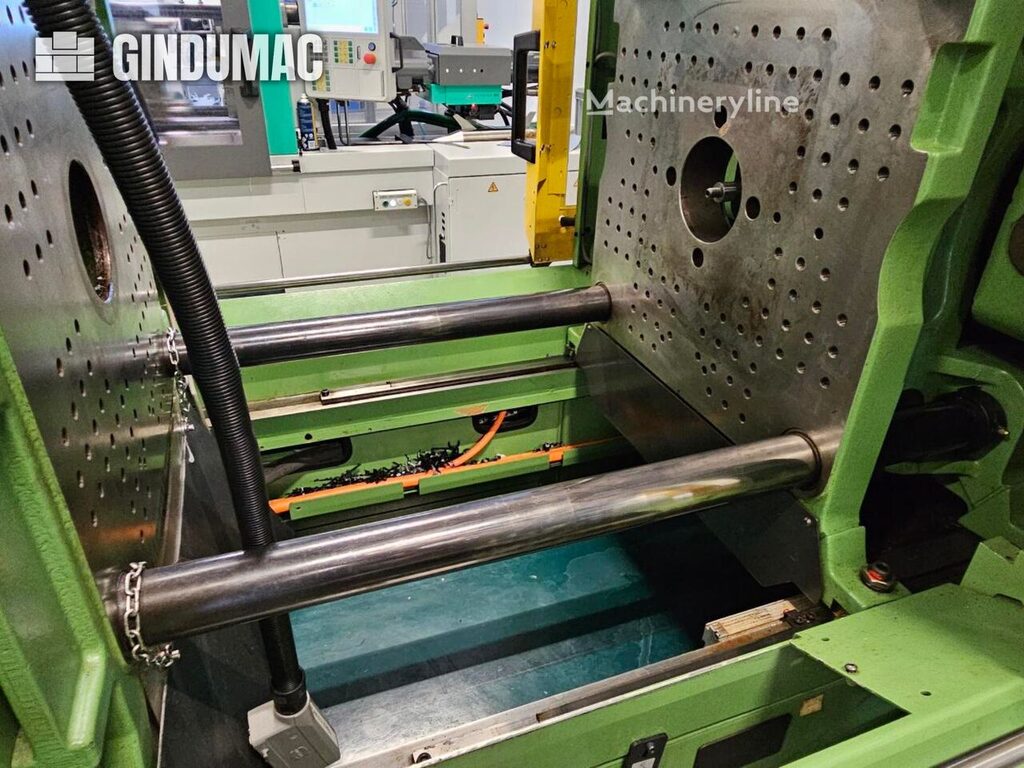

The machine's main movements — dosing, injection, mould open and close, and ejector — are electromechanical, driven by servo motors. Nozzle displacement is handled hydraulically, supported by a small hydraulic unit with an accumulator and a 10 cm³ pump rated at 5.5 kW. The clamping unit uses a five-point double-toggle design with servo-electric adjustment and electric mould height adjustment. Mould protection is provided via ejector position monitoring. The machine platens are fitted with a centering ring of 125 mm diameter, and the fixed platen is mechanically prepared for mounting a linear robot. A quick-coupling system is included for the ejector bar, and an electric ejector with position control is fitted. A programmable hydraulic core is available for parallel movements.
The injection unit is a horizontal 400 unit with servo regulation and a programmable nozzle contact force. The plasticizing unit is modular, featuring central coupling and adaptive temperature control. The plasticizing assembly has a 25 mm diameter screw built for high wear and corrosion resistance. The nozzle configuration includes an open nozzle and a flat nozzle tip, with heater band heating capable of reaching up to 450 °C. A standard drive coupling with double-flat connection is fitted. The machine is configured for thermoplastic processing and is supplied without a hopper.

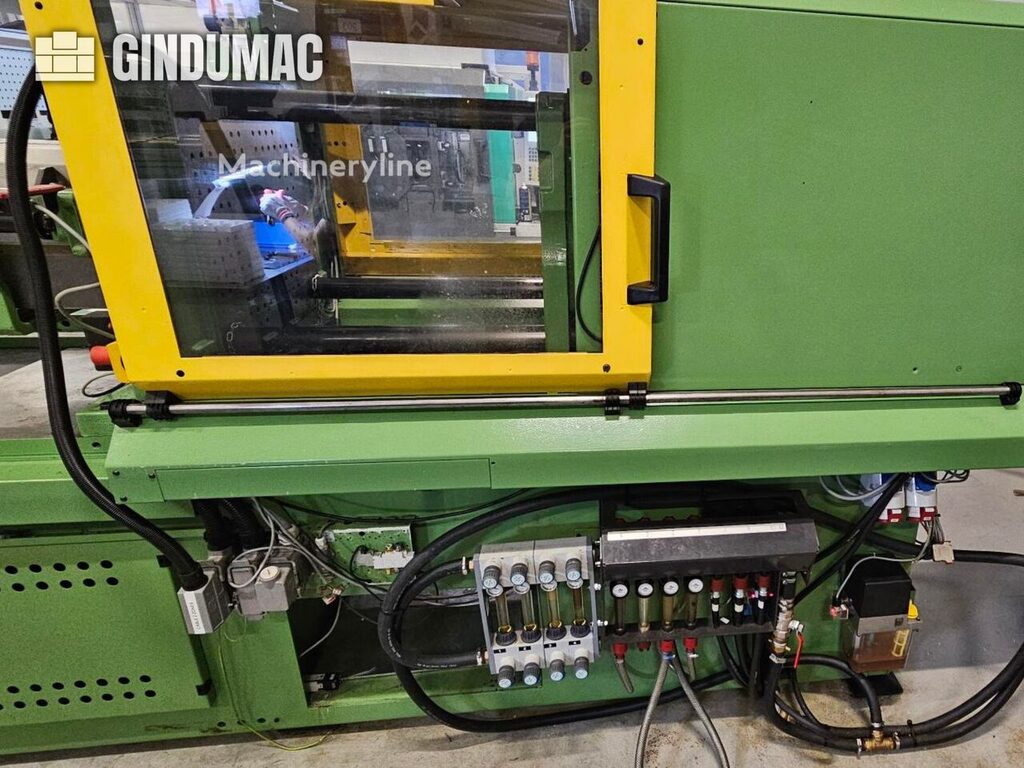

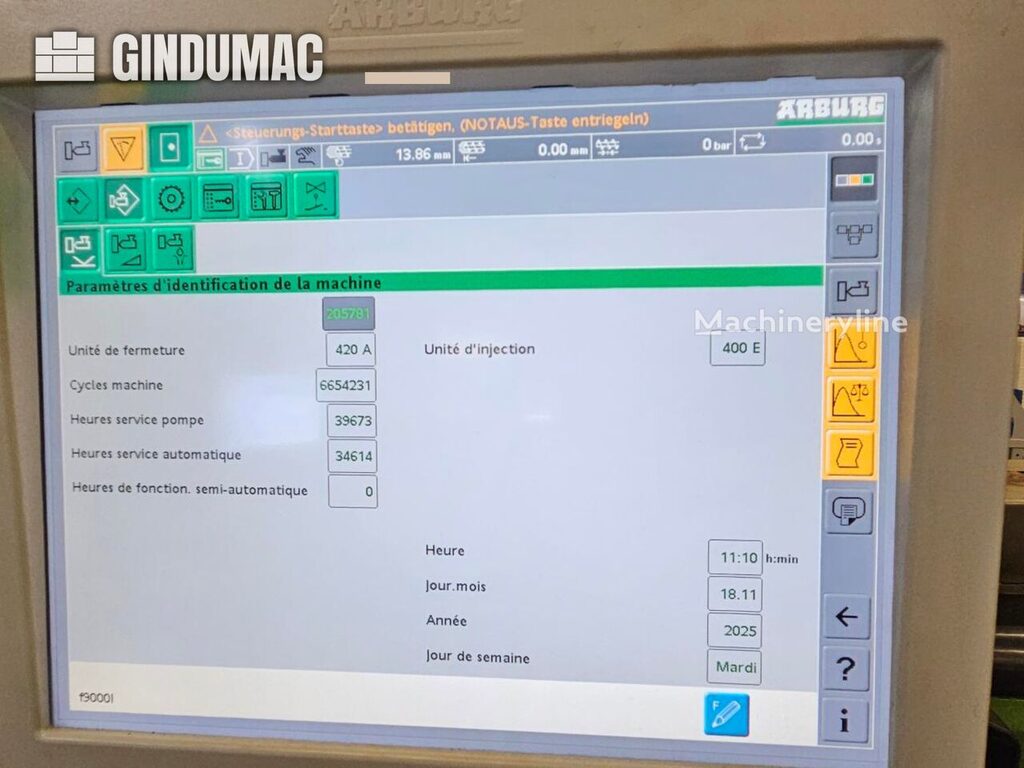

Machine cooling is regulated and programmable, with a water cooling manifold providing four manually adjustable circuits. A water shut-off valve is included. The electrical cabinet is temperature-regulated, and the control system is Selogica Direct. The interface suite is extensive: Euromap 65 and Euromap 67 robot interfaces are fitted, along with electrical and mechanical preparation for an external robot. Additional interfaces include connections for an HB-Therm mould temperature controller, a Thermolift dryer, and a colour dosing unit. A USB serial interface for a printer, a flash card reader, and operator authorisation by card are also present. The control system supports 12 mould temperature measurement zones and includes an additional heater band for the nozzle. An acoustic alarm and an additional socket combination with RCD are fitted.
Seven software packages are included covering extended mechanical cycle controls, extended movements, production control, optimisation and operator assistance, quality assurance control, and documentation. The control interface is configured in French. Additional equipment fitted to the machine includes a programmable electric conveyor belt and a sorting flap for separating good and bad parts.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
