2014 - Arburg 570A2000-1300 Injection Moulding()
- Listing No
- 1152094
- Year
- 2014
- Manufacturer
- Arburg
- Model
- 570A2000-1300
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Nombre de noyaux / Core pulling : 2 Interface robot : Eurompa 67 Soufflettes / Air circuit :1 Zone chauffe moule : 12 Diamètre de vis / Screw diameter mm : 60 Volume injectable/ Shot volume cm3 : 678 Poids injectable/ Shot Weight Gr : 620 Pression d’injection / Injection Pressure bar : 2000 Passage entre colonne / Bettween tie bar mm : 570 x 570 Dimensions des Plateaux /Platen sizes mm : 795 x 795 Course d’ouverture / Opening Stroke mm : 450 Epaisseur moule / Mould Height Mini-maxi mm : 250-550
About this machine

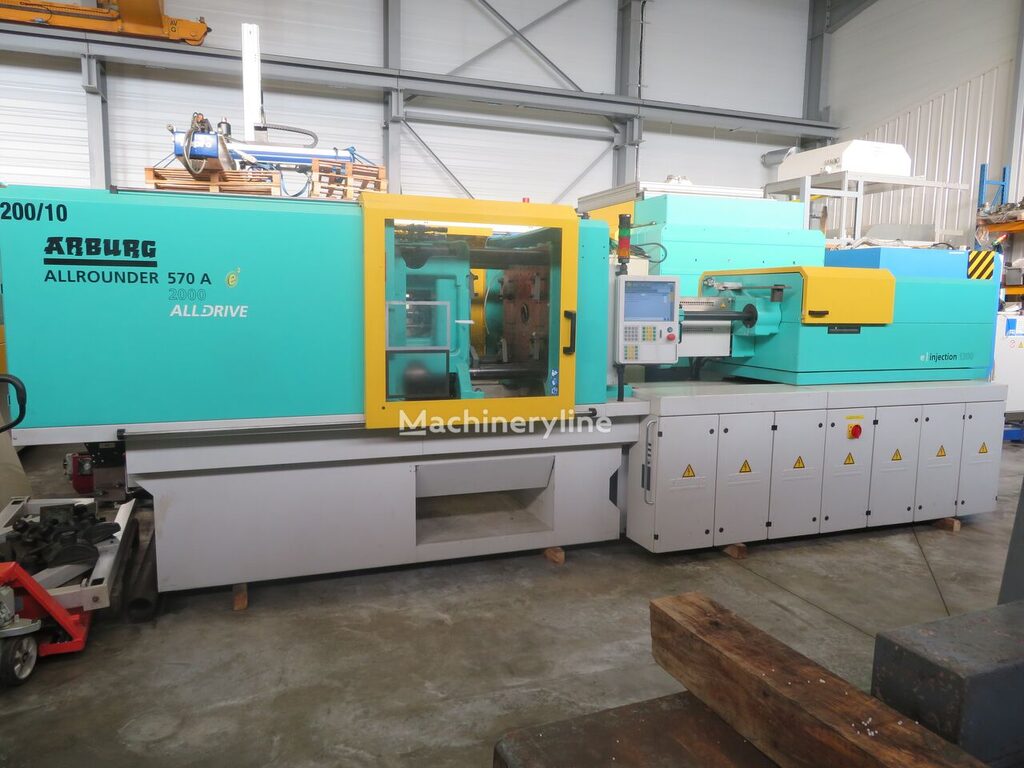

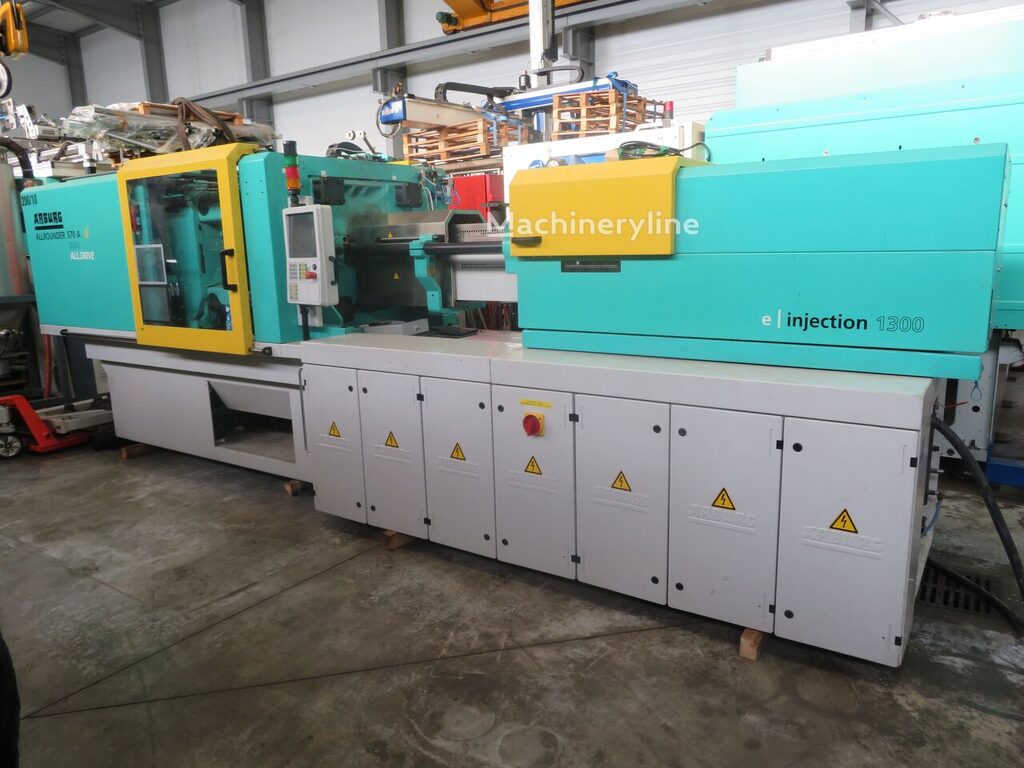

This Arburg 570A is a used injection moulding machine — sometimes referred to as a plastic injection press — built in 2014 and currently located in France. Injection moulding machines are used to produce plastic components by injecting molten material under high pressure into a closed mould, making them a cornerstone of high-volume plastics manufacturing across the automotive, packaging, consumer goods, and medical industries. Arburg is a well-established German manufacturer with a long-standing reputation for precision injection moulding equipment, and their machines are widely used in demanding production environments worldwide.
This machine is equipped with a 60 mm screw diameter and delivers a shot volume of 678 cm³ with a maximum shot weight of 620 grams, making it well suited to medium-to-large part production. The maximum injection pressure is 2,000 bar, providing the force needed for complex or dense mouldings.
The clamping unit accepts moulds between a minimum height of 250 mm and a maximum of 550 mm, with a tie-bar spacing of 570 × 570 mm and platen dimensions of 795 × 795 mm. The opening stroke is 450 mm, allowing straightforward demoulding of parts within that depth range.
The machine includes two core pulls, which enables the use of moulds with retractable cores for undercuts or internal features. A robot interface to the Eurompa 67 standard is fitted, allowing integration with an external handling or automation system. The mould heating circuit provides 12 zones, giving precise and independent thermal control across the mould, and a single air circuit with blowing nozzle is also present.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
