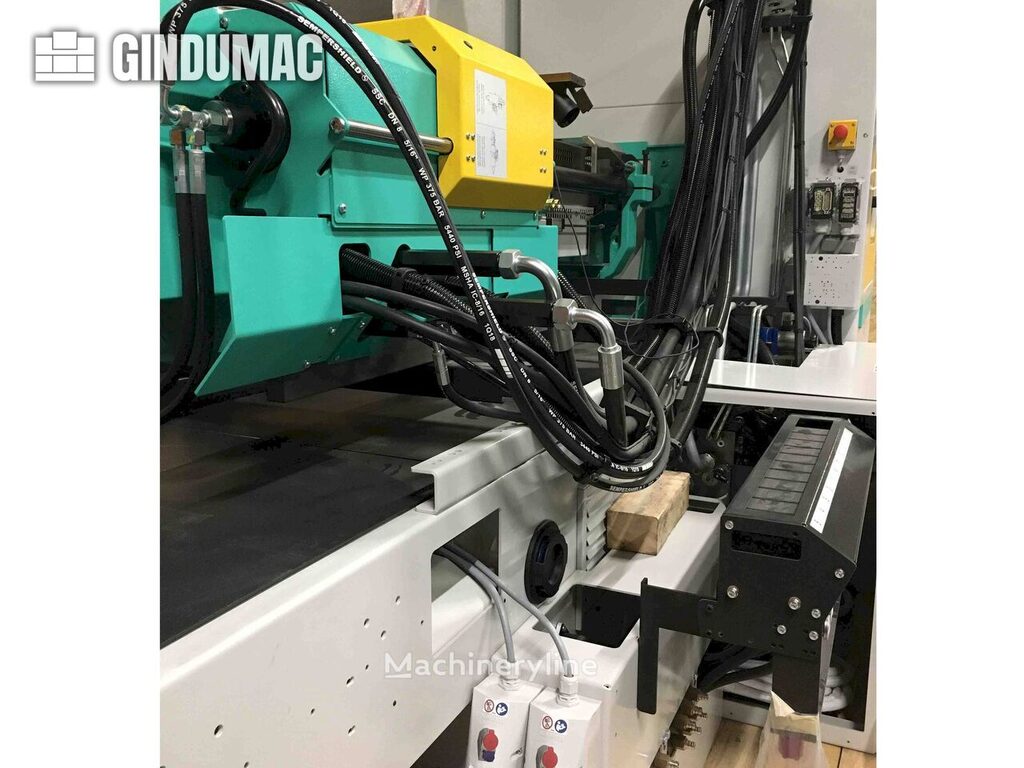

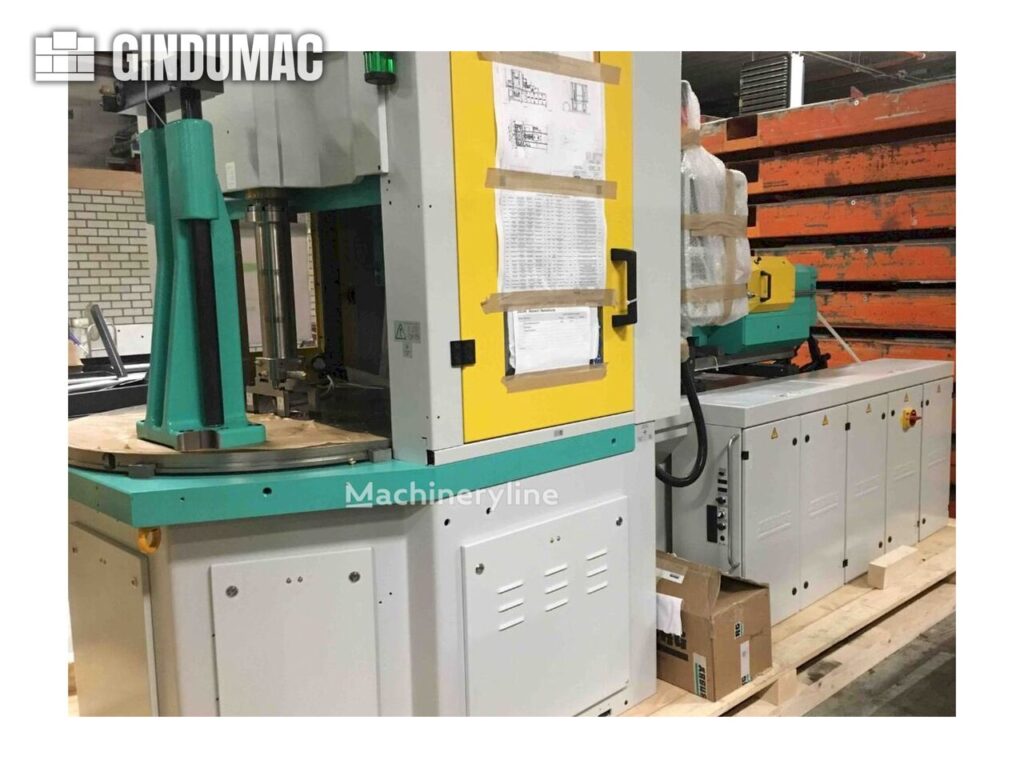

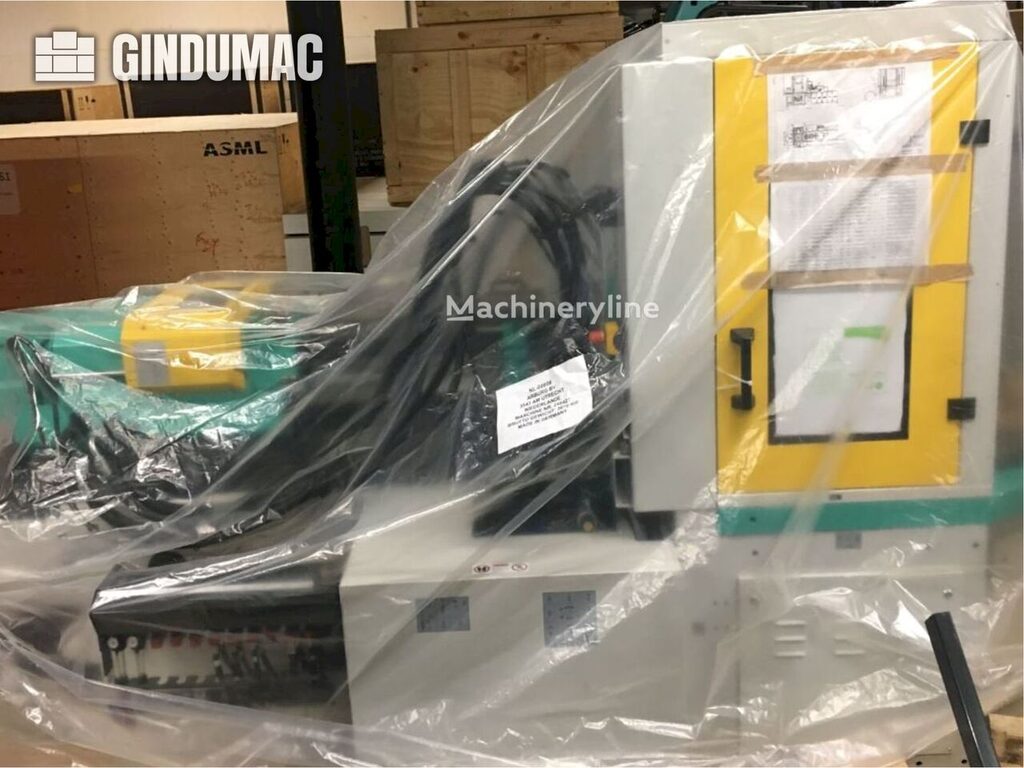

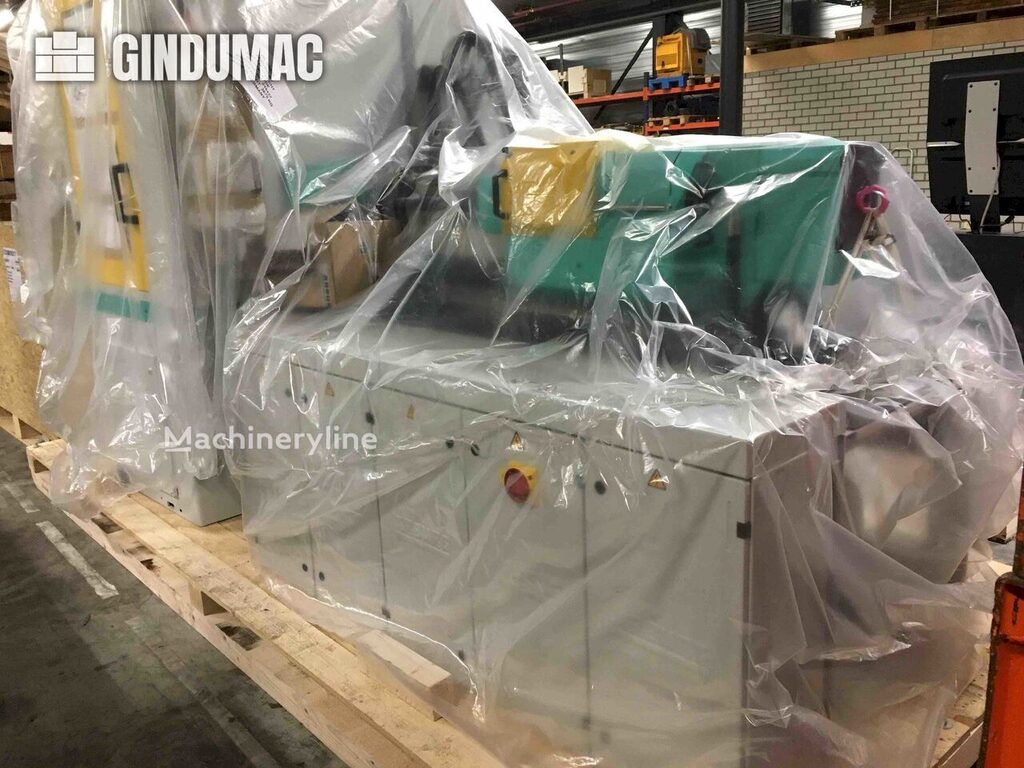

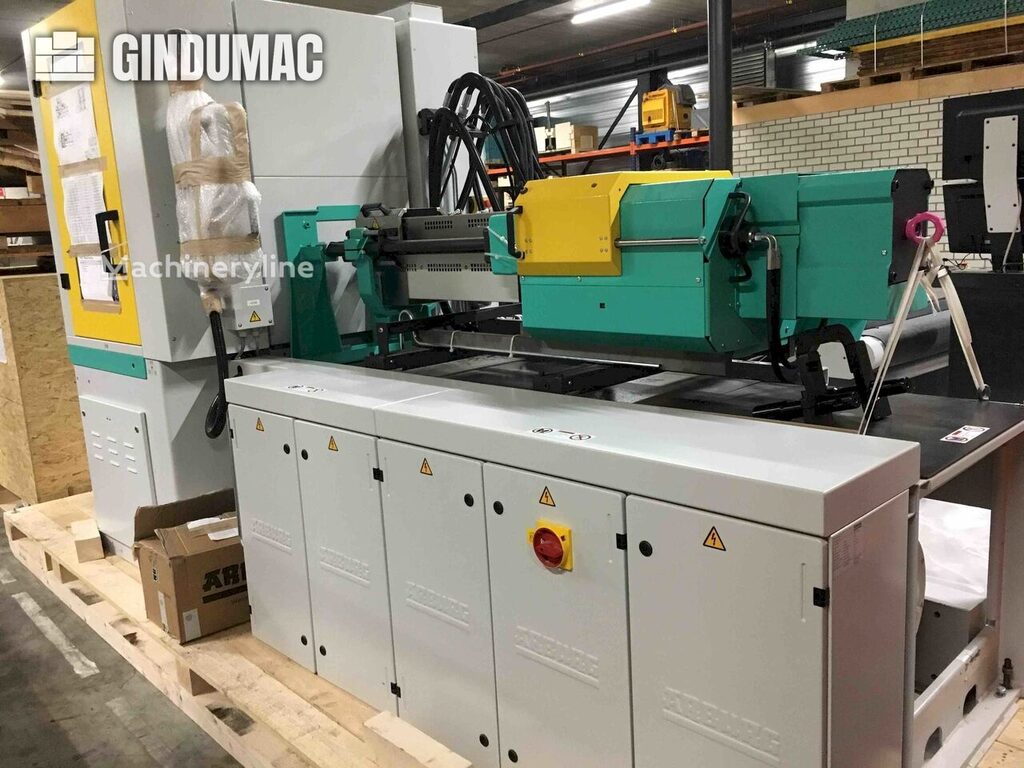

2018 - Arburg Allrounder 120 Injection Moulding()
- Listing No
- 1151940
- Year
- 2018
- Manufacturer
- Arburg
- Model
- Allrounder 120
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Arburg ALLROUNDER 1200 t 1000 - 400 Injection moulding machine was manufactured in the year 2018 in Germany. It has 58 production hours. The machine has a clamping force of 1000 kN, machine like new, used only for testing. Machine needs to be CE certified by the customer, we have a quote from a third party starting at 2.000€. Location: NL Screw Diameter: 35 mm Hubvolume [cm^3]: 154 L/d ratio screw: 23 Max. Mold width [mm]: rotating table diam. 1200mm Max. Mold height [mm]: 400 (combination with mouldstroke) Diameter locating ring(s) [mm]: 125 Nose radius: r40 Number of cooling circuits: injection: 1, turning table: 3 Machine Benefits Technical Machine Benefits Extra Information The machine was part of a production cell and would need to be CE certified by the customer. We have received target prices for certifiying by a consultancy who could do this starting from 2.000€
About this machine
This Arburg Allrounder 120 is an injection moulding machine — sometimes referred to as an injection moulding press — used to manufacture plastic components by injecting molten material into a mould under high pressure. Arburg is a well-established German manufacturer of injection moulding machinery, supplying equipment to industries including automotive, medical technology, packaging, and consumer goods.
This machine was manufactured in Germany in 2018 and is offered in used condition, located in the Netherlands. Despite its age, it has accumulated only 58 production hours and was used exclusively for testing purposes, leaving it in near-new condition.
On the injection side, the machine is equipped with a 35 mm screw diameter, a shot volume of 154 cm³, and a length-to-diameter ratio of 23. The clamping force is 1,000 kN. The tooling interface features a locating ring diameter of 125 mm and a nozzle nose radius of r40. The machine incorporates a rotating table with a diameter of 1,200 mm, which serves as the maximum mould width reference, while the maximum mould height is 400 mm in combination with the mould stroke. Cooling is provided by one circuit on the injection side and three circuits on the rotating table.
The machine was previously integrated into a production cell. As a result, it does not currently hold a standalone CE certification, and the buyer will need to arrange this independently. A third-party consultancy has provided a quote for this certification process starting from €2,000.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
