2023 - Atlas Copco QAS 40 ST3 Valid inspection, *Guarantee! Diesel, 4 Diesel Generator()
- Listing No
- 821905
- Year
- 2023
- Manufacturer
- Atlas Copco
- Model
- QAS 40 ST3 VAL
- Condition
- Used
- Location
- Netherlands
- Price
- €19,900
- Description
-
Field of application: ConstructionTransport dimensions (LxWxH): 2.45x1.1x1.48Please contact PFEIFER GROUP (See no., See no., ) for more informationVerwendungszweck: BauwesenTransportabmessungen (L x B x H): 2.45x1.1x1.48Wenden Sie sich an PFEIFER GROUP (See no., See no., ), um weitere Informationen zu erhalten.Pfeifer Heavy Machinery B.V is an official Atlas Copco dealer.This machine has a valid inspection and can be sold with warranty. Inform about our conditions!Manufacturer: Atlas Copco.Typ: QAS 40 ST3Building year: 2023Serial nr: ESF372663Fuel: DieselElectrical dataRated frequency: (1) Hz 50Rated voltage (2) V 400Prime power (PRP) kVA / kW 40 / 32Rated standby power (ESP) kVA / kW 44 / 35Power factor cos 0,8Rated current (PRP) A 57,8Single step load capability (G2) acc. ISO-8528/5 85 | 77Fuel tank capacity / Optional: 92 / 282Fuel consumption at 100% PRP load l / 9.5Fuel autonomy at full load / Optional: 9.7 / 27 hEngineModel: Kubota 4 CylinderSpeed rpm: 1500Rated net power (with fan) kWm: 38Aspiration: TurbochargedSpeed control: ElectronicNo. Of cylinders: 4Coolant: ParcoolSwept volume: 3,8 LAltinatorModel: LEROY SOMER LSA 42.3 S5Rated Output (ESP 27ºC): kVA 45Degree of protection / Insulation class: IP 23 / HNoise LevelSound power level (LwA): dB(A) 89 | 91Sound pressure level (LpA) at 7m: dB(A) 63* 60Hz models available, please consult.* Other voltages available, please consult.CE (Declaration of Conformity)More detailed pictures / product movie on our website.pfeifermachinery.comAbove specifications are subject to change without prior notice and subject to errors.Meer informatieToepassingsgebied: BouwAfmetingen (LxBxH) (m): 2.45x1.1x1.48Neem voor meer informatie contact op met PFEIFER GROUP (See no., See no., ) Poids à vide : 1039kg, Référence parc : 21E76C98, Numéro de série : ESF372663, Poids à vide : 1039kg, Nombre d'heures du moteur : 1867, Informations Moteur : Kubota, Puissance apparente : 40kVA, Poids : 1.039kg, Type d'intérieur : Autre, Type de pneus : Simples, Marque du moteur : Kubota
About this machine

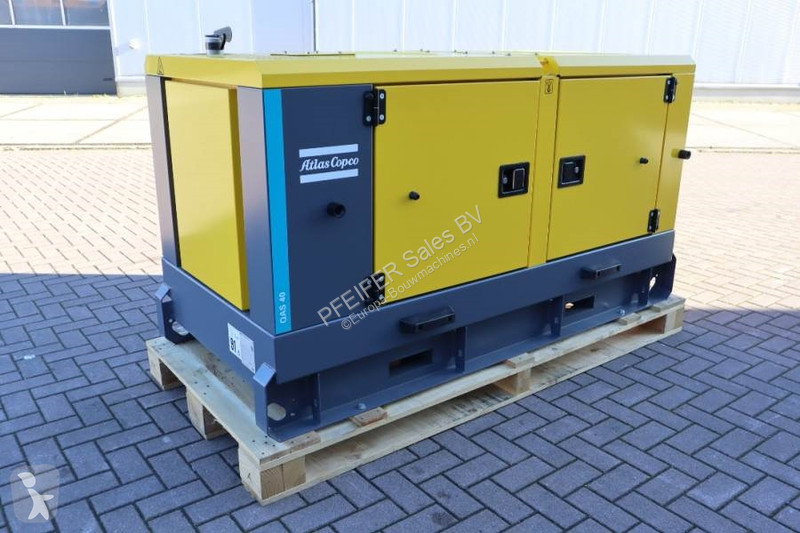

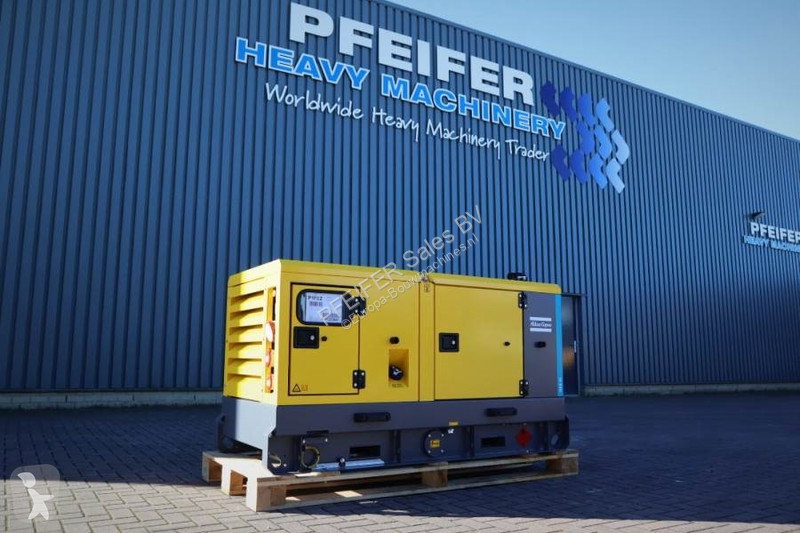

The Atlas Copco QAS 40 ST3 is a diesel generator set designed for construction and transport applications. Atlas Copco is a globally recognised manufacturer of industrial machinery, compressors, and power solutions serving construction, manufacturing, and infrastructure sectors.
This unit was manufactured in 2023 and is currently located in the Netherlands. It has passed a valid inspection and is offered with warranty coverage. The machine carries serial number ESF372663 and has accumulated 1,867 engine hours.
The generator delivers prime power (PRP) output of 40 kVA / 32 kW and rated standby power (ESP) of 44 kVA / 35 kW at 50 Hz, 400 V three-phase, with a power factor of 0.8. The rated current under prime load is 57.8 A. It achieves single-step load capability of 85 percent according to ISO 8528/5. The alternator is a Leroy Somer LSA 42.3 S5 model rated at 45 kVA (ESP, 27°C), with IP 23 protection and class H insulation.
Power is provided by a four-cylinder turbocharged Kubota diesel engine operating at 1,500 rpm. The engine displaces 3.8 litres and develops 38 kW net power with integrated cooling (Parcool). Electronic speed control maintains stable frequency and load response.
The fuel tank has a standard capacity of 92 litres, with an optional 282-litre tank available. At 100 percent prime load, fuel consumption is 9.5 litres per hour, delivering operational autonomy of 9.7 hours at full load with the standard tank, or approximately 27 hours with the extended tank option. The machine weighs 1,039 kg empty. Transport dimensions are 2.45 m long, 1.1 m wide, and 1.48 m high.
Acoustic performance is specified at a sound power level of 89–91 dB(A) depending on load, with a sound pressure level of 63 dB(A) (or 60 dB(A) in quieter operating modes) measured at 7 metres distance. The unit carries CE Declaration of Conformity. This is a used 2023 machine priced at €19,900.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
