2020 - Atlas Copco QAS5 100 JD S3A Valid inspection, *Guarantee! Die Diesel Generator()
- Listing No
- 808378
- Year
- 2020
- Manufacturer
- Atlas Copco
- Model
- QAS5 100 JD S3
- Condition
- Used
- Location
- Netherlands
- Price
- €24,500
- Description
-
Field of application: ConstructionTransport dimensions (LxWxH): 2.85x1.1x1.62Please contact PFEIFER GROUP (See no., See no., ) for more informationVerwendungszweck: BauwesenTransportabmessungen (L x B x H): 2.85x1.1x1.62Wenden Sie sich an PFEIFER GROUP (See no., See no., ), um weitere Informationen zu erhalten.Pfeifer Heavy Machinery B.V is an official Atlas Copco dealer.This Atlas Copco Is Also Available For Rent!Manufacturer: Atlas CopcoTyp: QAS5 100 JD S3ABuilding year: NewFuel: DieselElectrical dataRated frequency: (1) Hz 50 | 60Rated voltage (2) V 400 | 480Prime power (PRP) kVA / kW 100 / 80 | 114 / 91Rated standby power (ESP) kVA / kW 110 / 88 | 125 / 100Power factor cos ? 0,8Rated current (PRP) A 150 | 137Single step load capability (G2) acc. ISO-8528/5 80 | 85%Fuel tank capacity / Optional: 250 / 592Fuel consumption at 100% PRP load 23 | 26,7 l/hFuel autonomy at full load / Optional: 10 / 23,7 | 8,6 / 20,4 hEngineModel: John Deere TurboSpeed rpm: 1500 | 1800Rated net power (with fan) kWm: 88,6 | 100Aspiration: Turbocharged and intercooledSpeed control: Mechanical / ElectronicNo. Of cylinders: 4Coolant: ParcoolSwept volume: 4,4 LAltinatorModel: LEROY SOMER LSA 44.3 S5Rated Output (ESP 27ºC): kVA 110 | 131Degree of protection / Insulation class: IP 23 / HNoise LevelSound power level (LwA): dB(A) 91 | 95Sound pressure level (LpA) at 7m: dB(A) 63 | 67* 60Hz models available, please consult.* Other voltages available, please consult.CE (Declaration of Conformity)More detailed pictures / product movie on our website.pfeifermachinery.comAbove specifications are subject to change without prior notice and subject to errors.Meer informatieToepassingsgebied: BouwAfmetingen (LxBxH) (m): 2.85x1.1x1.62Neem voor meer informatie contact op met PFEIFER GROUP (See no., See no., ) Poids à vide : 2345kg, Référence parc : 58E3E524, Numéro de série : ESF403928, Poids à vide : 2345kg, Nombre d'heures du moteur : 13740, Informations Moteur : John Deere, Puissance apparente : 100kVA, Poids : 2.345kg, Type d'intérieur : Autre, Type de pneus : Simples, Marque du moteur : John Deere
About this machine

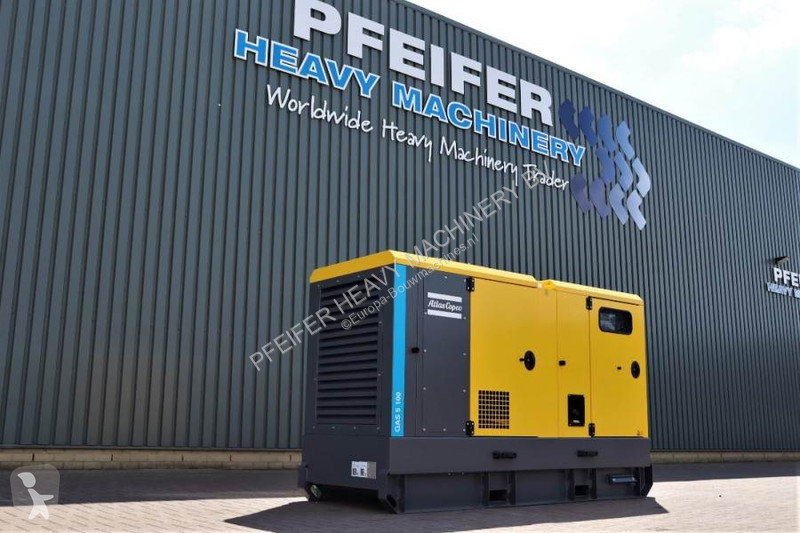

This is a diesel generator manufactured by Atlas Copco, a leading provider of industrial machinery and power solutions. The Atlas Copco QAS5 100 JD S3A is a portable diesel generator designed for construction and transport applications, delivering reliable on-site power generation where mains electricity is unavailable or impractical.
The unit is powered by a John Deere turbocharged and intercooled four-cylinder diesel engine with a swept volume of 4.4 litres. The engine operates at either 1500 rpm or 1800 rpm depending on configuration, producing rated net power of 88.6 kW at 1500 rpm or 100 kW at 1800 rpm. Power output is generated via a LEROY SOMER LSA 44.3 S5 alternator rated at 110 kVA or 131 kVA (ESP 27°C), with prime power (PRP) output of 100 kVA / 80 kW or 114 kVA / 91 kW across the two speed configurations. The generator supports both 50 Hz and 60 Hz operation with voltage options of 400 V or 480 V, and operates at a power factor of 0.8.
The diesel fuel tank holds 250 litres in the standard configuration, with an optional 592-litre capacity available. At full 100% PRP load, fuel consumption is 23 litres per hour at 1500 rpm or 26.7 litres per hour at 1800 rpm, providing full-load autonomy of approximately 10 hours with the standard tank or 23.7 hours with the optional larger tank. Single-step load capability is rated at 80–85% in accordance with ISO 8528/5.

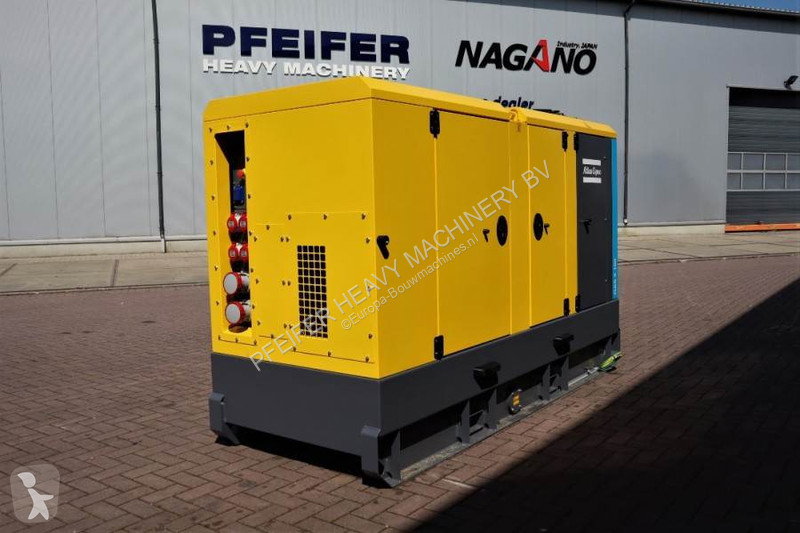

The generator is compact and portable, with transport dimensions of 2.85 metres (length) × 1.1 metres (width) × 1.62 metres (height), and an unladen weight of 2,345 kg. Cooling is provided by a Parcool system. Speed control is mechanical or electronic depending on configuration. The unit carries CE certification and is rated IP 23 protection class with H insulation. Noise levels are 91–95 dB(A) sound power level and 63–67 dB(A) sound pressure level at 7 metres, depending on configuration.
This machine is a 2020 model in used condition with 13,740 engine hours recorded. The unit is located in the Netherlands and carries a valid inspection certificate and guarantee.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
