1990 - Bacci TSG.2T Wood Saw()
- Listing No
- 983919
- Year
- 1990
- Manufacturer
- Bacci
- Model
- TSG.2T
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Machine number: 2137 max tenon width: 115 mm + thickness min and max tenon thickness: 0-42 mm min and max tenon depth: 10-45 mm vertical: 80 mm tilting upwards: 0° - 15° tilting downwards: 0° - 30° side tilting: 0° - 20° cutter spindle motor: 3 kW motor for drum rotation: 0,75 kW Table adjustments fence on table for mitre positioning
About this machine

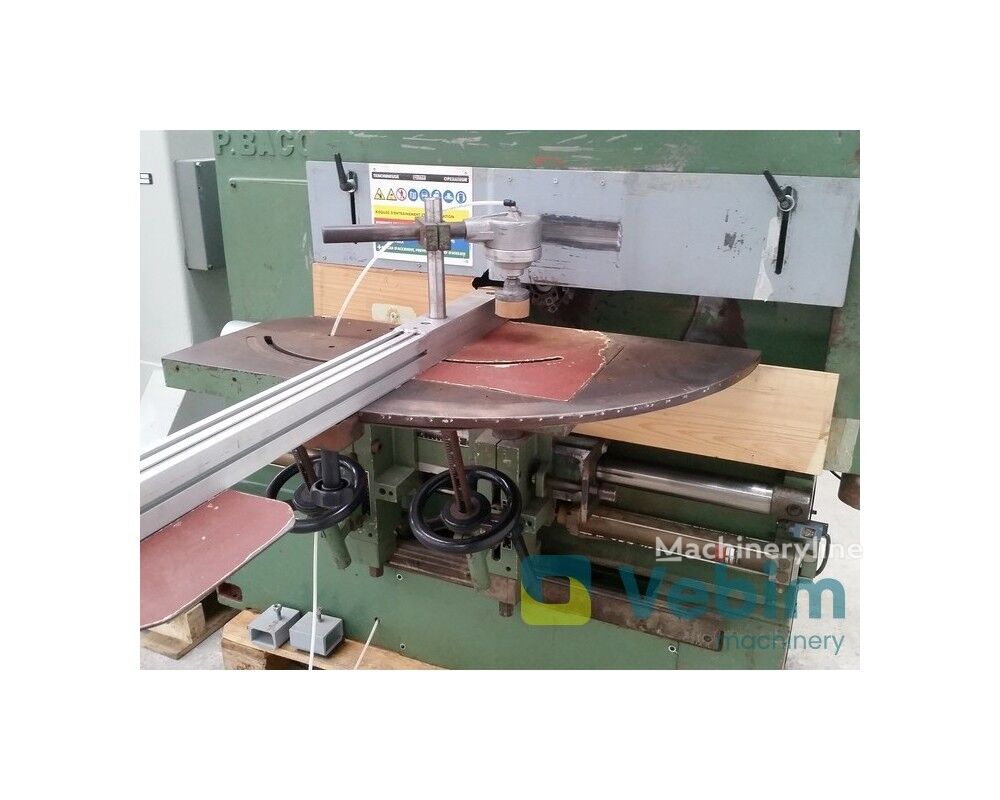

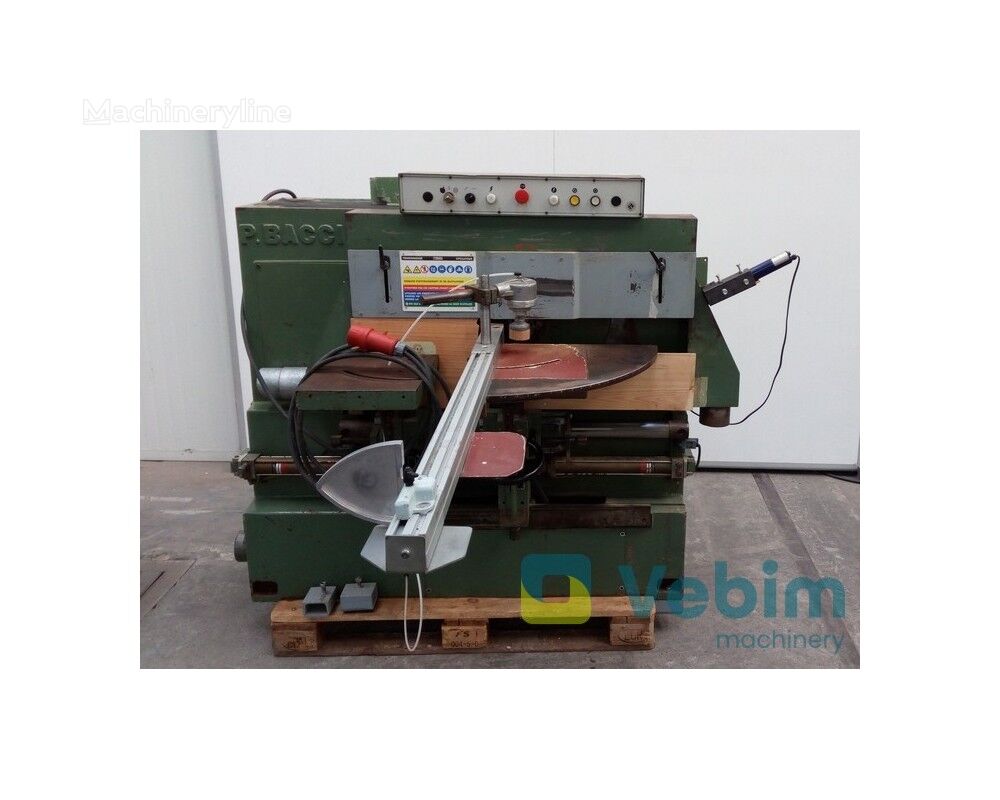

The Bacci TSG.2T is a used wood saw — sometimes referred to as a tenoner or tenoning machine — designed to cut precise tenons in wooden workpieces. Bacci is an Italian manufacturer with a long-standing reputation in the woodworking machinery industry, producing equipment for furniture makers, joiners, and timber fabricators. This example dates from 1990 and is located in Belgium, carrying machine number 2137.
The machine's tenoning capabilities are well defined by the seller's specifications. Maximum tenon width is 115 mm plus the material thickness, giving considerable flexibility across a range of workpiece sizes. Tenon thickness is adjustable from 0 to 42 mm, and tenon depth can be set anywhere between 10 and 45 mm, covering a broad spectrum of joinery applications. A vertical adjustment of 80 mm is also available.

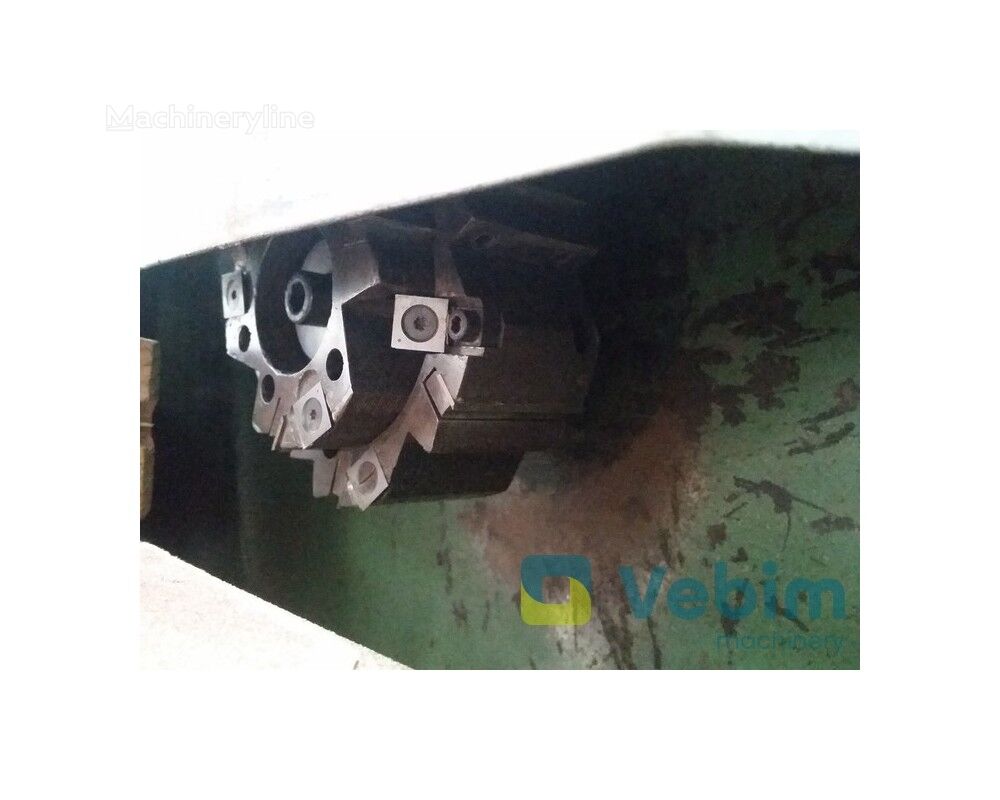

The cutter head offers a generous range of angular movement, making it suitable for angled and compound tenon work. It tilts upward from 0° to 15° and downward from 0° to 30°, while side tilting extends from 0° to 20°. This combination of adjustments allows the machine to produce both square and angled tenons without repositioning the workpiece.

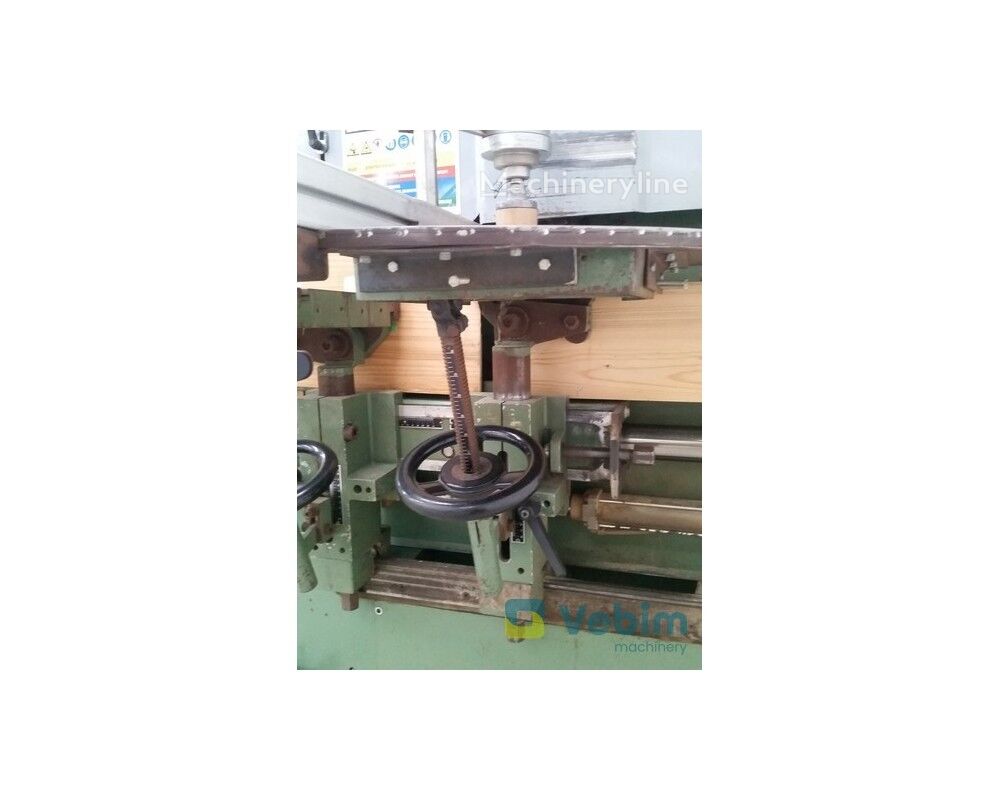

Power is provided by a 3 kW cutter spindle motor, with a separate 0.75 kW motor dedicated to drum rotation. The table is adjustable, and a fence with mitre positioning is included, supporting accurate and repeatable cuts across production runs. The machine is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
