2019 - Bomar Individual 520.360 Ganc Band Saw()
- Listing No
- 953605
- Year
- 2019
- Manufacturer
- Bomar
- Model
- 520.360 Ganc
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This BOMAR Individual 520.360 GANC was manufactured in 2019. It features an automatic operating mode with a mitre cutting range of 0° – 60°. The saw band operates at speeds between 20 – 120 m/min, accommodating a maximum material weight of 2,500 kg. Ideal for those looking to enhance their metal cutting capabilities. Contact us for more information about this machine. Additional information Operating mode: Automatic Mitre cutting range: 0° – 60° Drive: 3 kW, 3x400V, 50 Hz Saw band size: 4780 x 34 x 1.1 mm Material loading height: 770 mm Shortest length of rest: 220 mm One upstroke: 750 mm Maximum weight of material: 2500 kg Saw band speed: 20 – 120 m/min Disconnected, currently cannot be operated, but was fully operational prior to factory relocation. The seller can dismantle and load the machine for transport. Not the main company bandsaw due to bulky size relative to material processed. application type: Sawing Location: Estonia machine type: Metal Band Saw Machine Depth: 3350 mm
About this machine

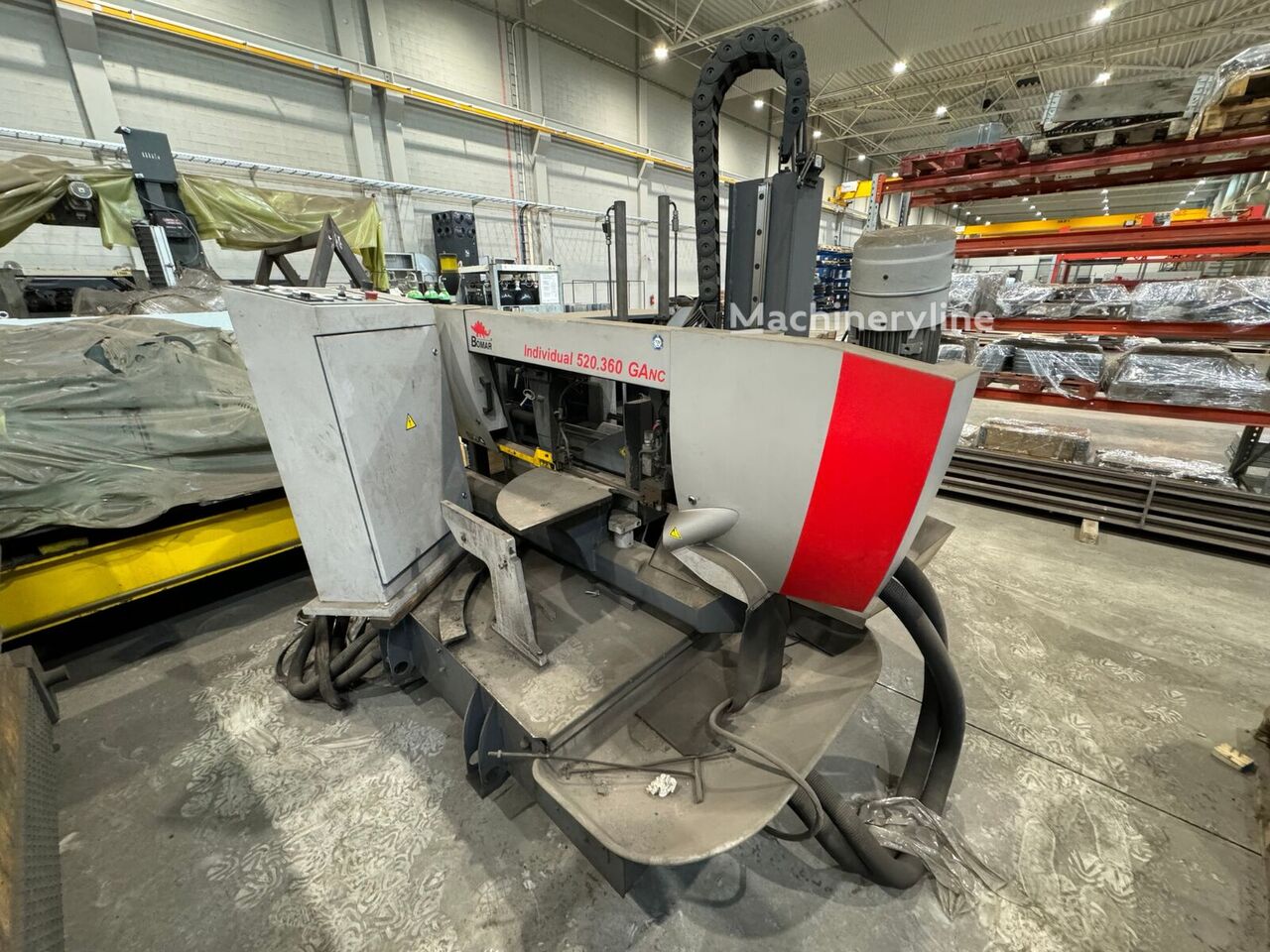

The Bomar Individual 520.360 Ganc is a horizontal band saw — sometimes referred to as a horizontal bandsaw or cold saw in the context of metal cutting — designed for cutting metal stock in production and fabrication environments. Bomar is a well-regarded manufacturer of industrial band sawing machines, supplying equipment to metalworking and manufacturing industries where precise, repeatable cuts through solid and hollow metal profiles are required.
This machine was built in 2019 and operates in automatic mode, making it suited to higher-throughput cutting applications where consistent, unattended cycling is an advantage. It offers a mitre cutting range of 0° to 60°, allowing angled cuts across a broad working range. The saw band measures 4,780 × 34 × 1.1 mm and runs at variable speeds between 20 and 120 m/min, giving the operator flexibility to match the cutting speed to the material being processed. The drive is a three-phase electric motor rated at 3 kW, running on 3×400 V at 50 Hz.
Material loading height sits at 770 mm, and the machine has a minimum remnant cutting length of 220 mm. A single upstroke of 750 mm accommodates substantial workpiece dimensions, while the maximum supported material weight is 2,500 kg, reflecting the machine's capacity for heavy stock. The overall machine depth is 3,350 mm.
The machine is currently disconnected and cannot be operated in its present state, though the seller states it was fully operational prior to a factory relocation. It was not the primary band saw at the seller's facility, having been set aside due to its size relative to the materials being processed there. The seller is able to dismantle the machine and assist with loading for transport. The machine is located in Germany.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
